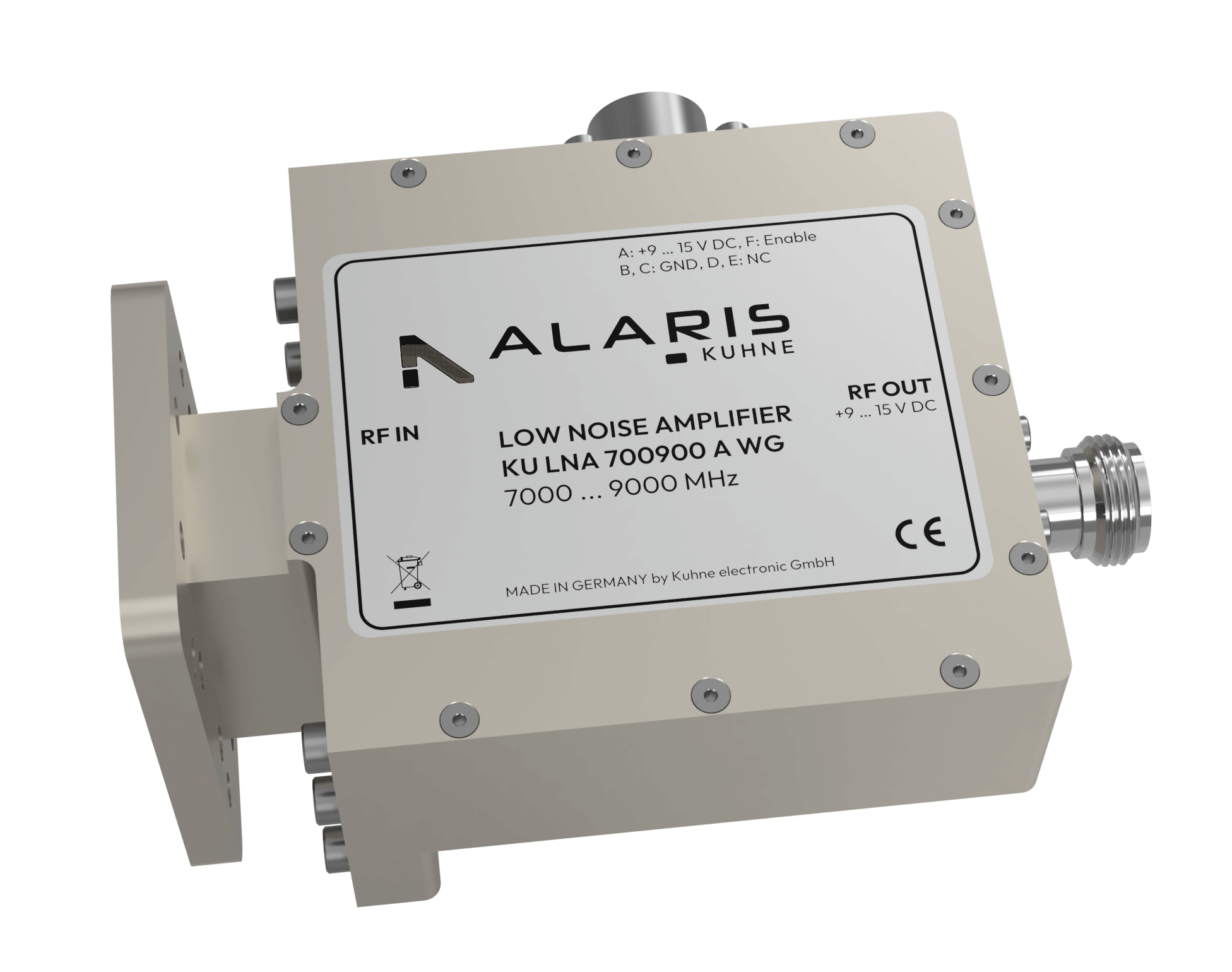

KU LNA 700900 A WG
Low Noise Amplifier, 7000 ... 9000 MHz
Download datasheet
The KU LNA 700900 A WG is part of KUHNE’s newest X-band super low-noise amplifier family and was particularly developed for low-noise receive applications, e.g., satellite ground station equipment. Thanks to the combination of an extremely low noise figure, a high gain and high P1dB and IP3, very weak input signals can be amplified with low noise to a power level that is easy to process. The RF input using a WR112 waveguide promises low-loss coupling to the antenna system.
*No payment required on checkout
-
Call our Sales team
- +499293800640
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA 700900 A WG
Ideal application and market usage
-
Ideal applications
-
-
Radar
- FMCW radar
- Speed and obstacle detection
- Motion sensing
- Foreign object detection
- Threat simulators
- Weather detection
- Navigation
-
Broadcast
- Digital broadcast
- Satellite news gathering
- Wireless backhaul
-
Radar
- Design Features
- Extremely low noise figure Remote power supply via output connector possible Low-power enable input pinReverse polarity protection
- Frequency range
- 7000..9000 MHz
- Gain @ 25°C
- typ. 63 dB
- Output power (P1dB)
- typ. 13 dBm, min. 10 dBm
- Output IP3
- typ. 20 dBm, min. 17 dBm
- Input return loss
- typ. 8 dB, min. 6 dB
- Output return loss
- typ. 15 dB, min. 10 dB
- Maximum input power
- 1 mW (0 dBm)
- Supply voltage
- 16 V
- Current consumption
- typ. 220 mA @ 12V DC
- Operating case temp. range
- -40 ... +65°C
- Weight
- 99.2 X 76 X 63.5
