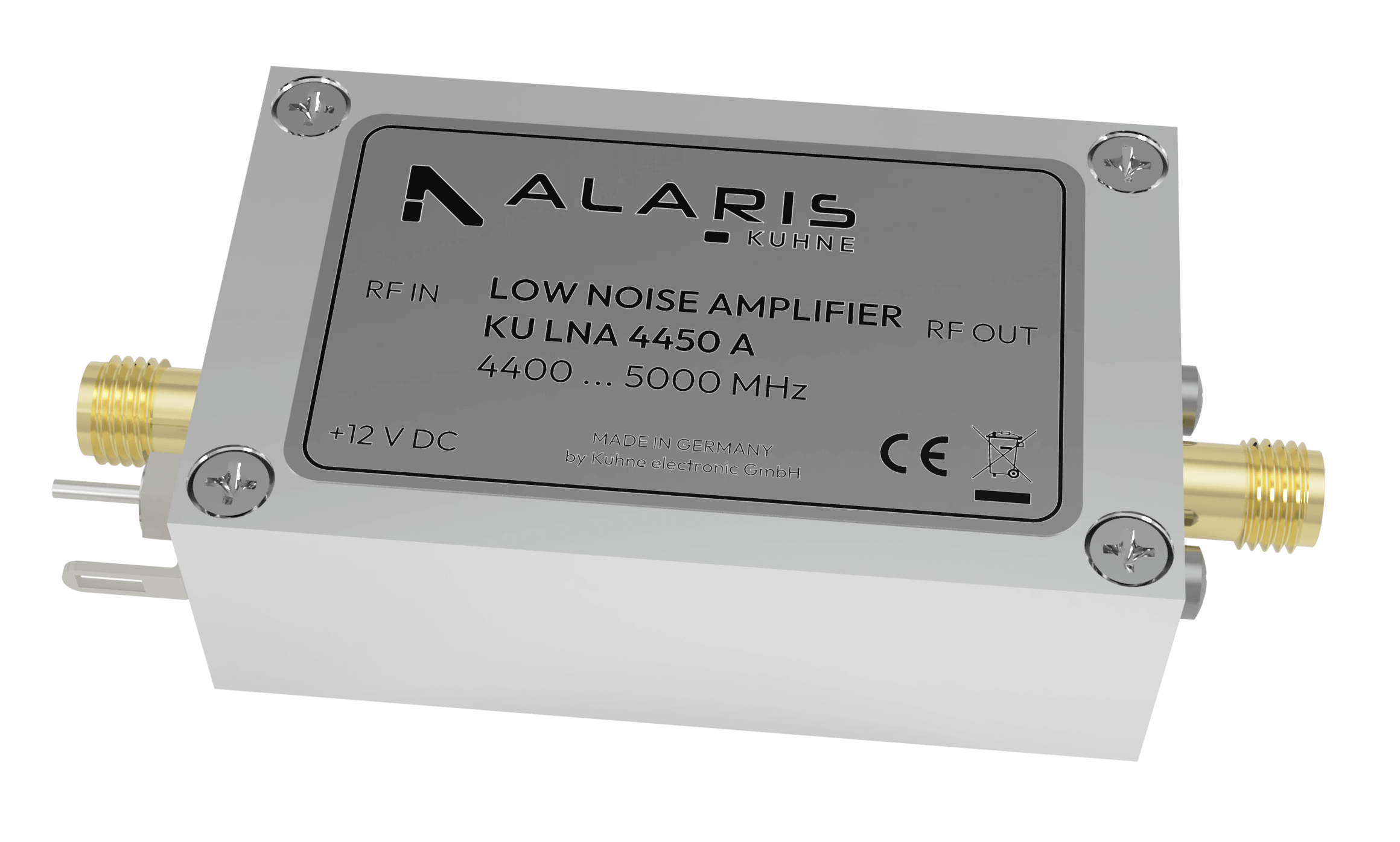

KU LNA 4450 A
Super Low Noise Amplifier, 4400 ... 5000 MHz
Download datasheet
Super Low Noise Amplifier, 4400 ... 5000 MHz
*No payment required on checkout
-
Call our Sales team
- +499293800640
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA 4450 A
Ideal application and market usage
-
Ideal applications
-
-
Infrastructure management
- Sensing and telemetry support
- Traffic monitoring
- Remote control
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Signals intelligence
- Radio direction finding
- Communications intelligence
- Electronic intelligence
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Infrastructure management
- Design Features
- Low noise figure, High gain, Reverse polarity protection, Solder pin for direct power supply
- Frequency range
- 4400..5000 MHz
- Noise figure @ 18 °C
- typ. 0.8 dB, max. 0.9 dB NF
- Gain, min. 24 dB
- min. 24 dB
- Maximum input power, 1 mW
- 1 mW
- Output power (P1dB), typ. 20 mW (+13 dBm)
- typ. 20 mW (+13 dBm)
- Output IP3, typ. +23 dBm (4750 MHz)
- typ. +23 dBm (4750 MHz)
- Input return loss (S11)
- min. 6 dB
- Output return loss (S22)
- min. 6 dB
- Supply voltage
- +8 ... 14 V DC
- Current consumption
- typ. 110 mA
- Input connector / impedance
- SMA-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 50 x 30 x 17
- Weight
- typ. 40 g
