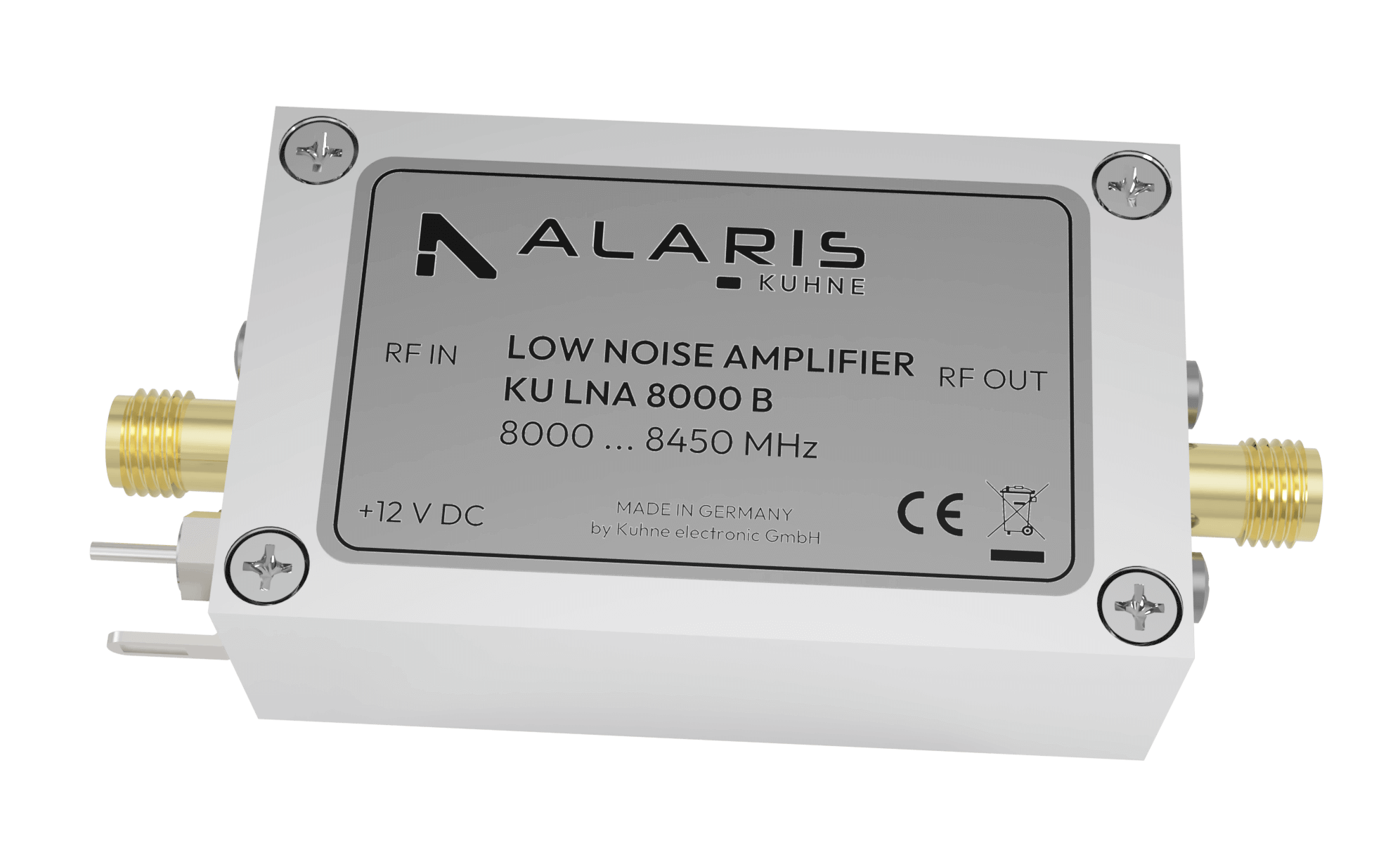

KU LNA 8000 B
Super Low Noise Amplifier, 8000 ... 8450 MHz
Download datasheet
Super Low Noise Amplifier, 8000 ... 8450 MHz. Super Low Noise Amplifier for Satellite Reception.
*No payment required on checkout
-
Call our Sales team
- +499293800640
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA 8000 B
Ideal application and market usage
-
Ideal applications
-
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Signals intelligence
- Radio direction finding
- Communications intelligence
- Electronic intelligence
-
Radar
- FMCW radar
- Speed and obstacle detection
- Motion sensing
- Foreign object detection
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Spectrum management
- Design Features
- Extremely low noise figure, Reverse polarity protection, Unconditionally stable. No parasitic oscillations in case of poor antenna match, Milled aluminium case
- Frequency range
- 8000..8450 MHz
- Noise figure @ 18 °C
- typ. 0.8 dB
- Gain, min. 28 dB
- min. 28 dB
- Maximum input power, 1 mW
- 1 mW
- Output power (P1dB), typ. 31,6 mW (+15 dBm)
- typ. 31,6 mW (+15 dBm)
- Output IP3, typ. 25 dBm
- typ. 25 dBm
- Input return loss (S11)
- min. 10 dB
- Supply voltage
- +12 ... 15 V DC
- Current consumption
- typ. 90 mA
- Operating case temp. range
- -20 ... +65 degrees C
- Input connector / impedance
- SMA-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 50 x 30 x 17
- Weight
- typ. 45g
