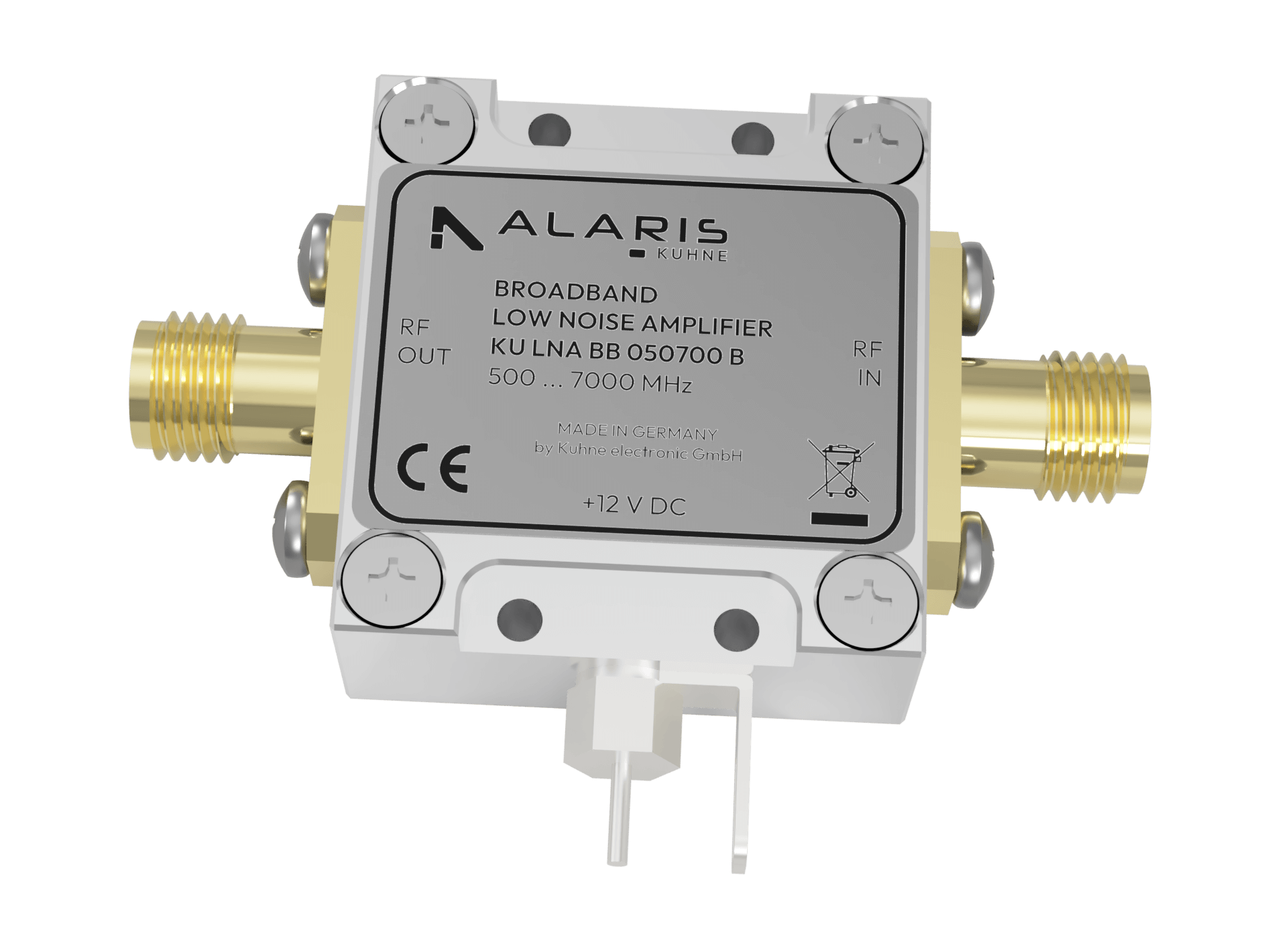

KU LNA BB 050700 B
Broadband Low Noise Amplifier, 500 ... 7000 MHz
Download datasheet
The low noise broadband preamplifier KU LNA BB 050700 B impresses with a very low ripple of typ. +/- 1 dB over the wide frequency range from 500 MHz to 7 GHz. Gain and noise figure are typically 21 dB and 1.6 dB; respectively. Furthermore; the LNA shows a high IP3 and an output power of more than 100 mW. These outstanding technical properties result in a wide range of possible applications.
*No payment required on checkout
-
Call our Sales team
- +499293800640
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA BB 050700 B
Ideal application and market usage
-
Ideal applications
-
-
Position, navigation and timing
- GNSS
- Maritime navigation
- Avionics
- Quantum computing
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Signals intelligence
- Radio direction finding
- Communications intelligence
- Electronic intelligence
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Position, navigation and timing
- Design Features
- Remote power supply via RF output
- Frequency range
- 500..7000 MHz
- Noise figure @ 18 °C
- typ. 1.6 dB, max. 2 dB @ 7 GHz
- Gain
- typ. 21 dB, min. 18 dB @ 7 GHz
- Gain flatness
- max. +/- 2 dB
- Maximum input power
- 16 dBm
- Output power (P1dB)
- typ. 20 dBm
- Output IP3
- typ. 30 dBm, min. 27 dBm
- Input return loss (S11)
- 10 dB
- Supply voltage
- +9 ... 14 V DC
- Current consumption
- typ. 80 mA
- Operating case temp. range
- SMA-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 23 x 24.5 x 9
- Weight
- typ. 15g
