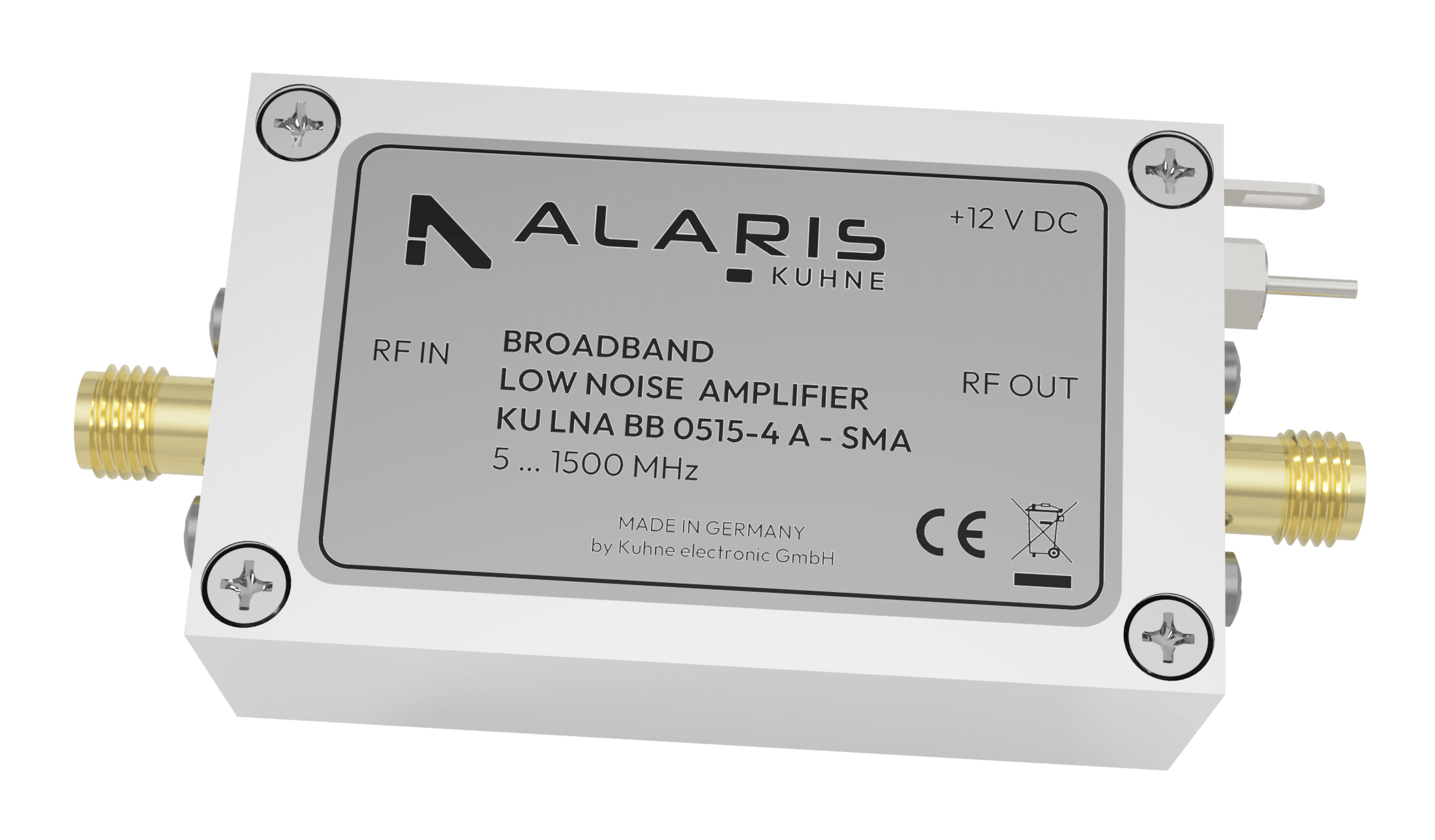

KU LNA BB 0515 - 4 A SMA
Broadband Amplifier, 5 ... 1500 MHz
Download datasheet
This super low noise wideband amplifier was designed to cover the 5 ... 1500 MHz frequency range. The noise figure is typ. 1.2 dB at 22 dB gain. Simultaneously the broadband amplifier has a high IP3 and a output power of > 10 mW. With this outstanding performances, this amplifier may be used for many applications. The amplifier is coupled via a high pass filter for suppressing frequencies below 5 MHz.
*No payment required on checkout
-
Call our Sales team
- +499293800640
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA BB 0515 - 4 A SMA
Ideal application and market usage
-
Ideal applications
-
-
Survey and measurement
- Moisture content measurement
- EMC Testing
- RF performance testing
- RF systems support
- Spectrum monitoring
- Radio astronomy
-
Position, navigation and timing
- GNSS
- Maritime navigation
- Avionics
- Quantum computing
-
Broadcast
- Digital broadcast
-
Survey and measurement
- Design Features
- High IP3 Large bandwidth Reverse polarity protection Solder pin for direct power supply Small mechanical dimensions
- Frequency range
- 5..1500 MHz
- Noise figure @ 18 °C
- typ. 1.2 dB, max. 2.0 dB
- Gain
- min. 20 dB, typ. 22 dB
- Maximum input power
- 12 dBm
- Output power (P1dB)
- typ. 22 dBm
- Output IP3
- typ. +37 dBm
- Input return loss (S11)
- min. 6 dB, typ. 10 dB
- Supply voltage
- Min: 12V (Max 14V)
- Current consumption
- typ. 140 mA
- Operating case temp. range
- -40 ... +85 degrees C
- Input connector / impedance
- SMA-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 50 x 30 x 17
- Weight
- typ. 50g
