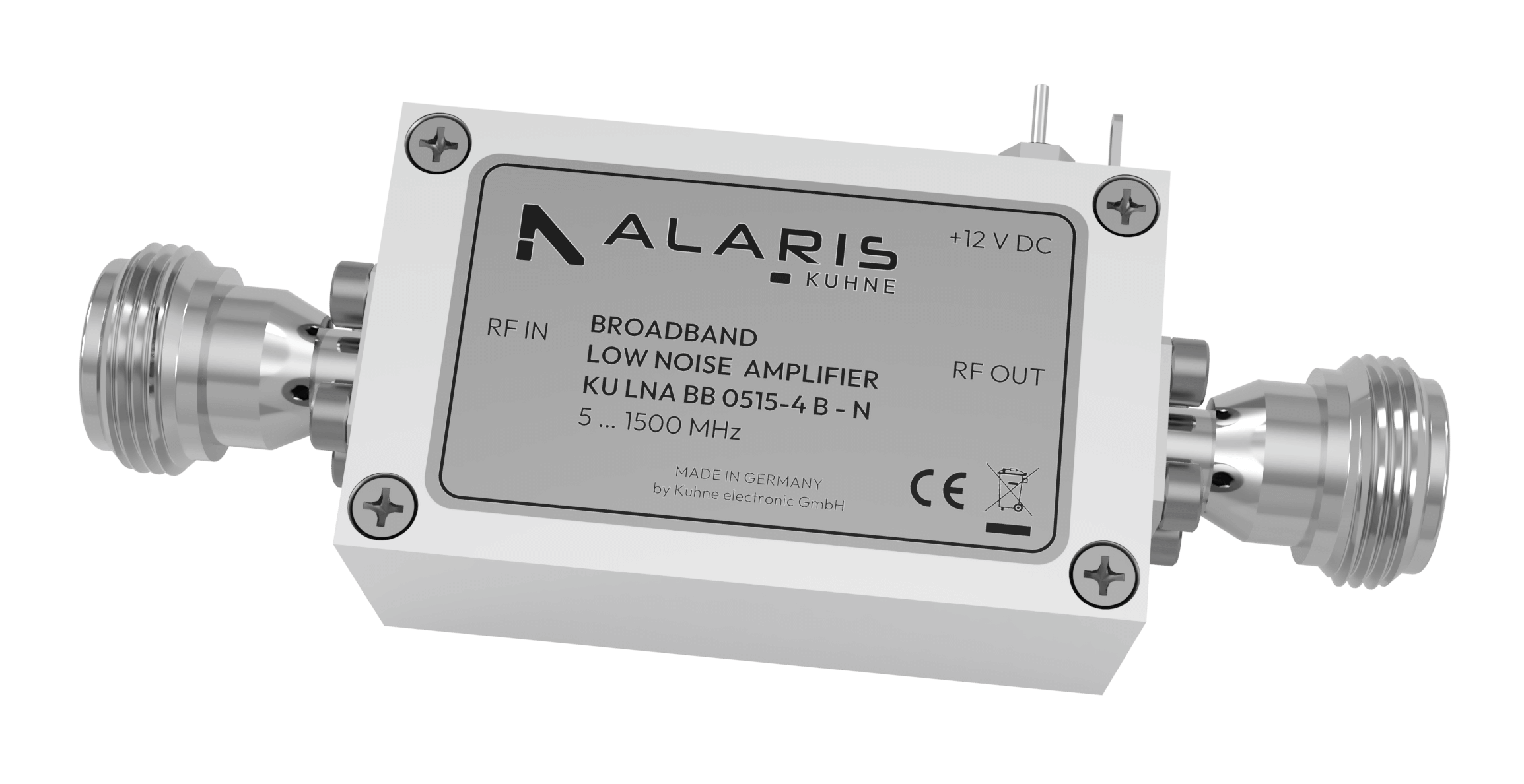

KU LNA BB 0515 - 4 B N
Broadband Amplifier, 5 ... 1500 MHz
Download datasheet
Kuhne electronic introduces the KU LNA BB 0515-4 B N; a broadband preamplifier for the VHF; UHF and L frequency bands. In addition to the large bandwidth; the amplifier is characterized by a high linearity; making it perfect for use in the fields of high-frequency measurements and monitoring systems.
*No payment required on checkout
-
Call our Sales team
- +499293800640
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA BB 0515 - 4 B N
Ideal application and market usage
-
Ideal applications
-
-
Survey and measurement
- Moisture content measurement
- EMC Testing
- RF performance testing
- RF systems support
-
Infrastructure management
- Sensing and telemetry support
- Traffic monitoring
- Remote control
- Emergency response
-
Position, navigation and timing
- GNSS
- Maritime navigation
- Avionics
- Quantum computing
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Survey and measurement
- Design Features
- High IP3; Large bandwidth; Reverse polarity protection; Solder pin for direct power supply; Small mechanical dimensions
- Frequency range
- 5..1500 MHz
- Noise figure @ 18 °C
- typ. 1.2 dB, max. 2.0 dB
- Gain
- min. 20 dB, typ. 22 dB
- Maximum input power
- 12 dBm
- Output power (P1dB)
- typ. 22 dBm
- Output IP3
- typ. +37 dBm
- Input return loss (S11)
- min. 6 dB, typ. 10 dB
- Supply voltage
- Min: 12V (Max 14V)
- Current consumption
- typ. 140 mA
- Operating case temp. range
- -40 ... +85 C
- Input connector / impedance
- N-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 50 x 30 x 17
- Weight
- typ. 85g
