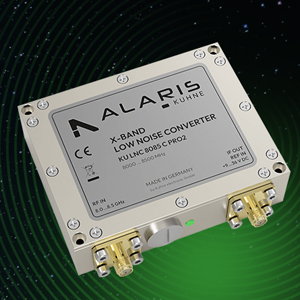

Amateurs Radio Shop
For the hobbyist who lives on the airwaves

Browse by Type

View all our products
Browse our wide range or products
Low Noise Amplifiers
High-power, low-distortion performance for critical comms.

Low Noise Block Down Converters
Precision RF energy for medical and industrial excellence.

Microwave Power Generators
Reliable satellite signal reception in the toughest environments.

Power Amplifiers
Extract clarity from the faintest RF signals.
Custom Designs
We offer bespoke & tailored solutions

Browse by Platform

Airborne
Engineered for mission-critical performance at altitude.

Vehicle / Mobile Mounted
Robust connectivity on the move.

Resources Newsroom Contact

Filters products

Product Type
Product Applications
Product name or code

Frequency Low (MHz)

MHz
Frequency High (MHz)

MHz
Frequency Band

Output Power (dBm)
Gain (dBi)
Supply Voltage (V)
Connectors

Home
Products
Product Finder

Product	Freq Low (MHz)	Freq High (MHz)	Frequency Range MHz - Logarithmic Scale 1 26,500	Frequency Band	Gain dBi	Mass g	Largest Dimension mm	Temperature Max (°C)	Supply Voltage V	Connectors	Output Power dBm	Current Consumption kWh

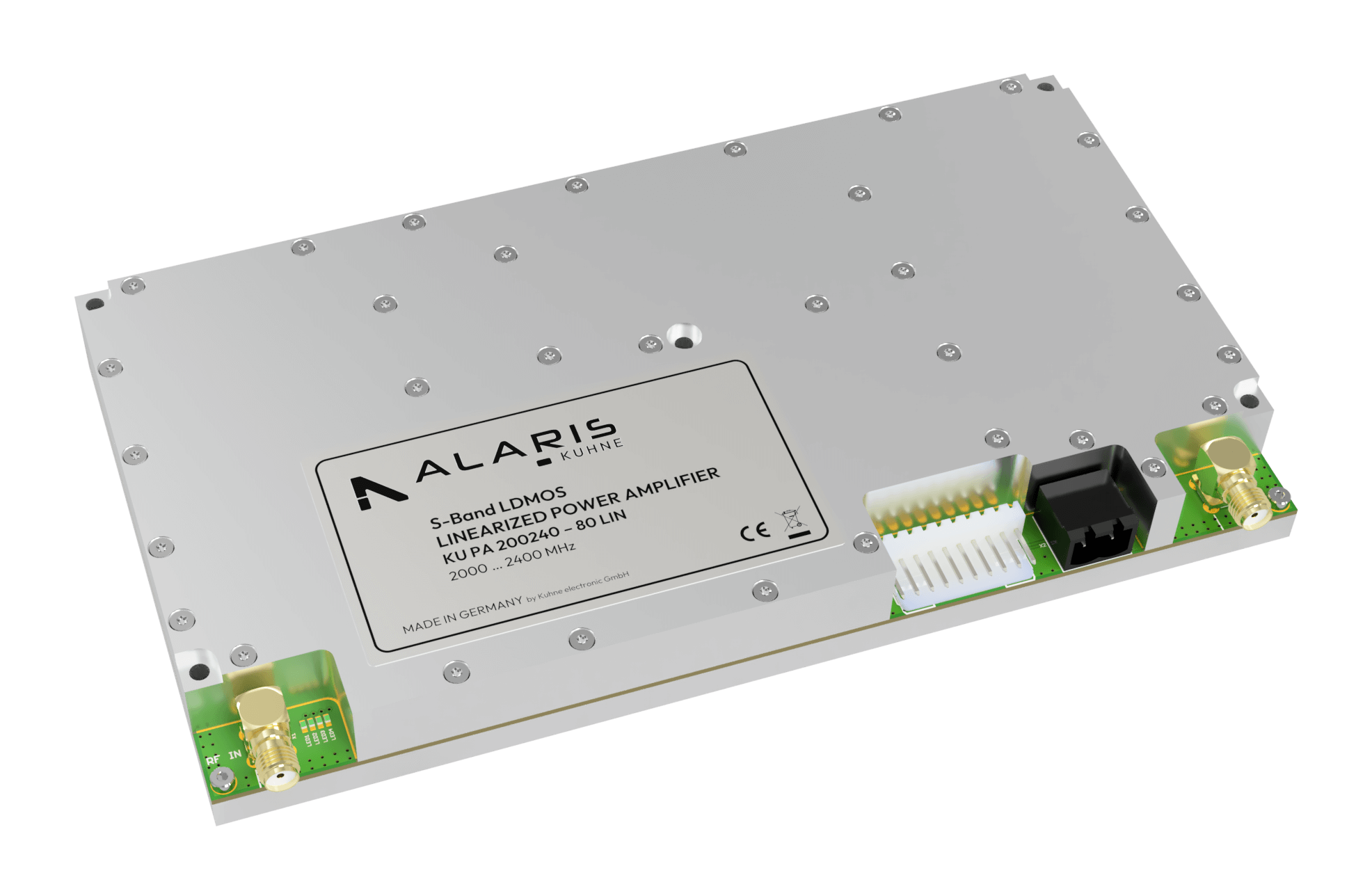

KU PA 200240 - 80 LIN LDMOS Power Amplifier, 2000 ... 2400 MHz, 8 W COFDM Linear S-Band Power Amplifier	2,000	2,400	2,000 2,400	S	1.0	550	184	55	30	SMA	10.00	2.80

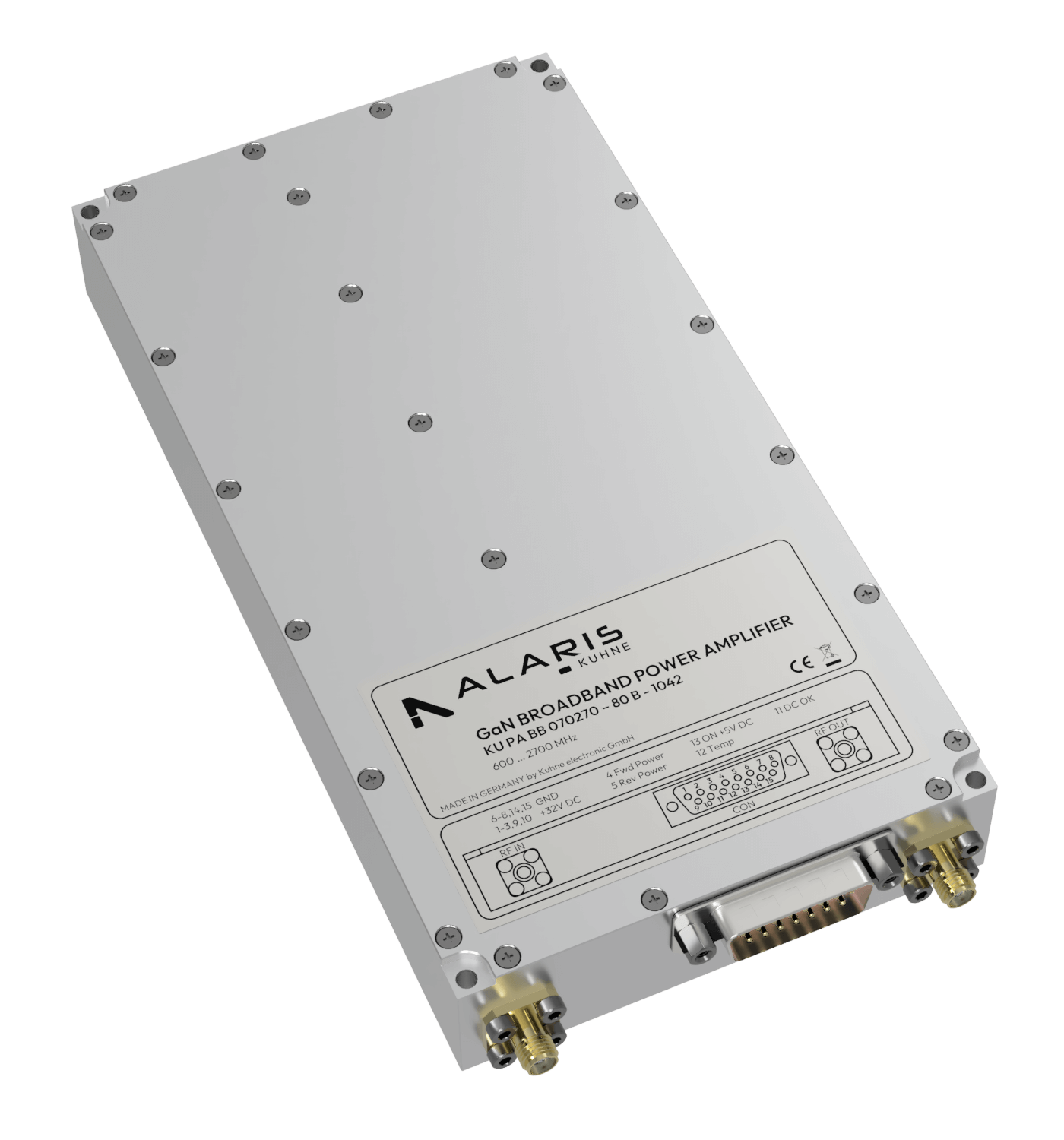

KU PA BB 070270 - 80 B Wideband Power Amplifier, 600 to 2700 MHz, 80 W	600	2,700	600 2,700	L S	52.0	800	180	55	32	SMA	49.00	1.50

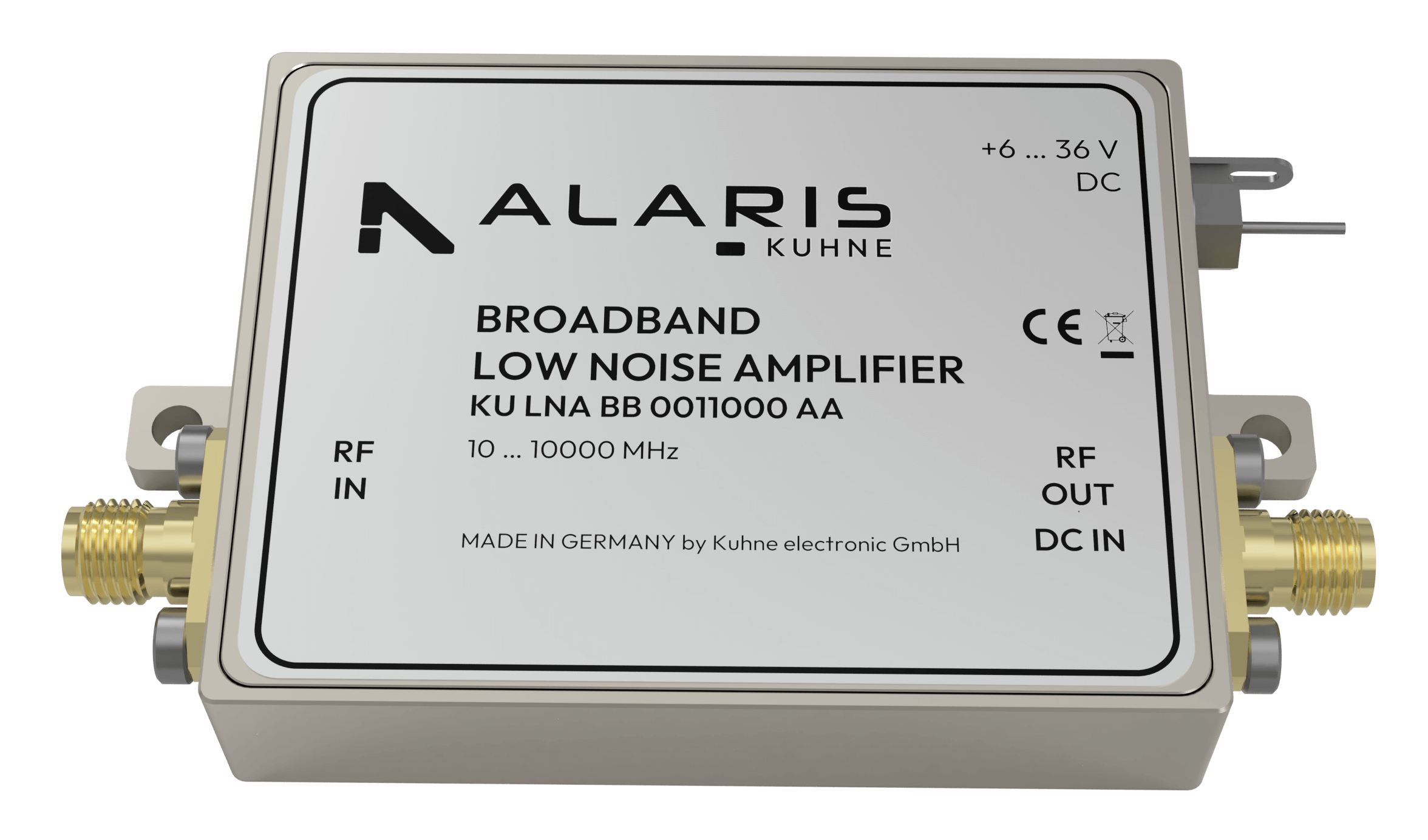

KU LNA BB 0011000 - AA Low Noise Broadband Amplifier, 10 ... 10000 MHz	10	10,000	10 10,000	L S C X	24.0	200	58	85	21	SMA	18.00	0.09
KU LNC 2227 B PRO Down Converter, 2200 ... 2700 MHz	2,200	2,700	2,200 2,700	S	30.0	230	82	55	9	N	N/A	0.30

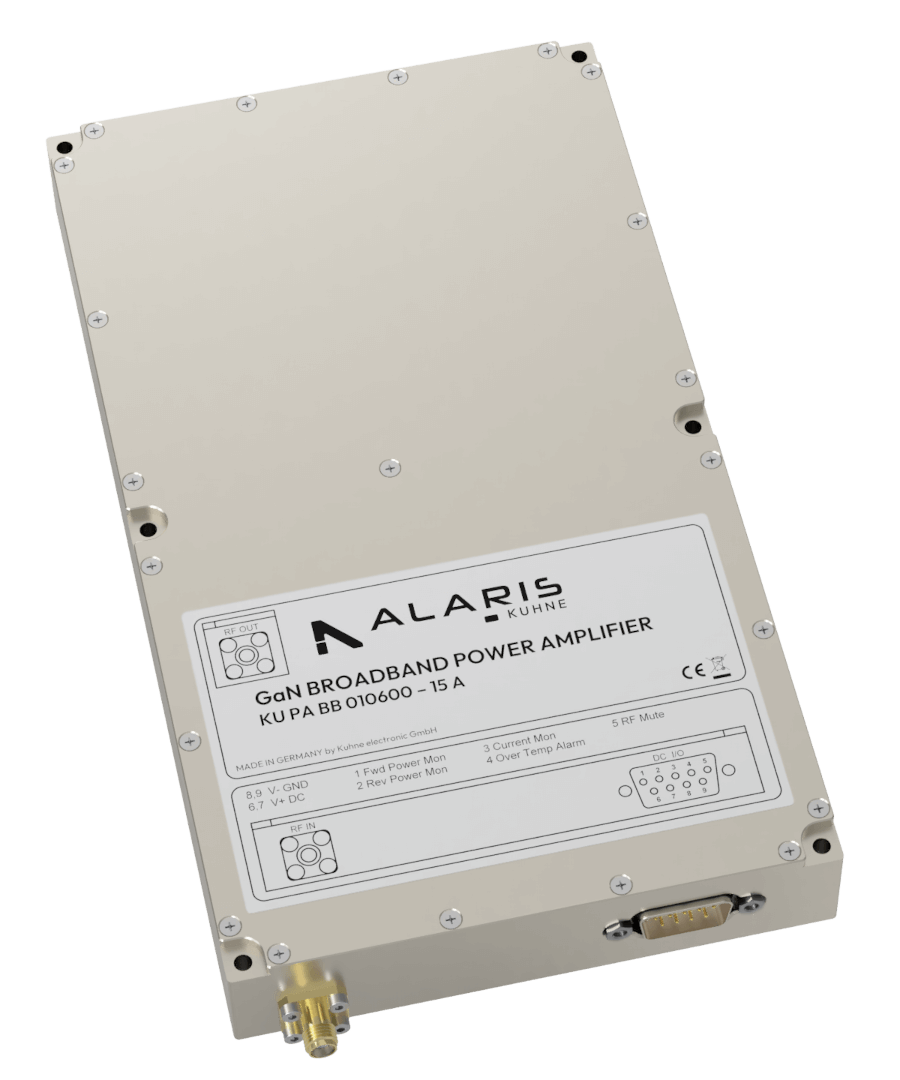

KU PA BB 010600 – 15 A Wideband Power Amplifier, 100 ... 6000 MHz, 15 W	100	6,000	100 6,000	L S C	40.0	950	200	N/A	24	SMA	15.00	8,000.00

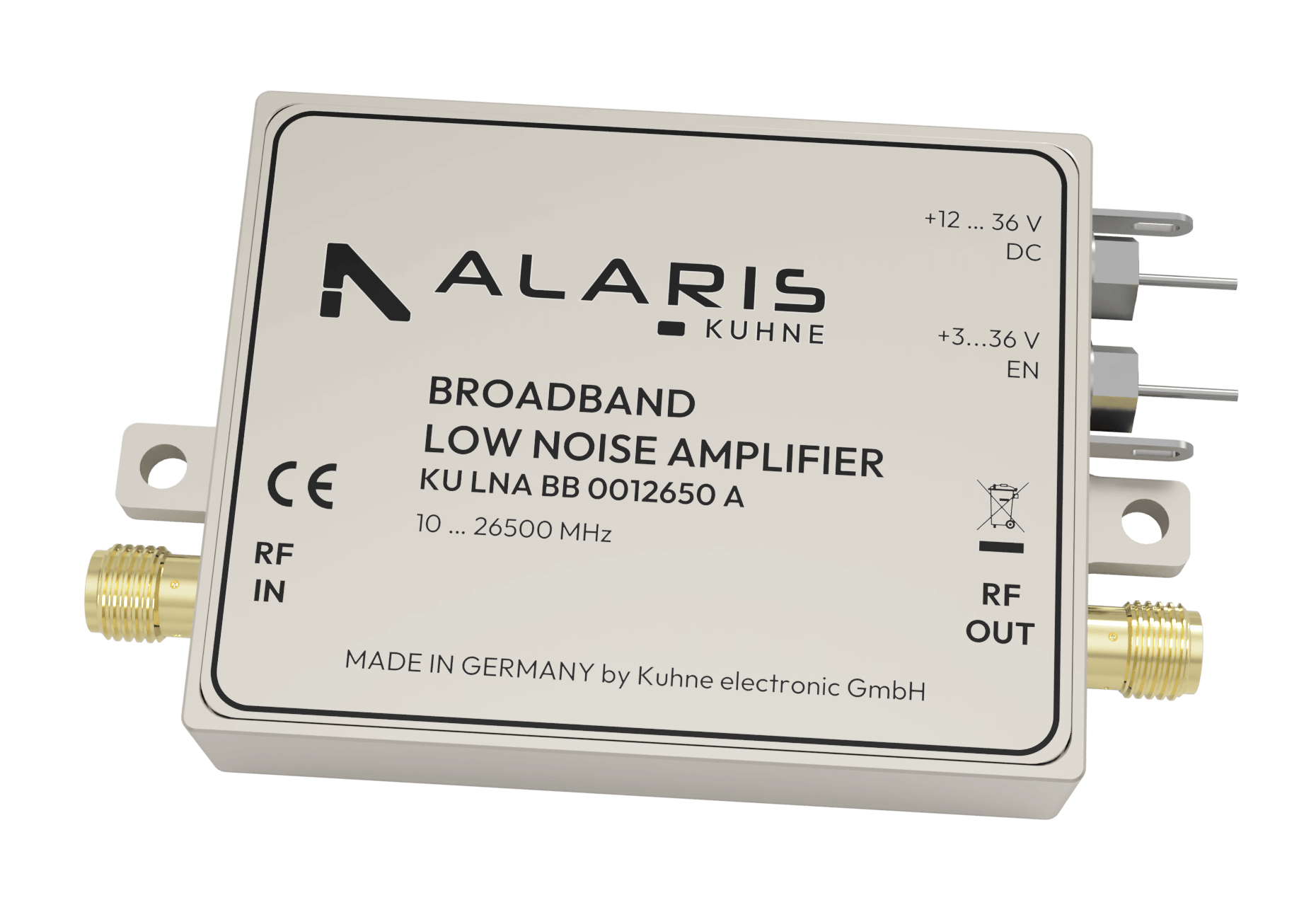

KU LNA BB 0012650 A Low Noise Amplifier, 10 ... 26500 MHz	10	26,500	10 26,500	L S C X Ku K	30.0	74	56	65	12	SMA	N/A	0.22

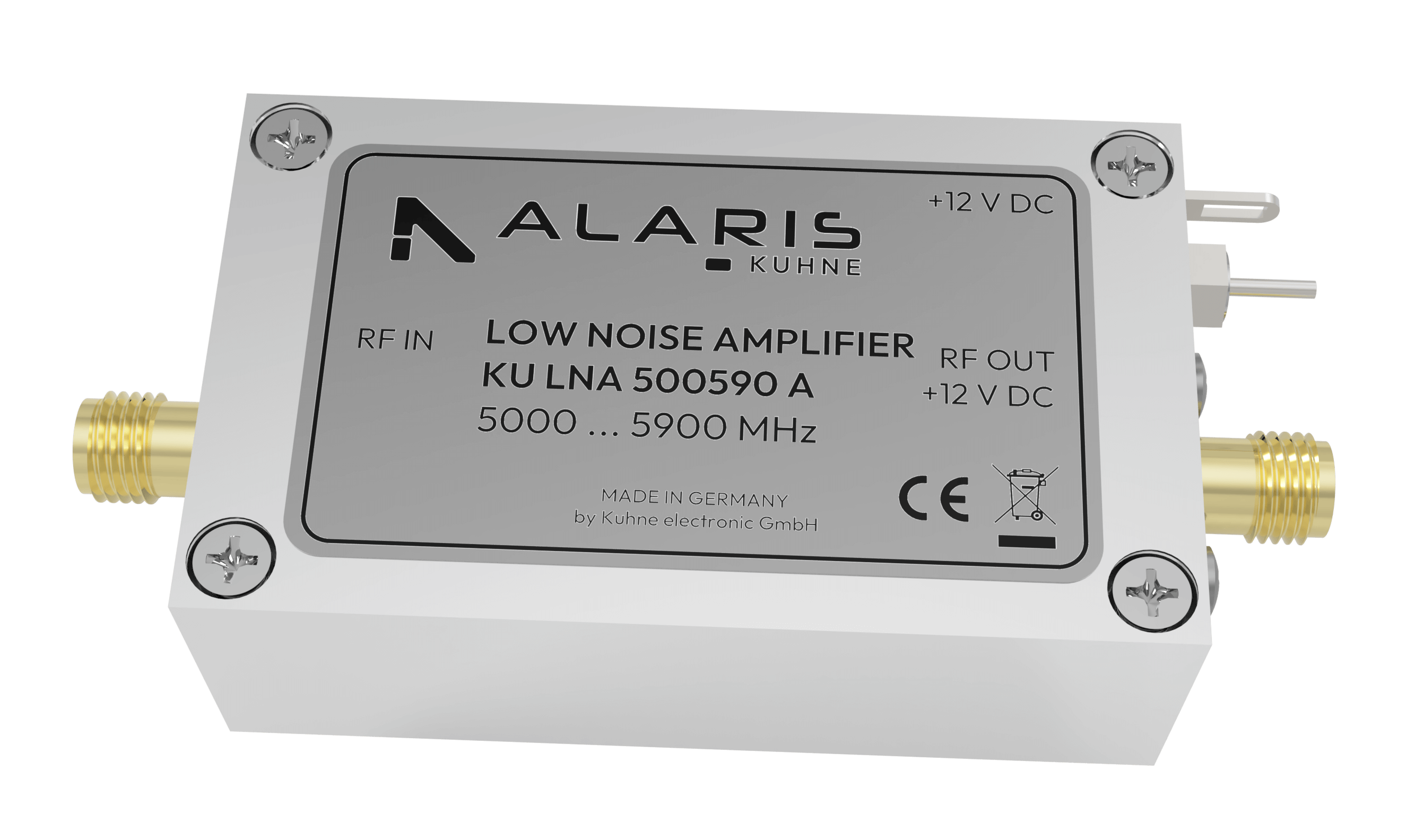

KU LNA 500590 A Low Noise Amplifier, 5000 ... 5900 MHz	5,000	5,900	5,000 5,900	C	27.0	50	50	65	9	SMA	N/A	0.06

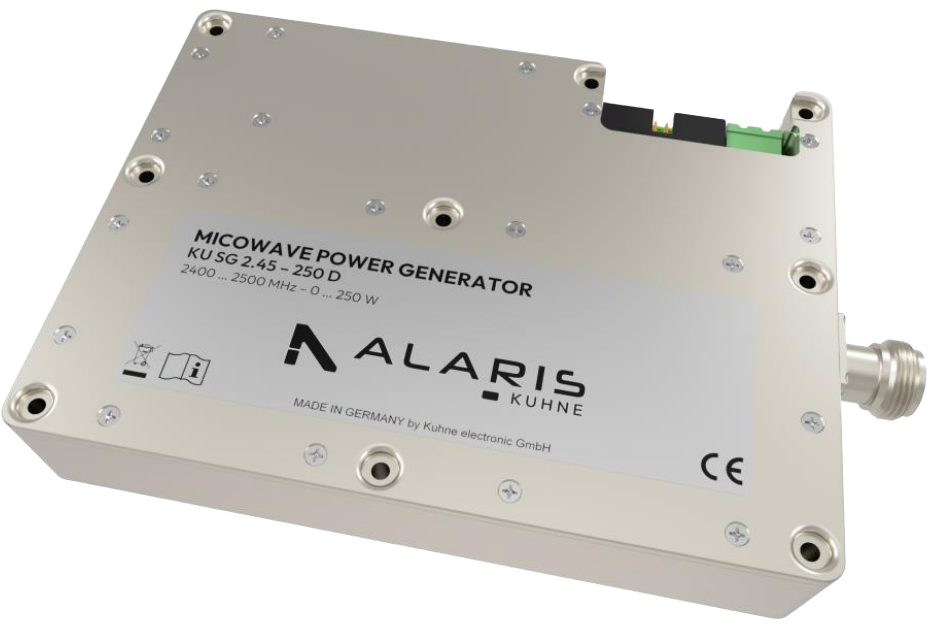

KU SG 2.45 - 250 D Microwave Power Generator 250 W	2,400	2,500	2,400 2,500	N/A	N/A	900	147	60	32	N	54.00	16.00
KU SG 2.45 - 450 A High Power Microwave Generator 450 W	2,400	2,500	2,400 2,500	N/A	N/A	1,500	180	60	32	N	56.50	26.00

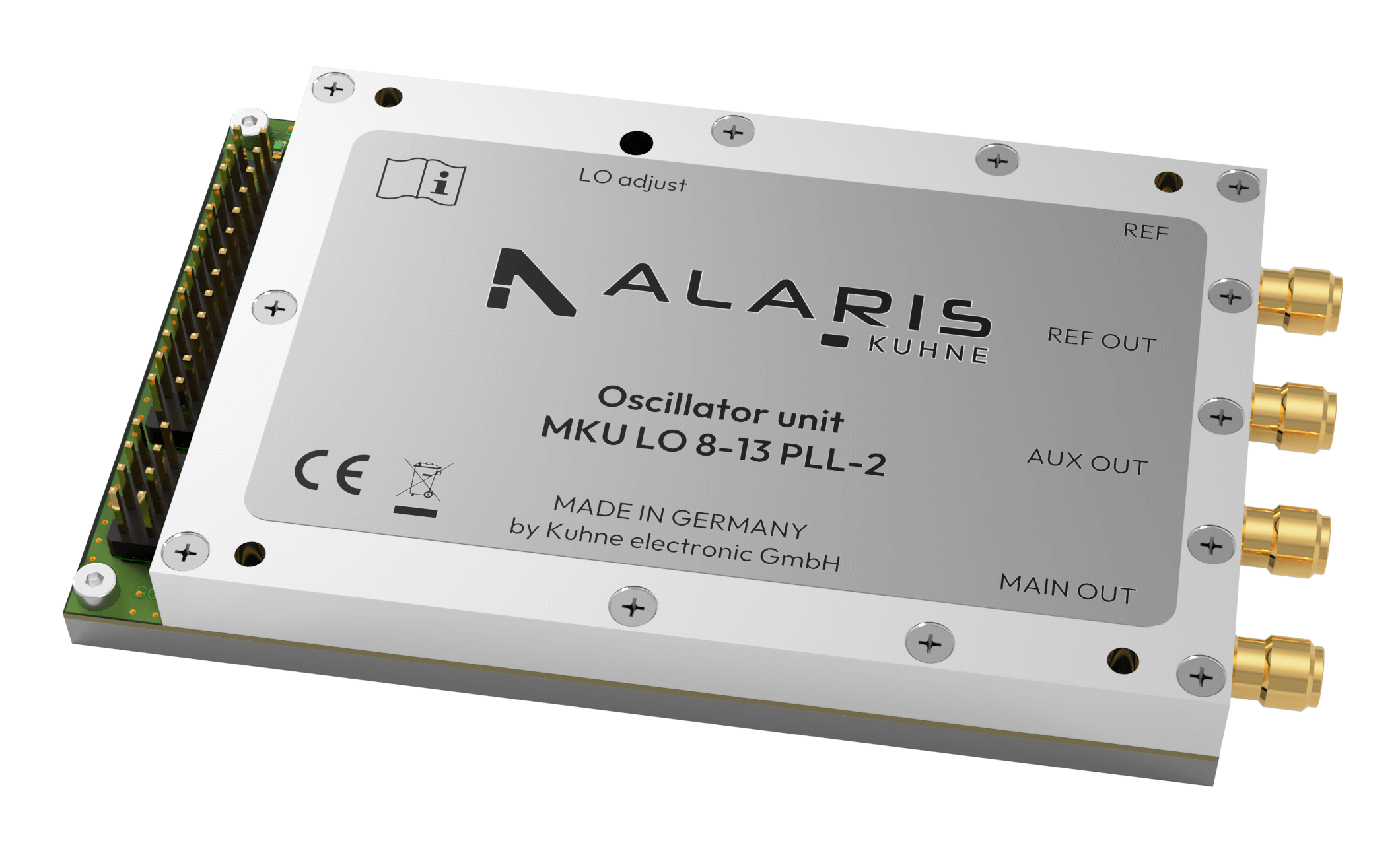

MKU LO 8-13 PLL-2 Oscillator, 54 ... 13600 MHz	54	13,600	54 13,600	N/A	N/A	140	100	55	12	SMA	13.00	0.30

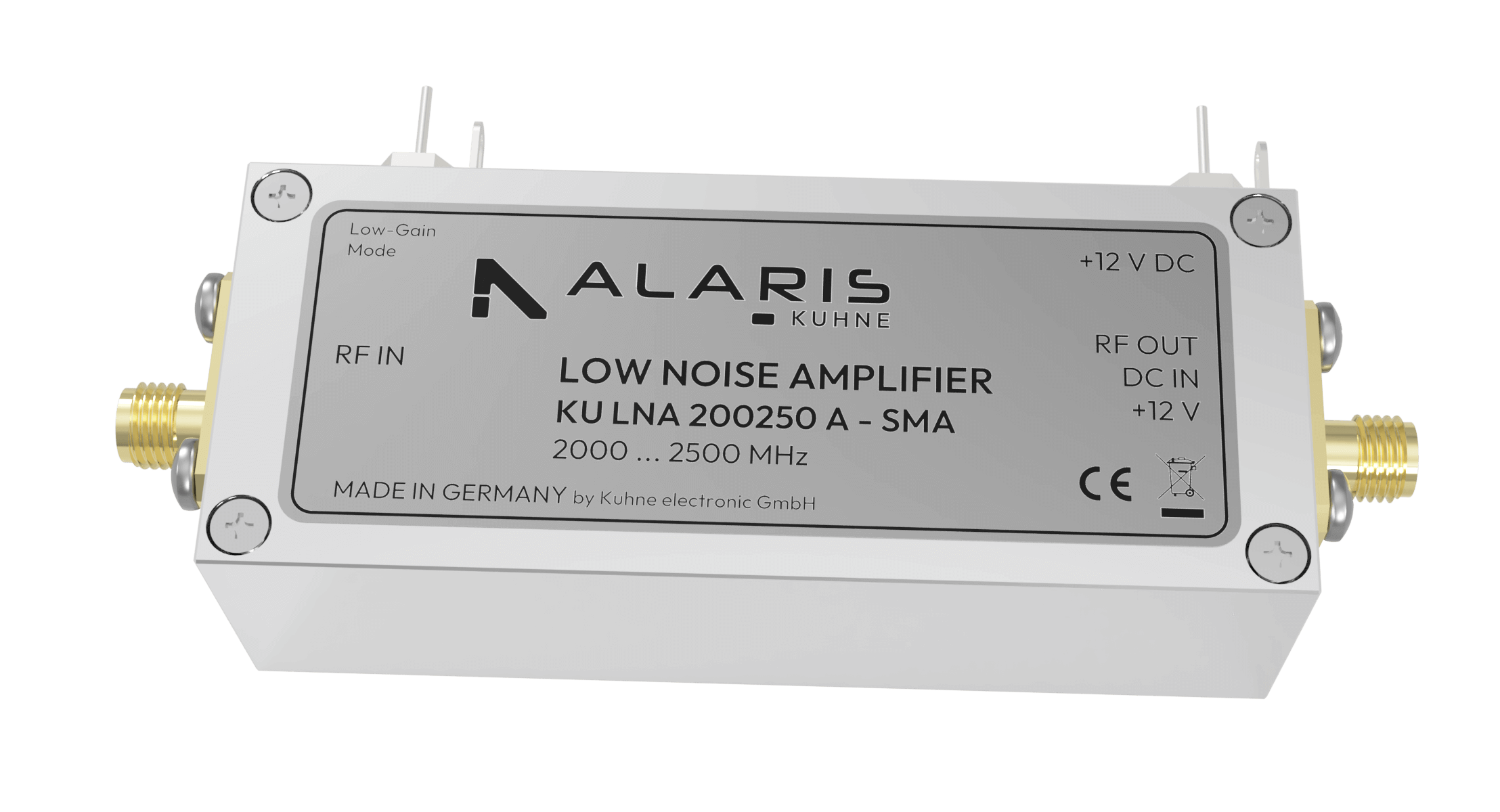

KU LNA 200250 A - SMA Super Low Noise Pre-Amplifier	2,000	2,500	2,000 2,500	S	53.0	110	73	65	12	SMA	21.00	0.11

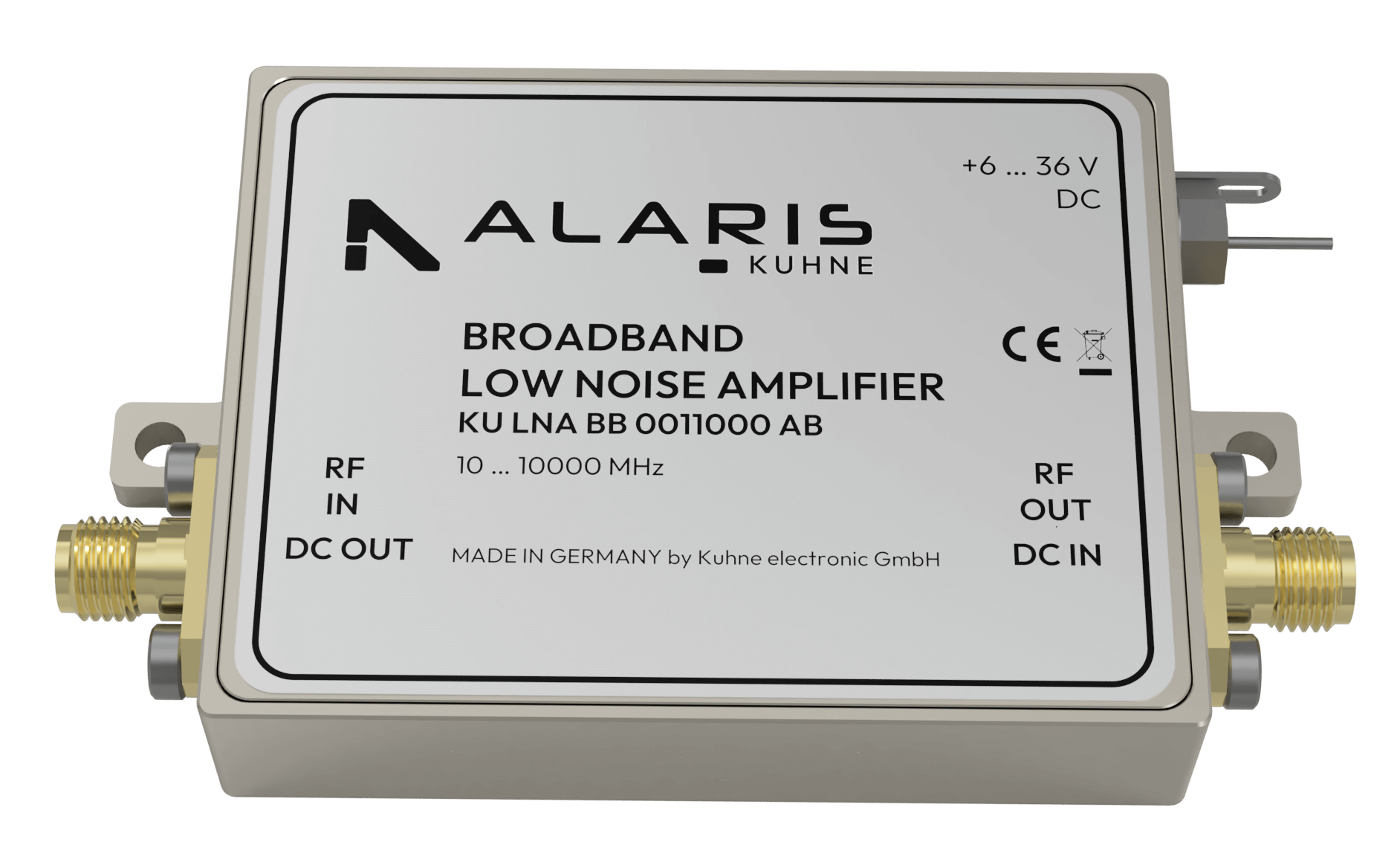

KU LNA BB 0011000 - AB Low Noise Broadband Amplifier, 10 ... 10000 MHz	100	10,000	100 10,000	L S C X	24.0	200	58	85	21	SMA	18.00	0.09

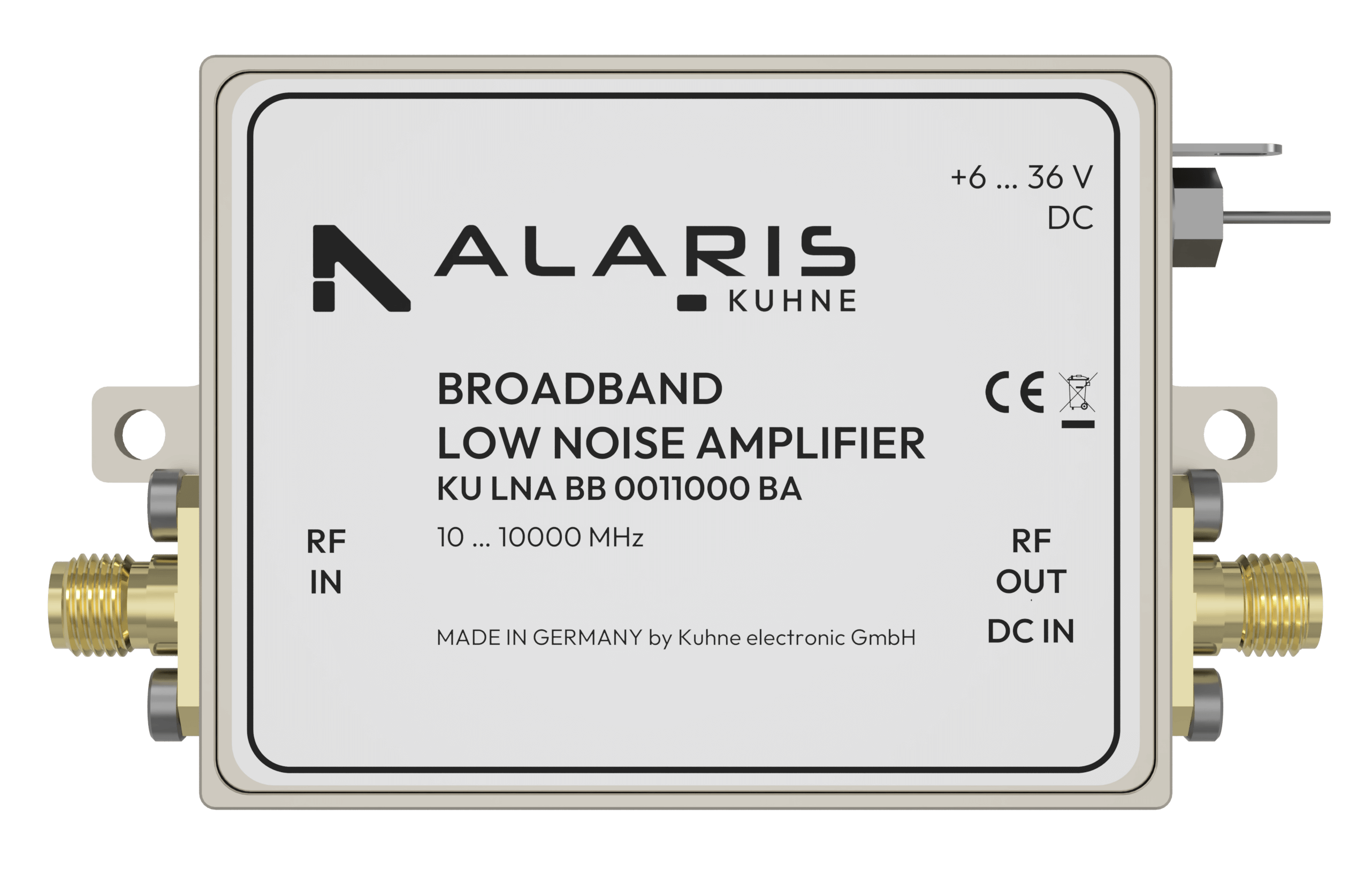

KU LNA BB 0011000 - BA Broadband preamplifier, 10 ... 10000 MHz	10	10,000	10 10,000	L S C X	14.0	200	58	85	12	SMA	18.00	85.00

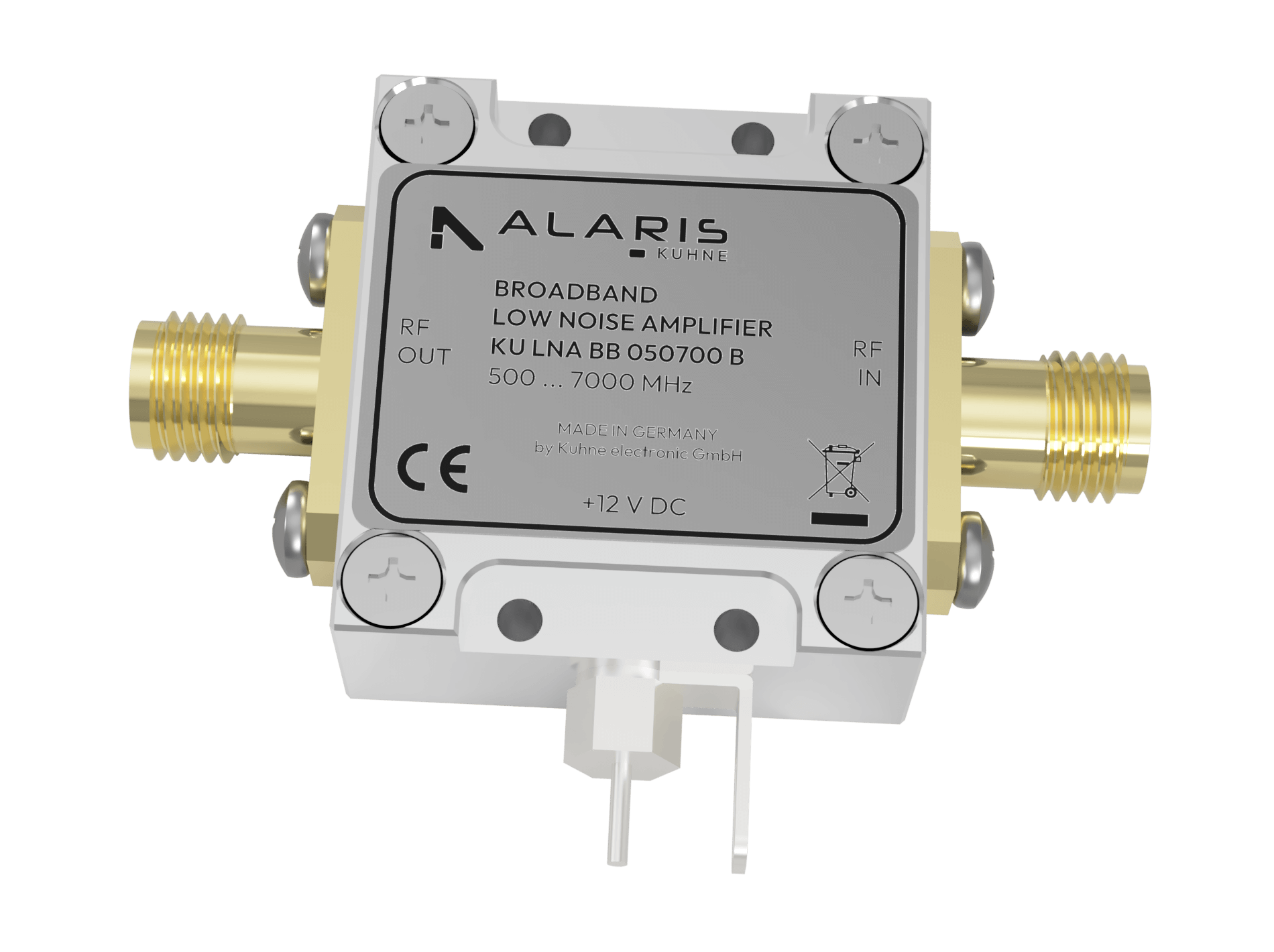

KU LNA BB 050700 B Broadband Low Noise Amplifier, 500 ... 7000 MHz	500	7,000	500 7,000	L S C	21.0	15	25	65	12	SMA	20.00	0.08

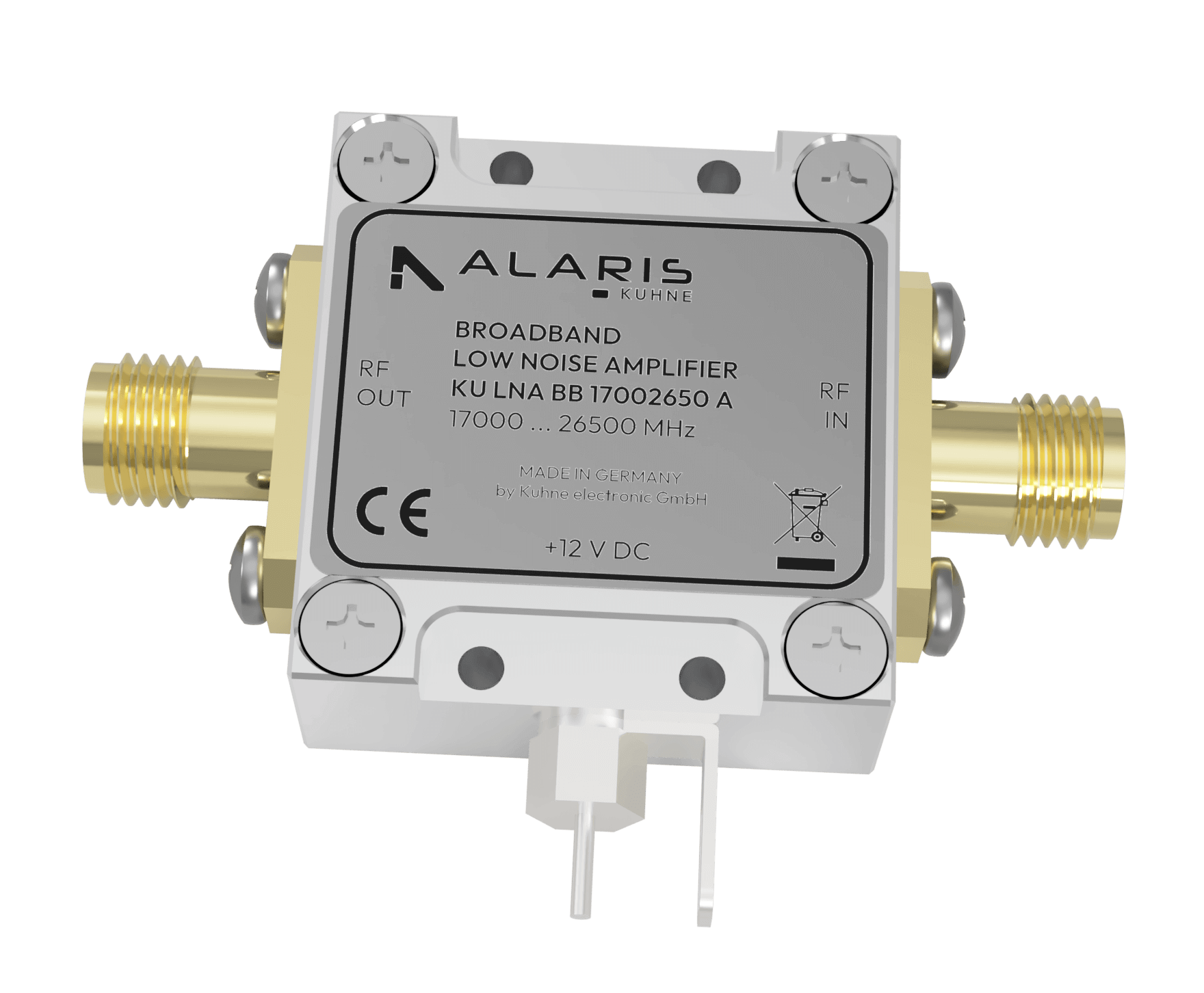

KU LNA BB 17002650 A Broadband Amplifier, 17000 ... 26500 MHz	17,000	26,500	17,000 26,500	Ka K	23.0	40	26	23	12	SMA	N/A	0.08
KU LNC 6875 C PRO Down Converter, 6800 ... 7500 MHz	6,800	7,500	6,800 7,500	C	31.0	230	82	55	23	N	N/A	0.25

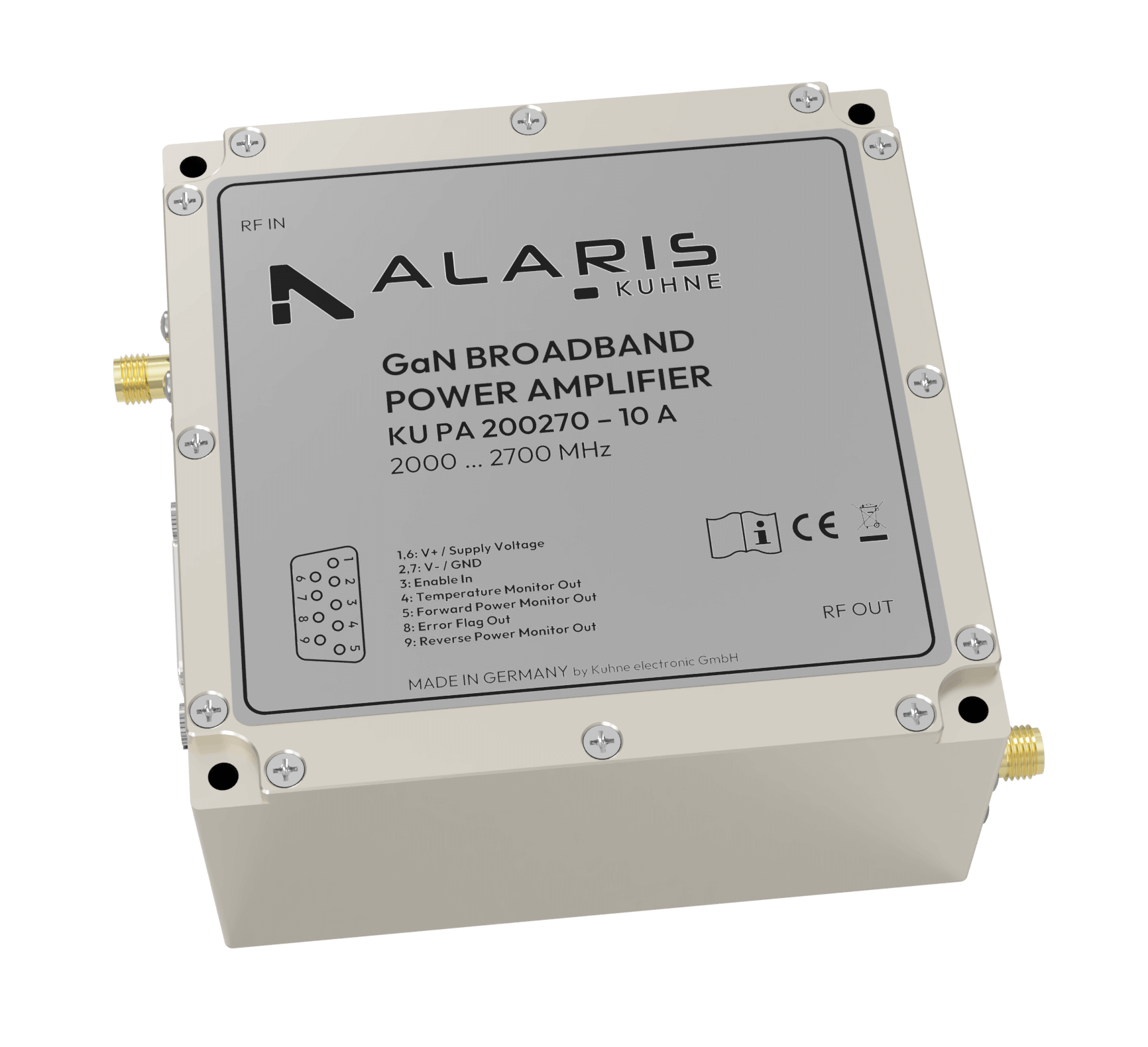

KU PA 200270 - 10 A GaN-HEMT Power Amplifier,	2,000	2,700	2,000 2,700	S	47.5	500	85	80	28	SMA	40.00	1.00

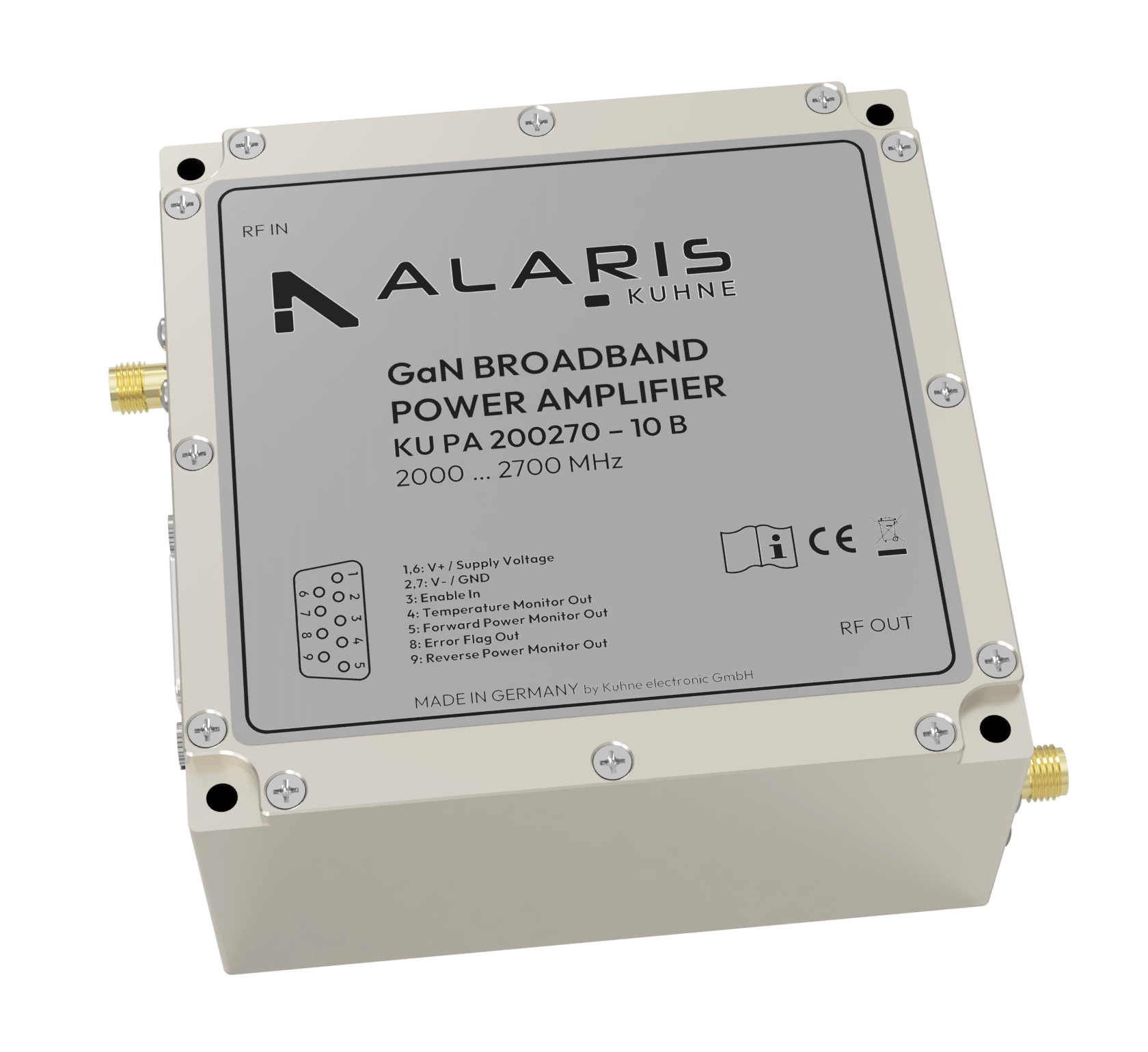

KU PA 200270 - 10 B GaN-HEMT Power Amplifier,	2,000	2,700	2,000 2,700	S	47.5	500	85	80	30	SMA	40.00	3.00

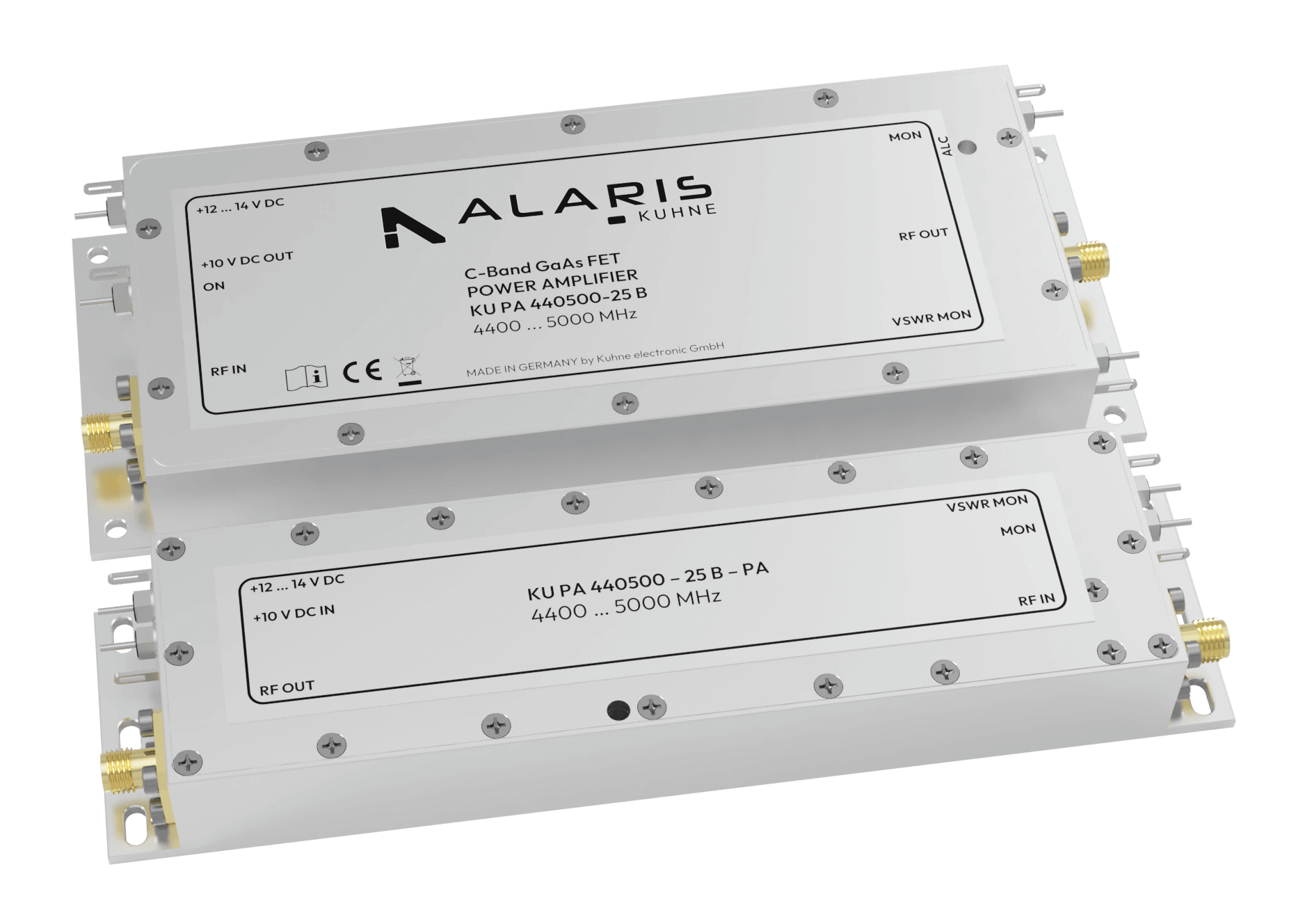

KU PA 440500 - 25 B Linear Power Amplifier, 4400 ... 5000 MHz, 25 W	4,400	5,000	4,400 5,000	S	44.0	550	158	55	13	SMA	44.00	12.00

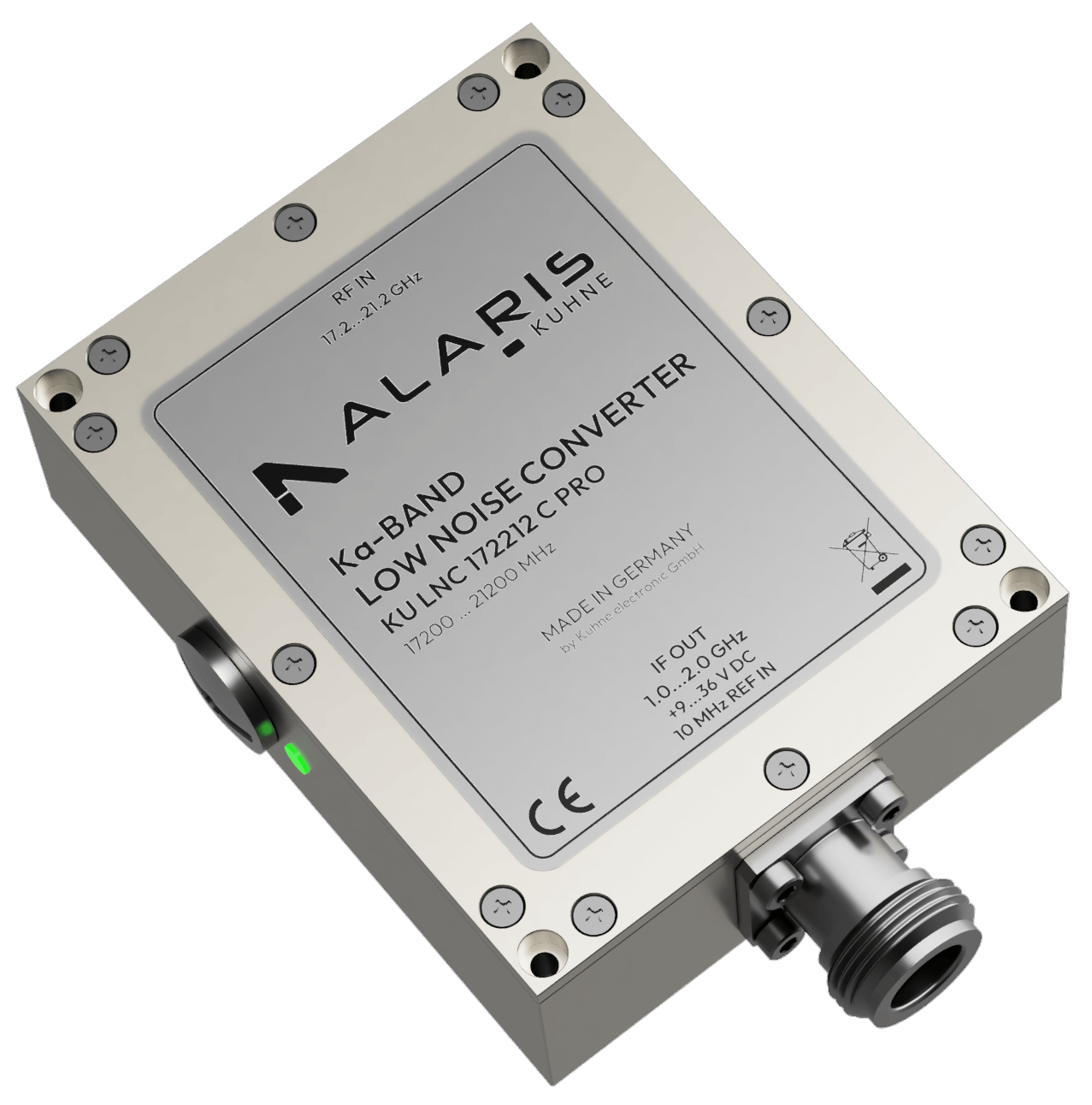

KU LNC 172212 C PRO Down Converter, 17200 ... 21200 MHz	17,200	21,200	17,200 21,200	Ku	55.0	N/A	N/A	N/A	12	WR-75G	N/A	0.25

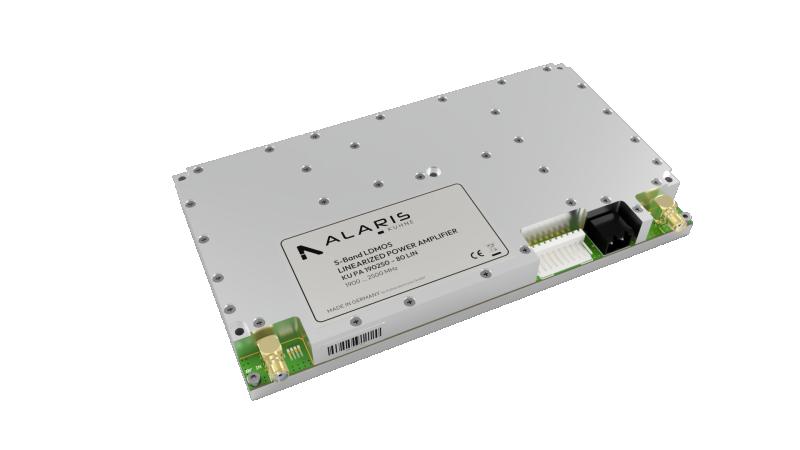

KU PA 190250 - 80 LIN LDMOS Power Amplifier, 1900 ... 2500 MHz, 10 W COFDM Linear S-Band Power Amplifier	1,900	2,500	1,900 2,500	S	N/A	550	N/A	55	28	SMA	10.00	3,500.00

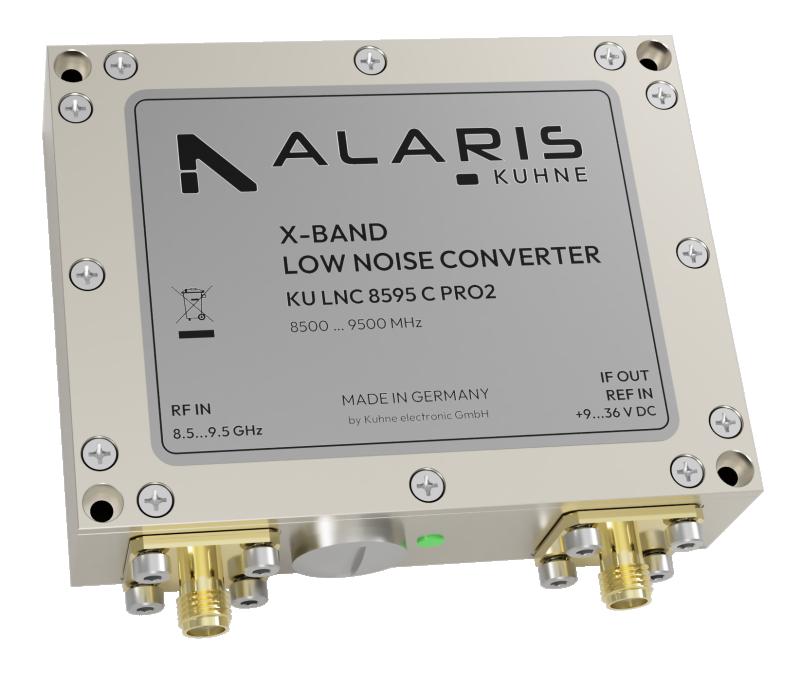

KU LNC 8595 C PRO2 Down Converter, 8500 ... 9500 MHz	8,500	9,500	8,500 9,500	X	50.0	230	N/A	55	12	SMA	N/A	250.00

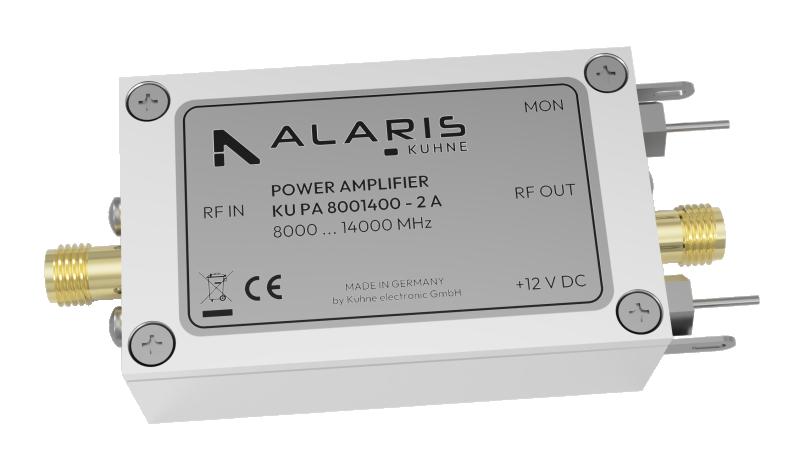

KU PA 8001400-2A RF Power Amplifier, 8000 ... 14000 MHz, 2 W	8,000	14,000	8,000 14,000	X K	20.0	50	N/A	55	12	SMA	2.00	1,100.00
KU PA 440500 - 40 LIN GaN Power Amplifier, 4400 ... 5000 MHz, 4 ... 5 W COFDM Linear C-Band Power Amplifier	4,400	5,000	4,400 5,000	C	N/A	750	184	55	24	SMA	36.00	N/A

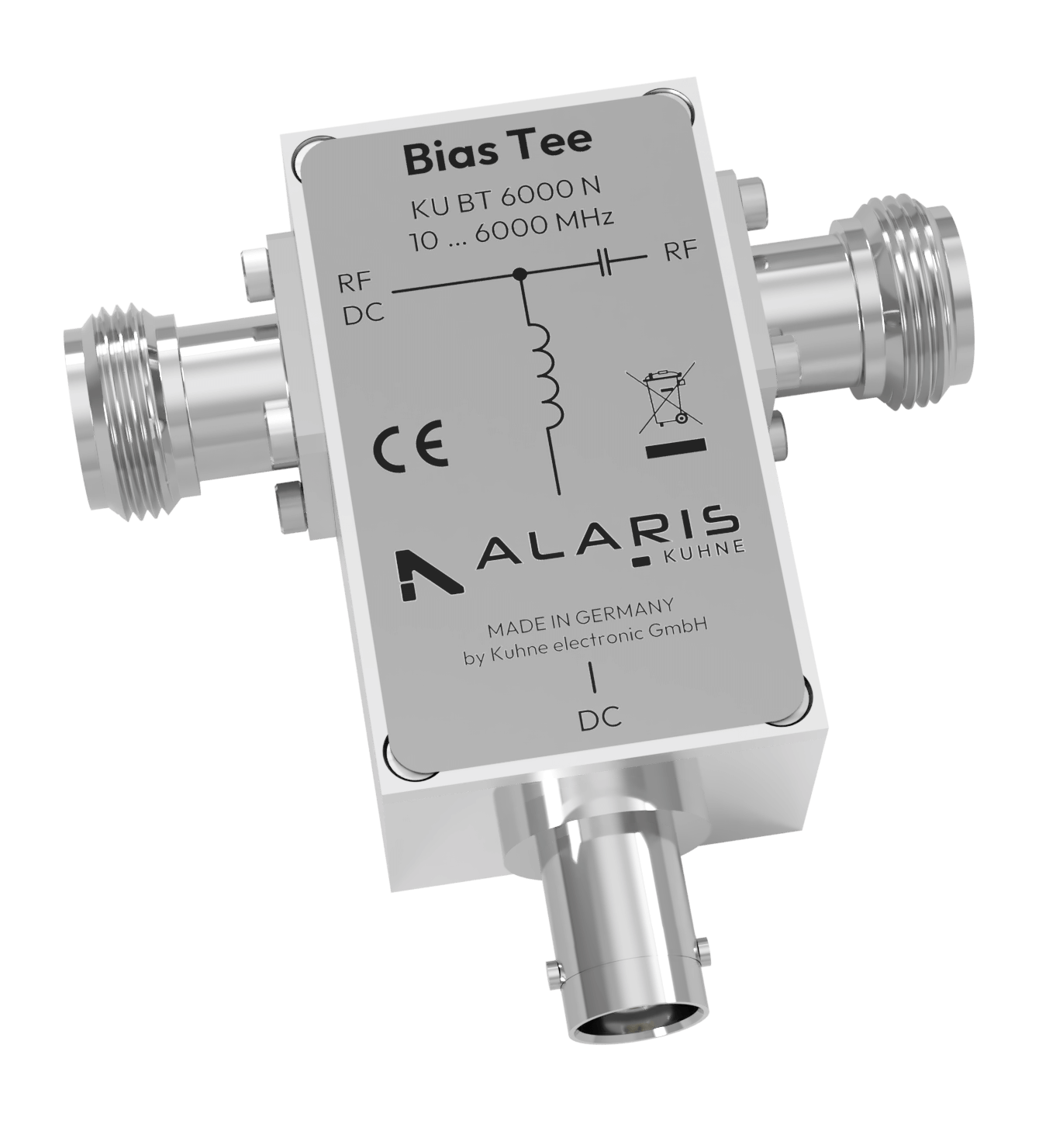

KU BT 6000 N Bias Tee, 10 ... 6000 MHz	10	6,000	10 6,000	N/A	N/A	100	50	N/A	N/A	N	N/A	N/A

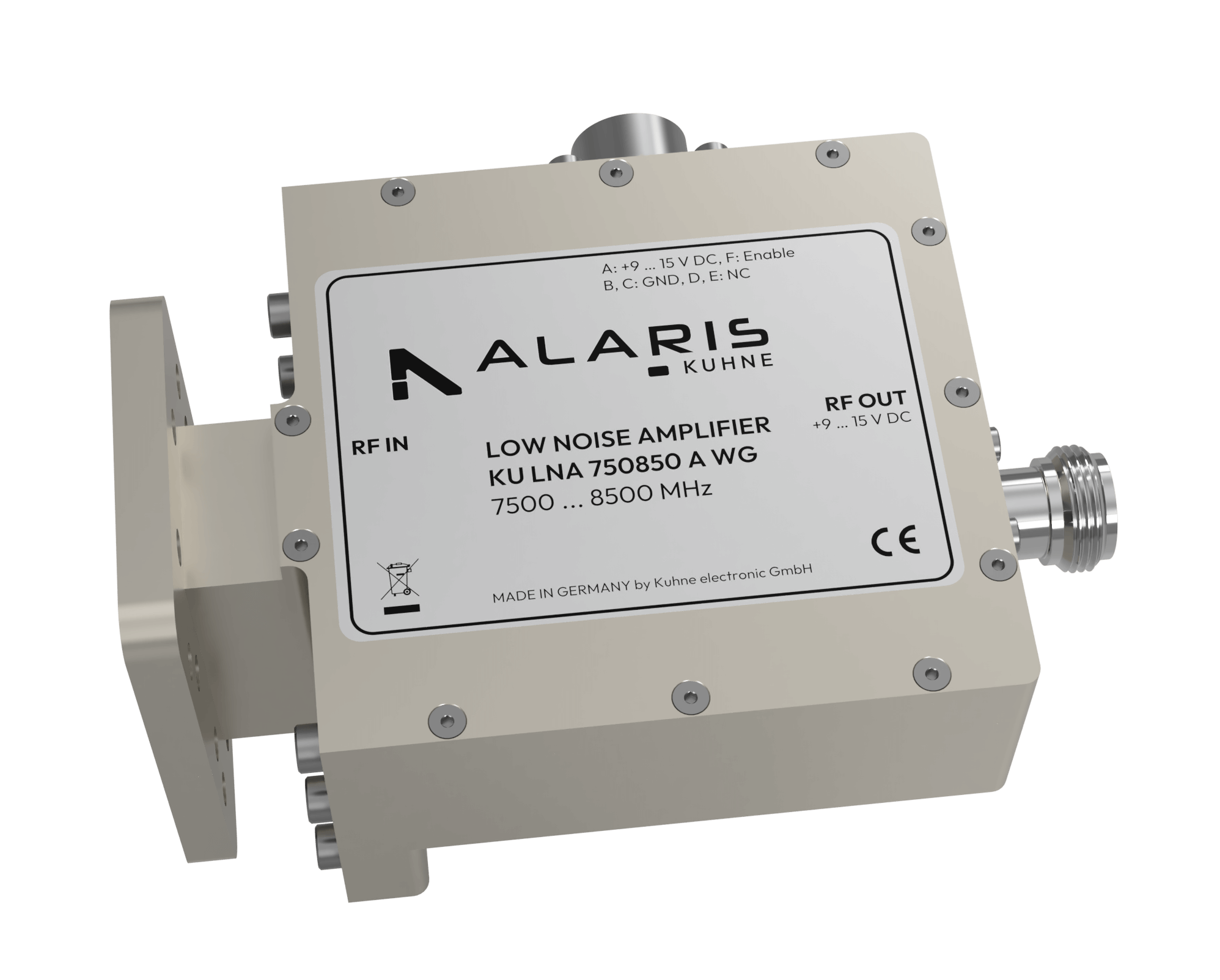

KU LNA 750850 A WG Low Noise Amplifier, 7500 ... 8500 MHz	7,500	8,500	7,500 8,500	C X	65.0	440	100	65	12	WR-112F	13.00	0.22
KU LNA 700900 A WG Low Noise Amplifier, 7000 ... 9000 MHz	7,000	9,000	7,000 9,000	C X	63.0	440	100	65	12	WR-112F	13.00	0.22

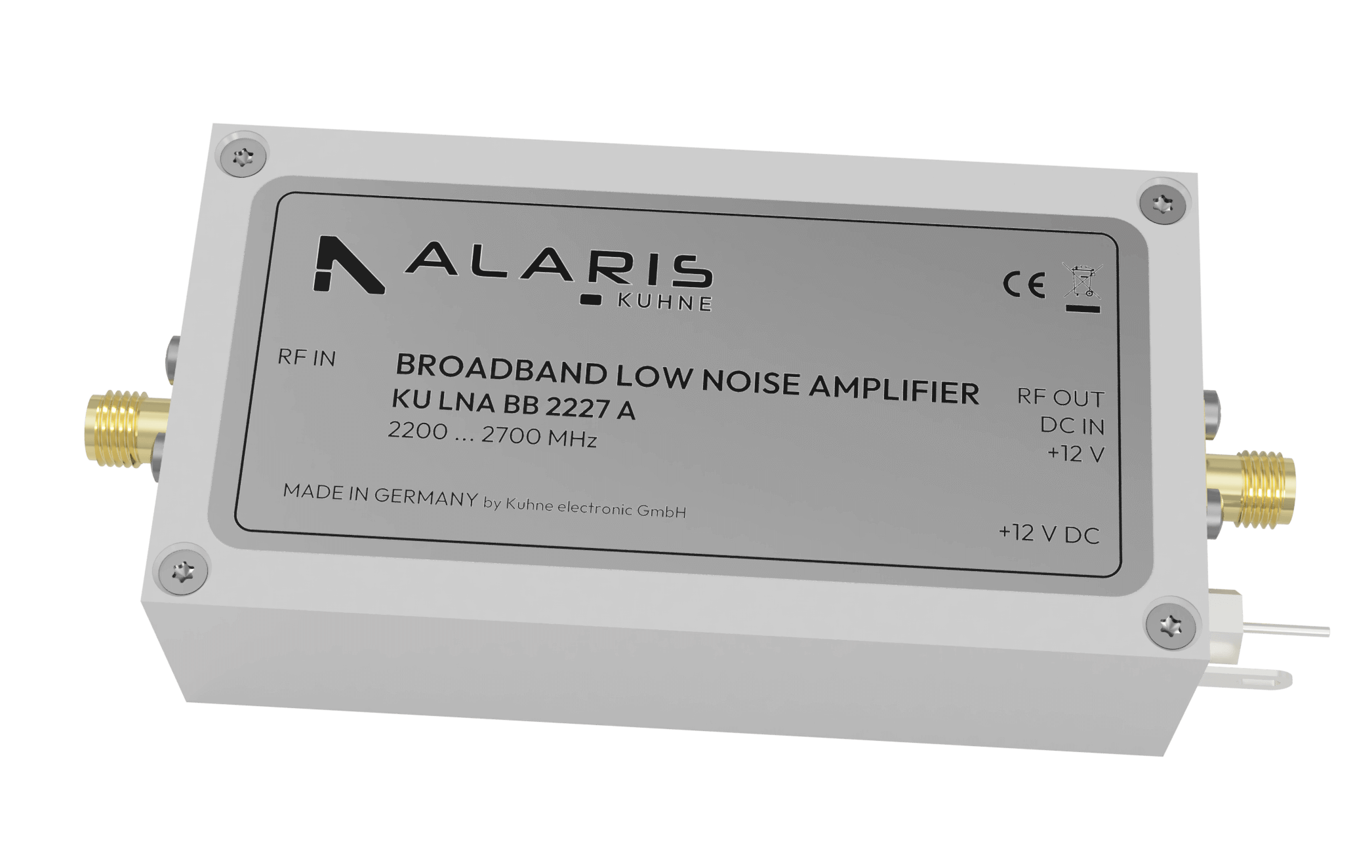

KU LNA BB 2227 A Low Noise Broadband Amplifier, 2200 ... 2700 MHz	2,200	2,700	2,200 2,700	S	25.0	110	78	65	12	SMA	23.00	0.25

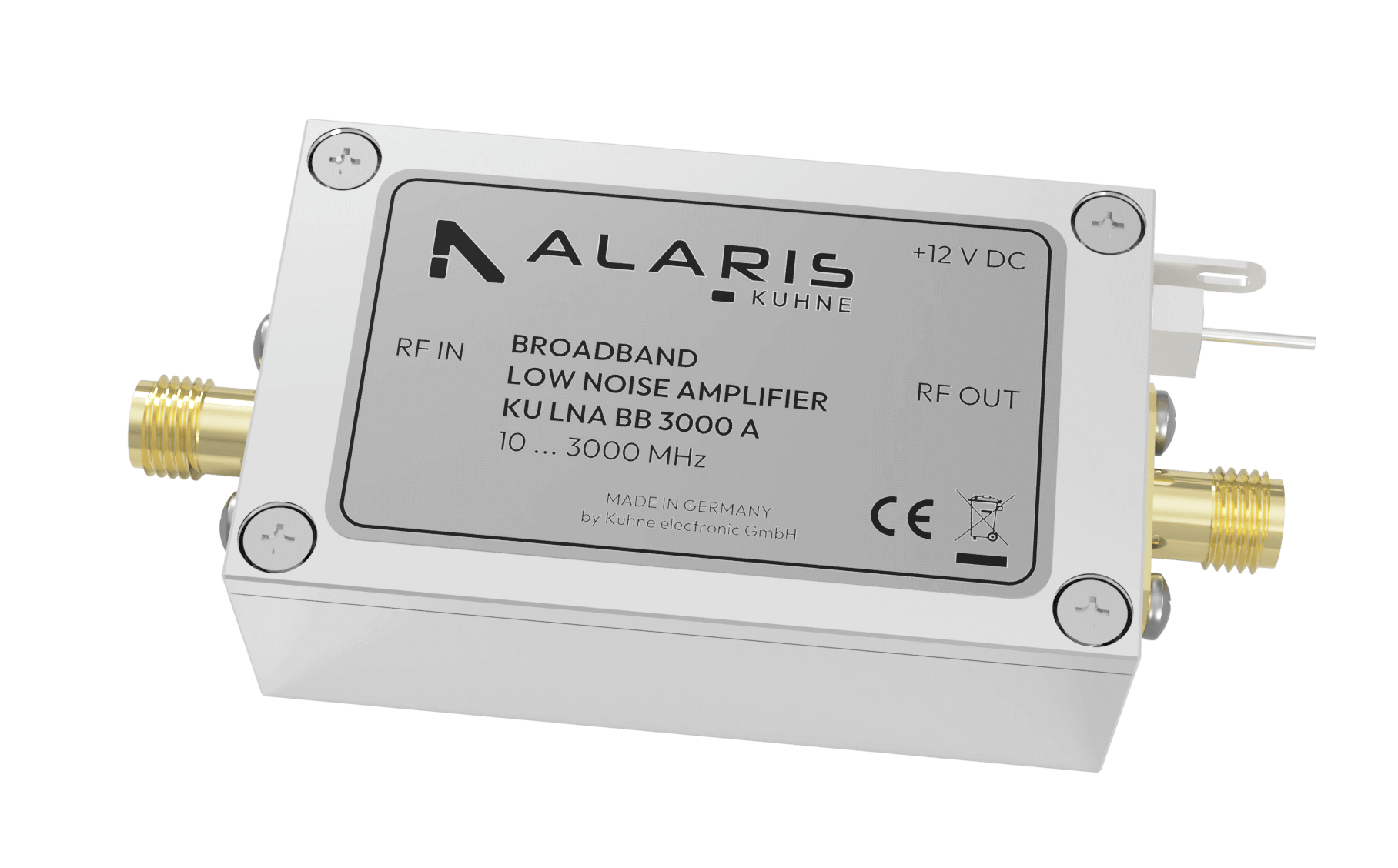

KU LNA BB 3000 A Low Noise Broadband Amplifier, 10 ... 3000 MHz	10	3,000	10 3,000	L S	30.0	100	50	55	12	SMA	N/A	0.15

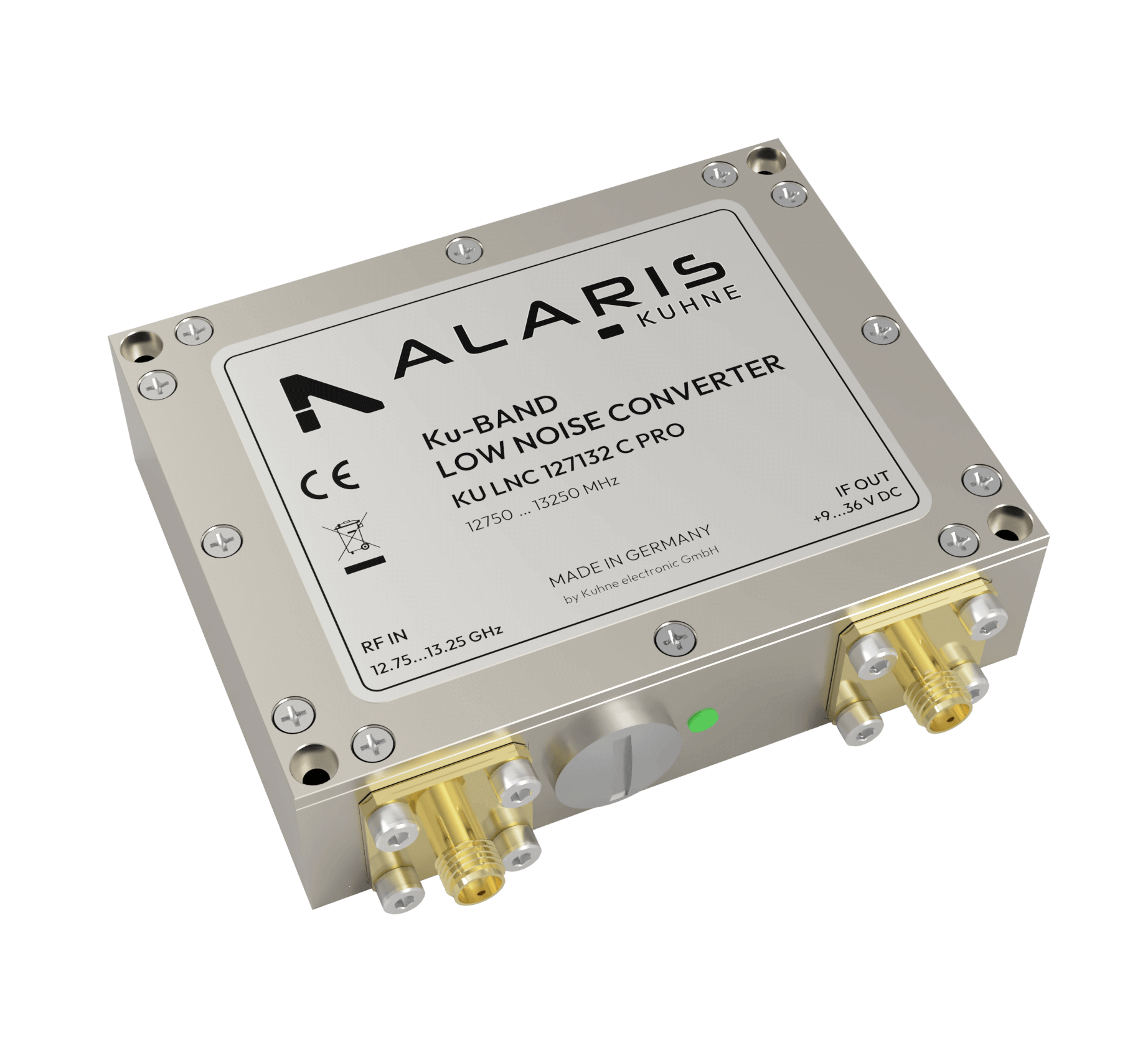

KU LNC 127132 C PRO Down Converter, 12700 ... 13200 MHz	12,750	13,250	12,750 13,250	Ku	42.0	230	82	55	12	SMA	N/A	0.25
KU LNC 2027 C PRO2 Down Converter, 2000 ... 2700 MHz	2,000	2,700	2,000 2,700	S	35.0	230	N/A	N/A	N/A	N	N/A	0.25
KU LNC 4450 C PRO Down Converter, 4400 … 5000 MHz	4,400	5,000	4,400 5,000	C	28.0	230	82	55	12	N	N/A	0.25

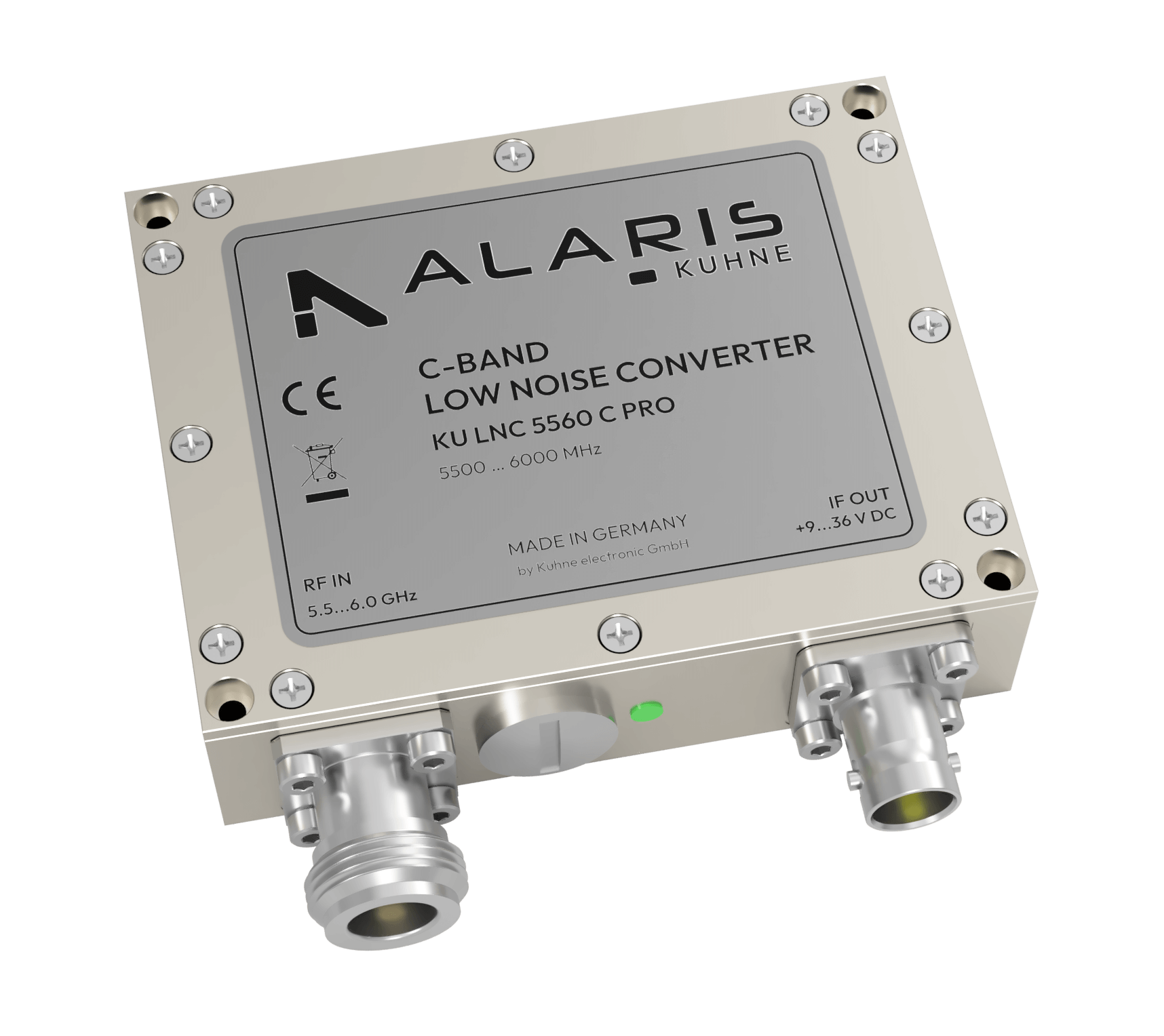

KU LNC 5560 C PRO Down Converter, 5500 ... 6000 MHz	5,500	6,000	5,500 6,000	C	35.0	230	82	55	12	N	N/A	0.25

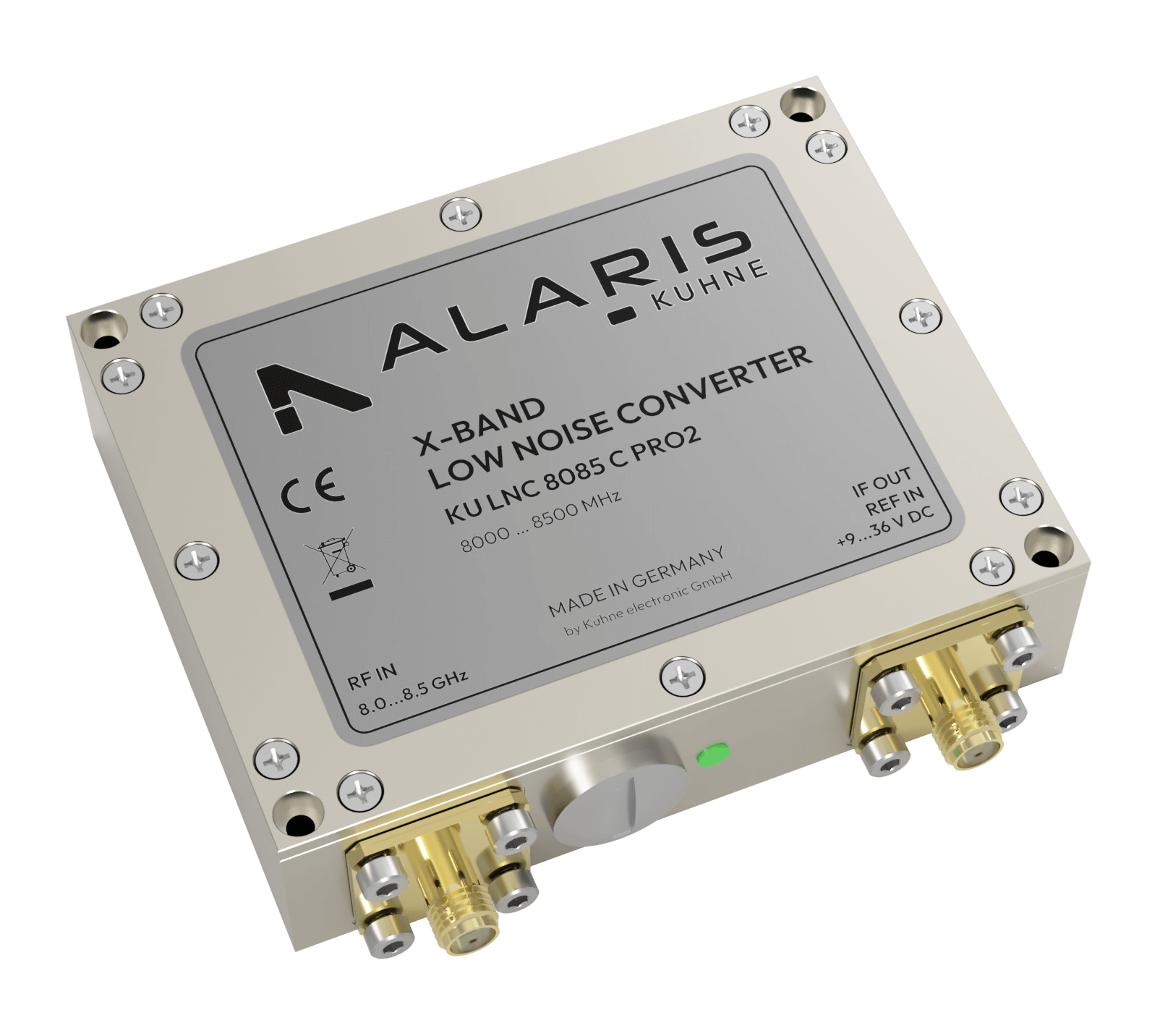

KU LNC 8085 C PRO2 Down Converter, 8000 ... 8500 MHz	8,000	8,500	8,000 8,500	X	50.0	230	82	55	12	SMA	N/A	0.25

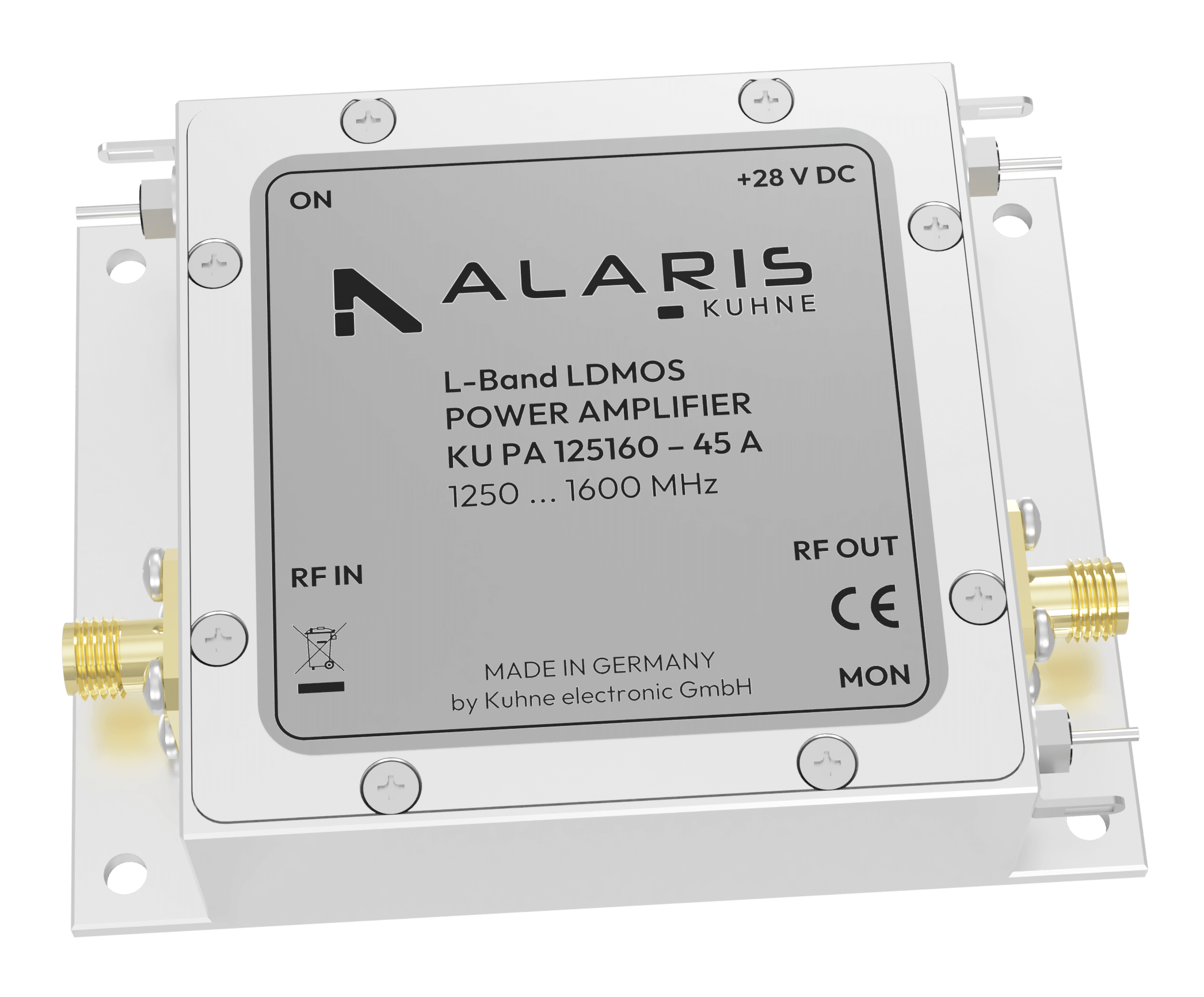

KU PA 125160 - 45 A LDMOS Power Amplifier, 1250 ... 1600 MHz, 45 W	1,250	1,600	1,250 1,600	L	13.0	N/A	N/A	N/A	28	SMA	46.50	5.00
KU PA BB 003350 - 15 B Wideband Power Amplifier, 30 ... 3500 MHz, 15 W	30	3,500	30 3,500	L S	45.0	950	200	N/A	24	SMA	41.70	2.50

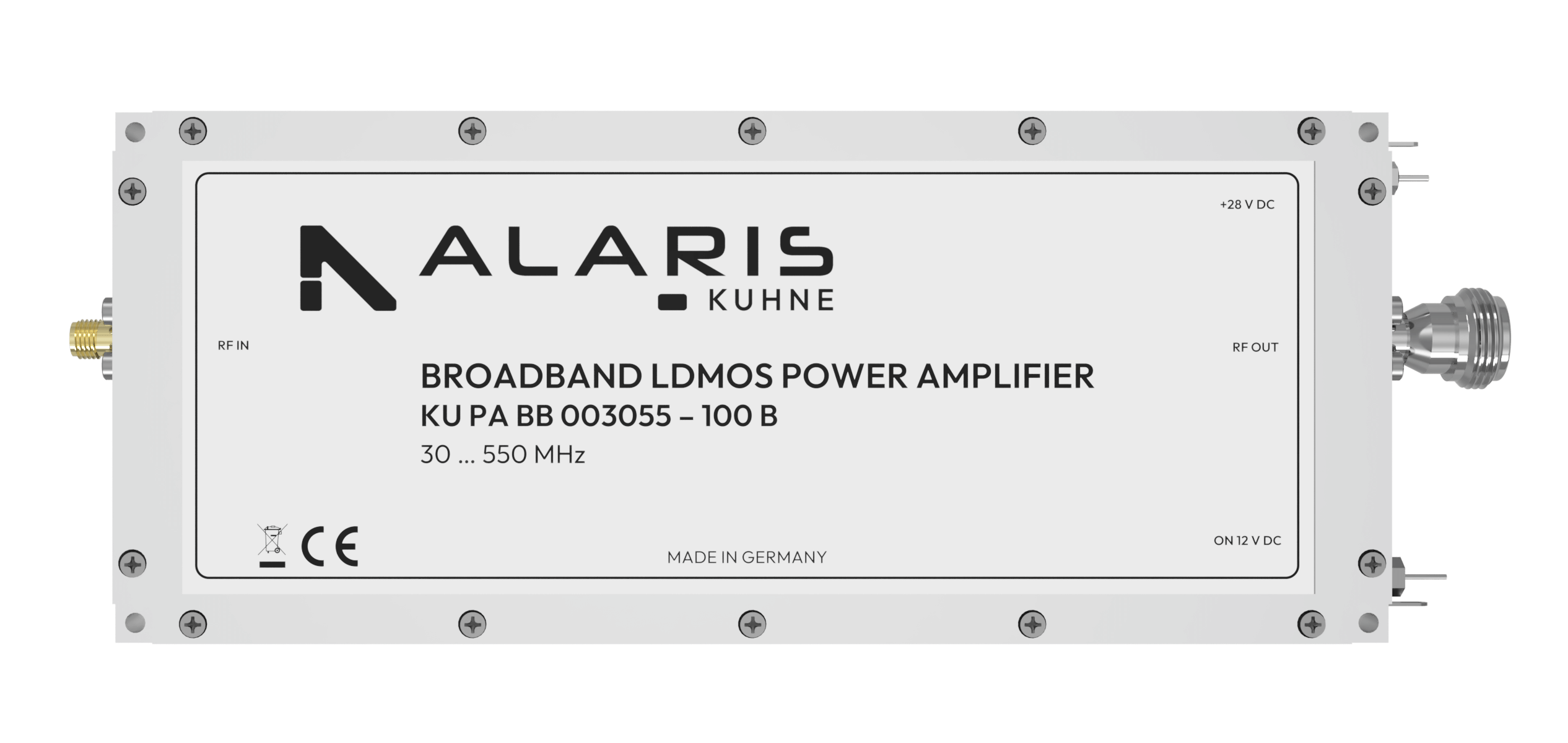

KU PA BB 003055 - 100 B Wideband Power Amplifier, 30 ... 550 MHz, 100 W	30	550	30 550	N/A	49.0	580	192	55	28	N	50.00	9.00

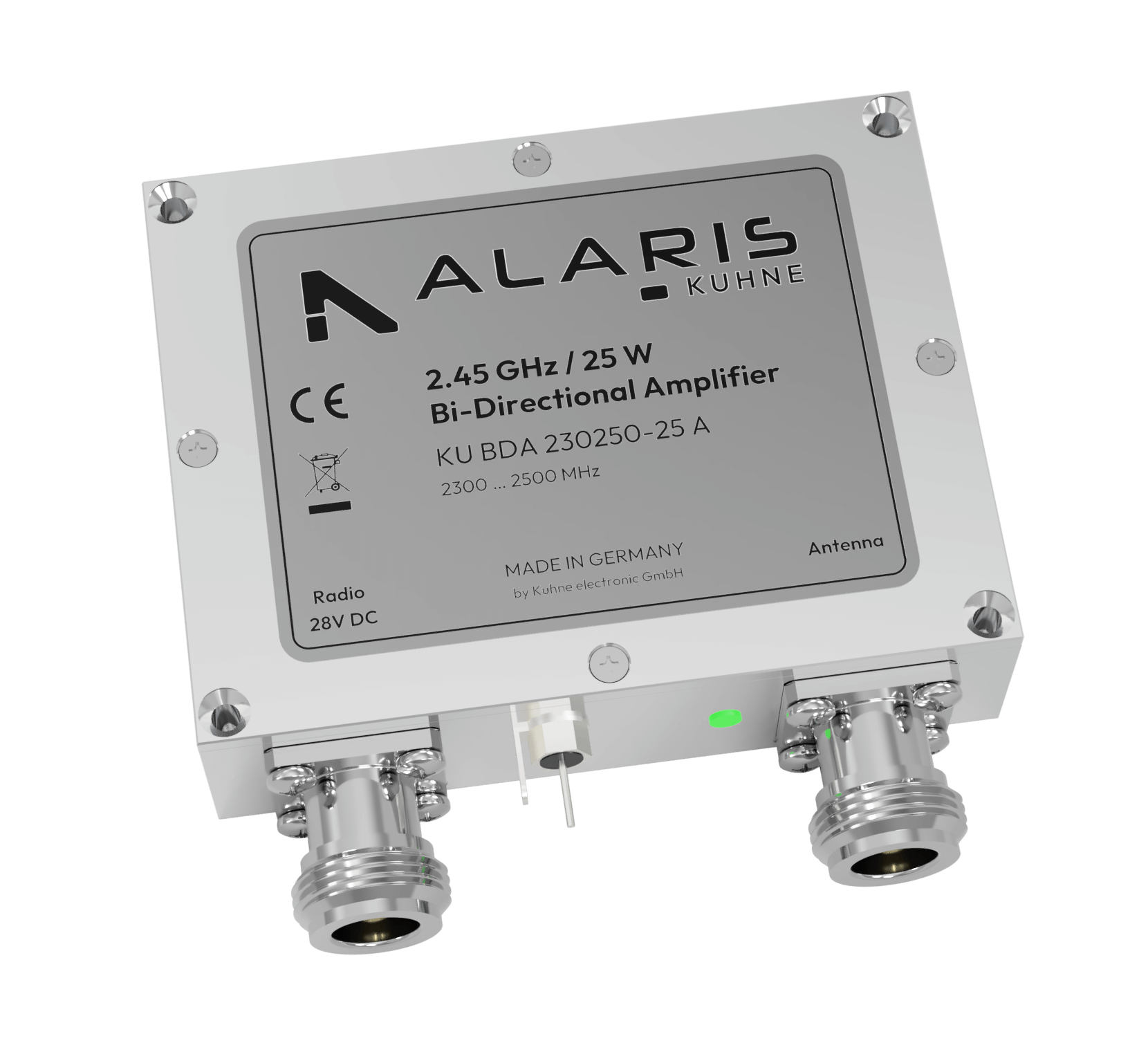

KU BDA 230250 - 25 A Bi-Directional Amplifier, 2300 ... 2500 MHz, 37 dBm COFDM	2,300	2,500	2,300 2,500	N/A	25.0	250	82	55	29	N	44.00	2.40

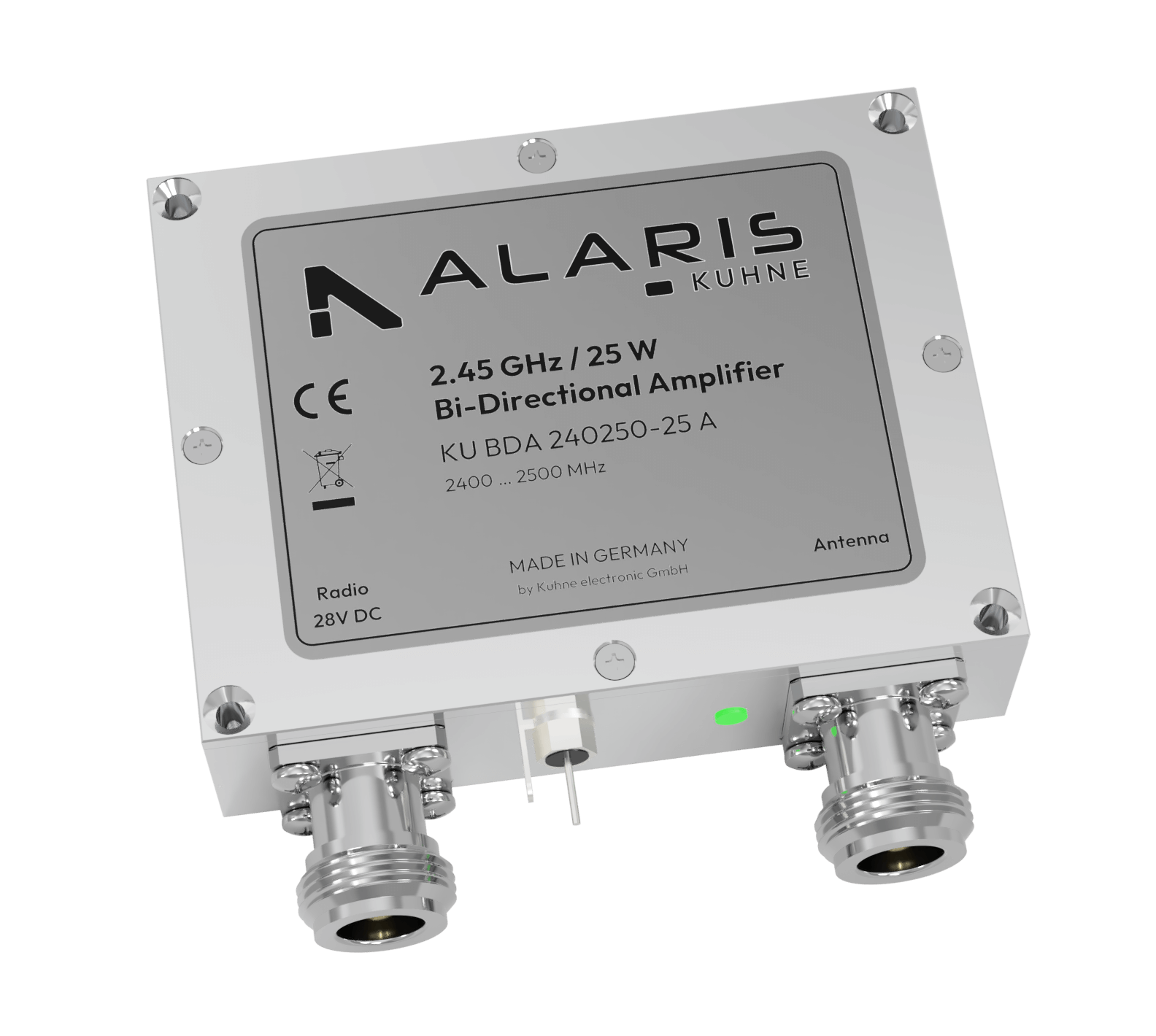

KU BDA 240250 - 25A Bi-Directional Amplifier, 2400 ... 2500 MHz, 37 dBm COFDM	2,400	2,500	2,400 2,500	N/A	25.0	250	82	55	29	N	44.00	2.40

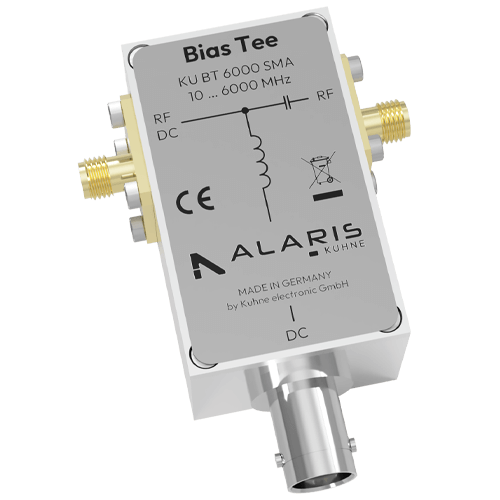

KU BT 6000 SMA Bias Tee, 10 ... 6000 MHz	10	6,000	10 6,000	N/A	N/A	100	50	N/A	15	SMA	N/A	3.00

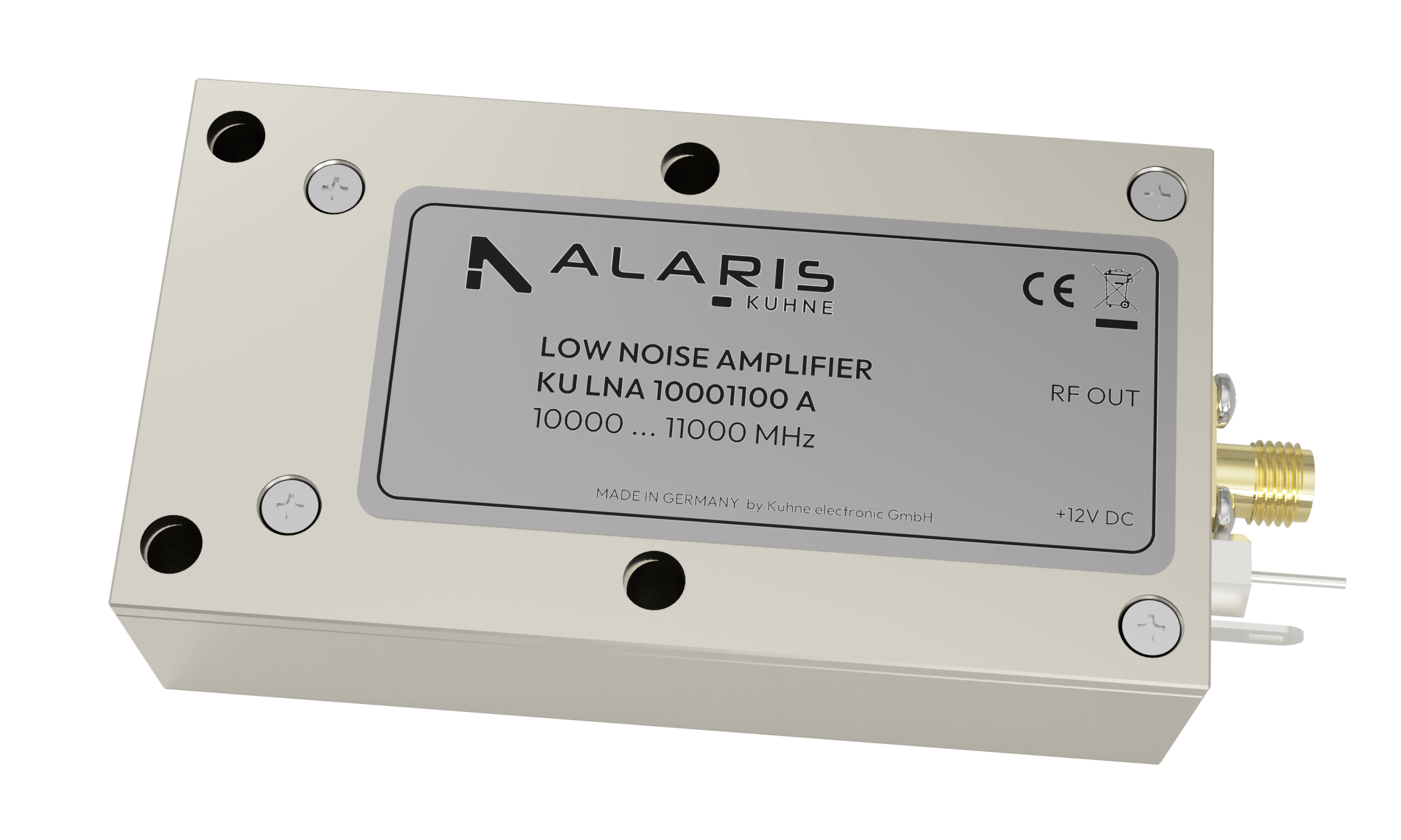

KU LNA 10001100 A Super Low Noise Preamplifier, 10000 ... 11000 MHz	10,000	11,000	10,000 11,000	X	22.0	130	73	55	12	SMA	5.00	0.03

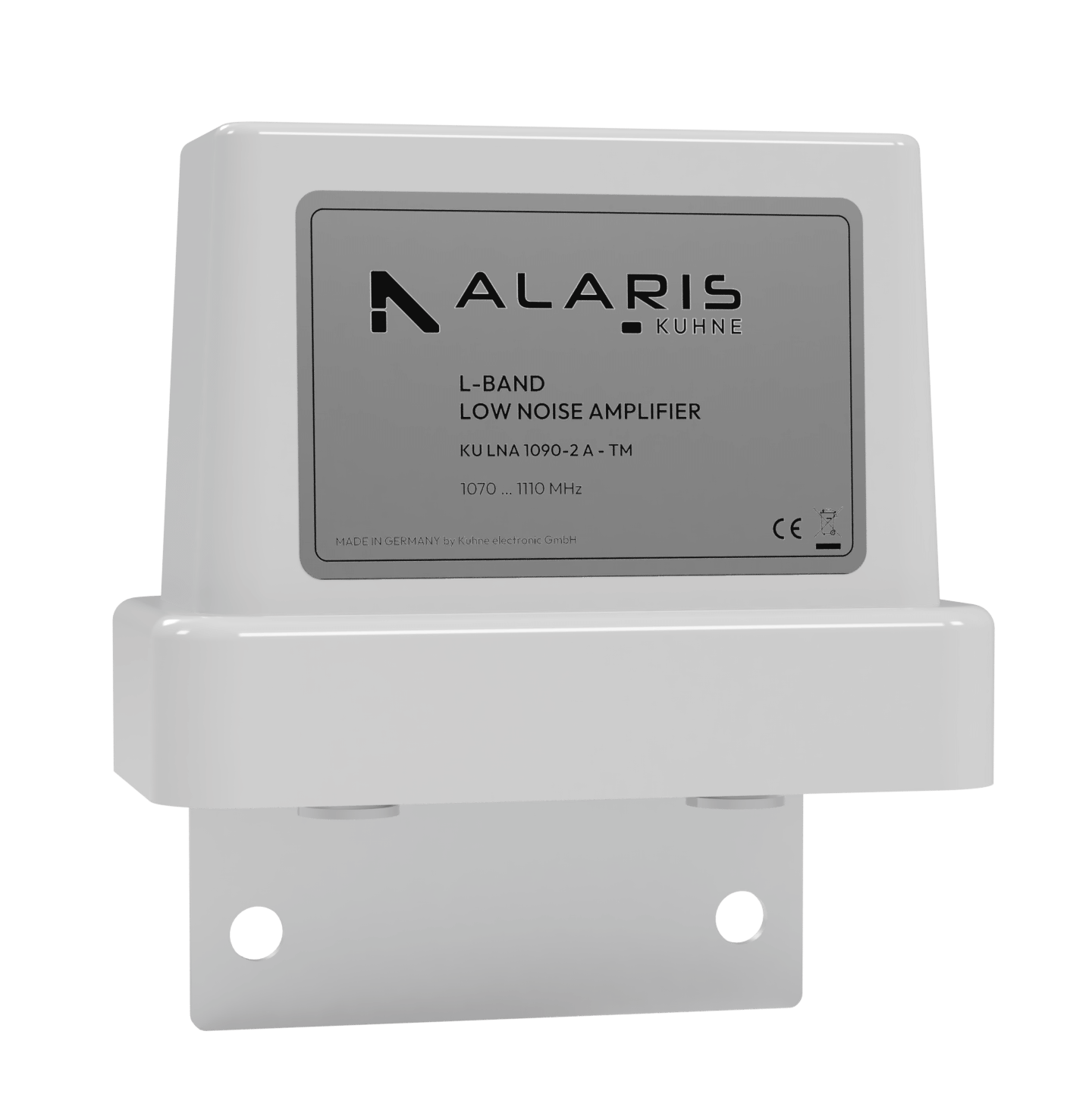

KU LNA 1090 - 2 A TM Selective Low Noise Amplifier, 1070 ... 1110 MHz	1,070	1,110	1,070 1,110	L	30.0	330	109	65	12	N	N/A	0.13

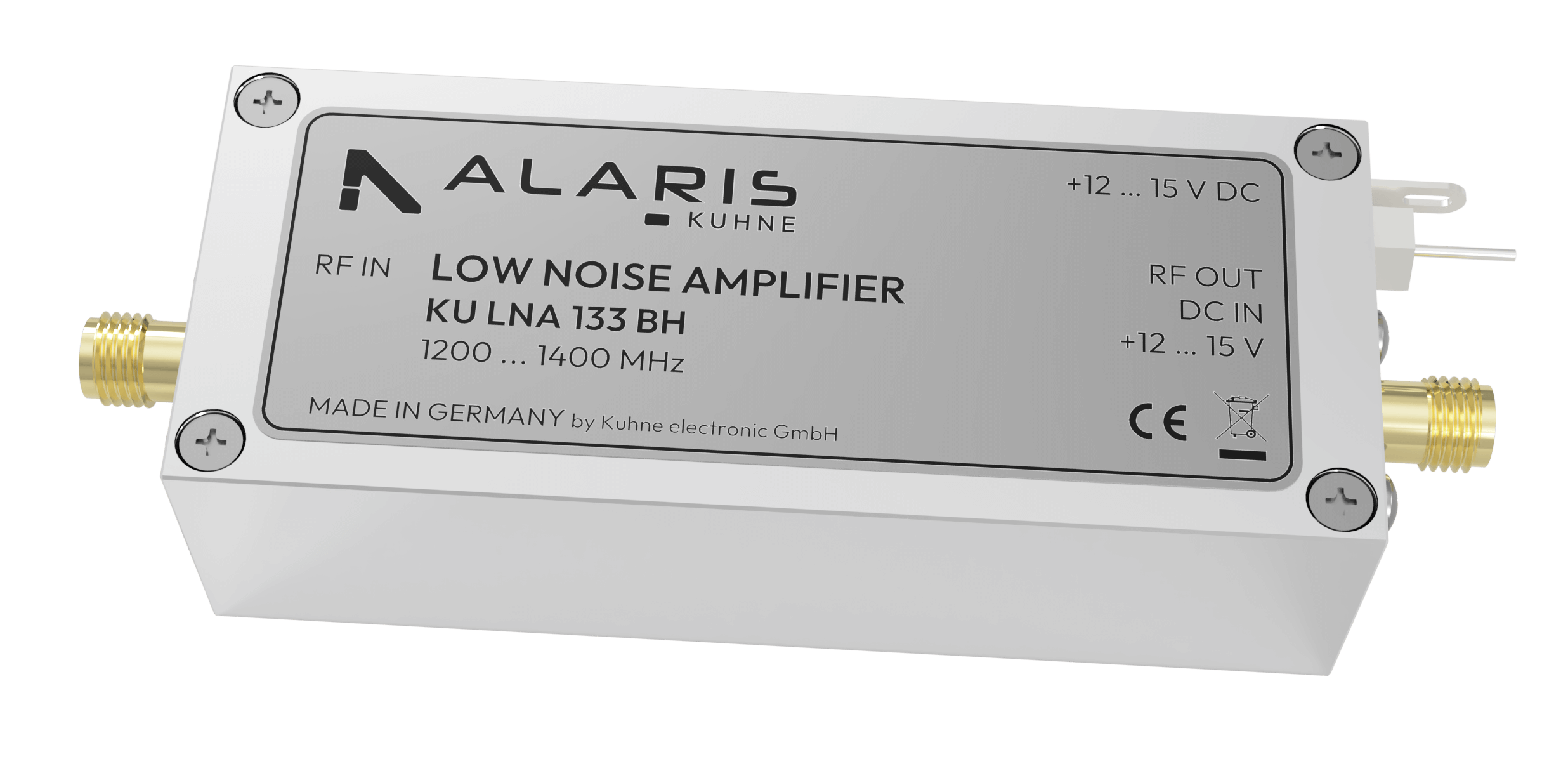

KU LNA 133 BH Super Low Noise Amplifier, 1200 ... 1400 MHz	1,200	1,400	1,200 1,400	L	30.0	80	73	65	12	SMA	N/A	0.10
KU LNA 142 AH Super Low Noise Preamplifier, 1350 ... 1450 MHz	1,350	1,450	1,350 1,450	L	33.0	140	73	65	12	N	N/A	0.08

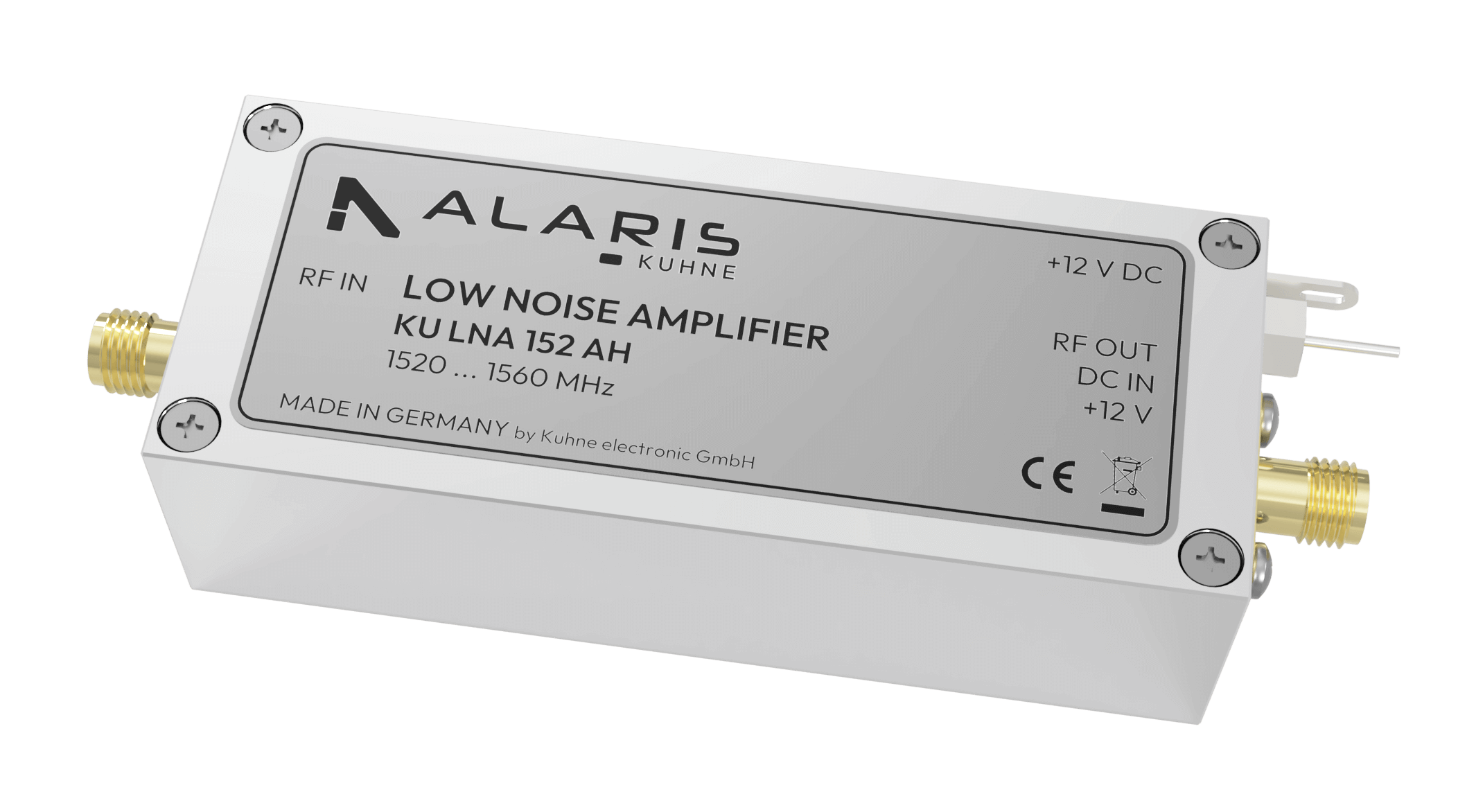

KU LNA 152 AH Super Low Noise Amplifier, 1520 ... 1560 MHz	1,520	1,560	1,520 1,560	L	33.0	140	73	65	12	SMA	N/A	0.07

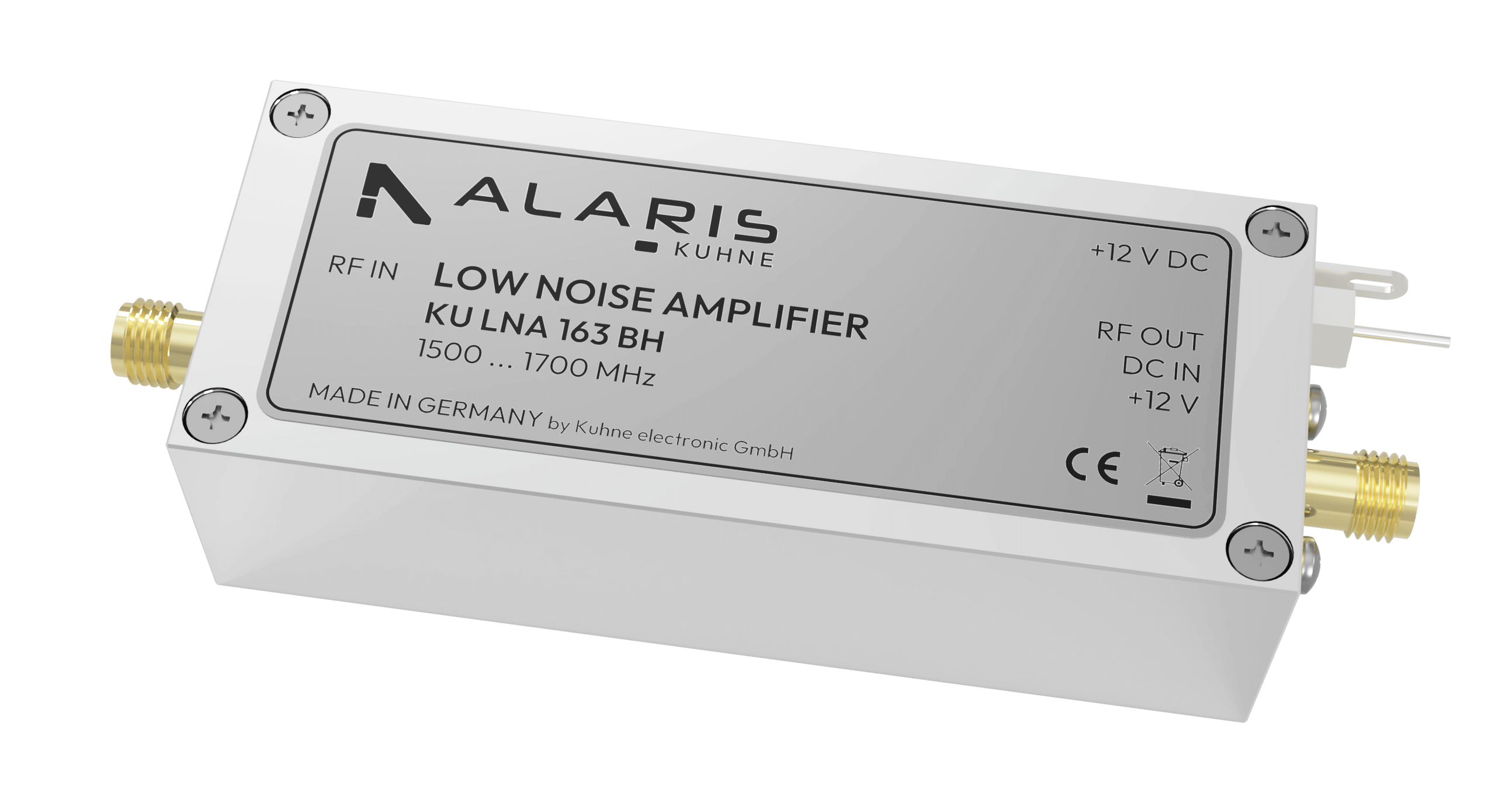

KU LNA 163 BH Super low noise preamplifier, 1500 ... 1700 MHz	1,500	1,700	1,500 1,700	L	31.0	80	73	85	12	SMA	N/A	0.10

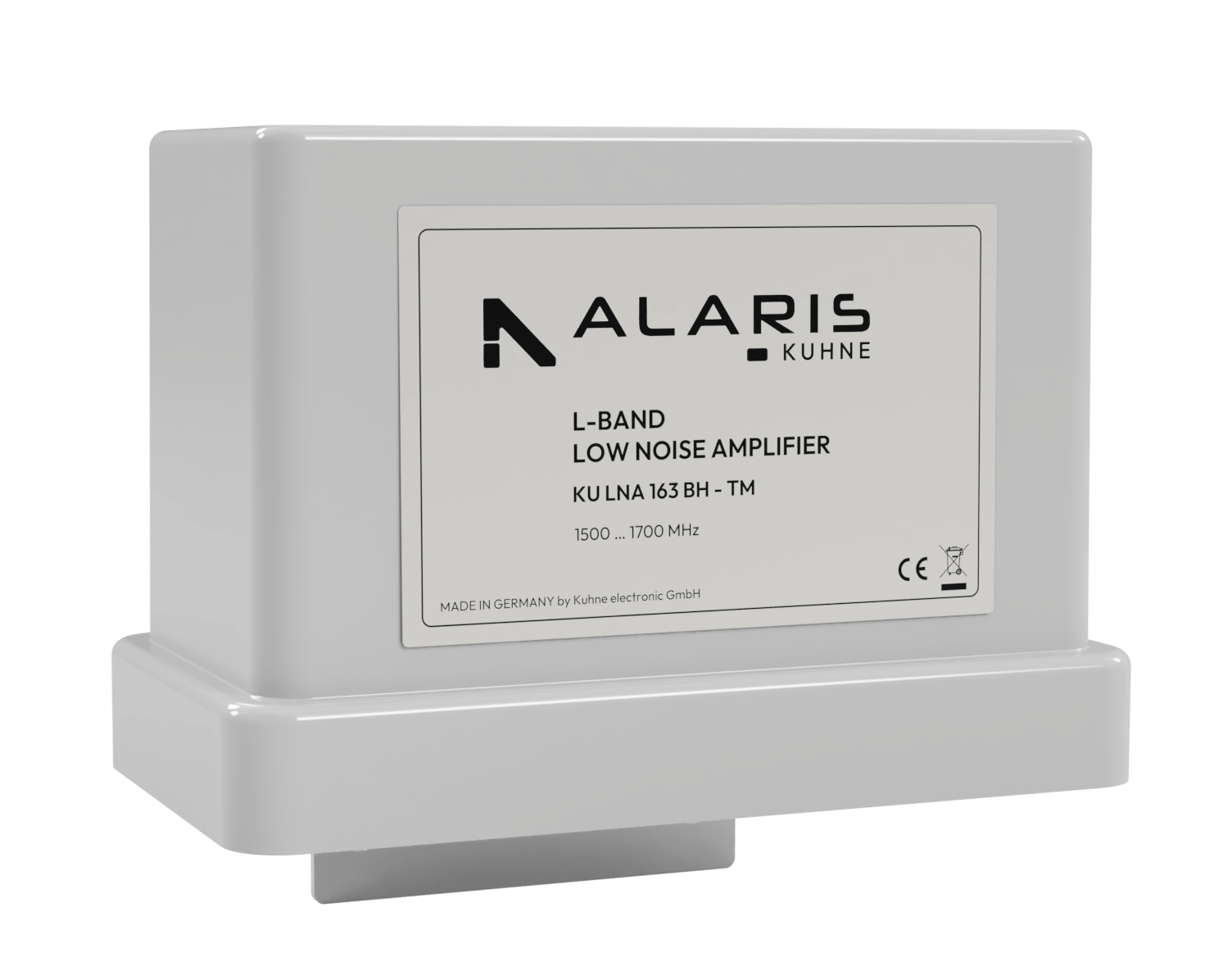

KU LNA 163 BH - TM Super low noise preamplifier, 1500 ... 1700 MHz	1,500	1,700	1,500 1,700	L	31.0	360	145	85	12	N	N/A	0.10

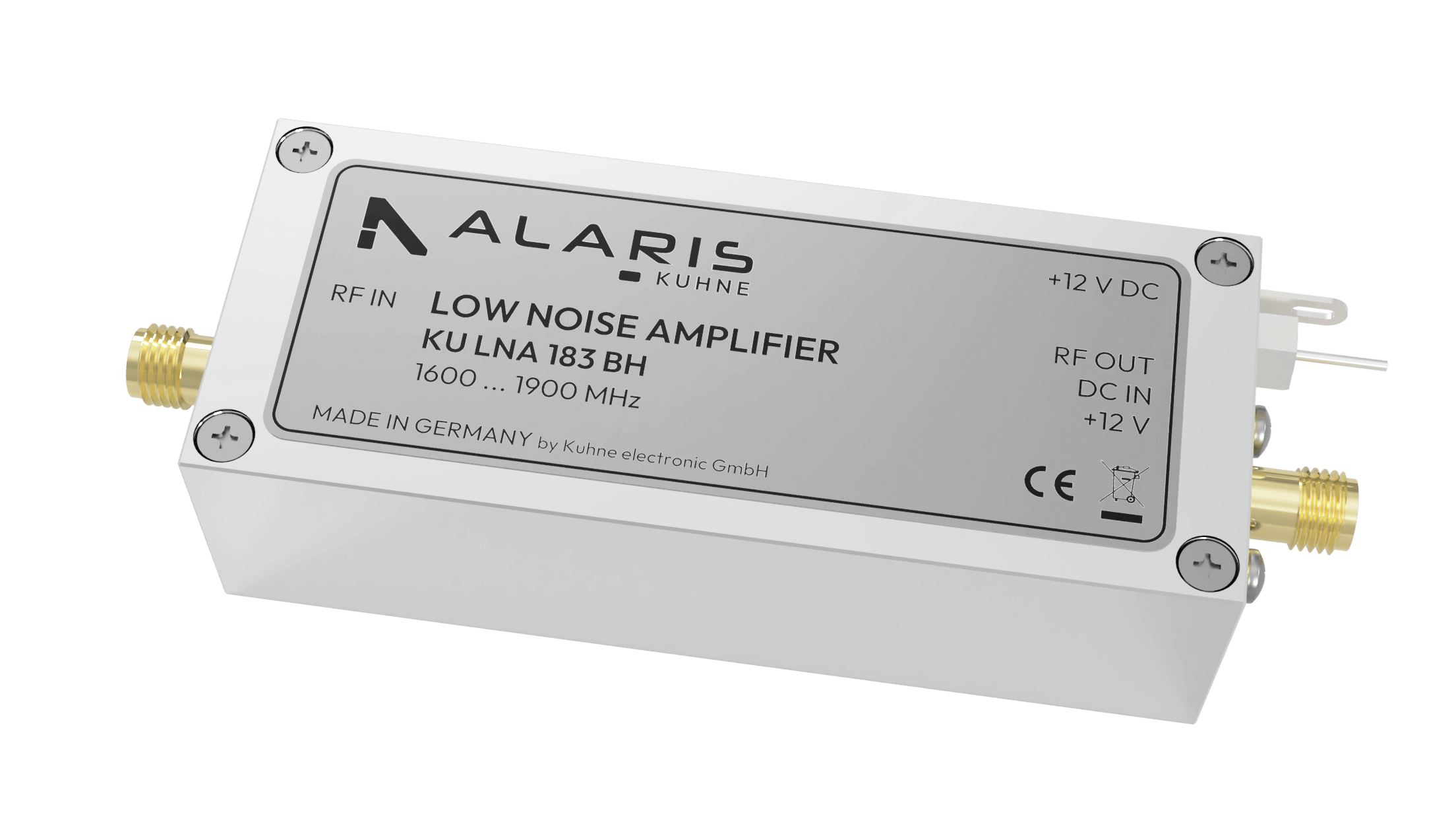

KU LNA 183 BH Super Low Noise Amplifier, 1600 ... 1900 MHz	1,600	1,900	1,600 1,900	L	29.0	80	73	65	12	SMA	N/A	0.10

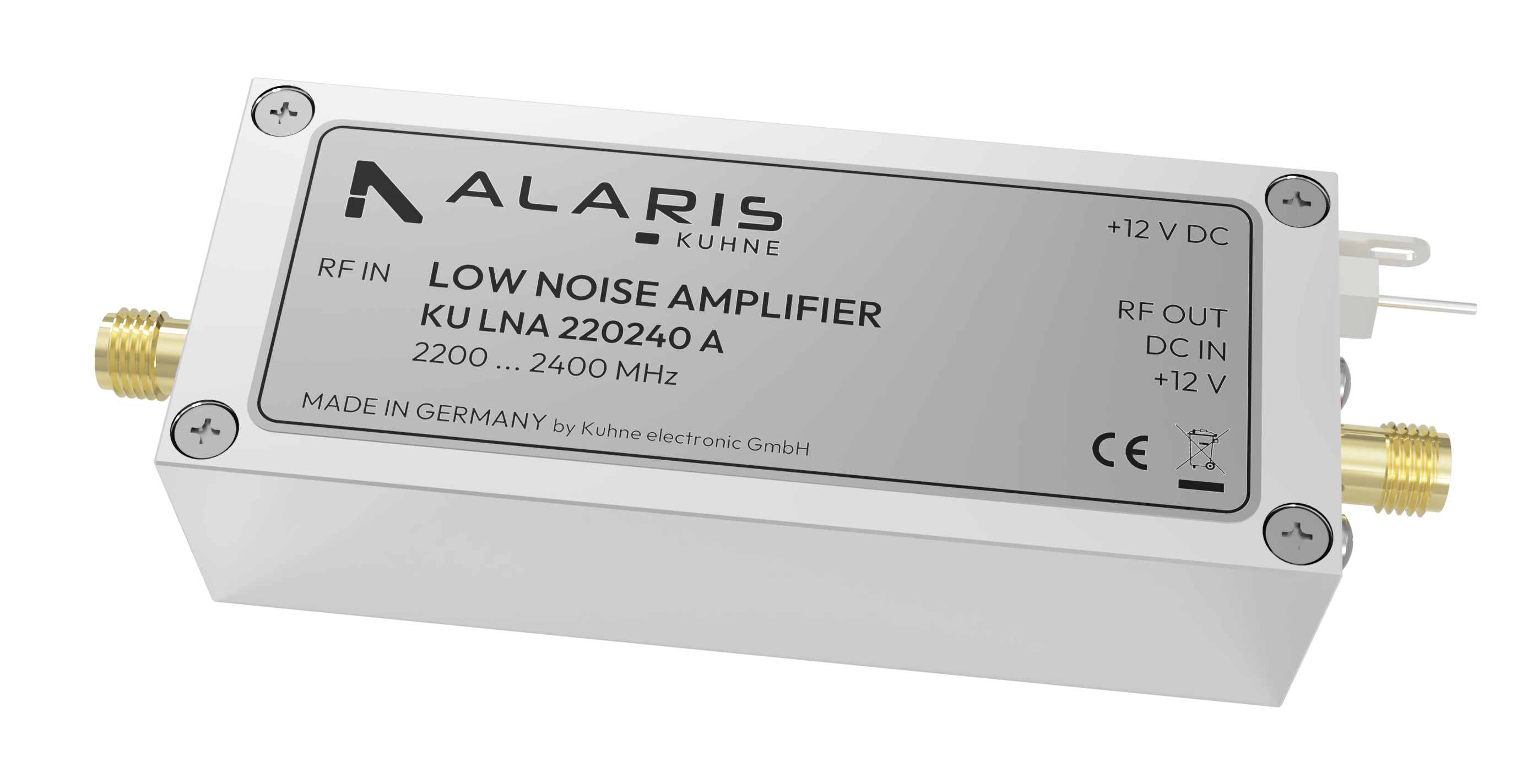

KU LNA 220240 A Super Low Noise Amplifier, 2200 ... 2400 MHz	2,200	2,400	2,200 2,400	S	58.0	90	73	65	12	SMA	19.00	0.11

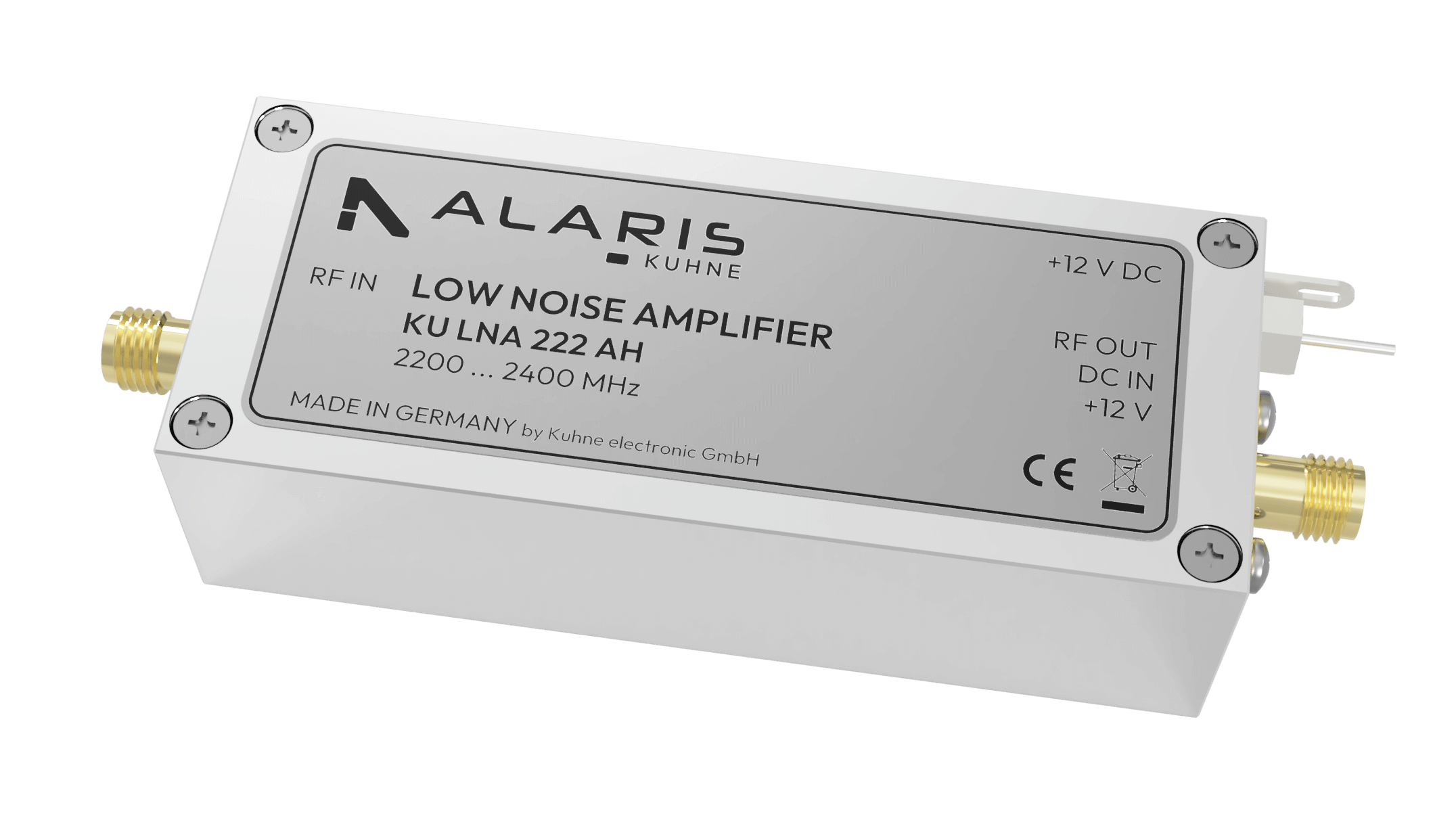

KU LNA 222 AH Super Low Noise Amplifier, 2200 ... 2400 MHz	2,200	2,400	2,200 2,400	S	30.0	90	73	65	12	SMA	N/A	0.08

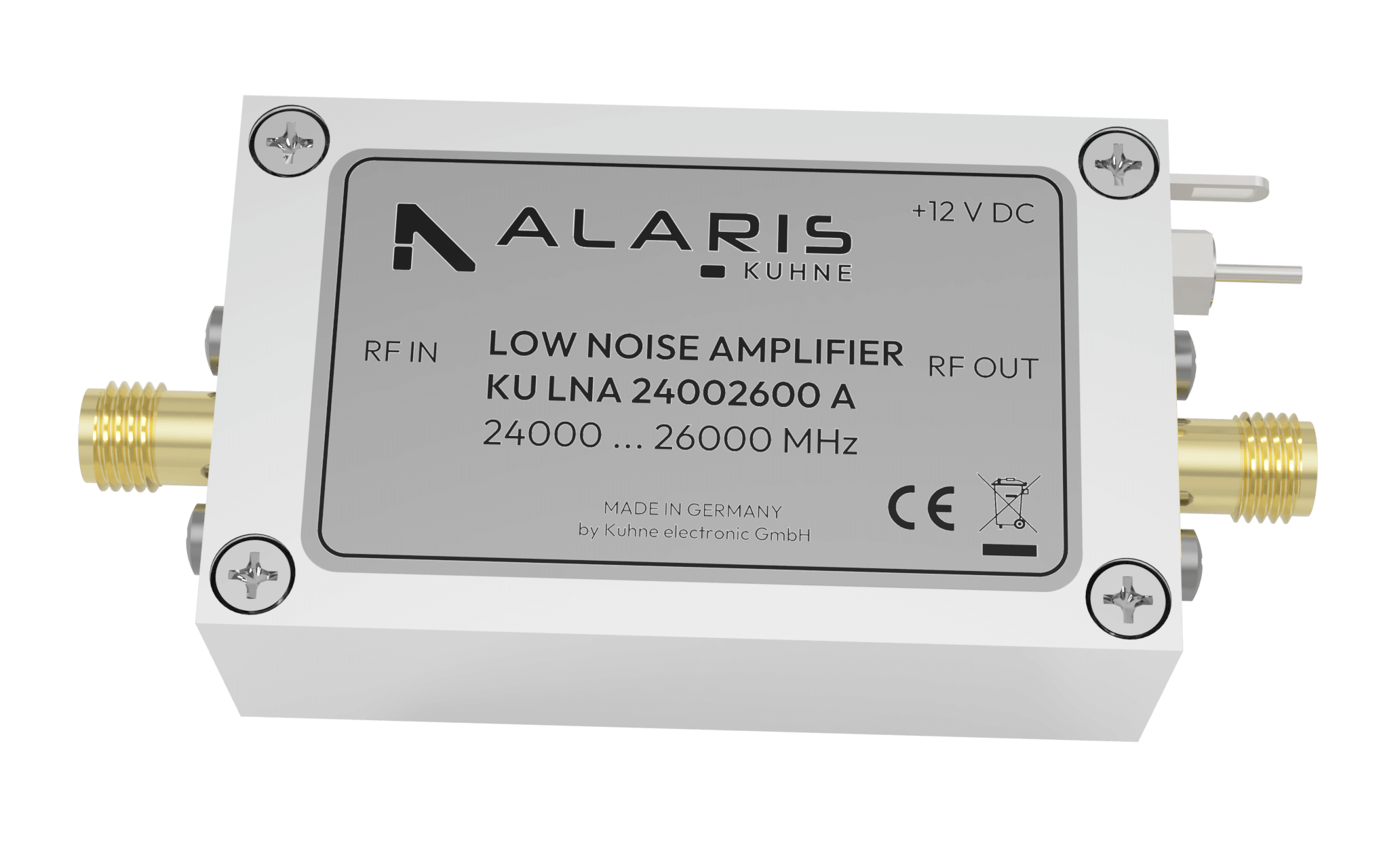

KU LNA 24002600 A Super Low Noise Amplifier, 24000 ... 26000 MHz	24,000	26,000	24,000 26,000	K	22.5	50	50	23	12	SMA	N/A	0.08

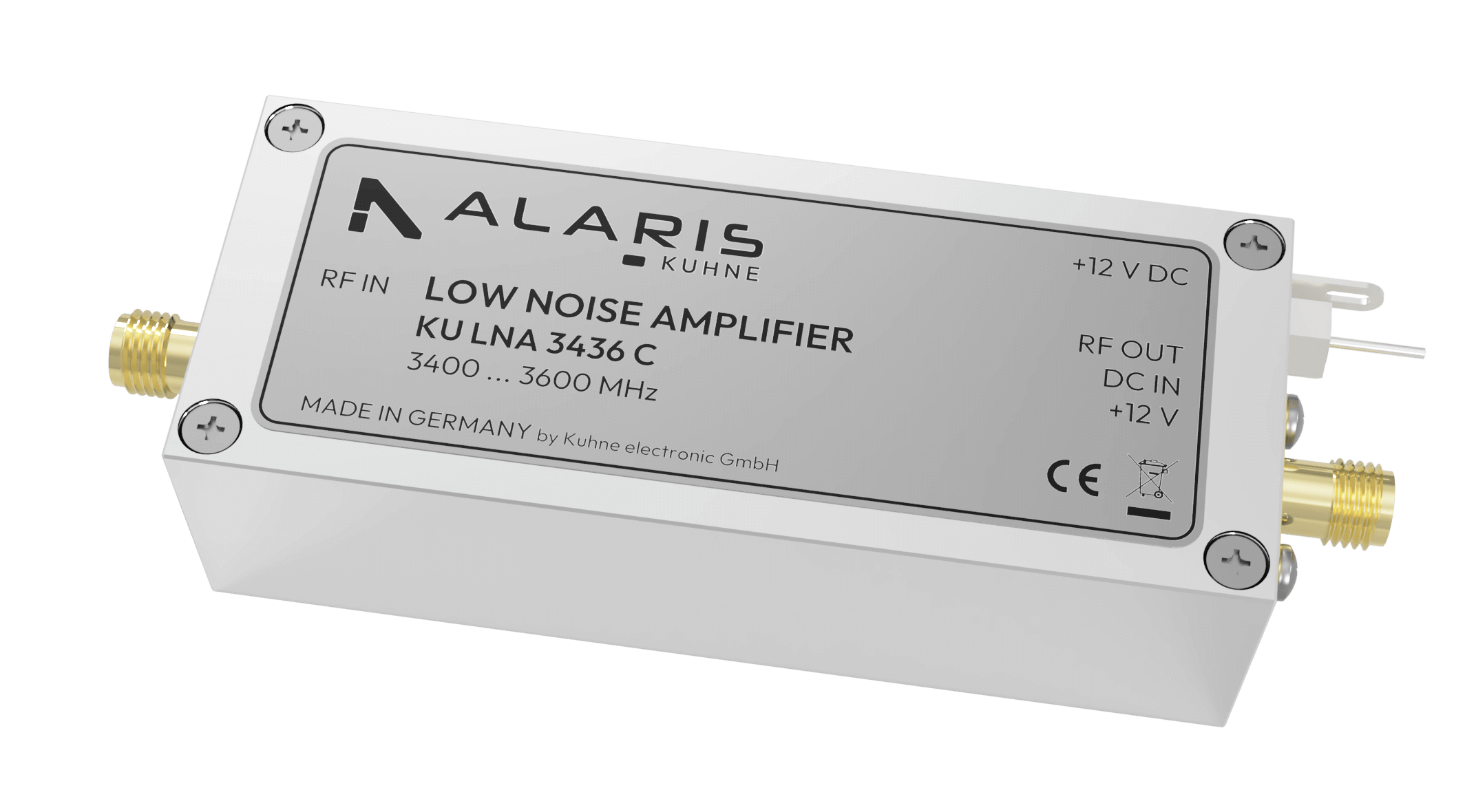

KU LNA 3436 C Super Low Noise Amplifier, 3400 ... 3600 MHz	3,400	3,600	3,400 3,600	C	24.0	75	73	18	12	SMA	N/A	0.08
KU LNA 4450 A Super Low Noise Amplifier, 4400 ... 5000 MHz	4,400	4,500	4,400 4,500	C	24.0	40	50	18	11	SMA	13.00	0.11

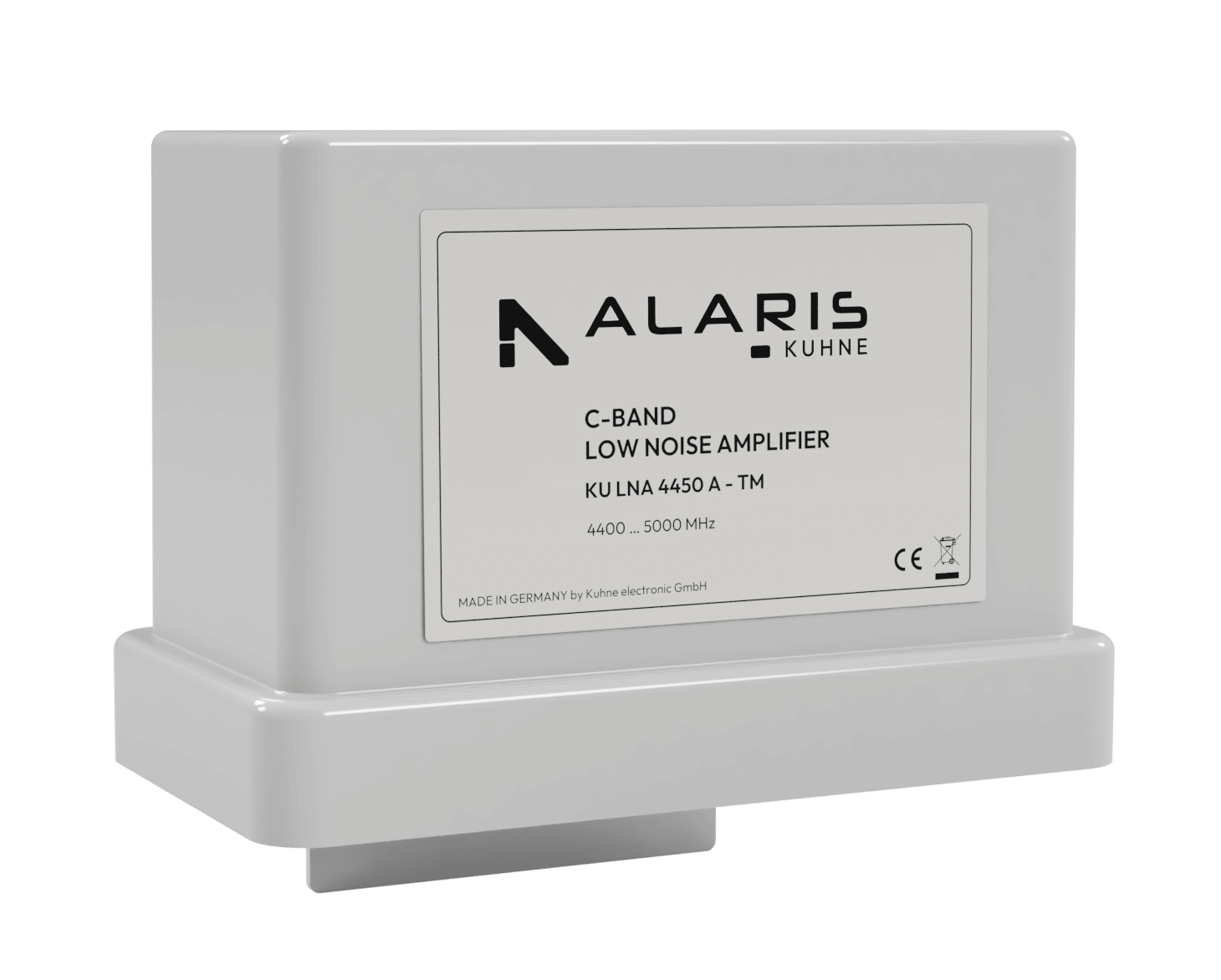

KU LNA 4450 A - TM Super Low Noise Amplifier, 4400 ... 5000 MHz	4,400	5,000	4,400 5,000	C	24.0	N/A	115	85	11	N	13.00	0.11

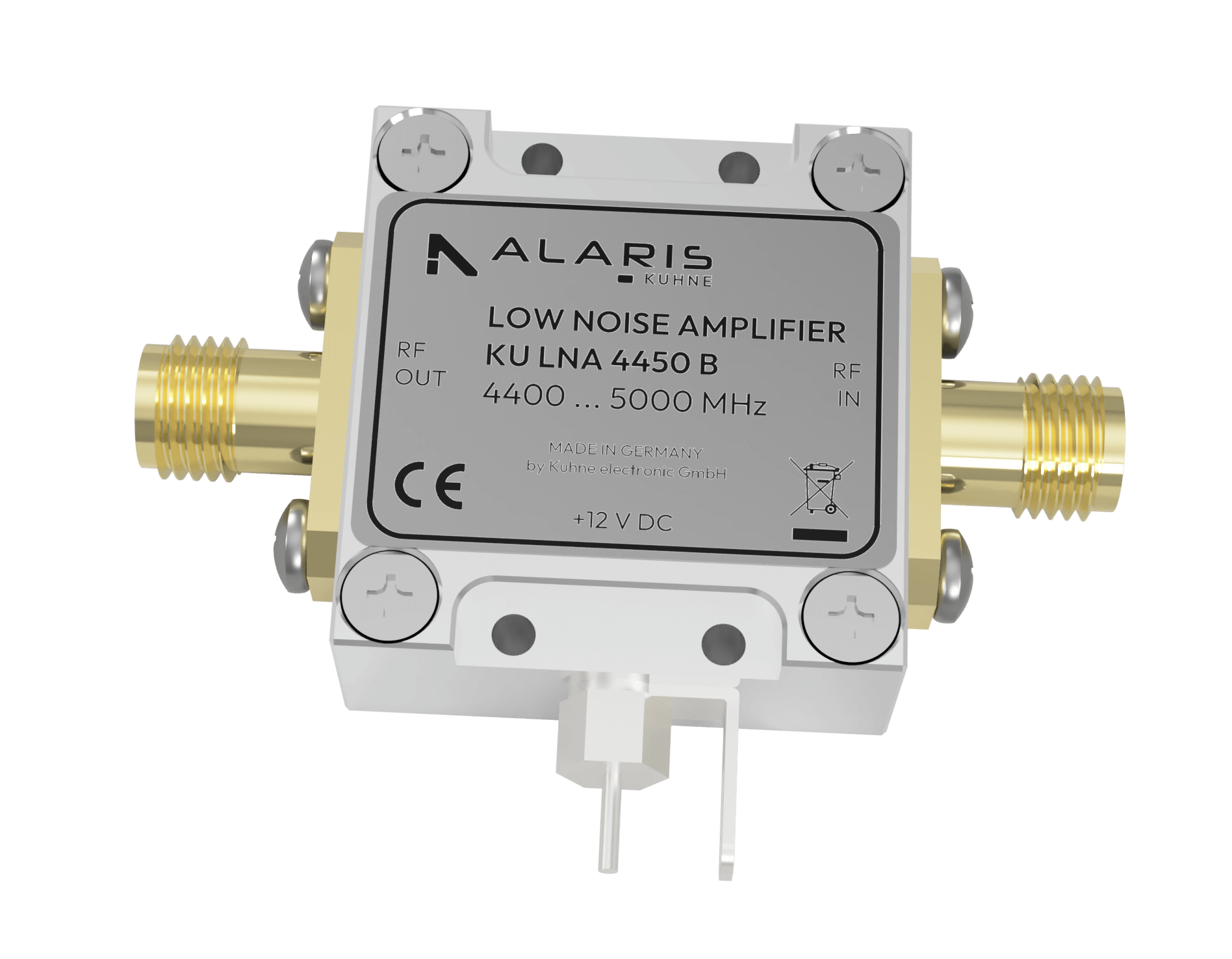

KU LNA 4450 B Super Low Noise Amplifier, 4400 ... 5000 MHz	4,400	5,000	4,400 5,000	C	28.0	15	25	18	10	SMA	14.00	0.09

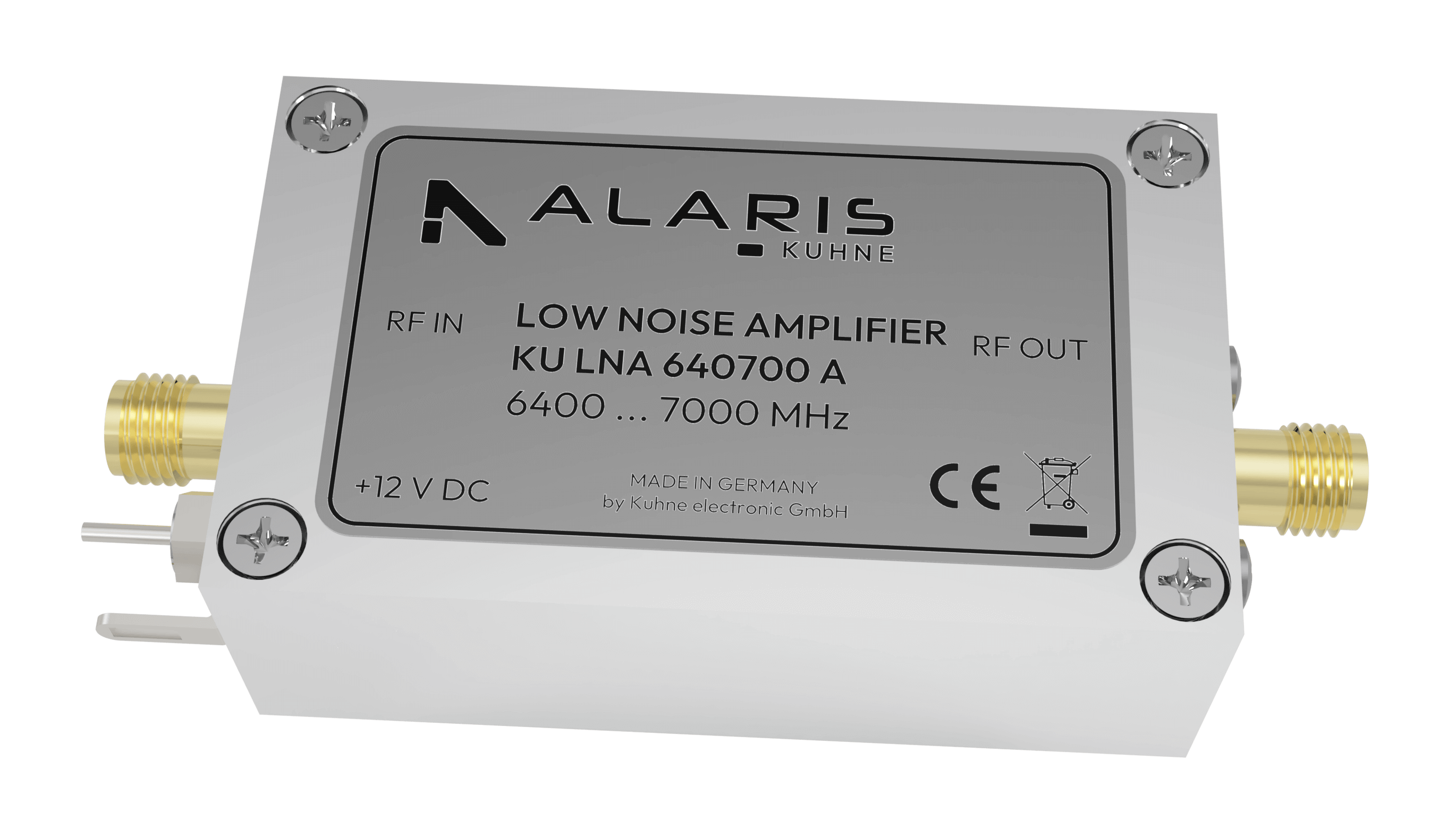

KU LNA 640700 A Low Noise Broadband Amplifier, 6400 ... 7000 MHz	6,400	7,000	6,400 7,000	C	30.0	50	50	65	10	SMA	N/A	0.09

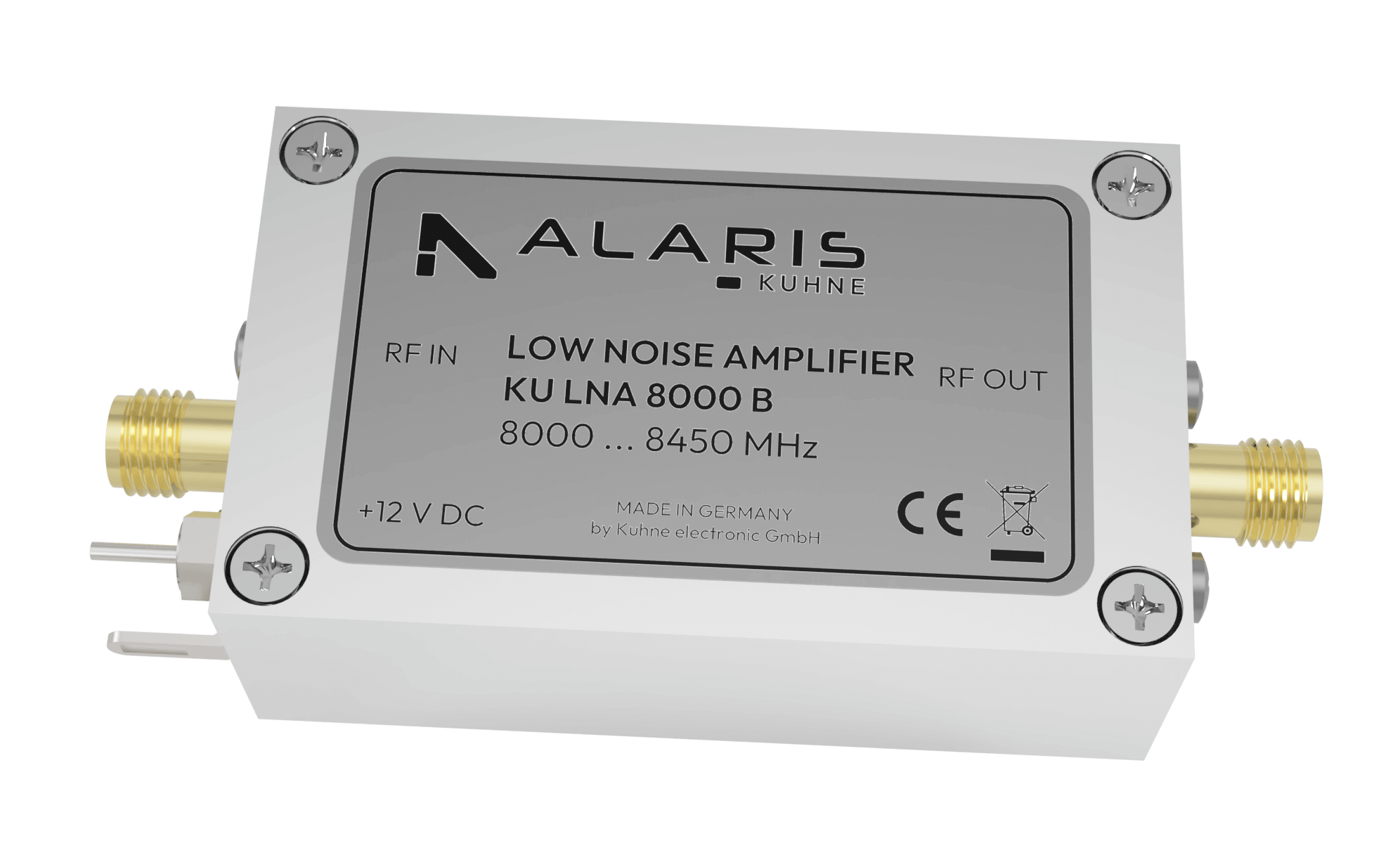

KU LNA 8000 B Super Low Noise Amplifier, 8000 ... 8450 MHz	8,000	8,450	8,000 8,450	X	28.0	45	50	65	14	SMA	15.00	0.09

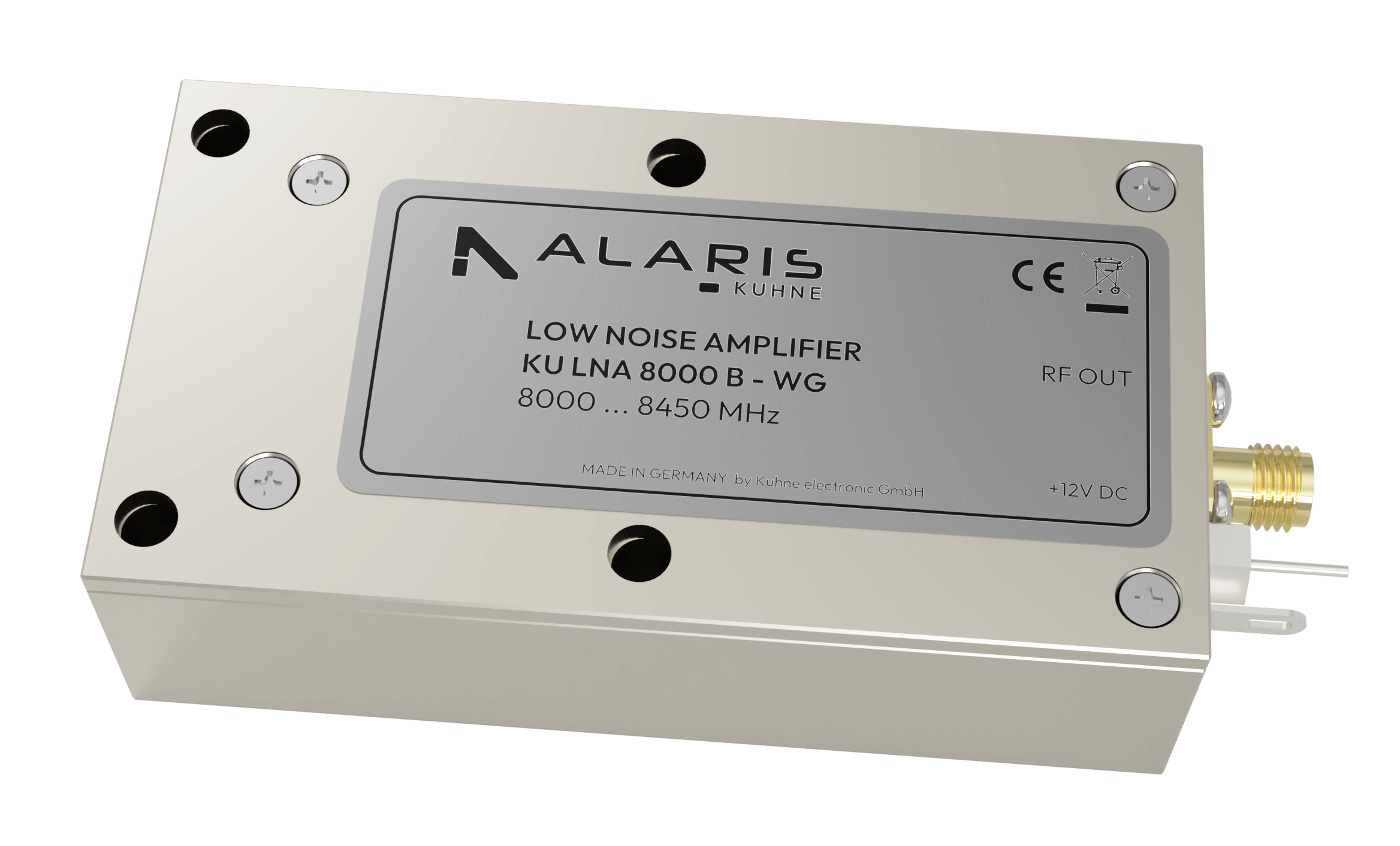

KU LNA 8000 B WG Super Low Noise Amplifier, 8000 ... 8450 MHz	8,000	8,450	8,000 8,450	X	32.0	110	73	65	14	SMA	N/A	0.09

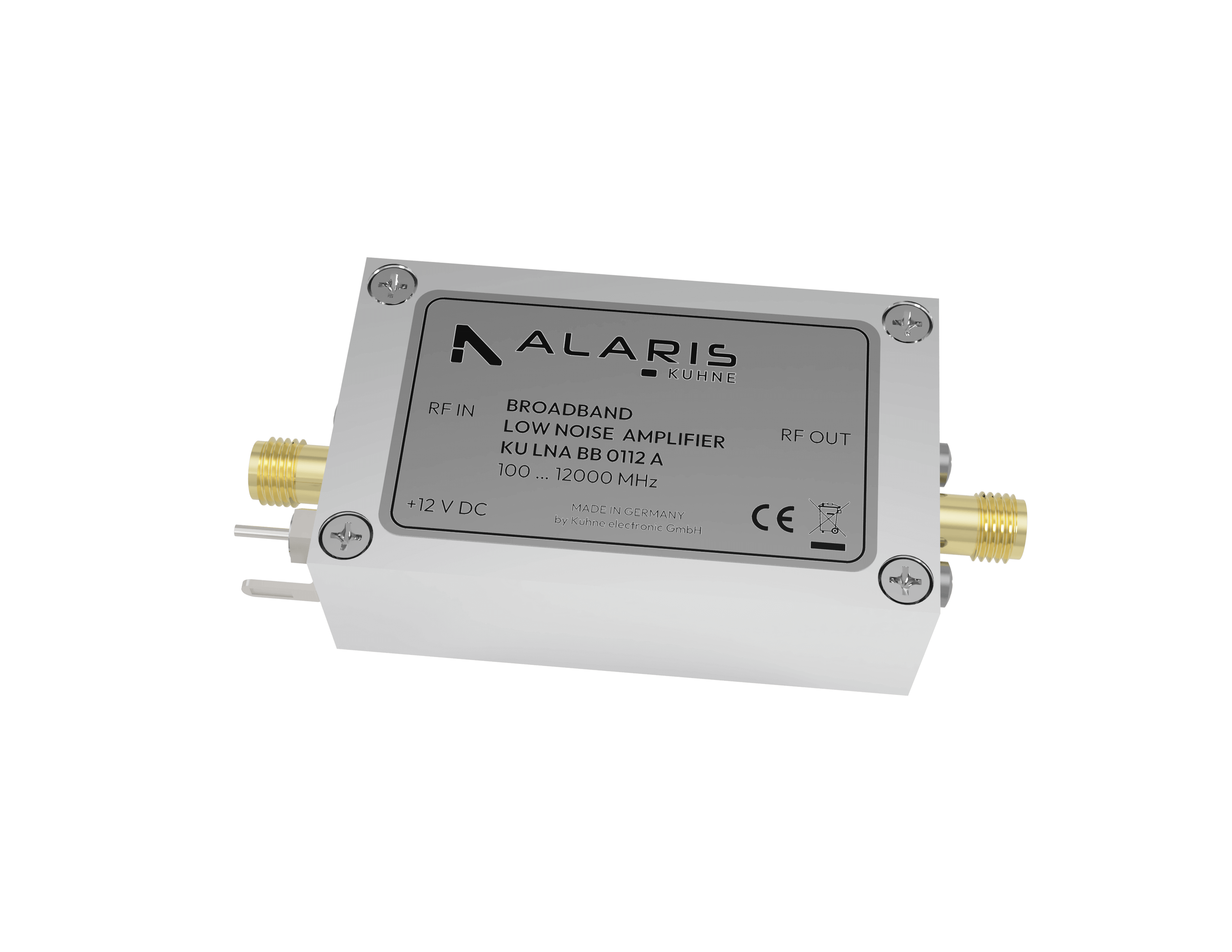

KU LNA BB 0112 A Low Noise Broadband Amp., 100 ... 12000 MHz	100	12,000	100 12,000	L S C X	20.0	40	50	65	14	SMA	N/A	0.10

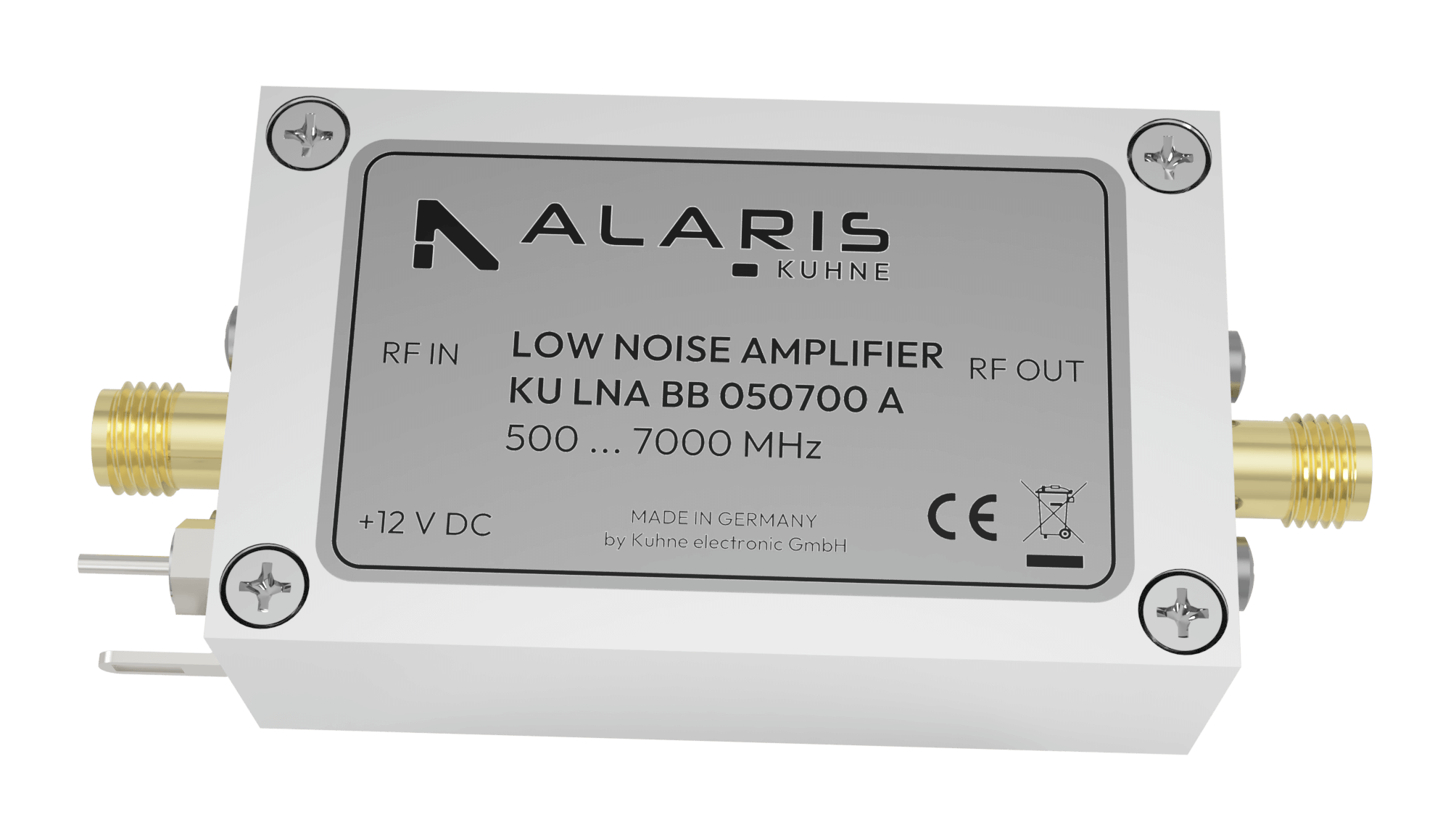

KU LNA BB 050700 A Broadband Low Noise Amplifier, 500 ... 7000 MHz	500	7,000	500 7,000	L S C	40.0	50	50	65	12	SMA	20.00	0.16
KU LNA BB 0515 - 4 A SMA Broadband Amplifier, 5 ... 1500 MHz	5	1,500	5 1,500	L	21.0	50	50	23	13	SMA	22.00	0.14

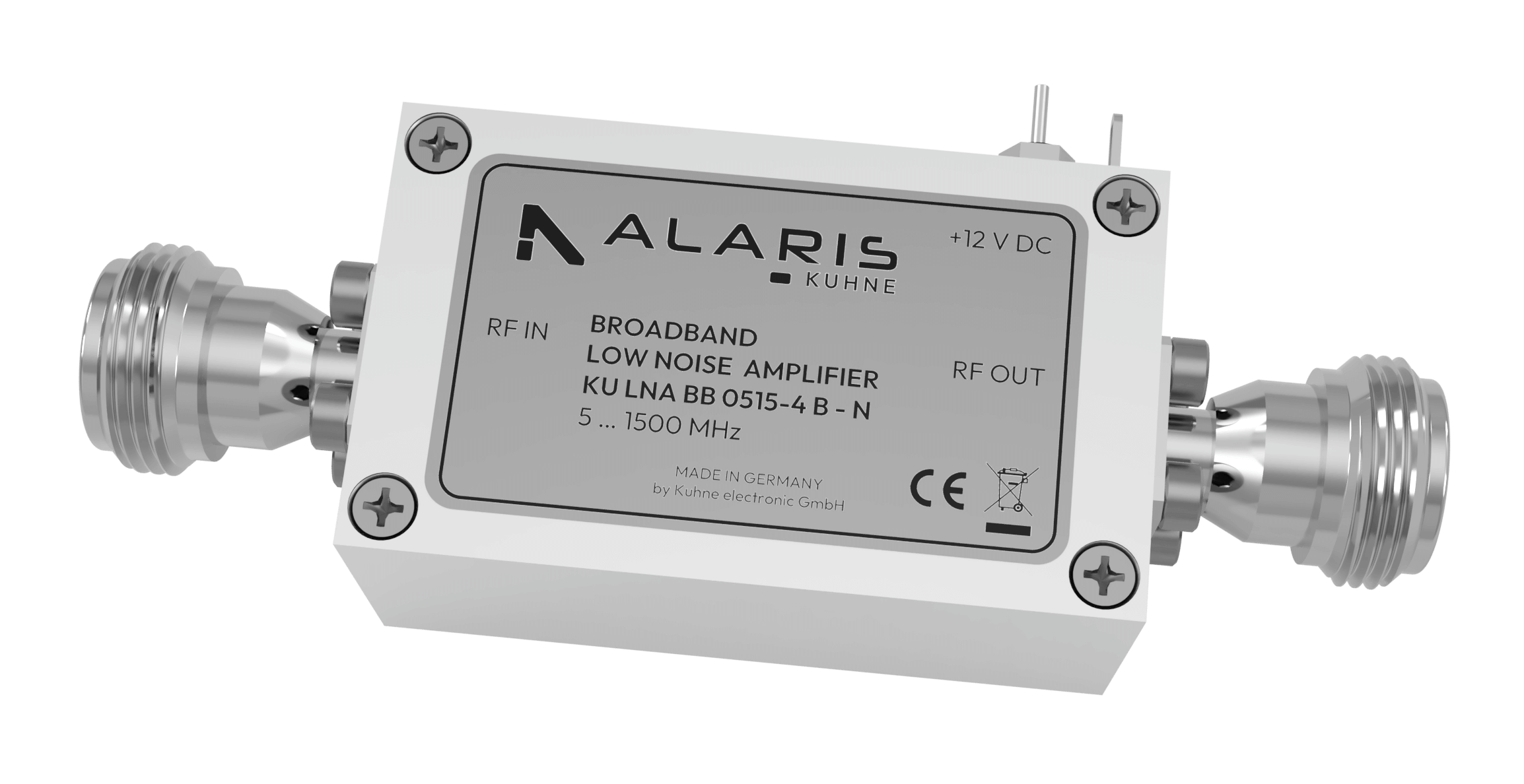

KU LNA BB 0515 - 4 B N Broadband Amplifier, 5 ... 1500 MHz	5	1,500	5 1,500	L	22.0	50	50	85	13	N	22.00	0.14

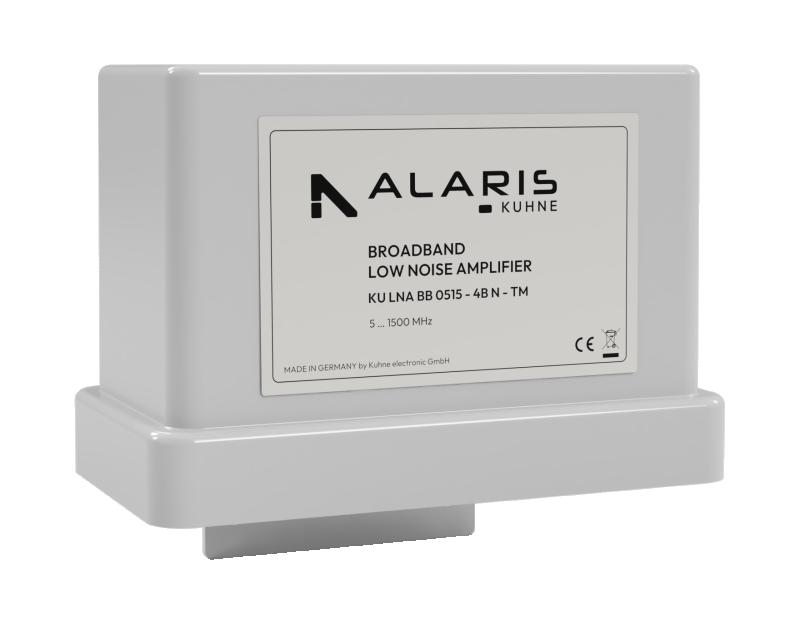

KU LNA BB 0515 - 4 B N - TM Broadband Amplifier, 5 ... 1500 MHz	5	1,500	5 1,500	L	20.0	N/A	115	85	13	N	22.00	0.09

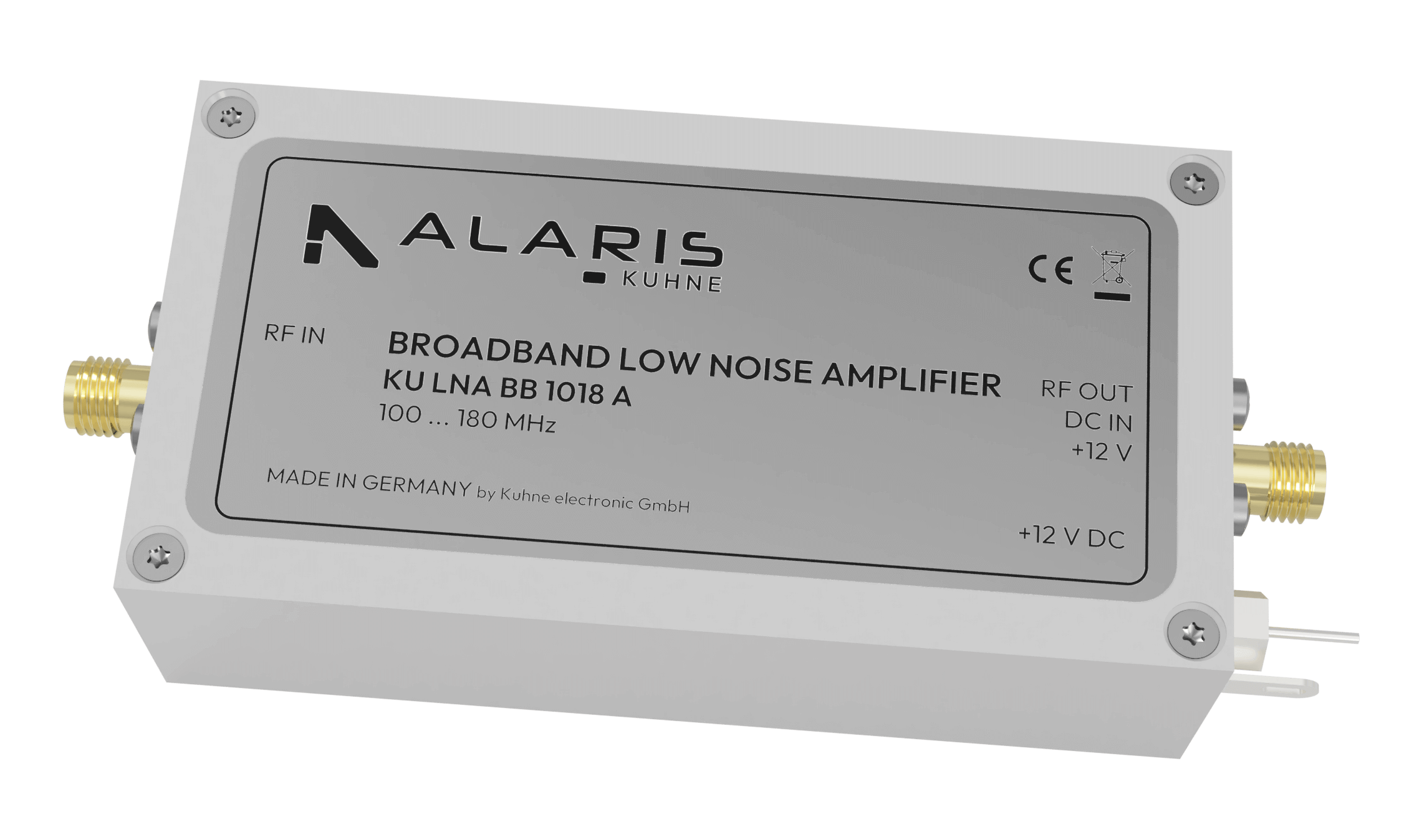

KU LNA BB 1018 A Low Noise Broadband Amplifier, 100 ... 180 MHz	100	180	100 180	VHF	20.0	100	78	55	14	SMA	28.00	0.40

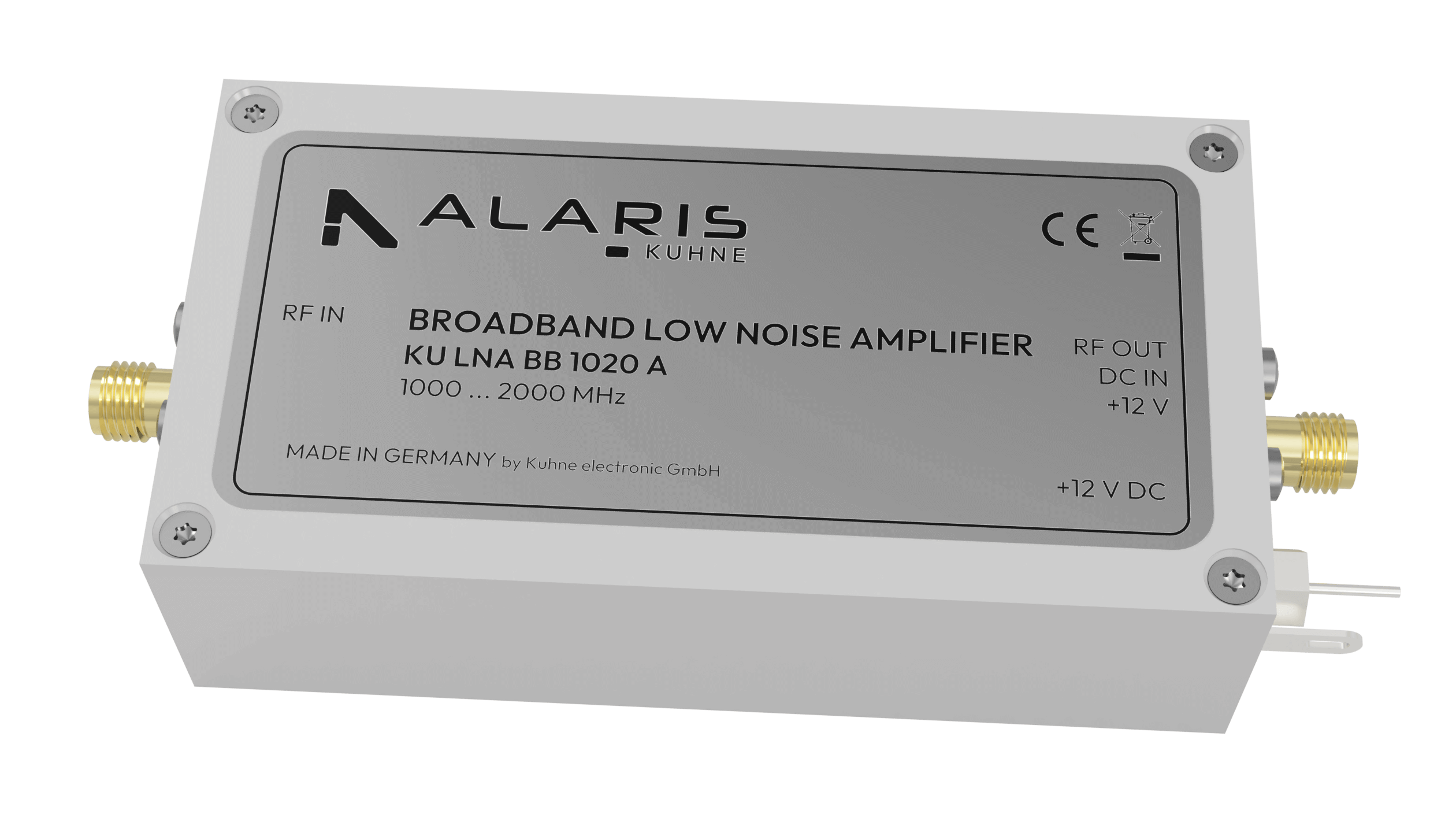

KU LNA BB 1020 A Low Noise Broadband Amplifier, 1000 ... 2000 MHz	1,000	2,000	1,000 2,000	L	28.0	100	78	23	14	SMA	23.00	0.35

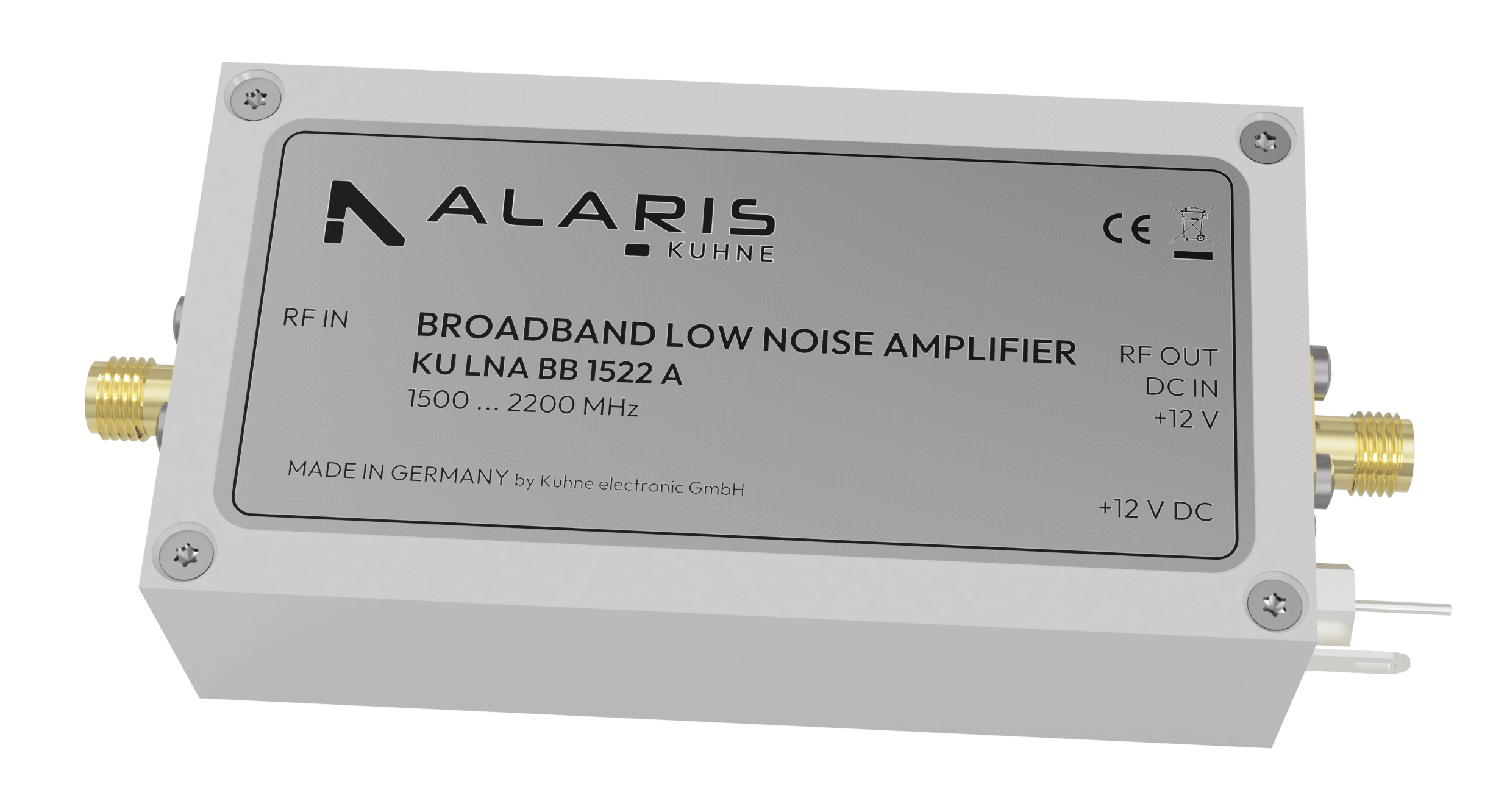

KU LNA BB 1522 A Low Noise Broadband Amplifier, 1500 ... 2200 MHz	1,500	2,200	1,500 2,200	L	27.0	100	78	65	14	SMA	19.00	0.25

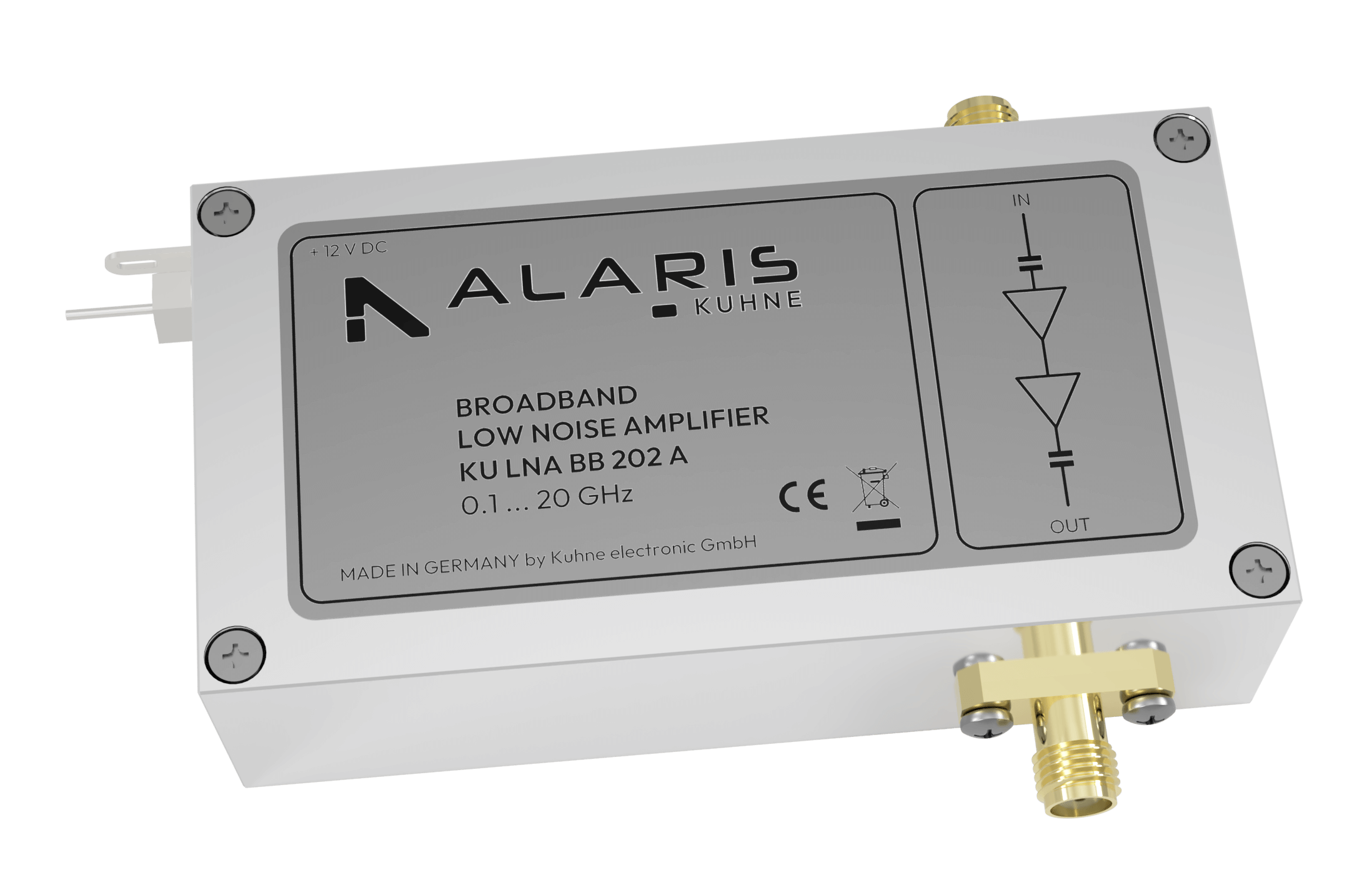

KU LNA BB 202 A Low Noise Broadband Preamplifier, 100 ... 20000 MHz	100	20,000	100 20,000	L S C Ku	26.5	100	78	65	13	SMA	N/A	0.19

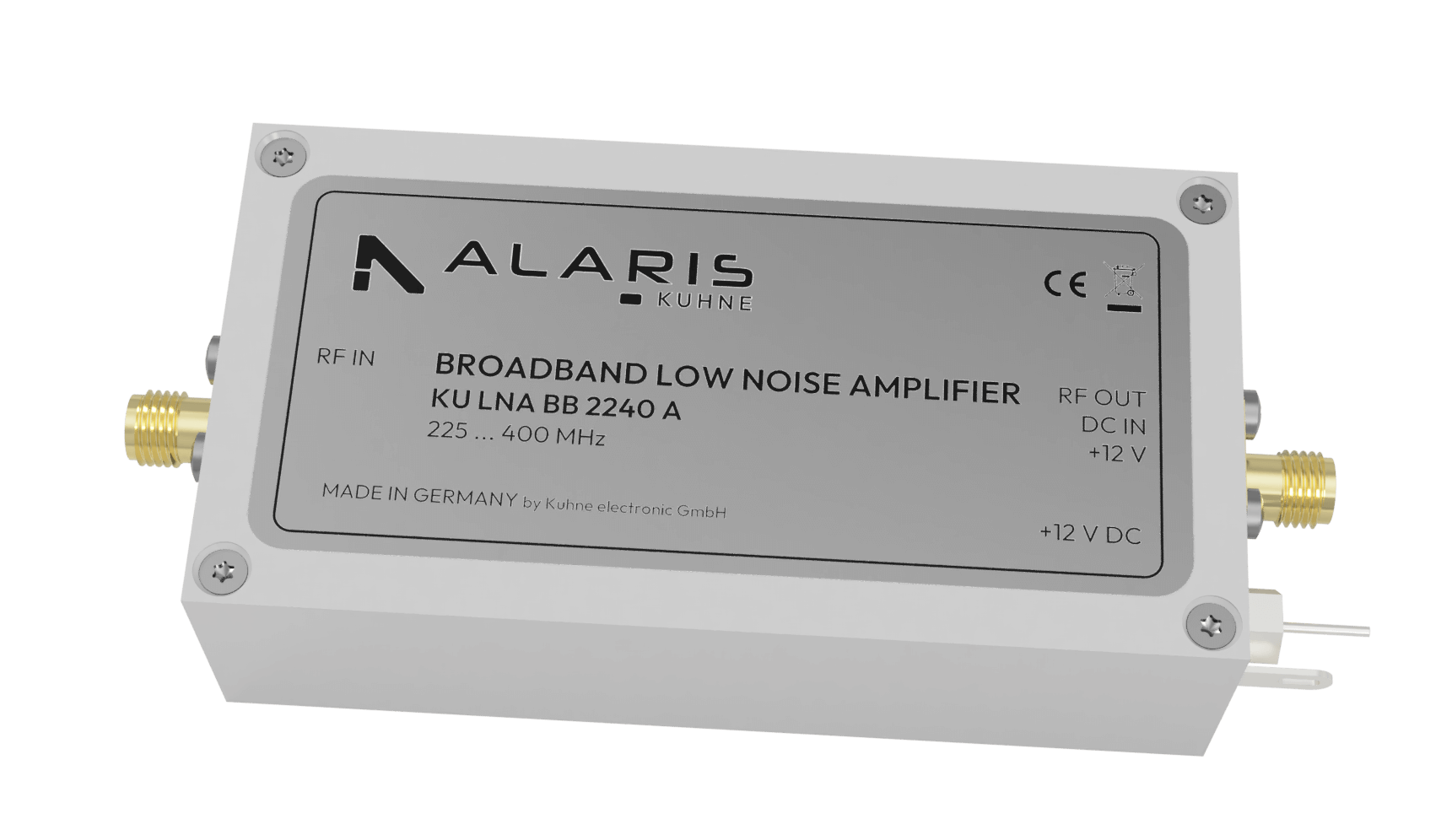

KU LNA BB 2240 A Low Noise Broadband Preamplifier, 225 ... 400 MHz	225	400	225 400	N/A	20.0	100	78	55	14	SMA	28.00	0.40

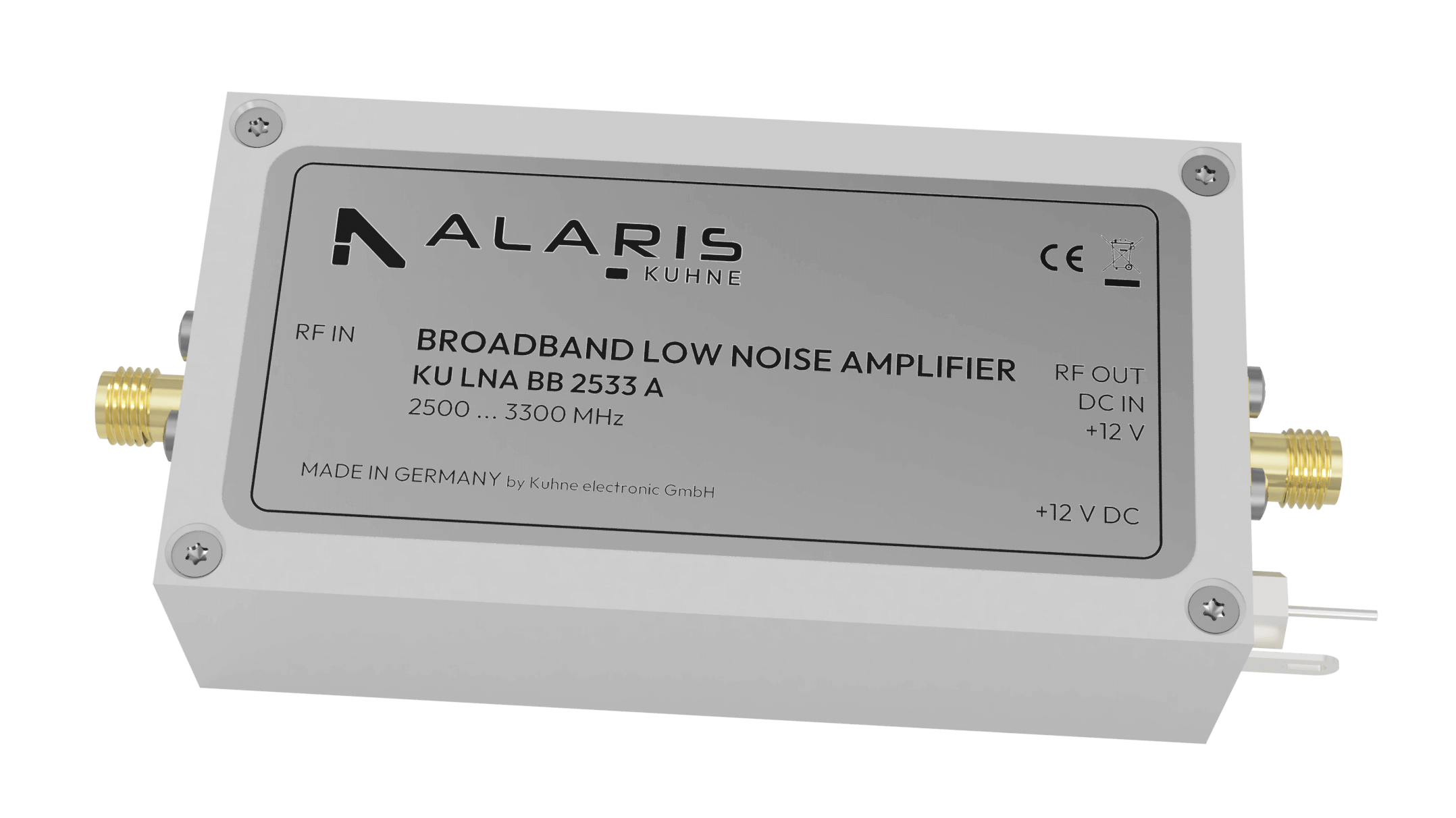

KU LNA BB 2533 A Low Noise Broadband Amplifier,	2,500	3,300	2,500 3,300	S	32.0	110	78	23	14	SMA	N/A	0.12

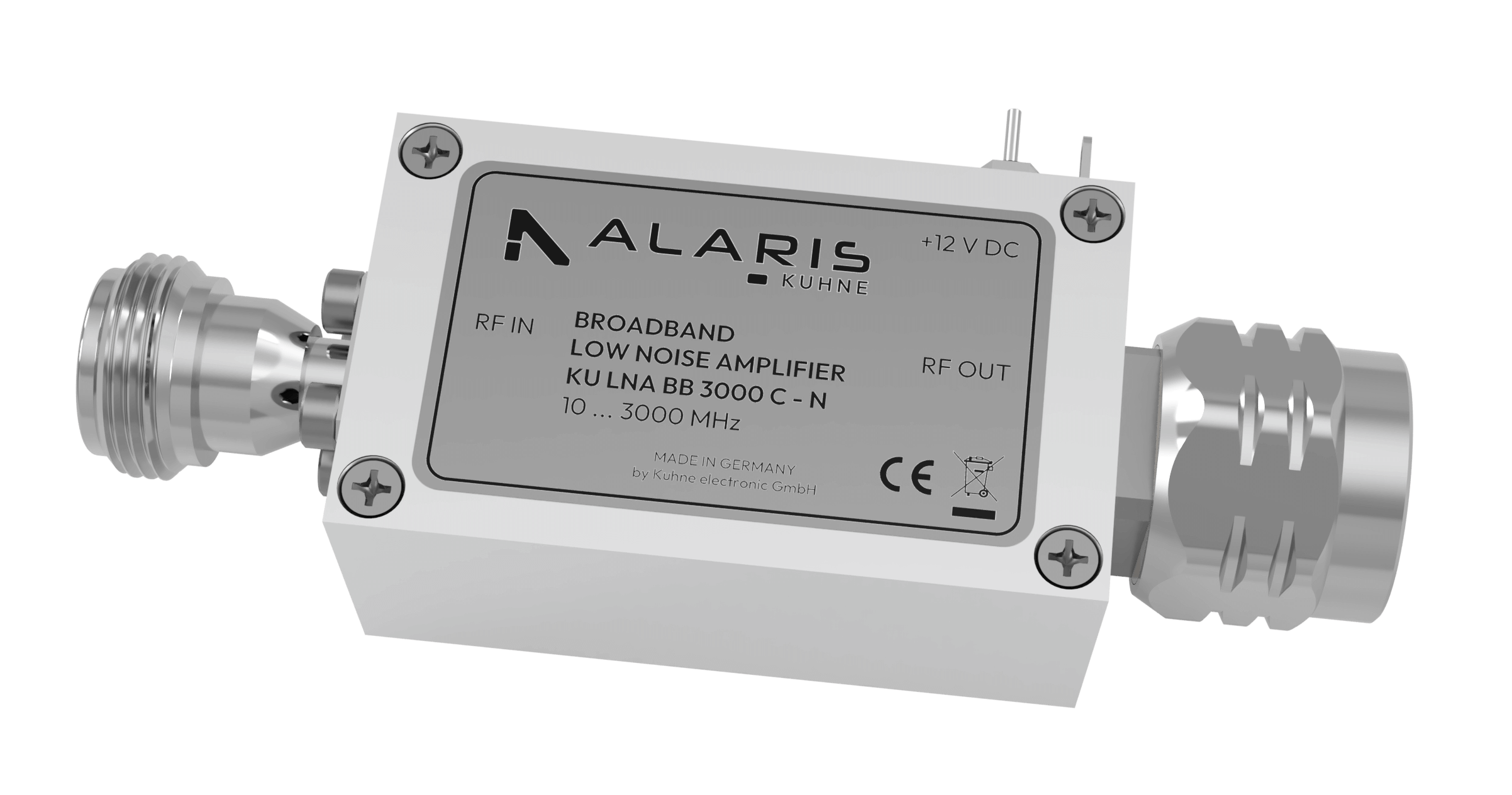

KU LNA BB 3000 C - N Low Noise Broadband Amplifier, 10 ... 3000 MHz	10	3,000	10 3,000	L S	27.5	100	50	85	14	N	N/A	0.15

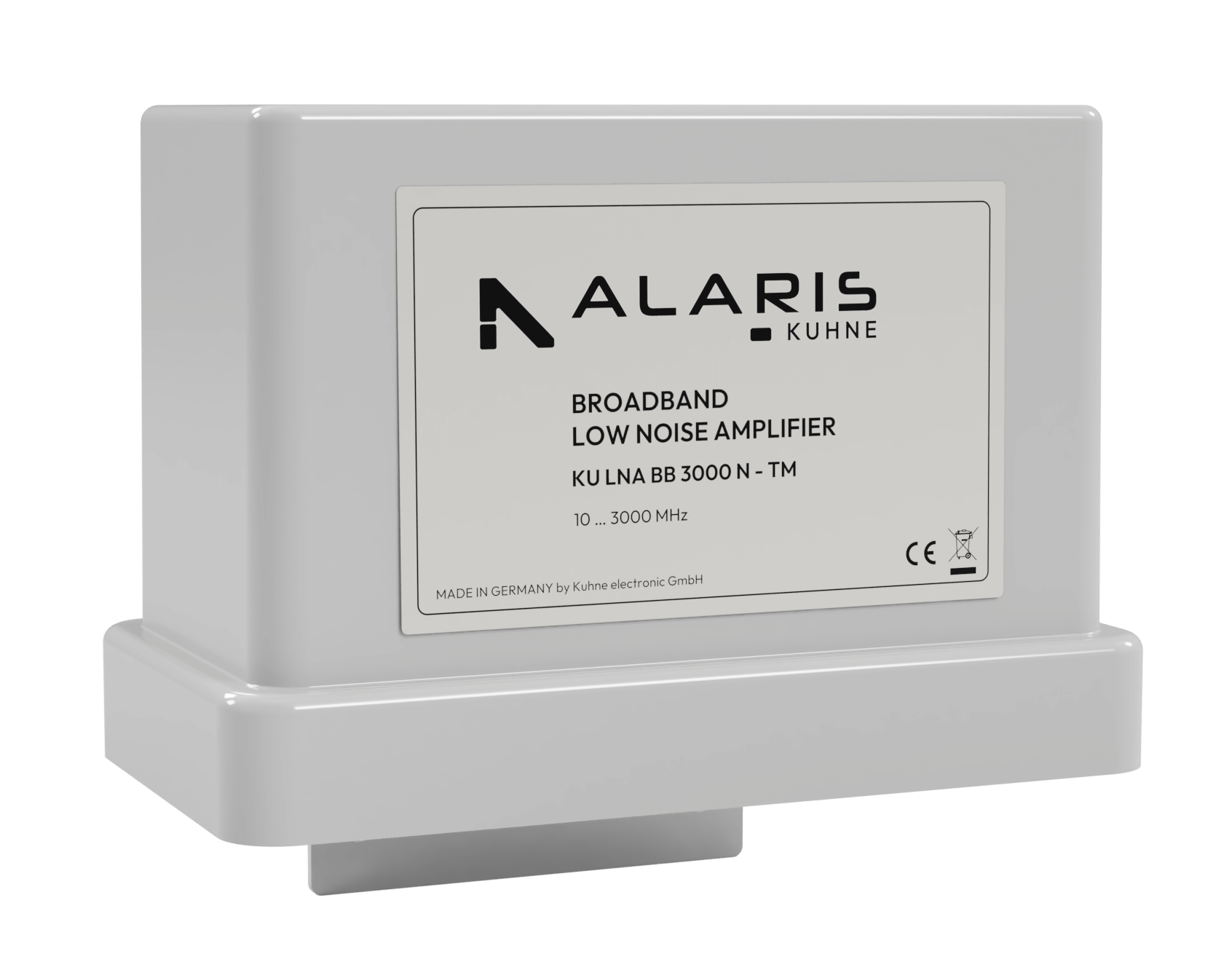

KU LNA BB 3000 N - TM Low Noise Broadband Amplifier, 10 ... 3000 MHz	10	3,000	10 3,000	L S	27.5	330	115	23	14	N	N/A	0.15

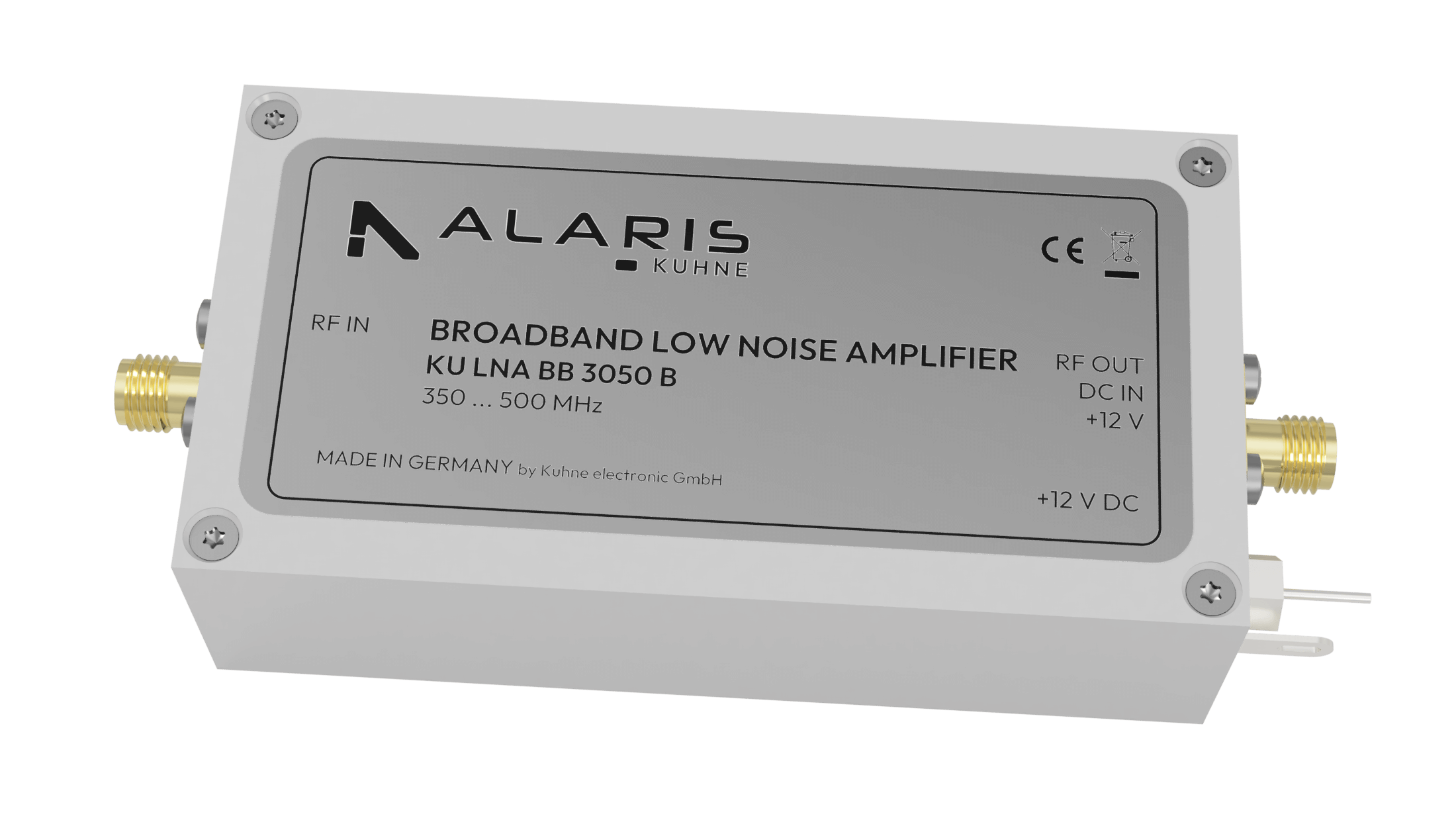

KU LNA BB 3050 B Low Noise Broadband Amplifier, 350 ... 500 MHz	350	500	350 500	N/A	24.0	100	78	N/A	14	SMA	N/A	0.40

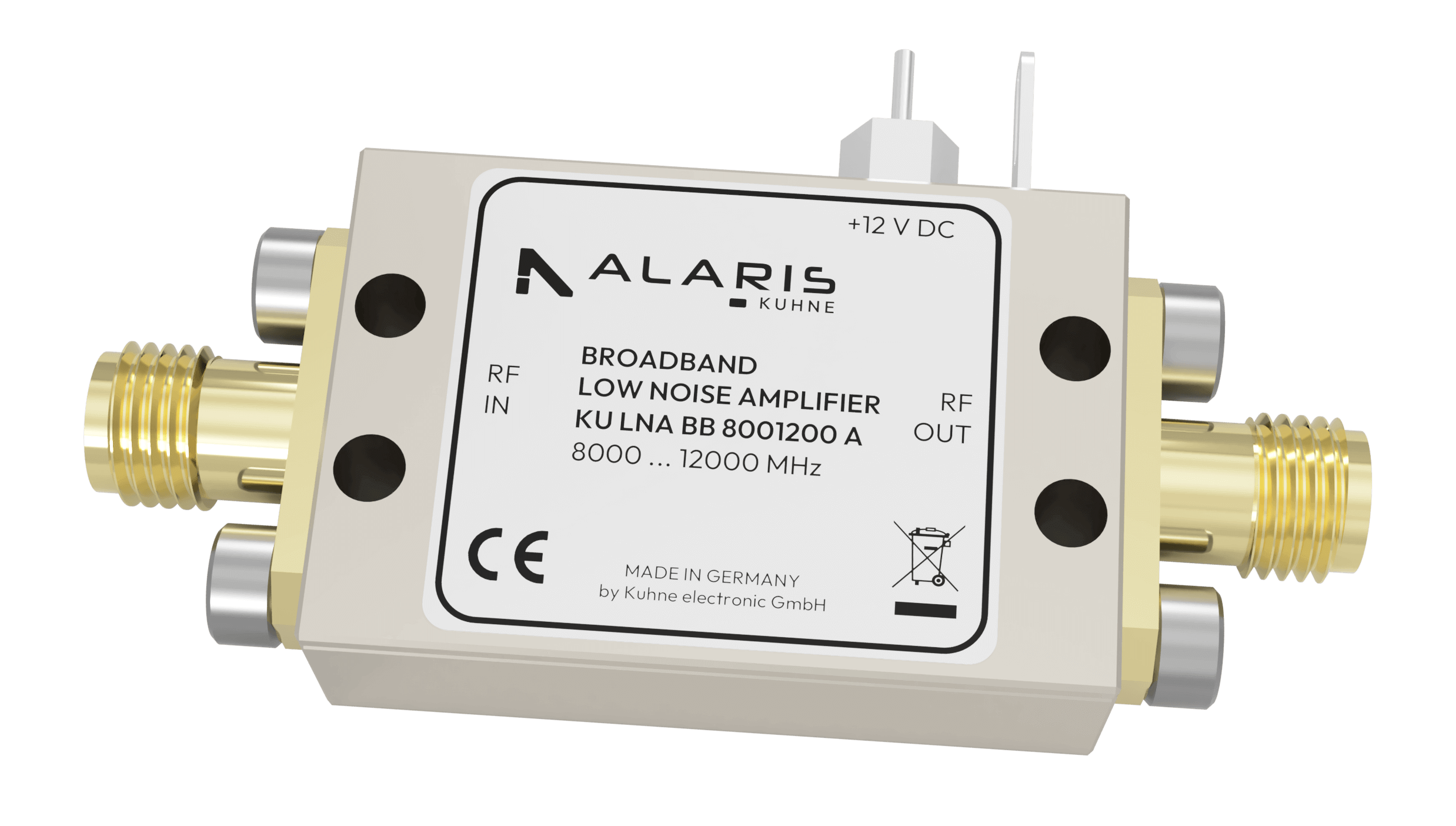

KU LNA BB 8001200A Broadband Low Noise Amplifier, 8000 ... 12000 MHz	8,000	12,000	8,000 12,000	X	30.0	15	29	65	12	SMA	27.00	0.23

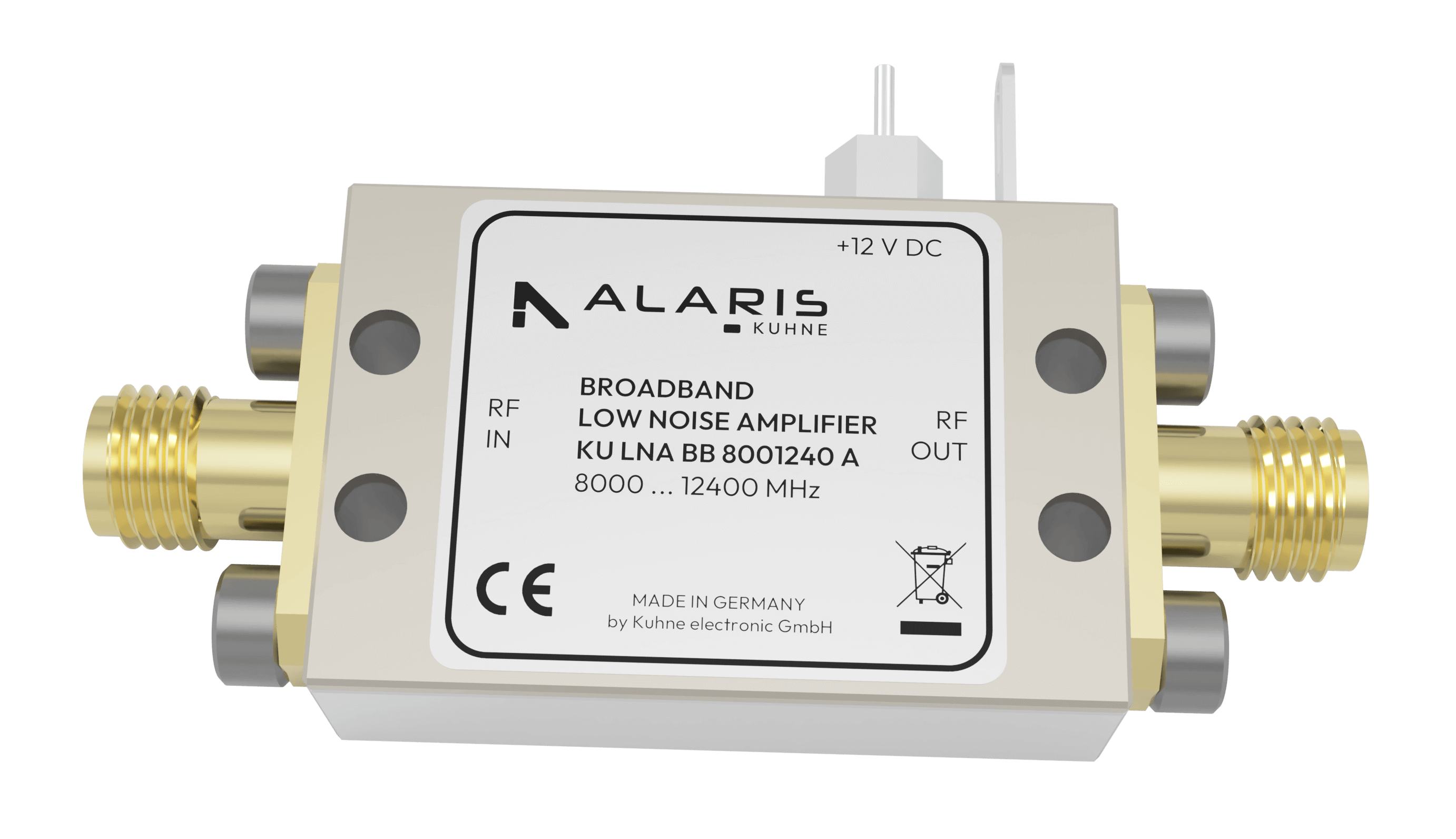

KU LNA BB 8001240A Broadband Low Noise Amplifier, 8000 ... 12400 MHz	8,000	12,400	8,000 12,400	X	34.0	15	29	65	12	SMA	25.00	0.23
KU LNC 1215 C PRO Down Converter, 1200 ... 1500 MHz	1,200	1,500	1,200 1,500	L	35.0	230	N/A	N/A	N/A	N	N/A	0.25

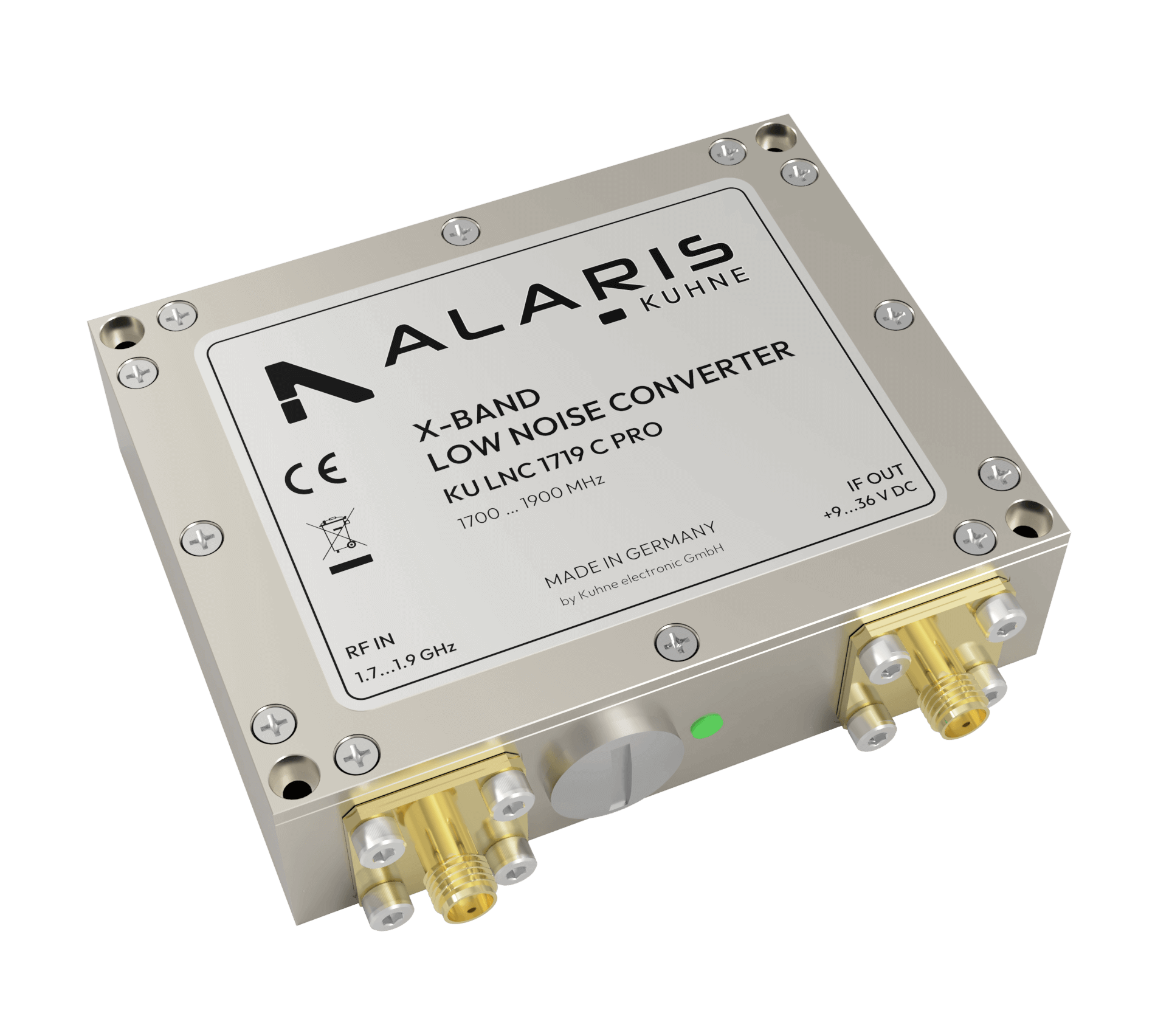

KU LNC 1719 C PRO Down Converter, 1700 ... 1900 MHz	1,700	1,900	1,700 1,900	L	35.0	230	82	55	23	SMA	N/A	0.24

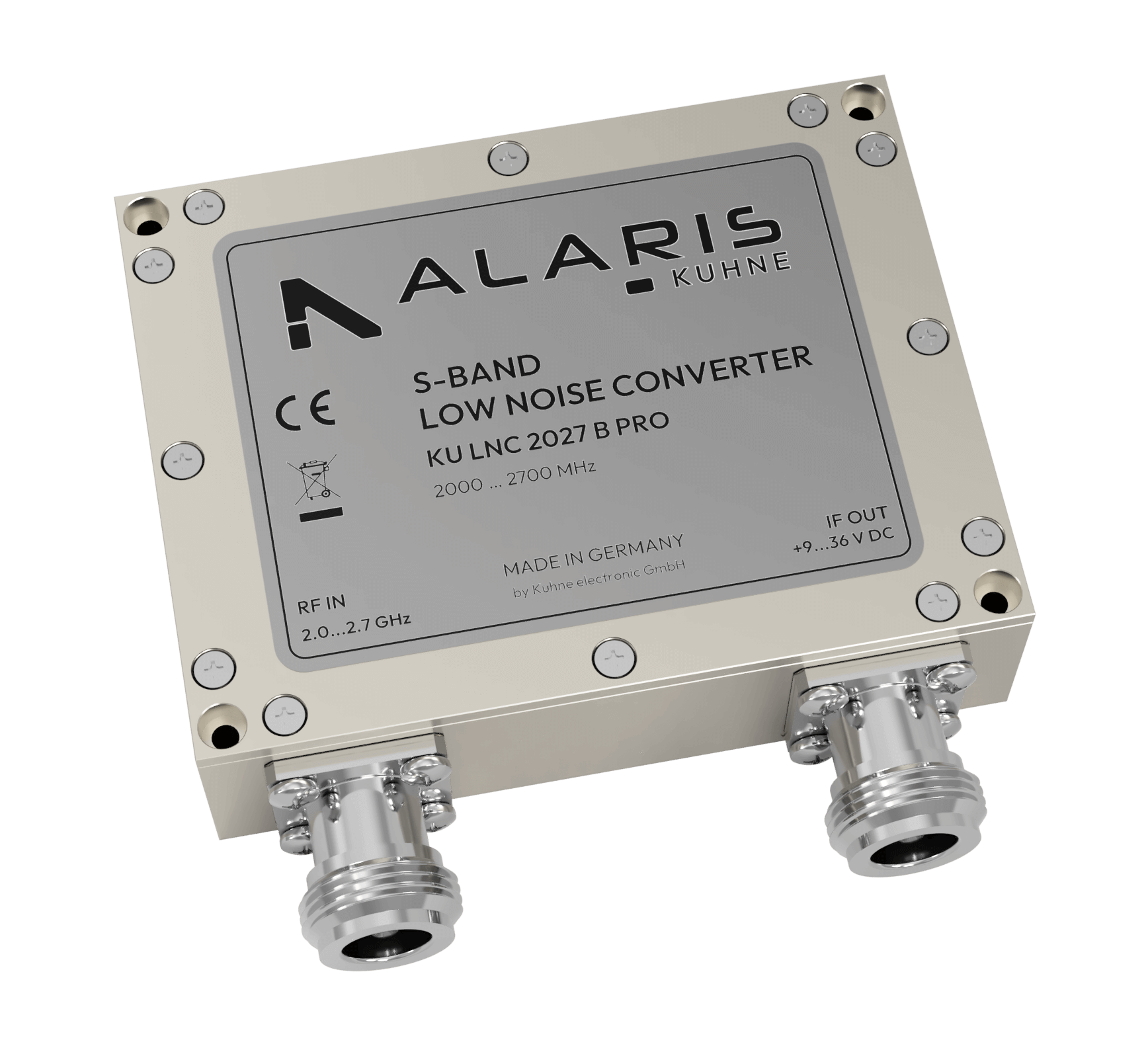

KU LNC 2027 B PRO Down Converter, 2000 ... 2700 MHz	2,000	2,700	2,000 2,700	S	30.0	230	N/A	55	14	N	N/A	0.30
KU LNC 2229 C PRO2 Down Converter, 2200 ... 2900 MHz	2,200	2,900	2,200 2,900	S	33.0	N/A	N/A	55	23	N	N/A	0.25
KU LNC 3239 C PRO Down Converter, 3200 ... 3900 MHz	3,200	3,900	3,200 3,900	S	31.0	230	82	55	23	N	N/A	0.28

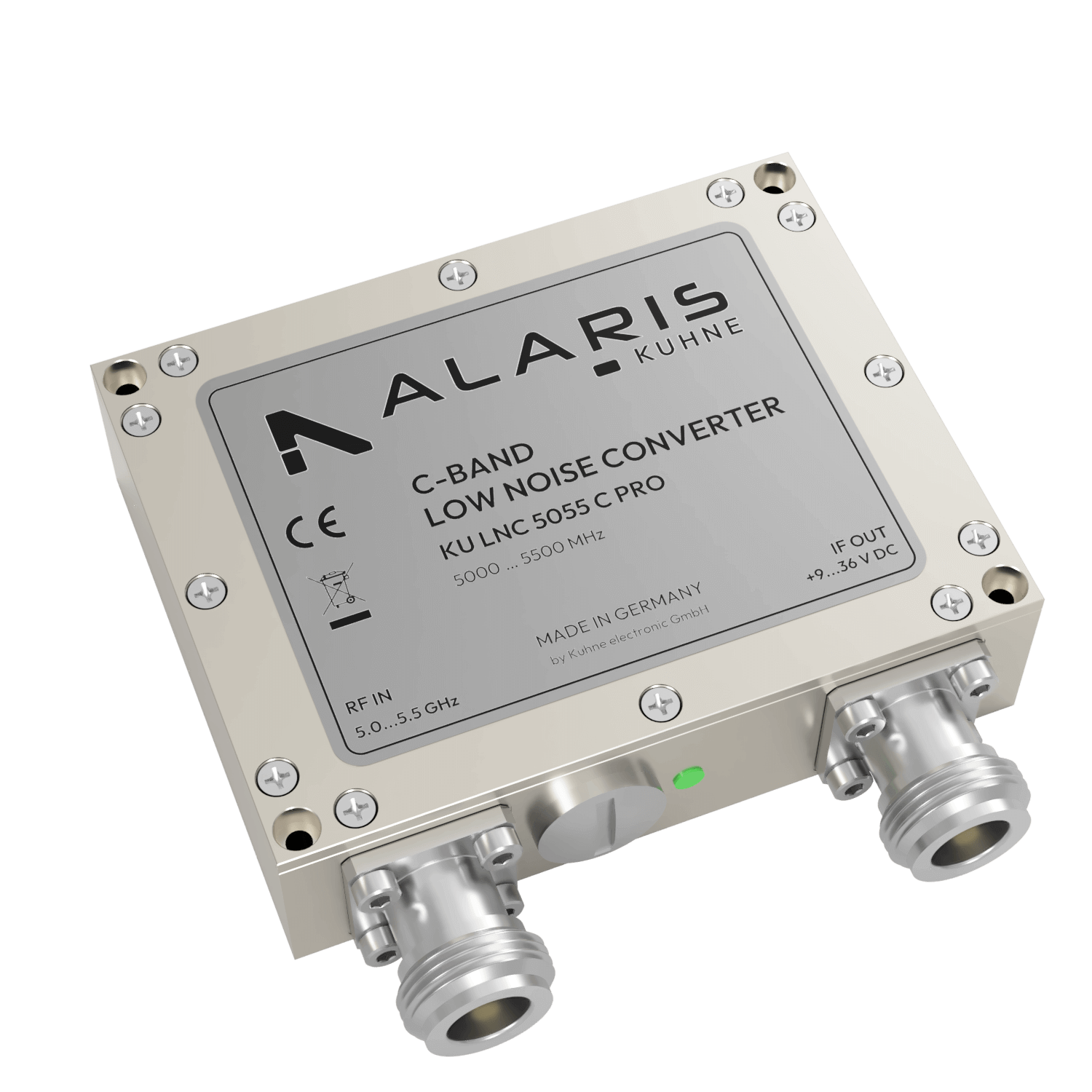

KU LNC 5055 C PRO Down Converter, 5000 ... 5500 MHz	5,000	5,500	5,000 5,500	C	30.0	230	82	55	23	N	N/A	0.25
KU LNC 6471 C PRO Down Converter, 6430 ... 7130 MHz	6,430	7,130	6,430 7,130	C	31.0	230	82	55	23	N	N/A	0.25

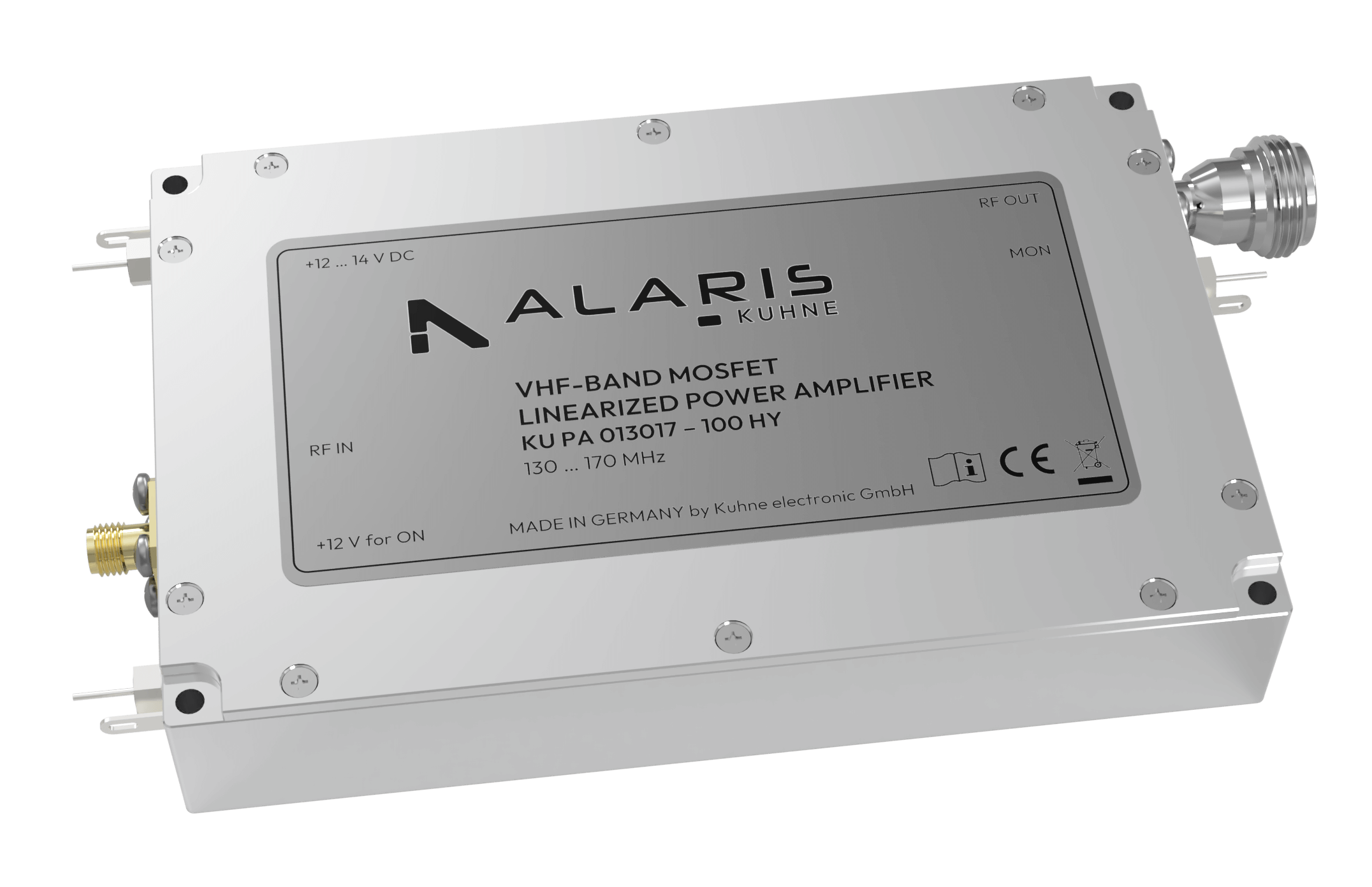

KU PA 013017 - 100 HY RF Power Amplifier, 130 ... 170 MHz, 100 W	130	170	130 170	N/A	40.0	400	124	55	13	SMA	47.00	20.00

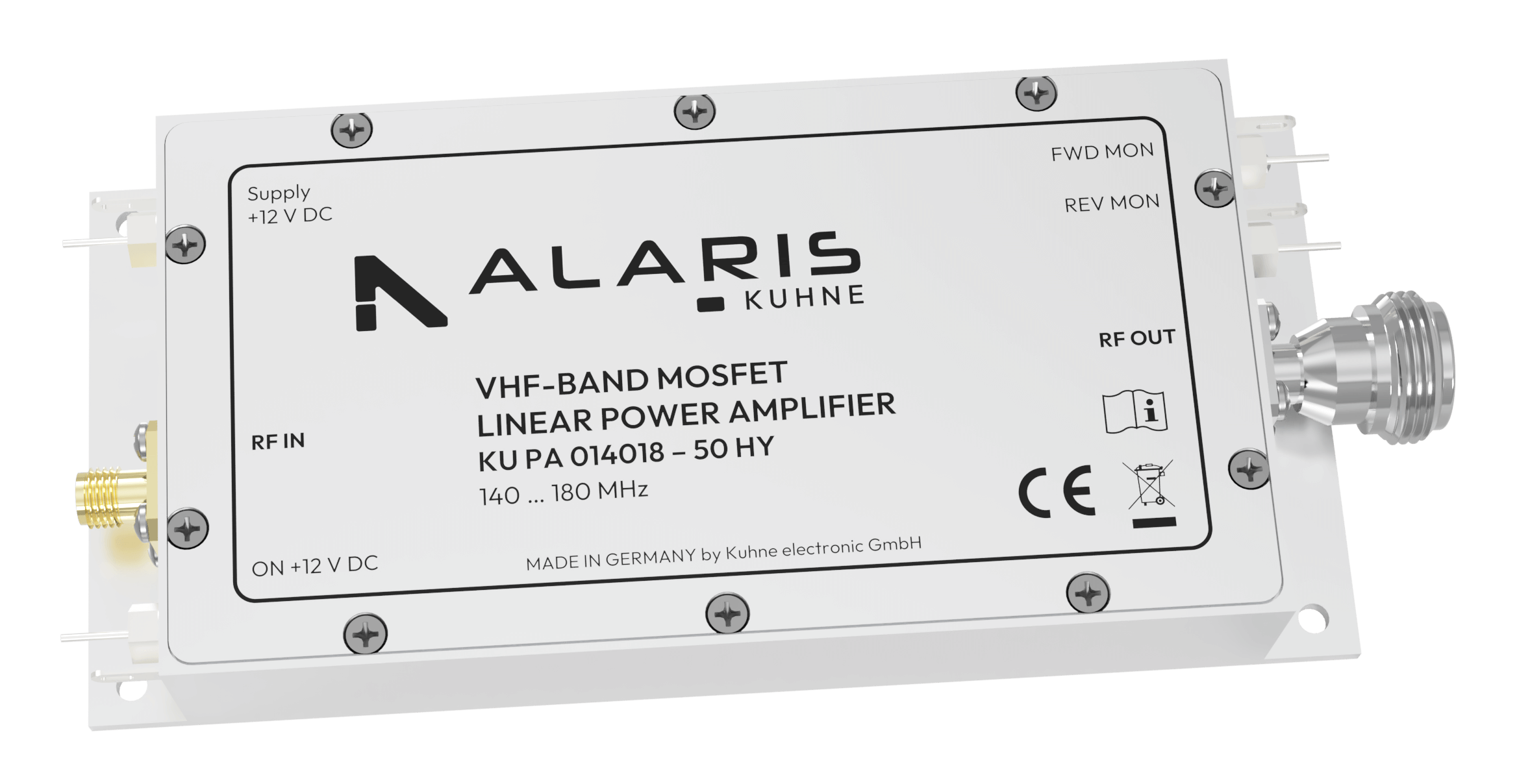

KU PA 014018 - 50 HY RF Power Amplifier, 140 ... 180 MHz, 50 W	140	180	140 180	N/A	35.0	270	130	55	13	SMA	47.00	12.00

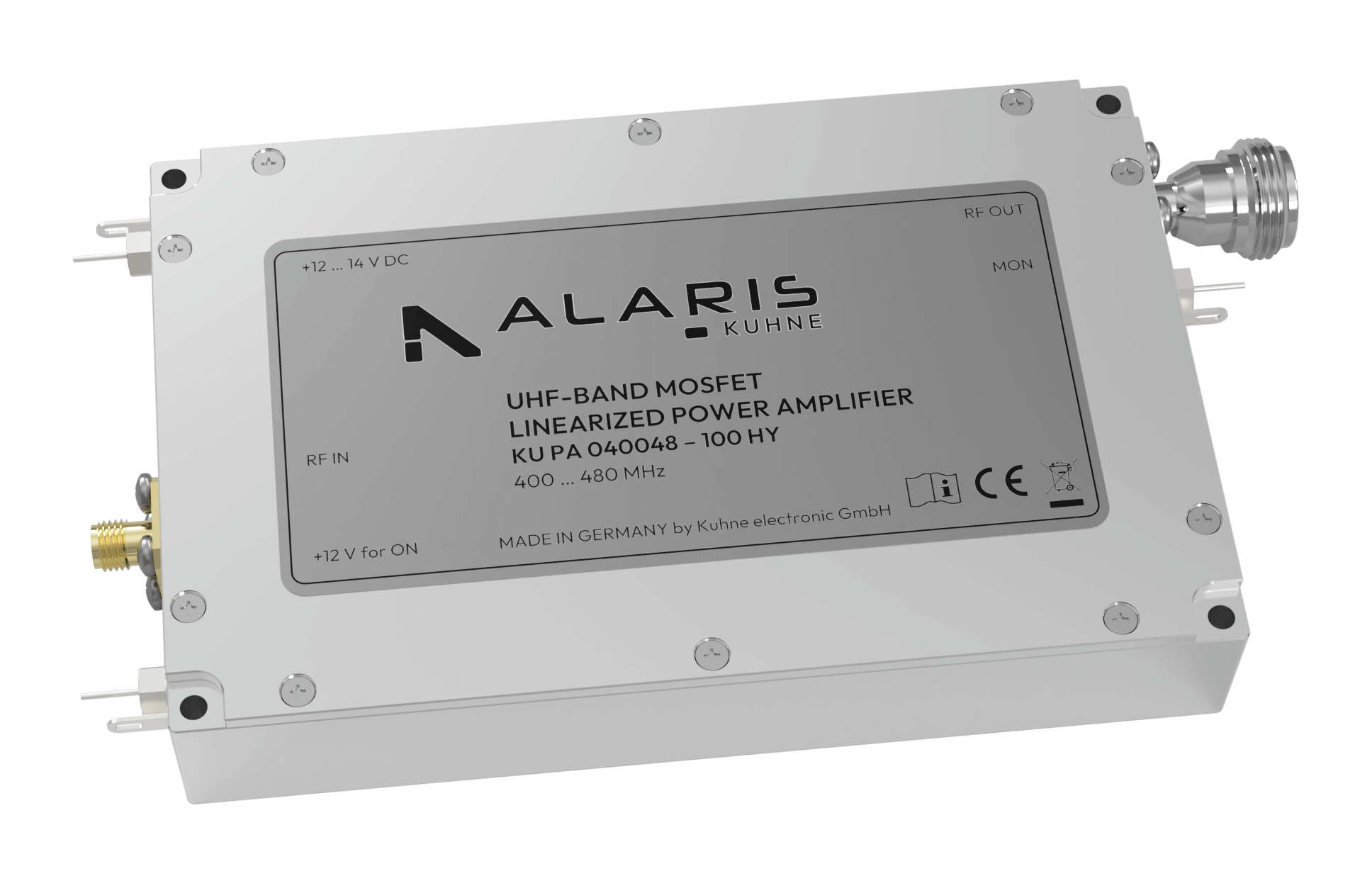

KU PA 040048 - 100 HY UHF power amplifier,	400	480	400 480	N/A	34.0	400	124	55	13	SMA	44.70	28.00

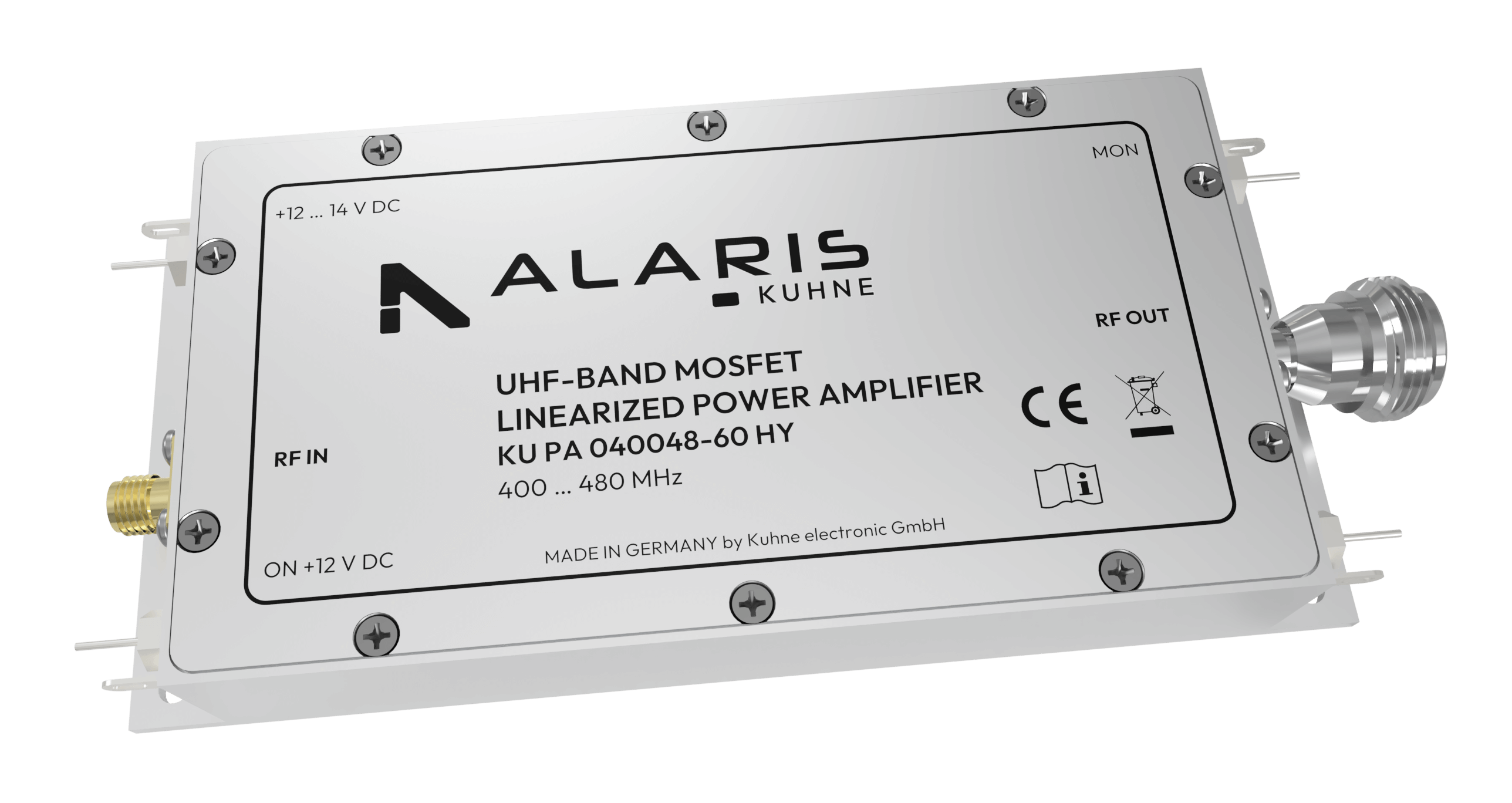

KU PA 040048 - 60 HY UHF MOSFET-Power Amplifier, 400 ... 480 MHz, 60 W	400	480	400 480	N/A	34.0	270	130	55	13	SMA	43.00	8.00

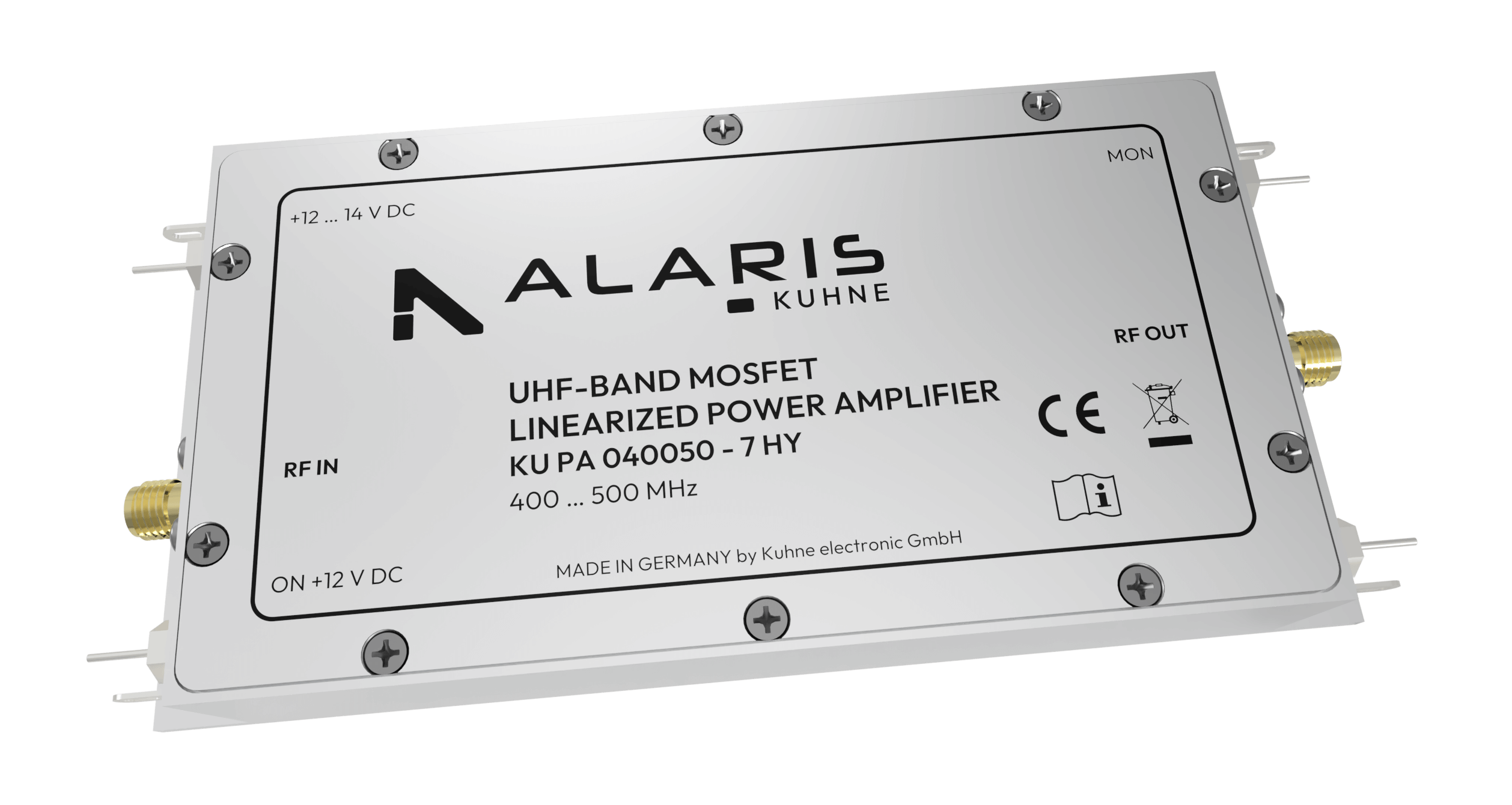

KU PA 040050 - 7 HY MOSFET Power Amplifier, 400 ... 500 MHz, 7 W	400	500	400 500	N/A	23.0	240	130	55	13	SMA	38.40	2.00

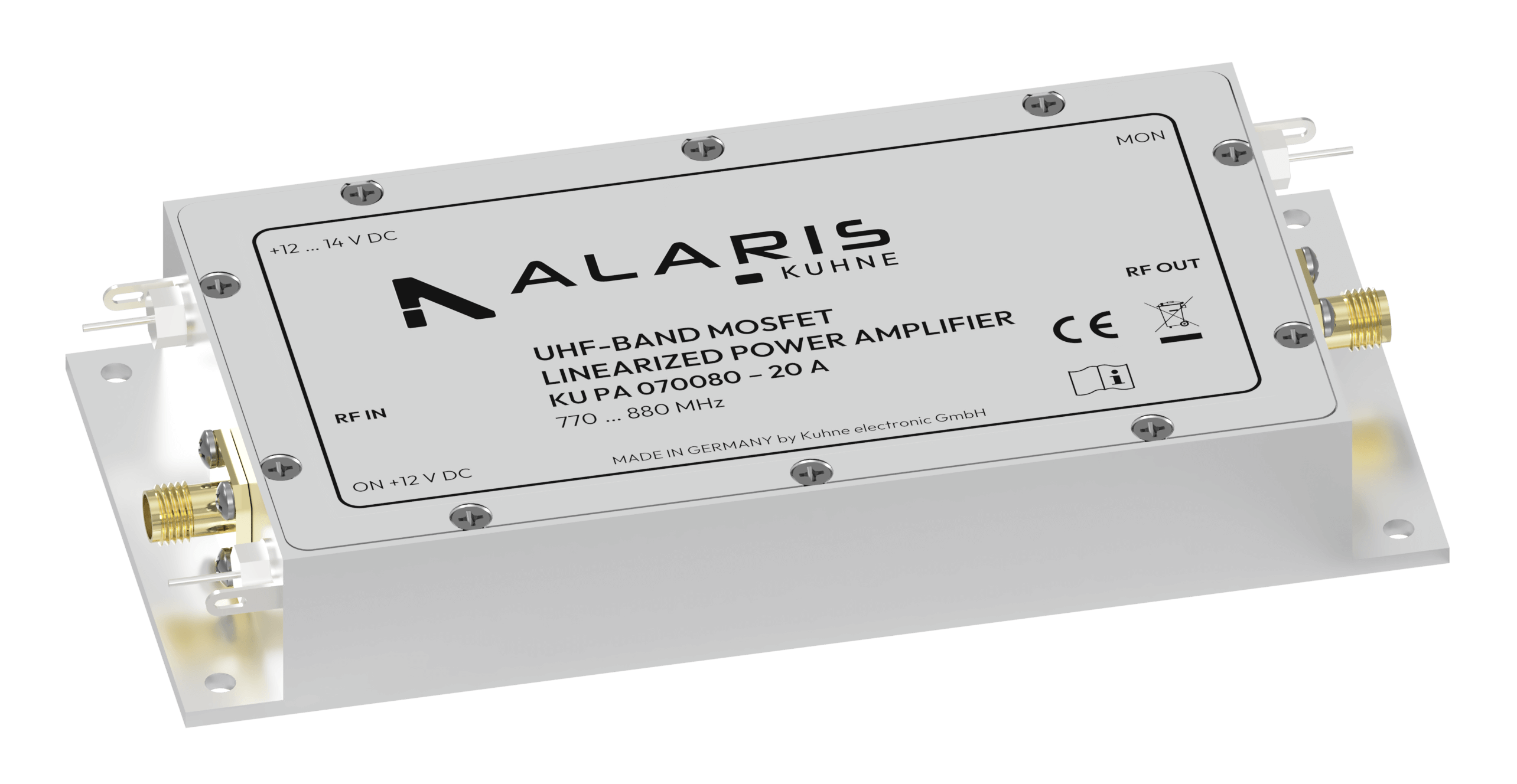

KU PA 070080 - 20 A RF Power Amplifier, 770 ... 880 MHz, 20 W	770	880	770 880	N/A	30.0	235	130	55	28	SMA	43.00	3.50

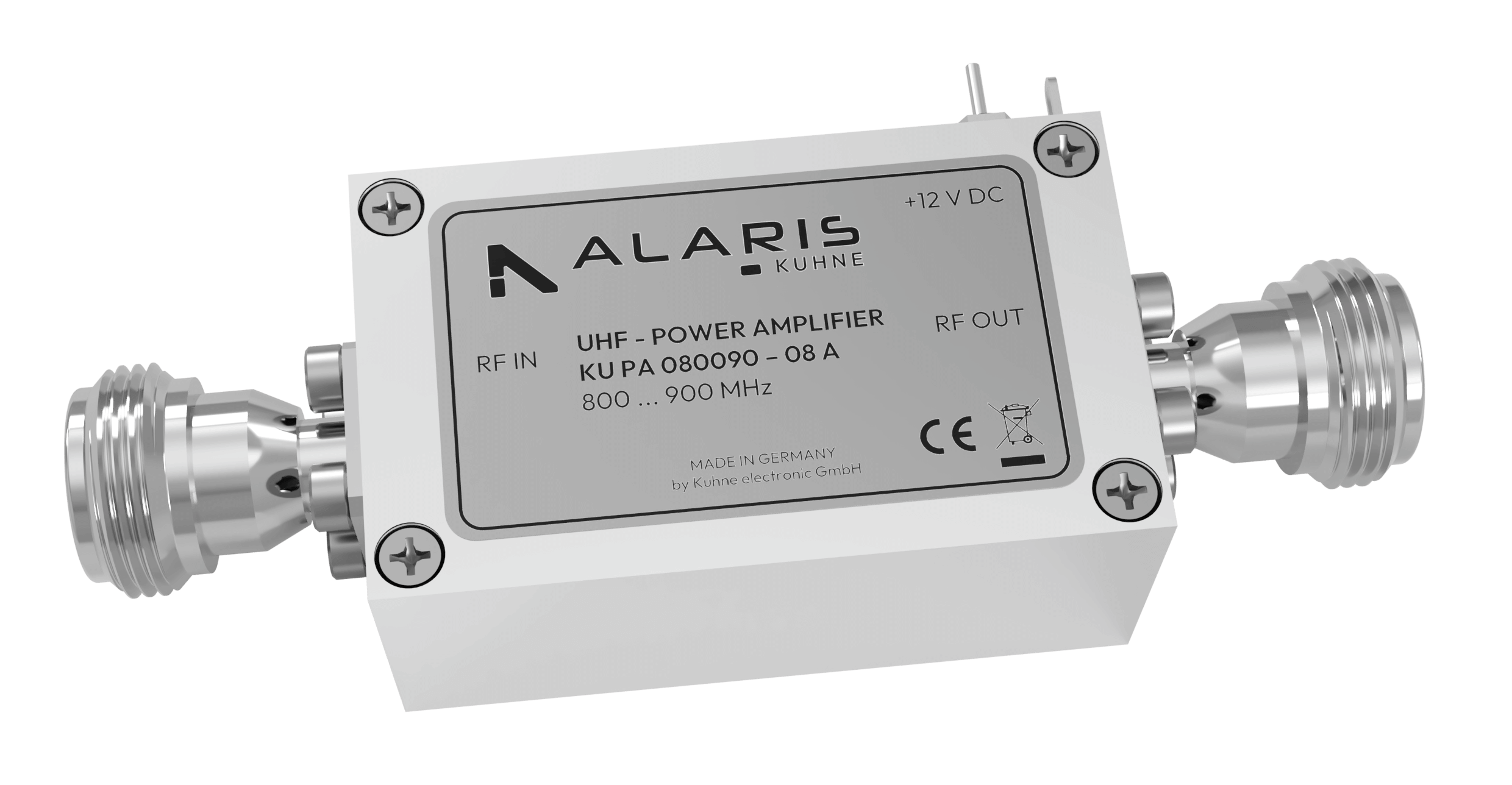

KU PA 080090 - 08 A GaAs-FET Power Amplifier, 800 ... 900 MHz	800	900	800 900	N/A	15.0	90	50	55	13	N	29.00	0.35

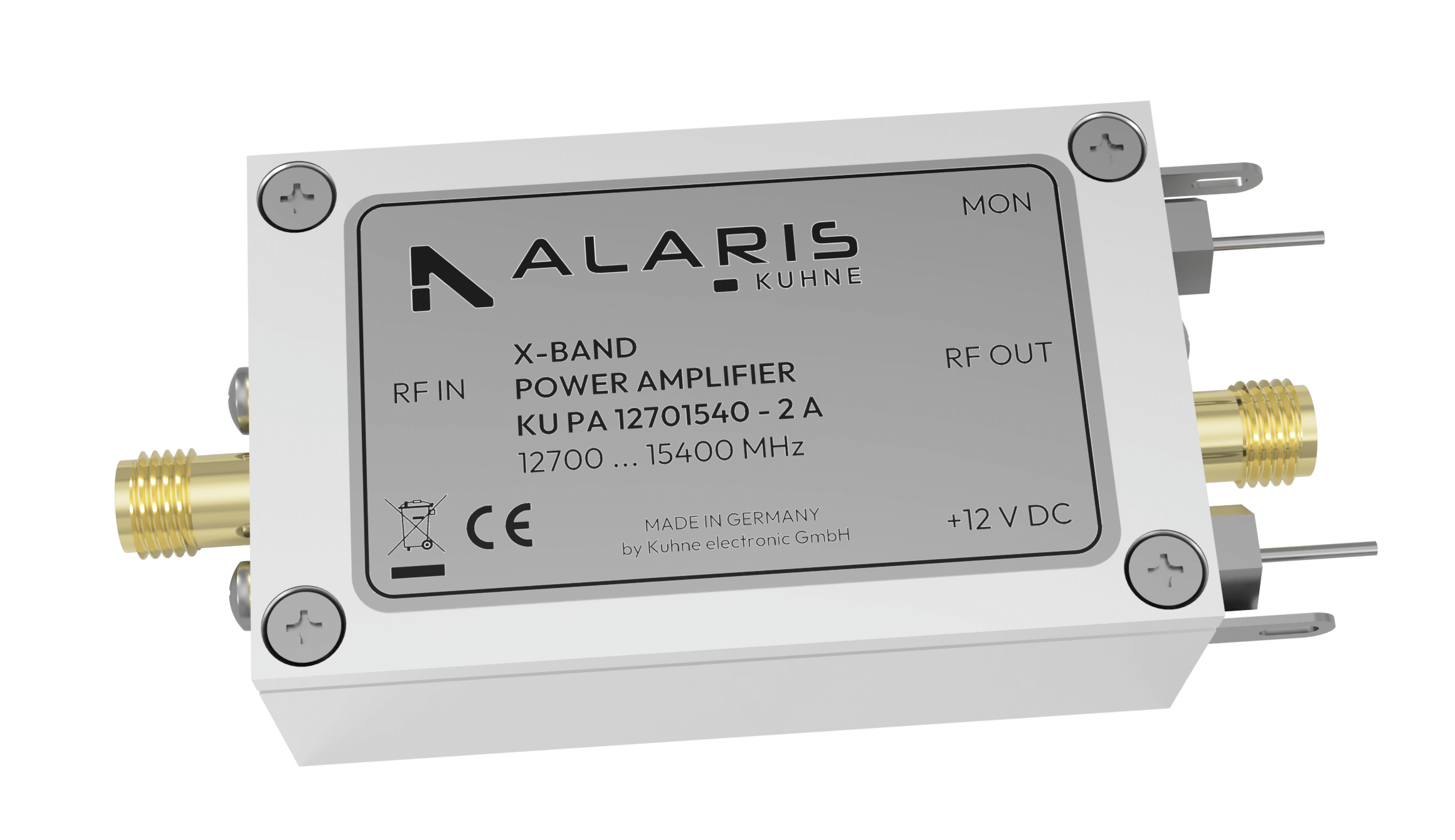

KU PA 12701540 - 2 A RF Power Amplifier, 12700 ... 15400 MHz, 2 W	12,700	15,400	12,700 15,400	Ku	22.0	45	50	55	13	SMA	33.00	1.50
KU PA 135155 - 25 A Power Amplifier, 1350 ... 1550 MHz, 25 W	1,350	1,550	1,350 1,550	L	21.0	N/A	80	55	28	SMA	44.00	3.50

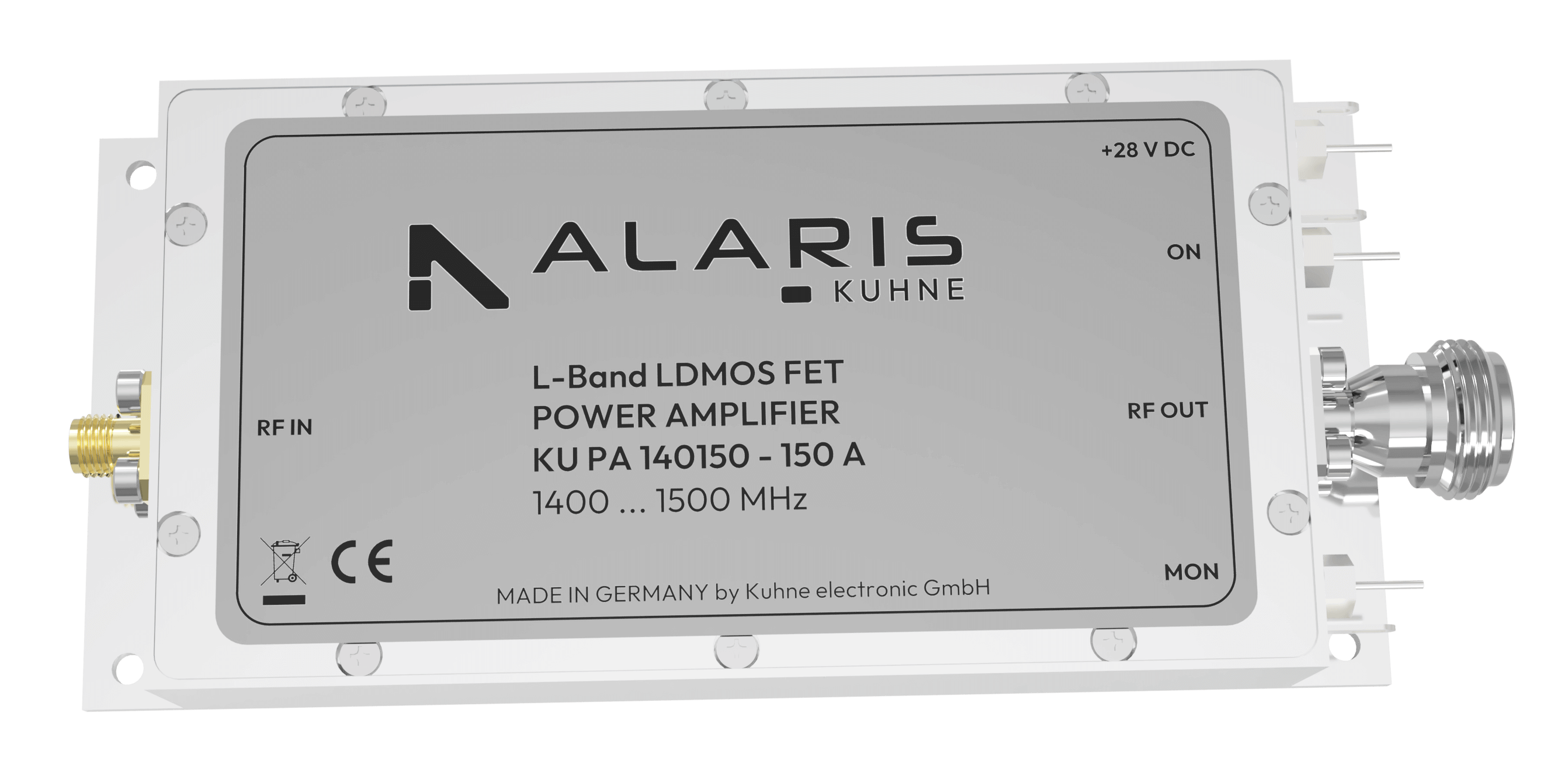

KU PA 140150 - 150 A LDMOS RF Power Amplifier, 1400 ... 1500 MHz, 150 W	1,400	1,500	1,400 1,500	L	14.0	260	130	55	28	SMA	51.70	10.00

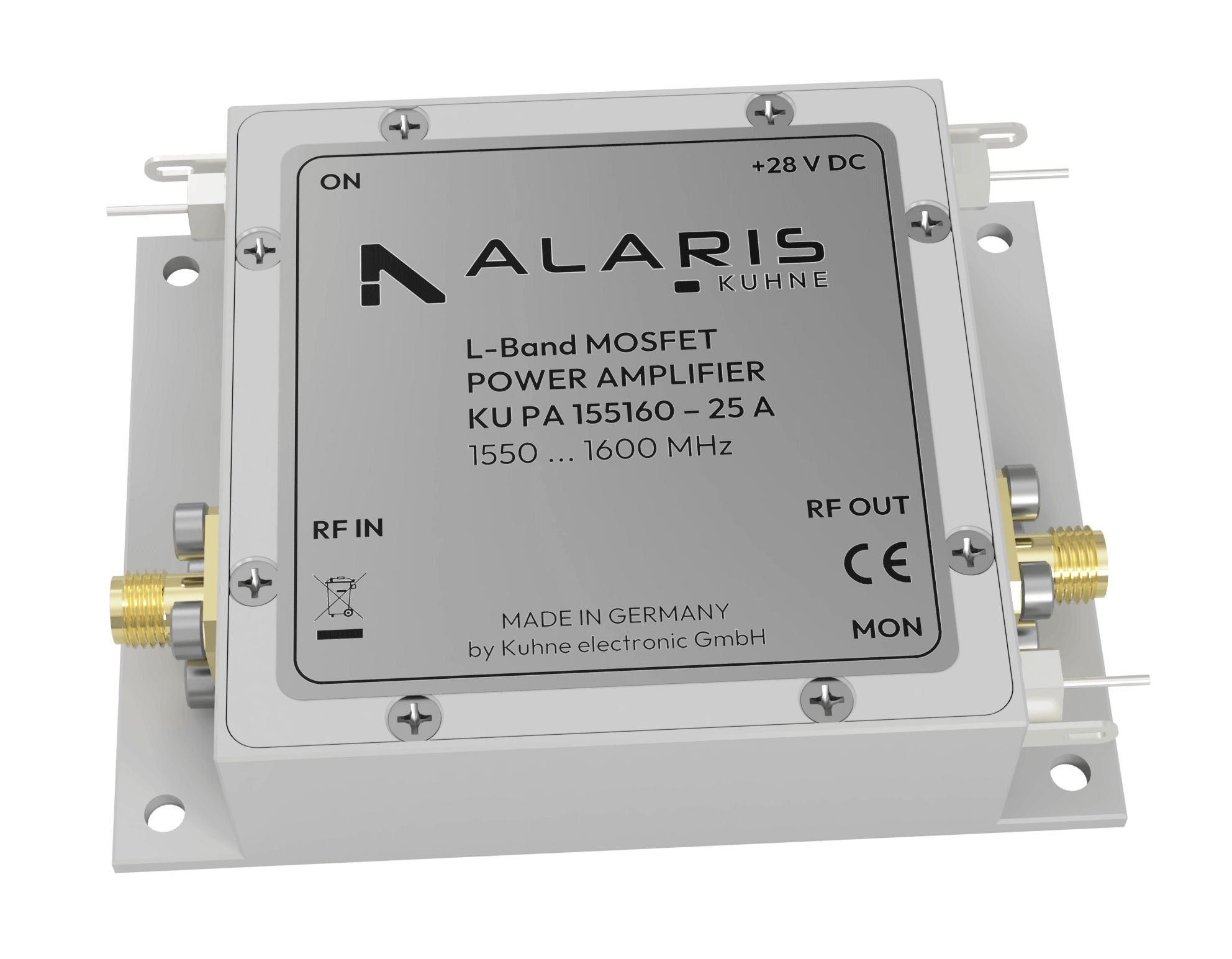

KU PA 155160 - 25 A Power Amplifier, 1550 ... 1600 MHz, 25 W	1,550	1,600	1,550 1,600	L	21.0	N/A	80	55	28	SMA	44.00	3.50

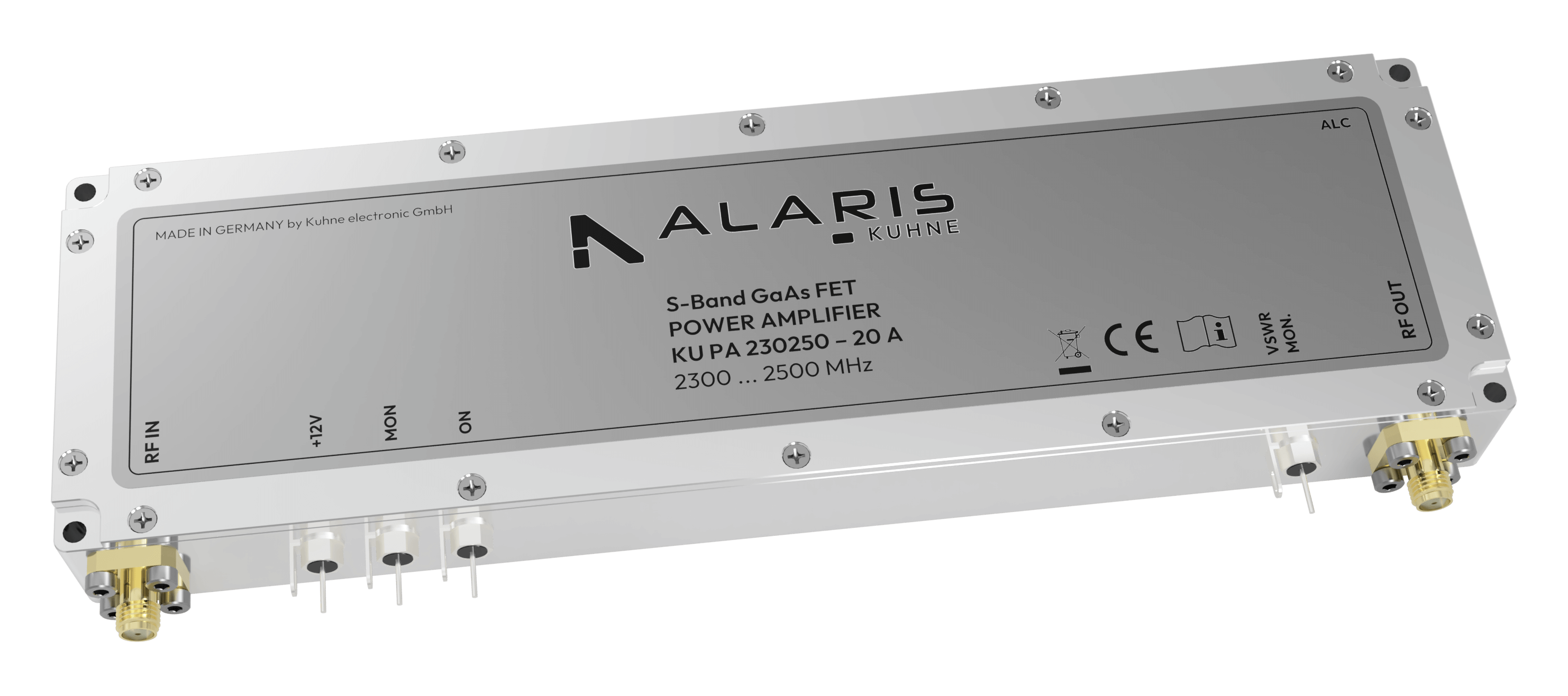

KU PA 230250 - 20 A GaAs-FET Power Amplifier, 2300 ... 2500 MHz, 20 W	2,300	2,500	2,300 2,500	S	53.5	500	212	55	13	SMA	43.80	8.00

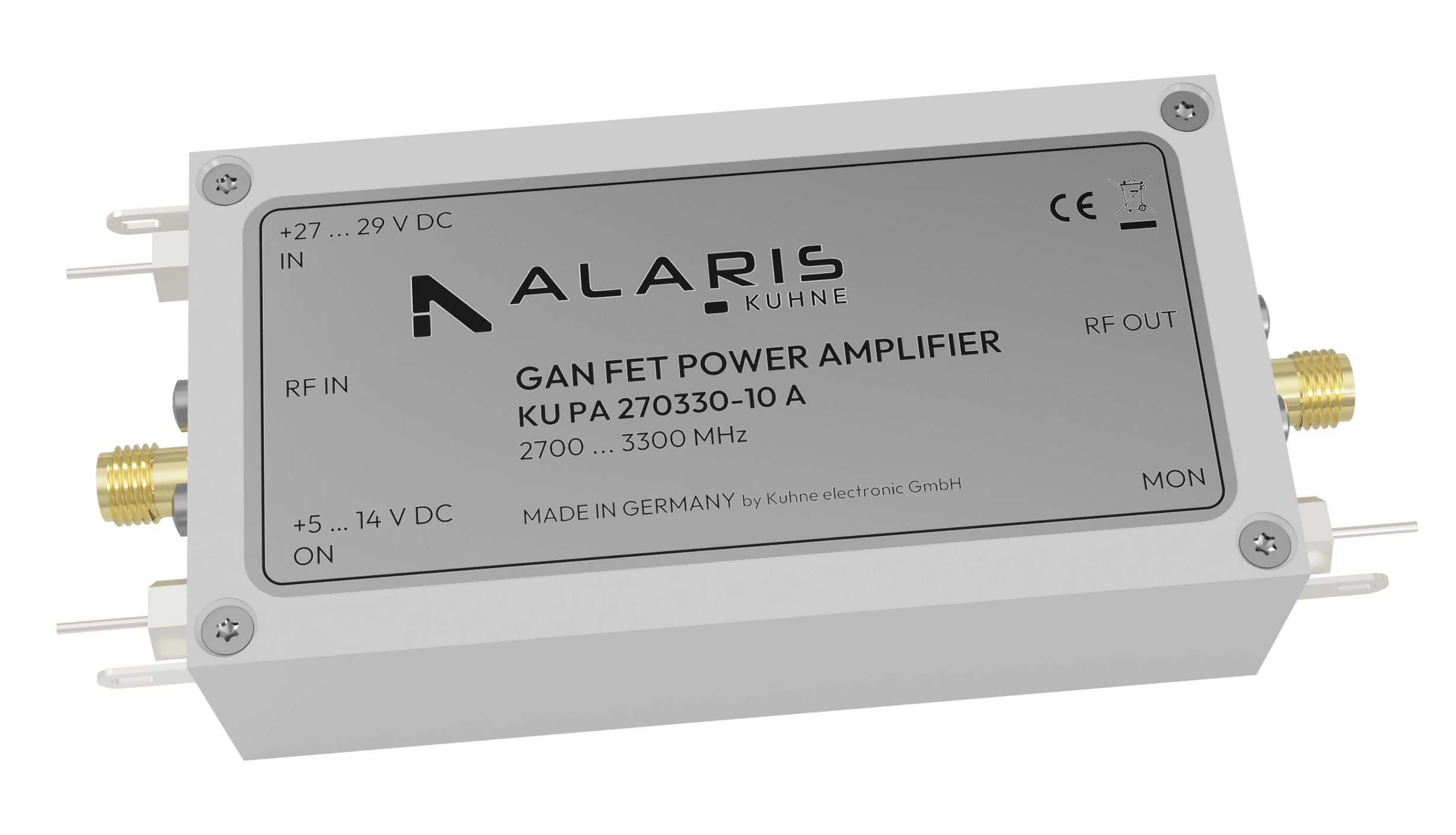

KU PA 270330 - 10 A Power amplifier, 2700 ... 3300 MHz, 10W	2,700	3,300	2,700 3,300	S	37.0	120	78	55	28	SMA	40.00	0.30

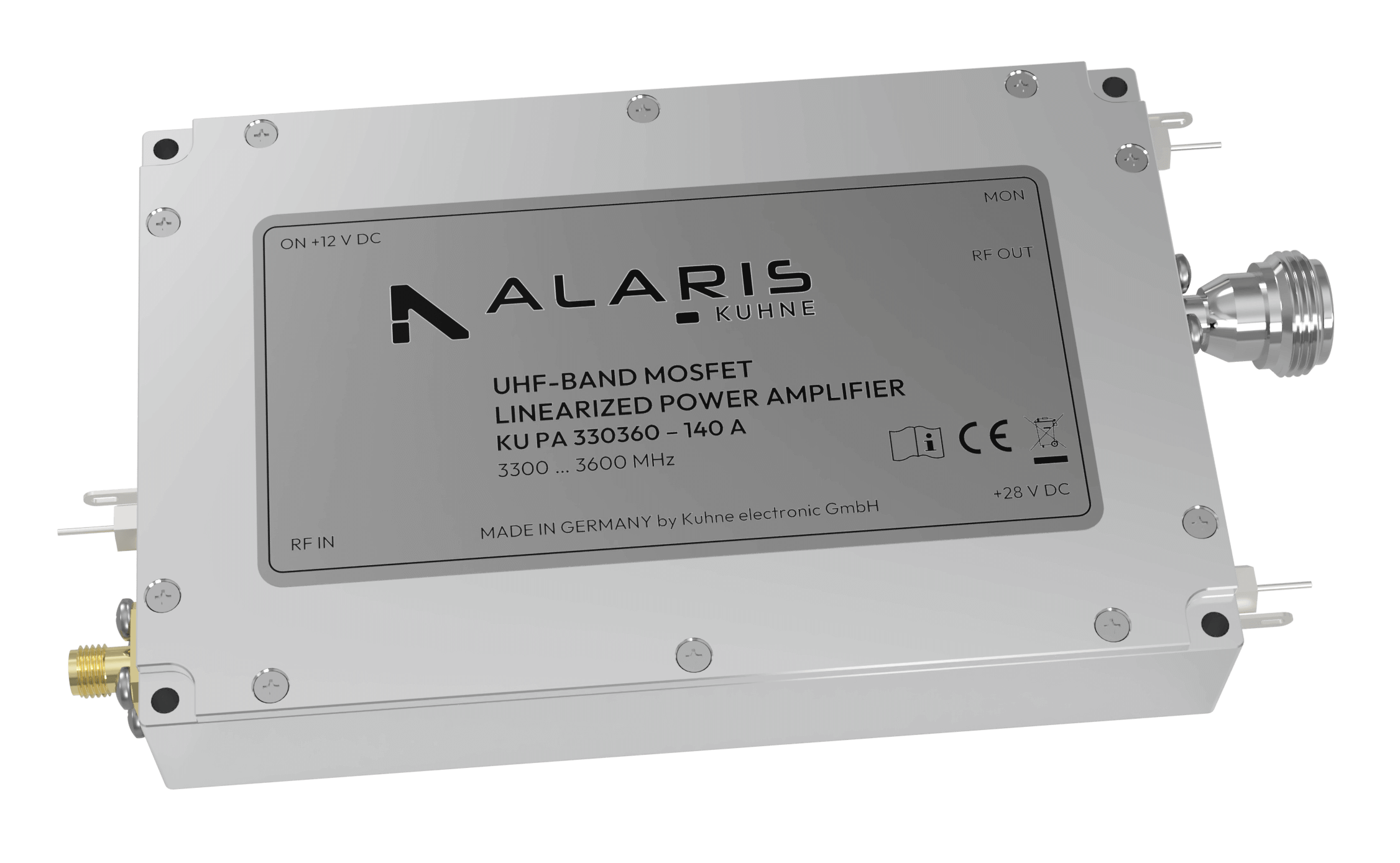

KU PA 330360 - 140 A MOSFET Power Amplifier, 3300 ... 3600 MHz, 140 W	3,300	3,600	3,300 3,600	S	11.0	440	125	55	28	SMA	51.40	15.00

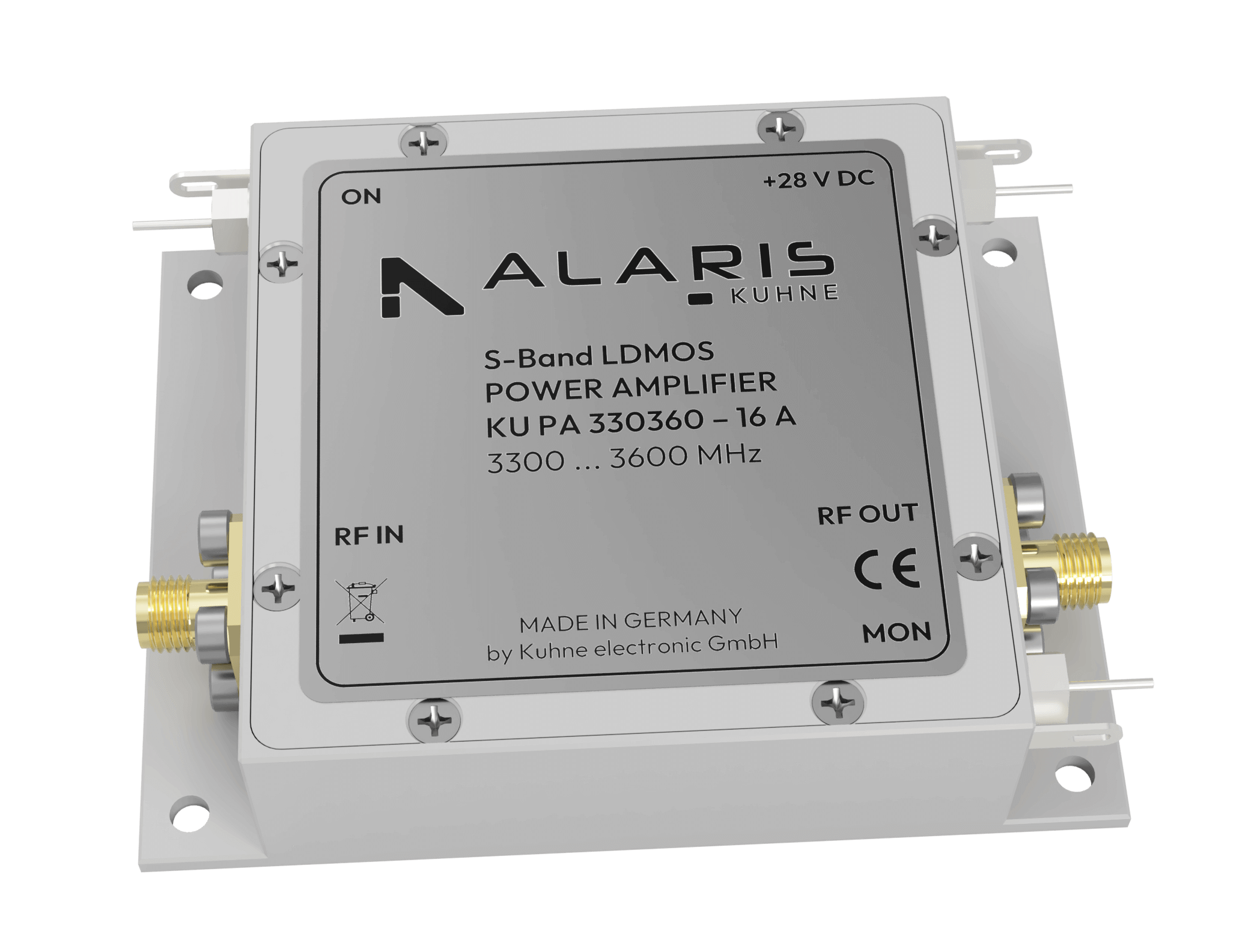

KU PA 330360 - 16 A MOSFET-Power Amplifier, 3300 ... 3600 MHz, 16 W	3,300	3,600	3,300 3,600	S	27.0	140	80	55	28	SMA	42.00	2.50

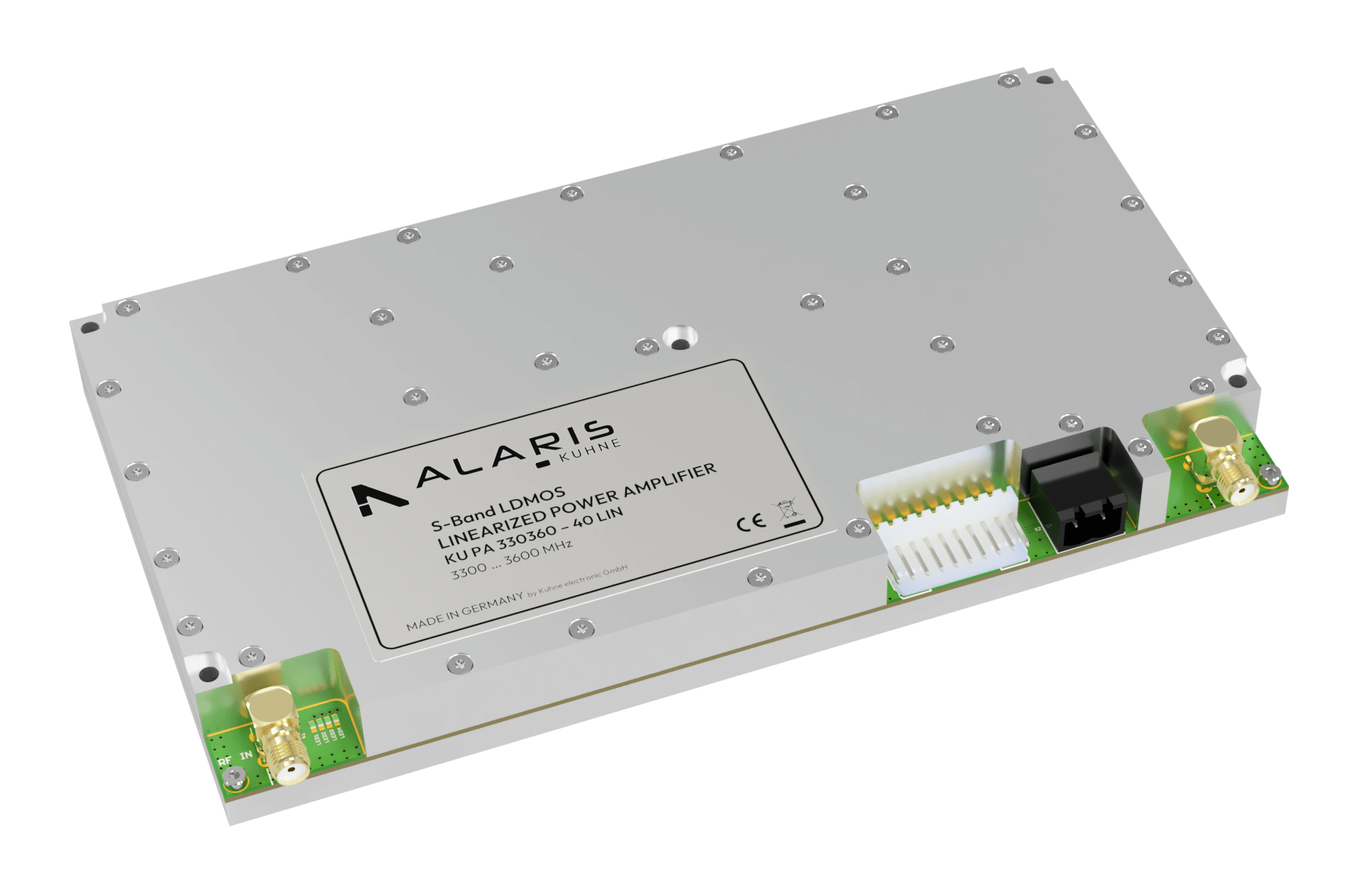

KU PA 330360 - 40 LIN LDMOS Power Amplifier, 3300 ... 3600 MHz, 4 ... 5 W COFDM Linear S-Band Power Amplifier	3,300	3,600	3,300 3,600	S	1.0	550	184	55	30	SMA	N/A	2.00

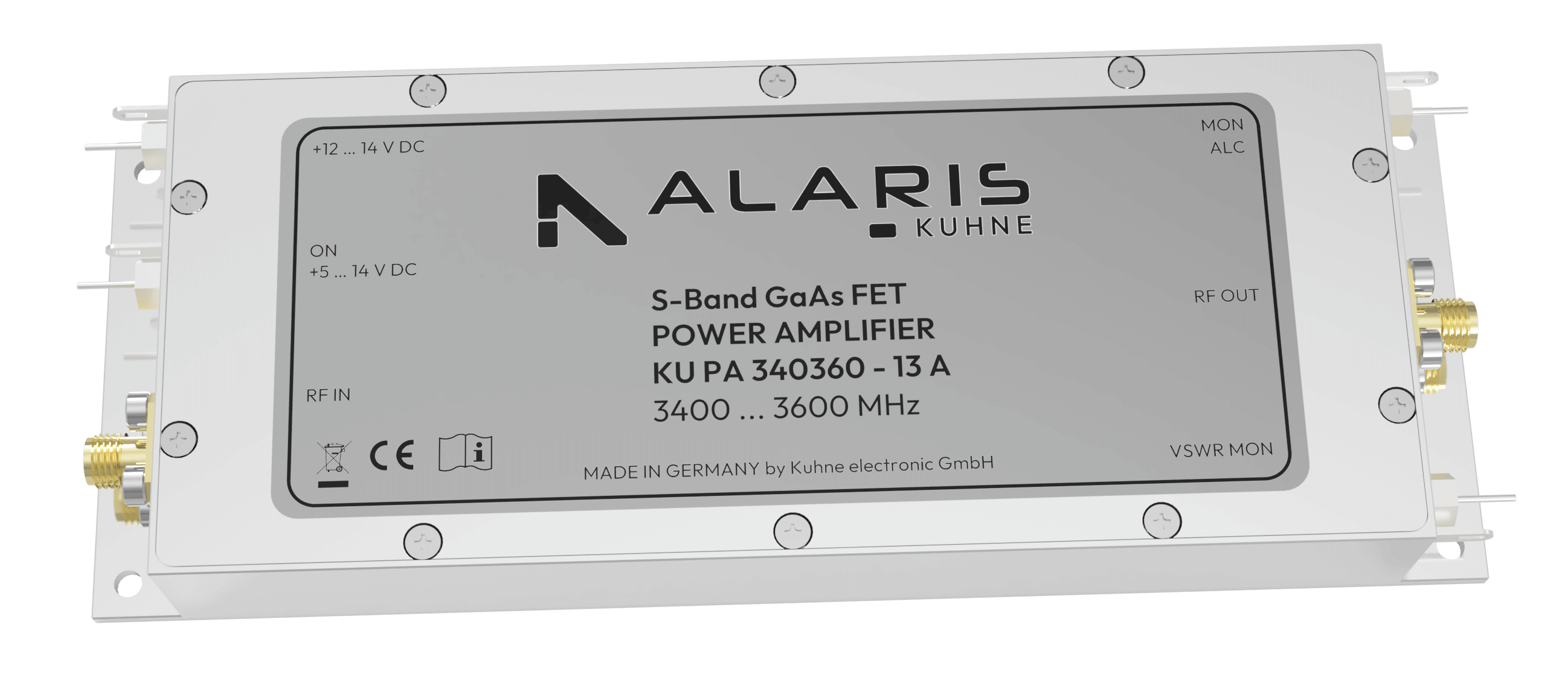

KU PA 340360 - 13 A Power Amplifier, 3400 ... 3600 MHz, 13 W	3,400	3,600	3,400 3,600	S	54.0	320	158	55	13	SMA	41.10	5.00
KU PA BB 005300 - 3 A RF Broadband Power Amplifier, 50 ... 3000 MHz, 3 W	50	3,000	50 3,000	L S	30.0	140	80	55	25	SMA	34.70	1.00
KU SG 1000 - 50 W Microwave Power Generator 50 W	10,000	10,000	10,000 10,000	N/A	N/A	11,250	N/A	30	230	WR-84	N/A	N/A

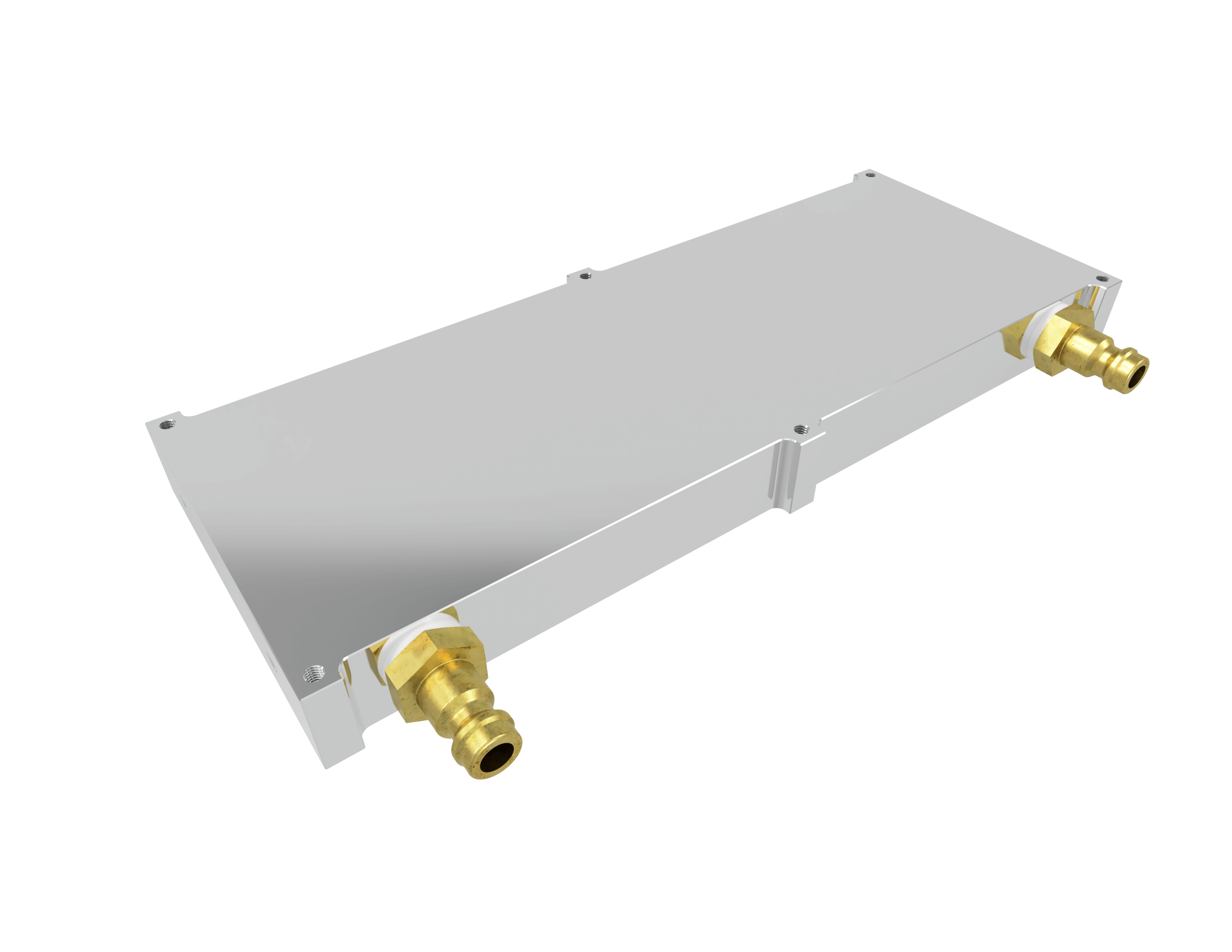

WK 18-07 Liquid Cooling Heatsink	N/A	N/A	0 0	N/A	N/A	400	180	N/A	N/A	N/A	N/A	N/A

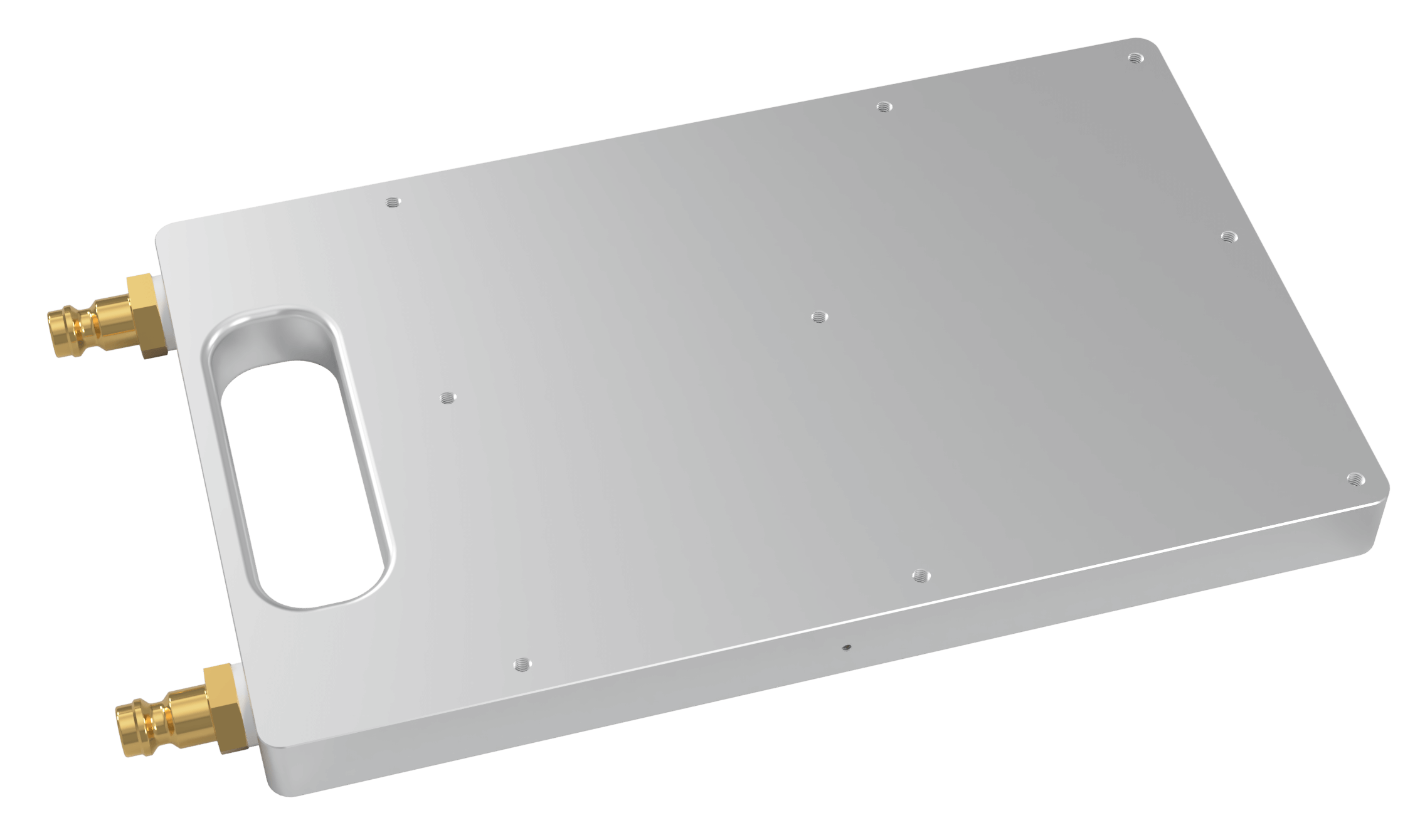

WK 25-17 Liquid Cooling Heatsink	N/A	N/A	0 0	N/A	N/A	630	250	N/A	N/A	N/A	N/A	N/A

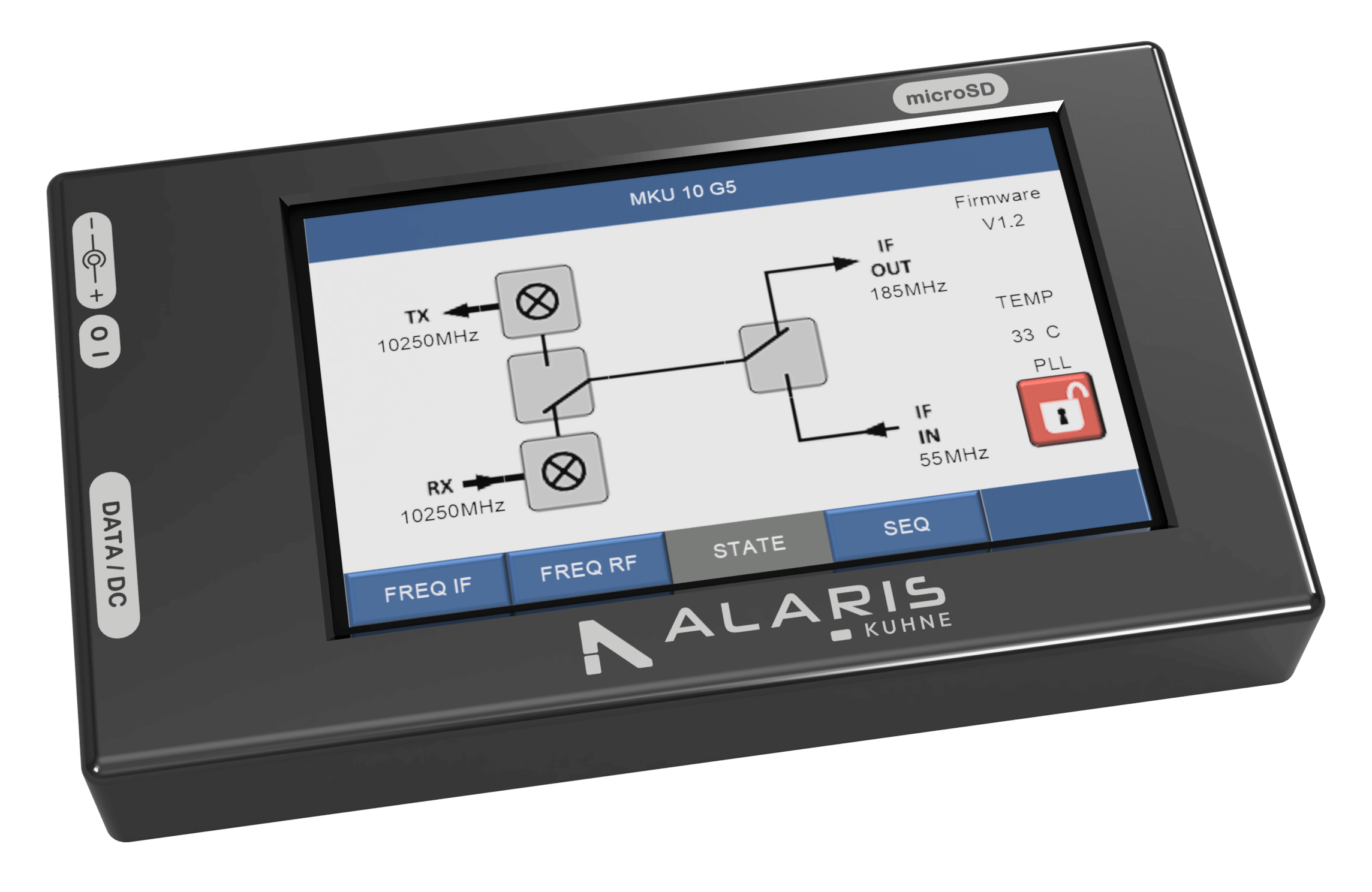

KU EDPU - 5.0 External Display Unit	N/A	N/A	0 0	N/A	N/A	410	165	N/A	N/A	N/A	N/A	N/A

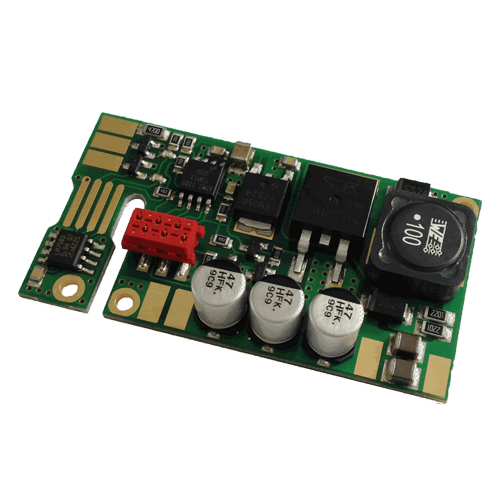

KU LS2 PWM Fan Controller	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
KU SG 2.45 - 25 B Microwave Power Generator 25 W	2,400	2,500	2,400 2,500	N/A	N/A	900	147	N/A	32	N	25.00	3.50

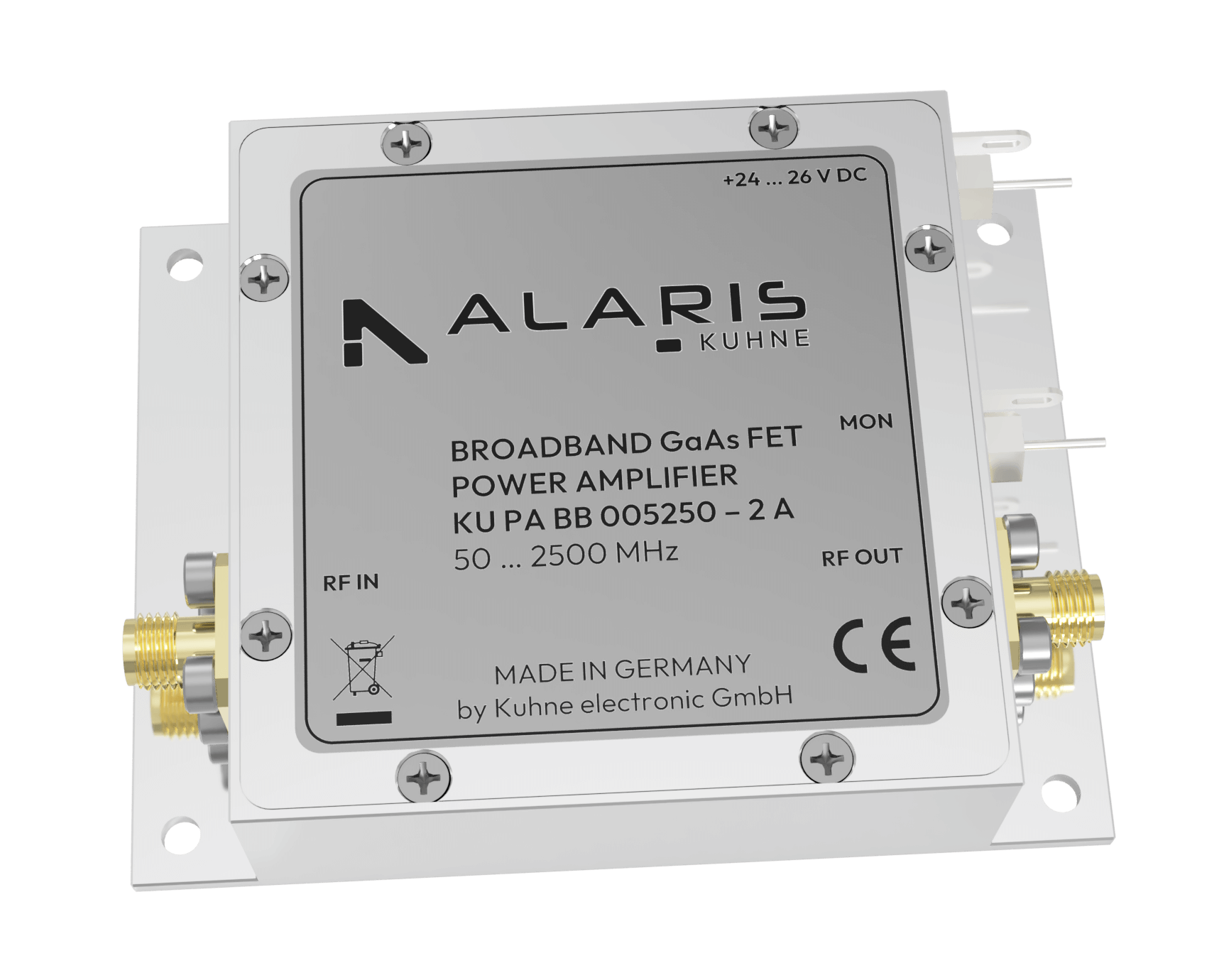

KU PA BB 005250 - 2 A RF Broadband Amplifier, 50 ... 2500 MHz, 2 W	50	2,500	50 2,500	L S	N/A	140	80	N/A	24	N/A	N/A	N/A

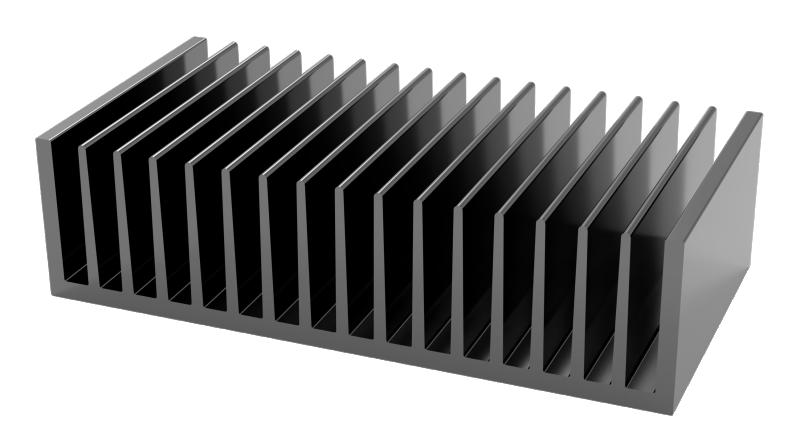

SK 120 - 75 Heat Sink 150 x 75 x 40	N/A	N/A	0 0	N/A	N/A	470	N/A	N/A	N/A	N/A	N/A	N/A

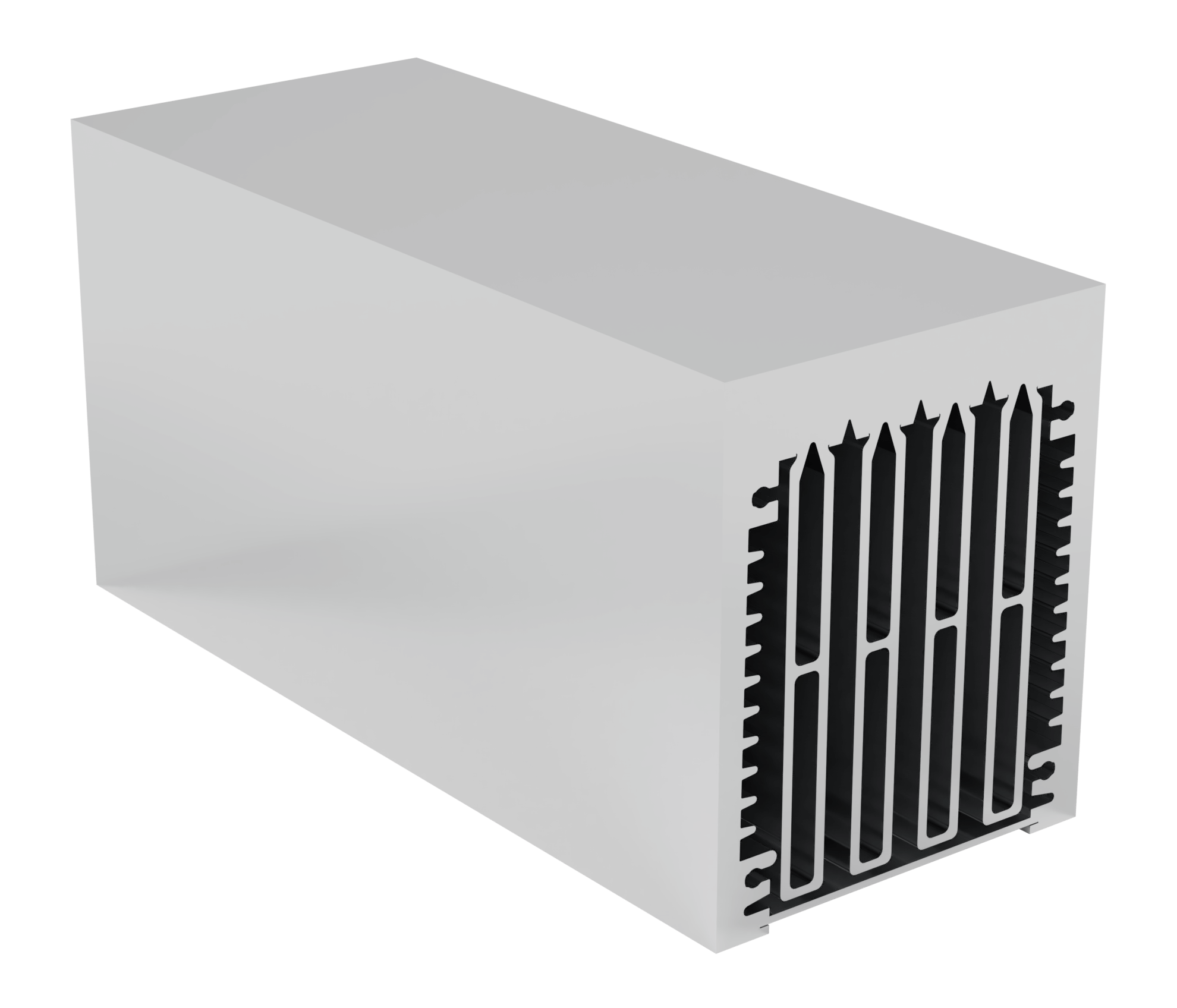

SK 150 - 62 Heat Sink 150 x 62 x 75	N/A	N/A	0 0	N/A	N/A	800	N/A	N/A	N/A	N/A	N/A	N/A

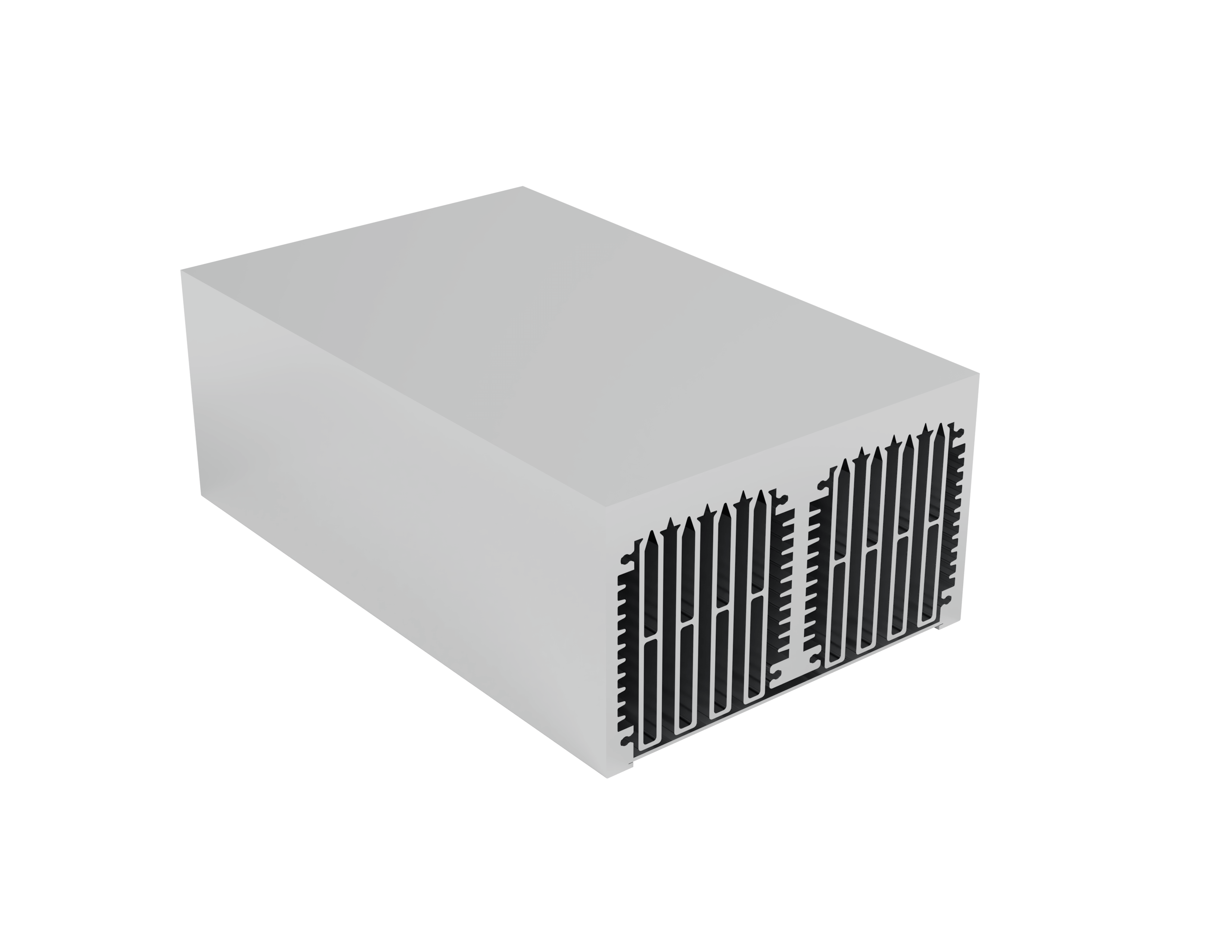

SK 200 - 125 Heat Sink 200 x 125 x 75	N/A	N/A	0 0	N/A	N/A	2,200	N/A	N/A	N/A	N/A	N/A	N/A

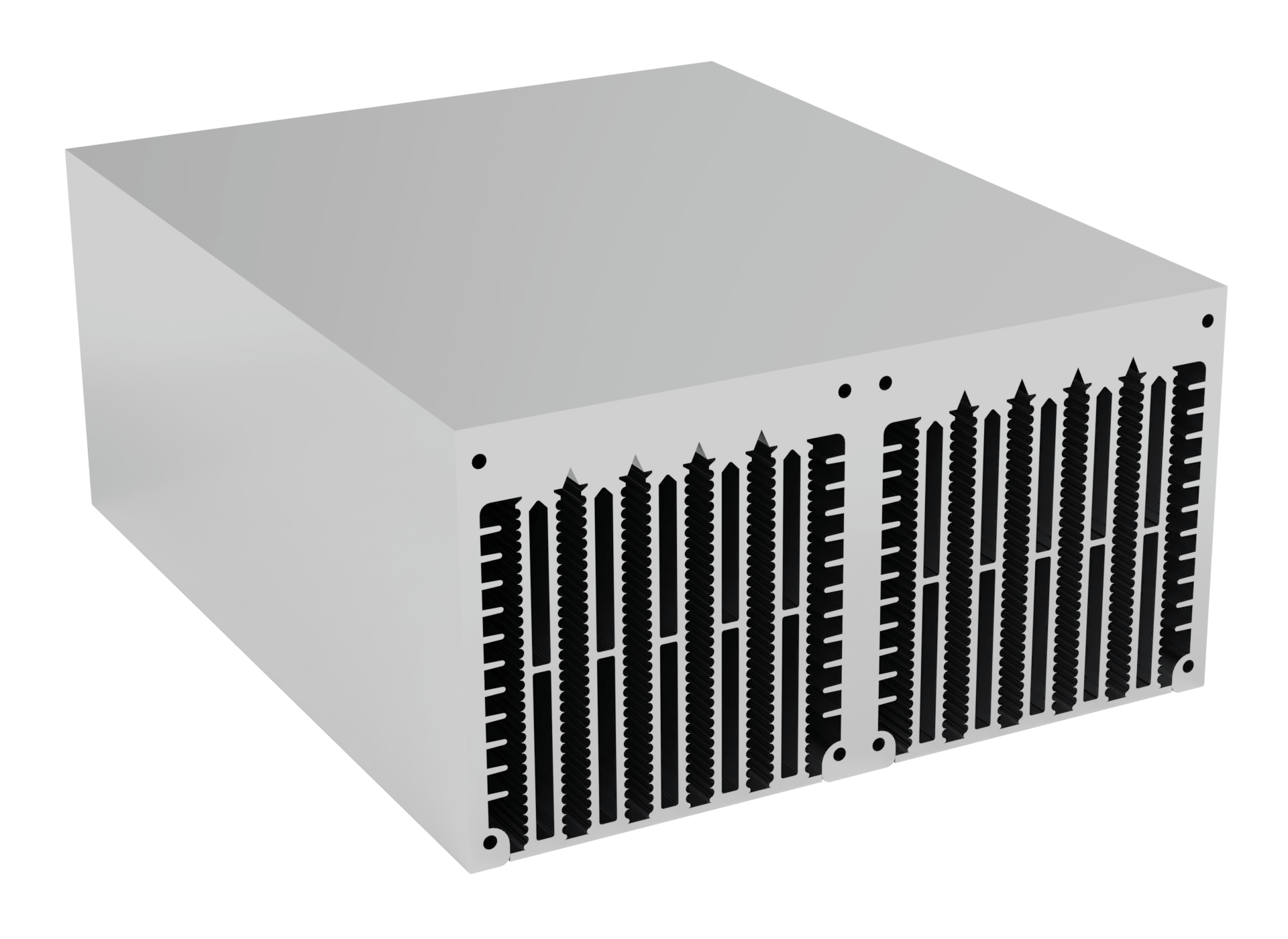

SK 200 - 160 Heat Sink 200 x 160 x 85	N/A	N/A	0 0	N/A	N/A	3,500	N/A	N/A	N/A	N/A	N/A	N/A

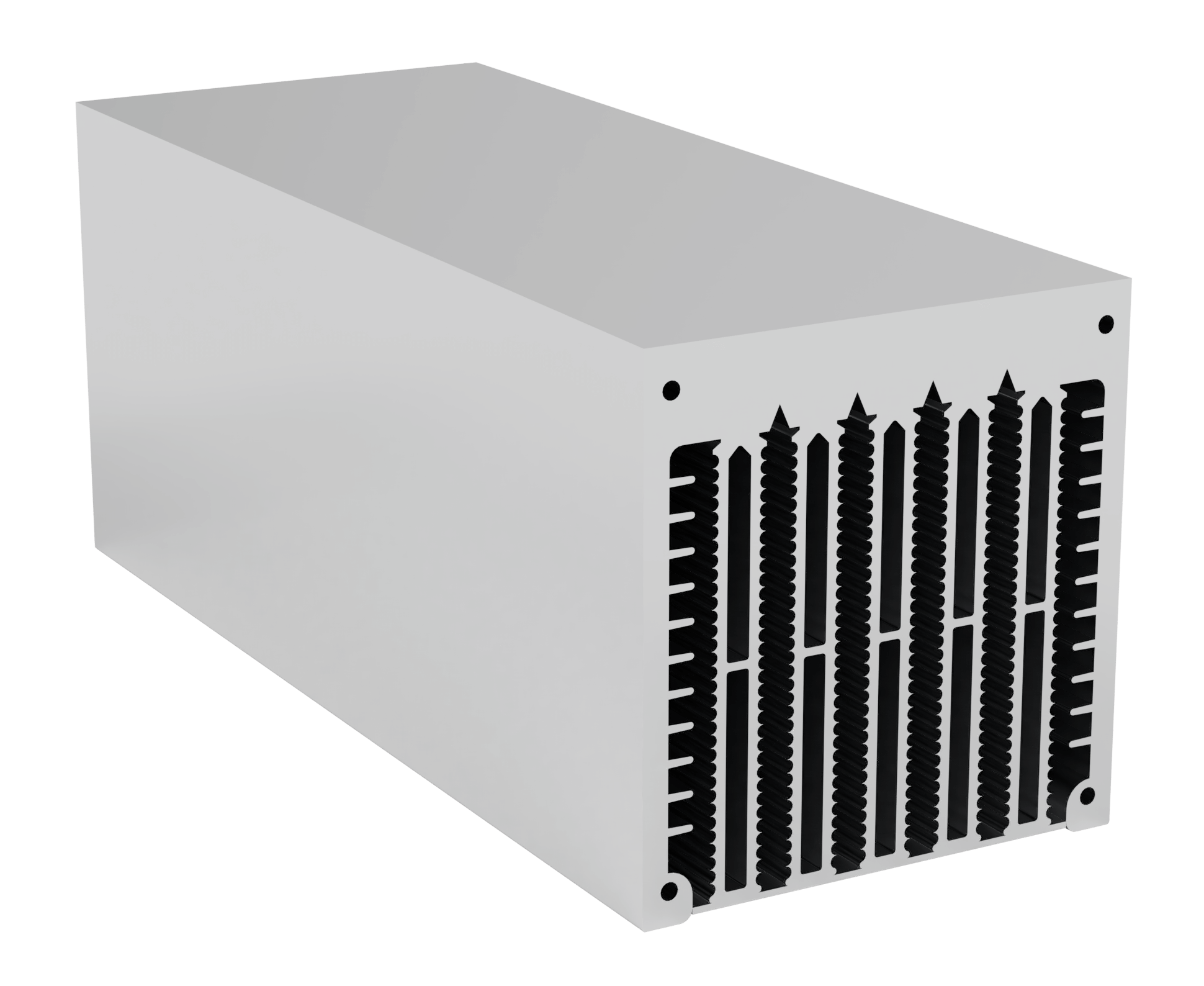

SK 200 - 80 Heat Sink 200 x 80 x 85	N/A	N/A	0 0	N/A	N/A	1,700	N/A	N/A	N/A	N/A	N/A	N/A

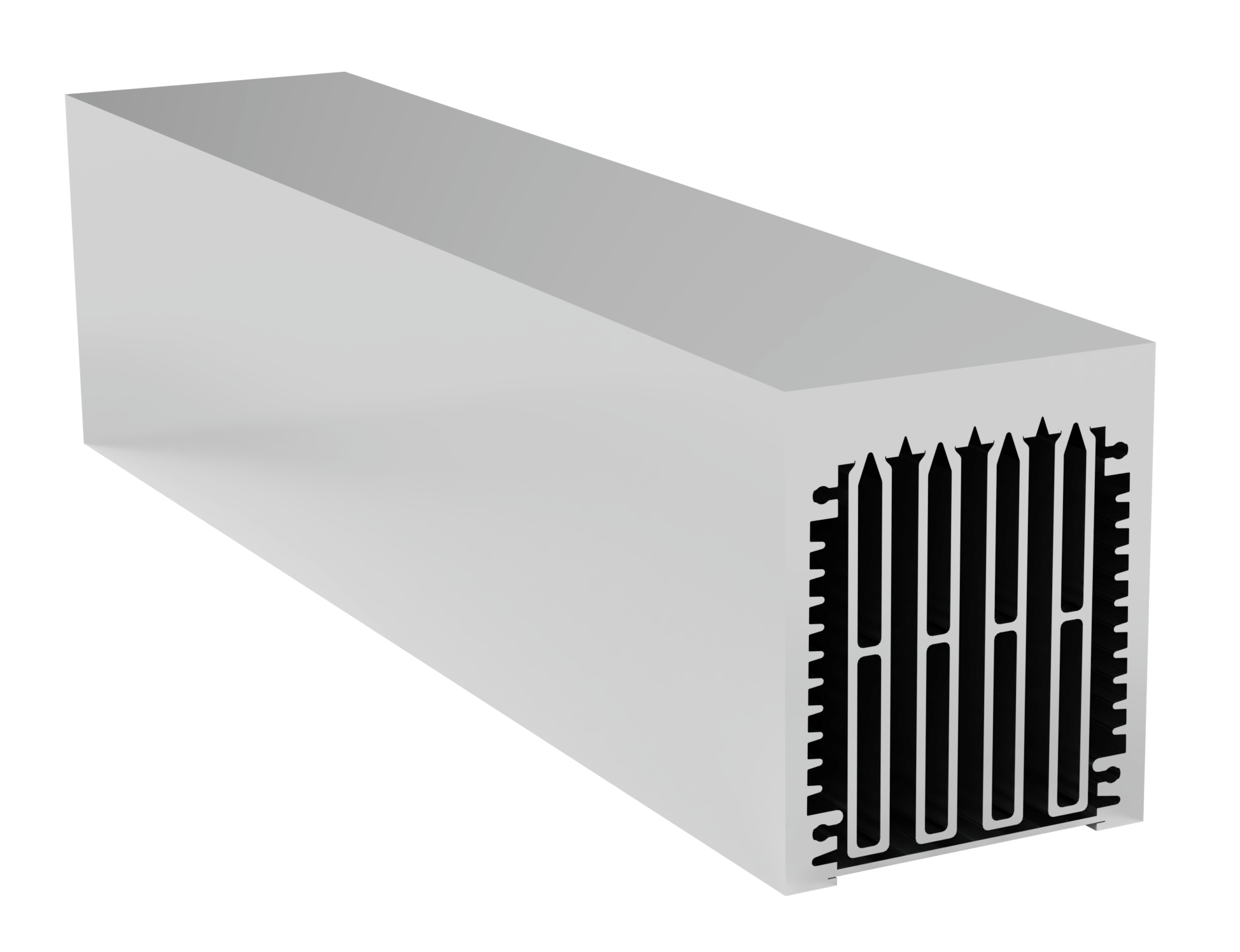

SK 300 - 62 Heat Sink 300 x 62 x 75	N/A	N/A	0 0	N/A	N/A	1,600	N/A	N/A	N/A	N/A	N/A	N/A

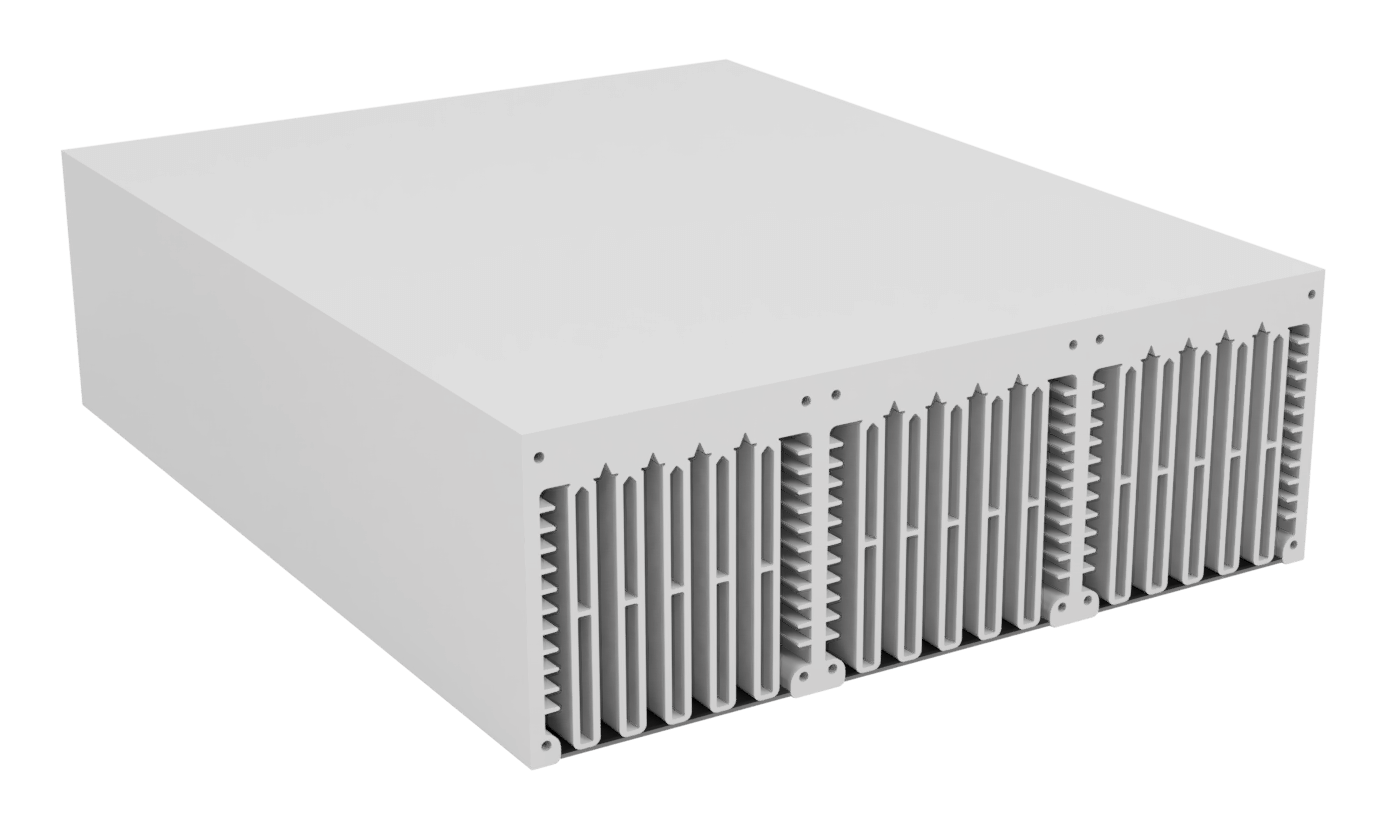

SK 300-240 Heat Sink 300 x 240 x 80	N/A	N/A	0 0	N/A	N/A	8,000	N/A	N/A	N/A	N/A	N/A	N/A

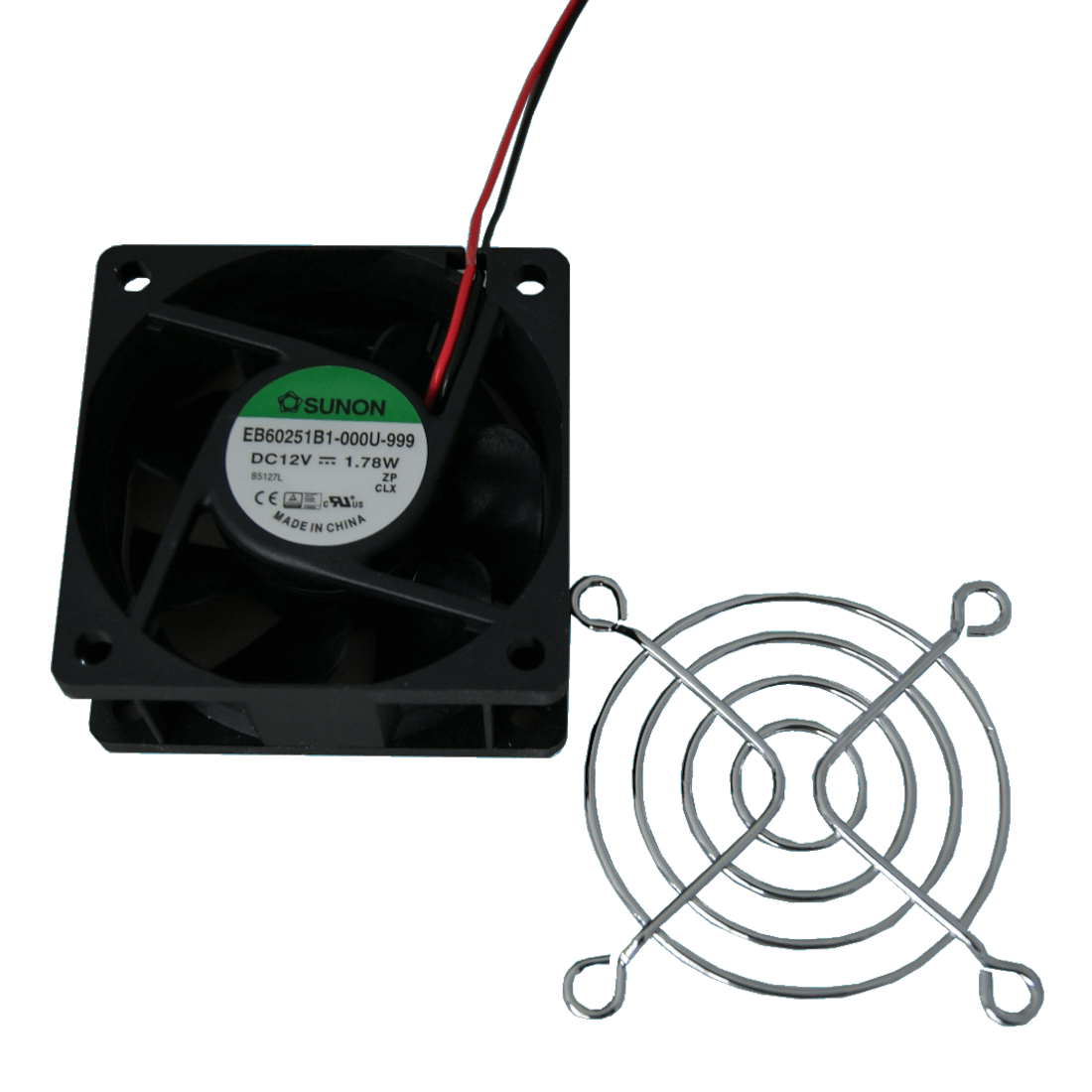

FAN-60-60-12V Fan 60 x 60, 12 V	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A

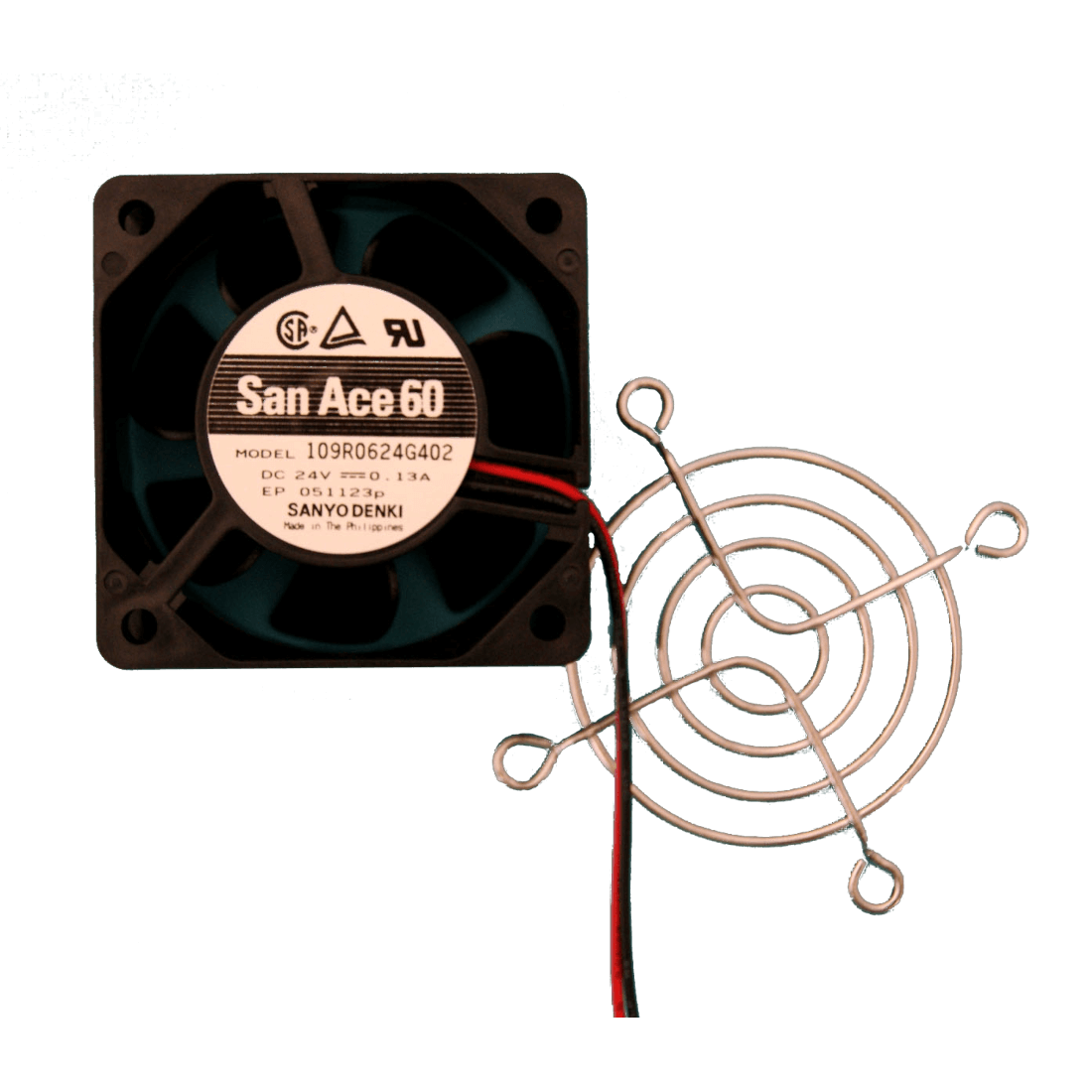

FAN-60-60-12V-HP Fan 60 x 60, 12 V HP	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A
FAN-60-60-24V-HP Fan 60 x 60, 24 V HP	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	24	N/A	N/A	N/A
FAN-80-80-12V Fan 80 x 80, 12 V	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A
FAN-80-80-12V-HP Fan 80 x 80, 12 V HP	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A

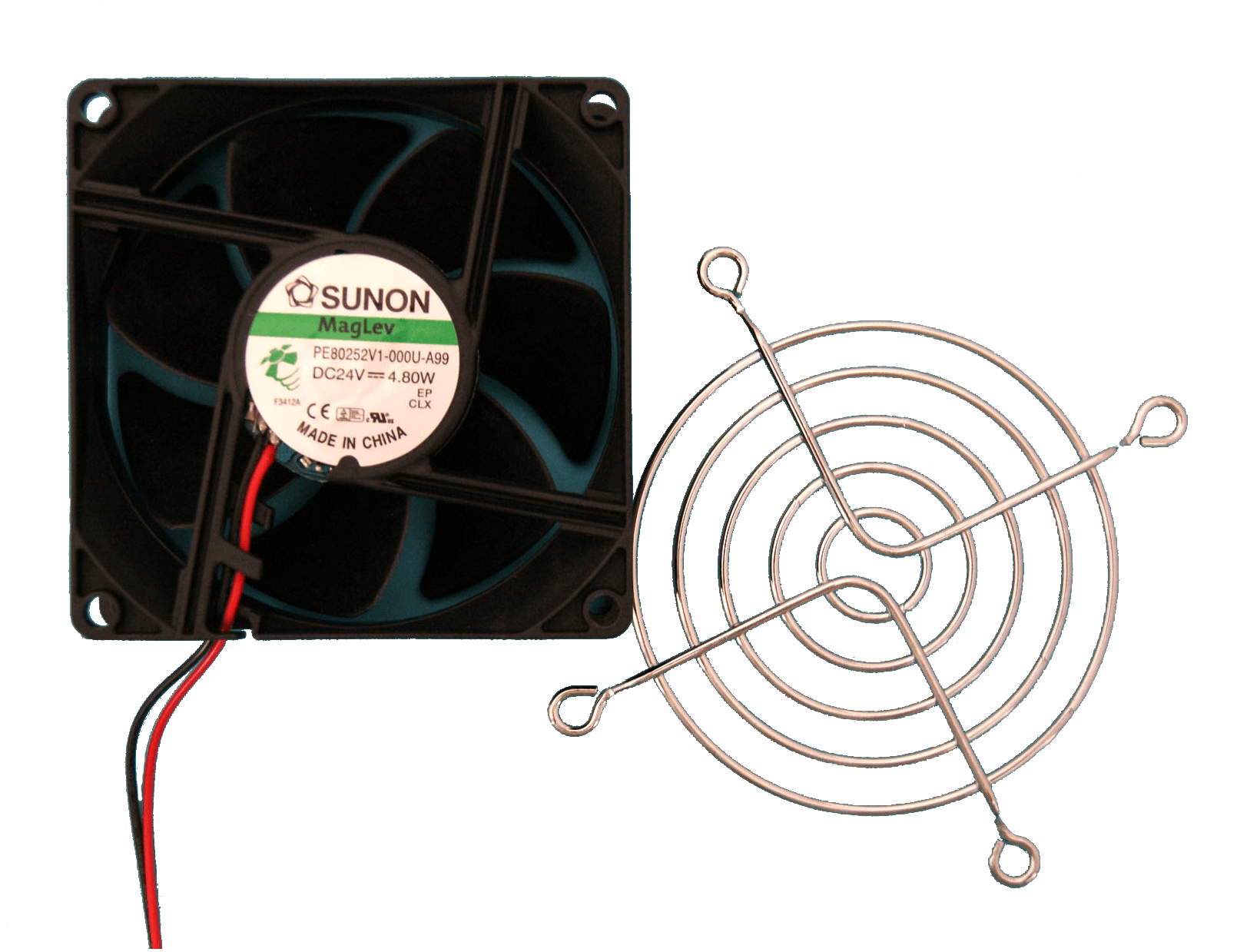

FAN-80-80-24V-HP Fan 80 x 80, 24V HP	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	24	N/A	N/A	N/A
FAN-120-120-12V Fan 120 x 120, 12V	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A

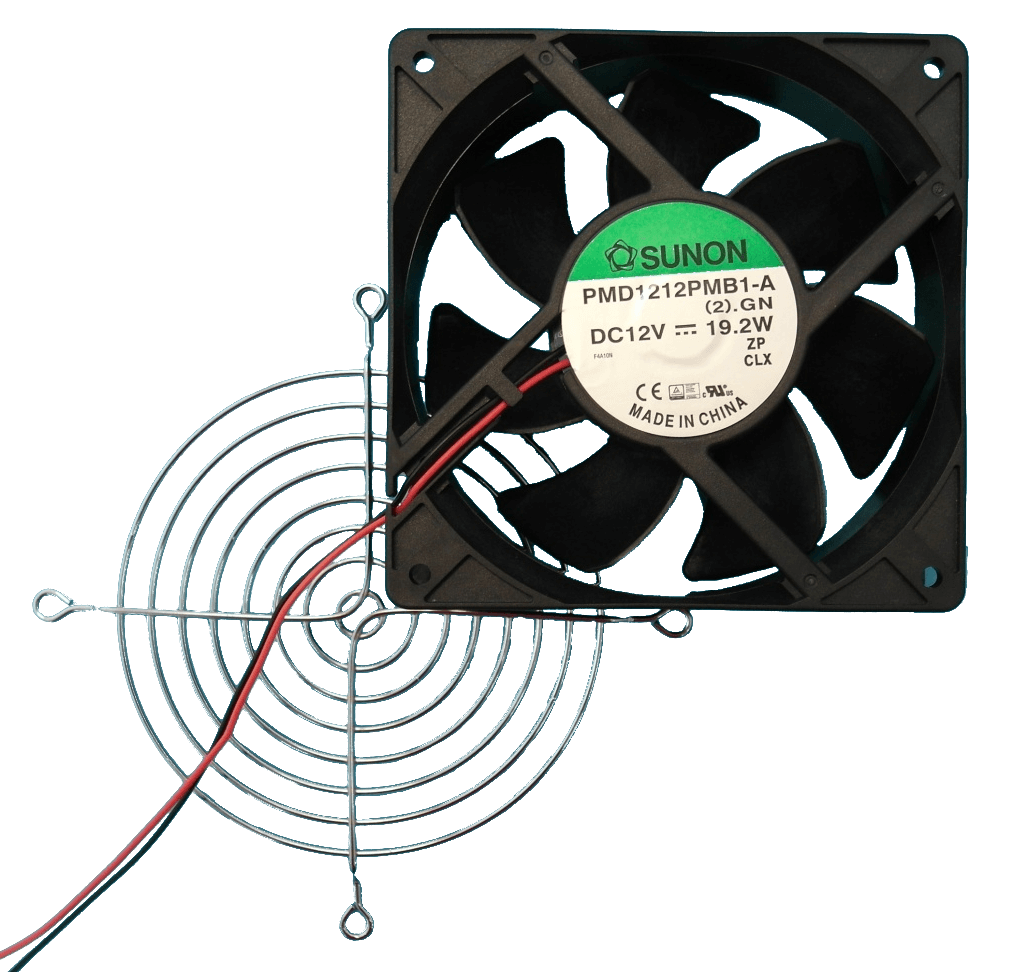

FAN-120-120-12V-HP Fan 120 x 120, 12 V HP	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A

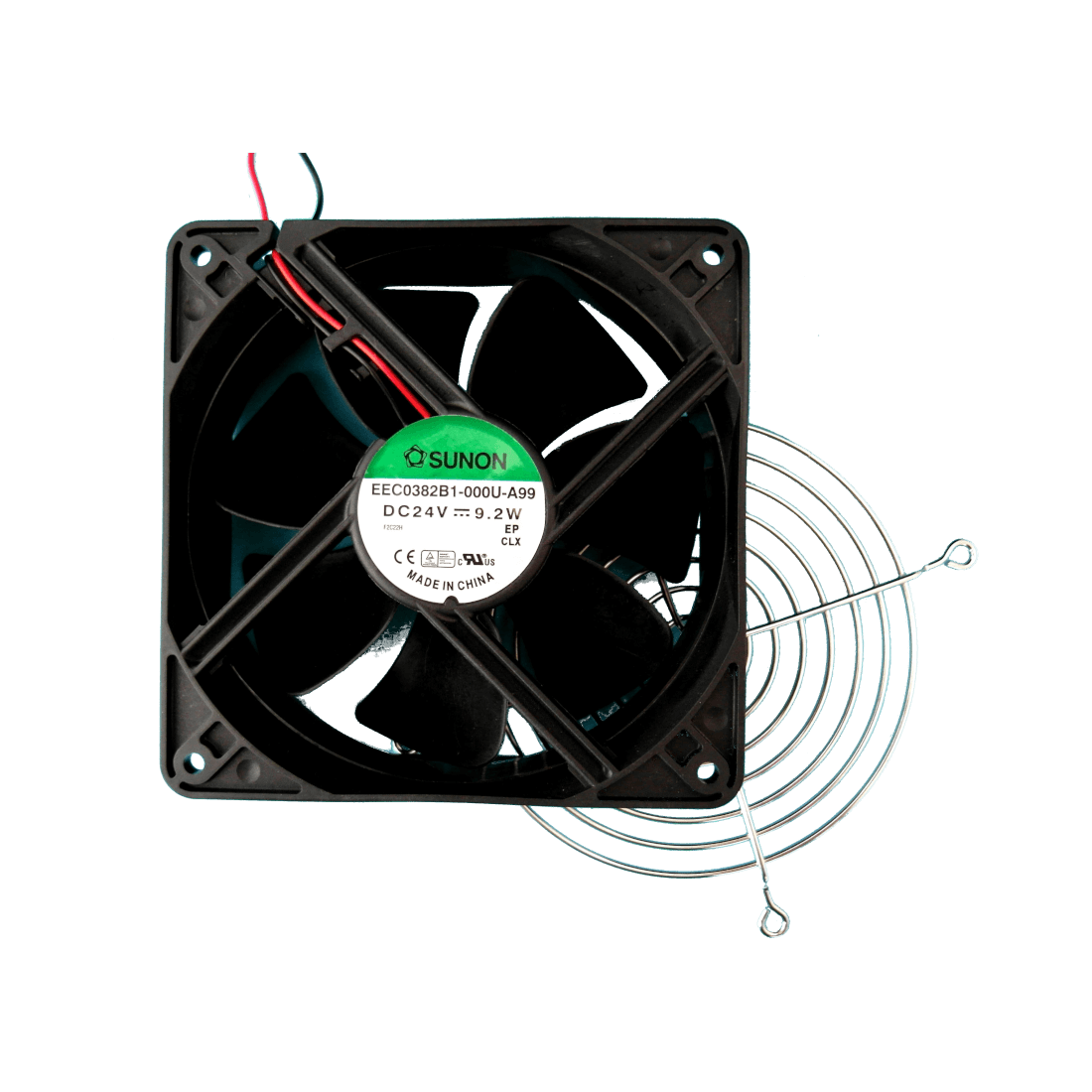

FAN-120-120-24V Fan 120 x 120, 24 V	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	24	N/A	N/A	N/A
KU-SG-SUP-UNIT-B KU SG Power Supply Unit Buffert 26A	N/A	N/A	0 0	N/A	N/A	3,750	N/A	N/A	32	N/A	N/A	N/A

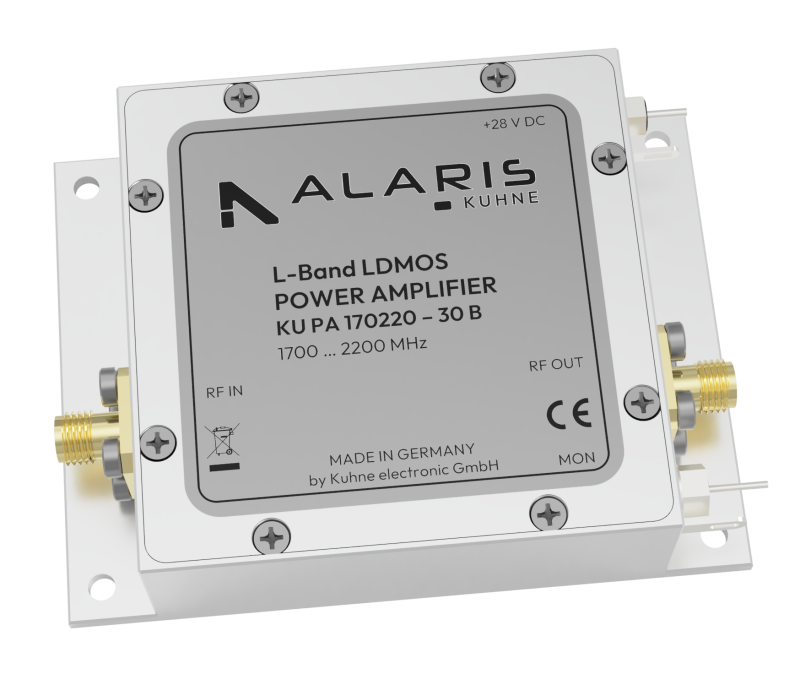

KU PA 170220 - 30 B RF Power Amplifer, 1700 ... 2200 MHz, 30 W	1,700	2,200	1,700 2,200	L S	30.0	N/A	80	N/A	28	SMA	44.70	N/A
RSP 320 W 12 Power Supply 12V DC	N/A	N/A	0 0	N/A	N/A	N/A	215	N/A	12	N/A	N/A	N/A

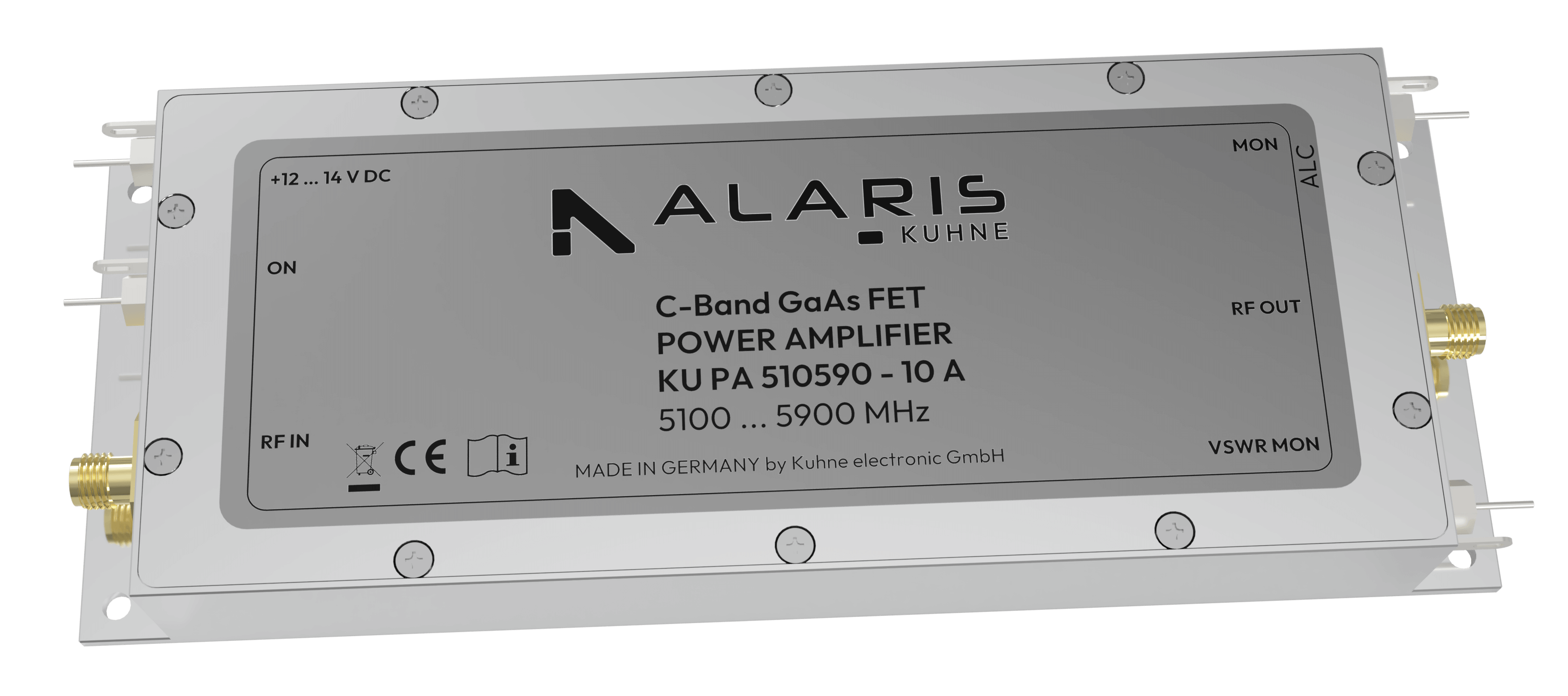

KU PA 510590 - 10 A RF Power Amplifier, 5100 ... 5900 MHz, 10 W	5,100	5,900	5,100 5,900	C	N/A	320	N/A	55	N/A	N/A	10.00	4.50

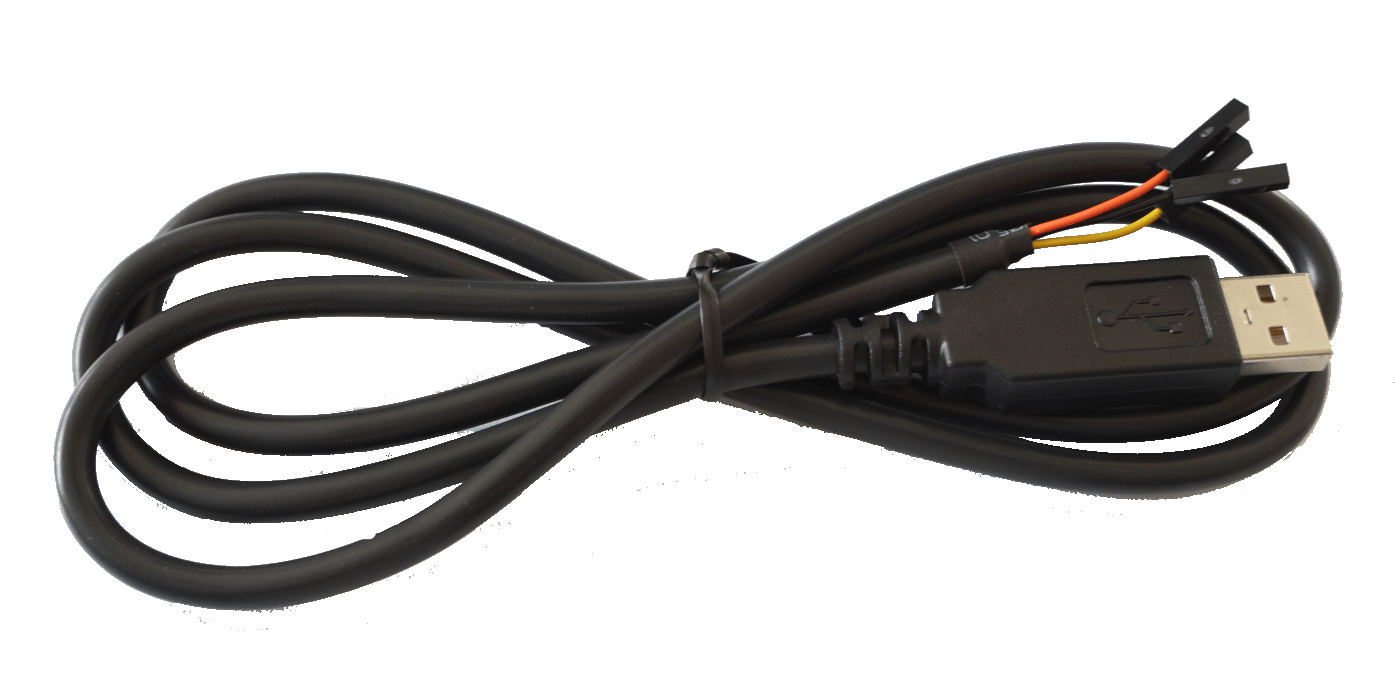

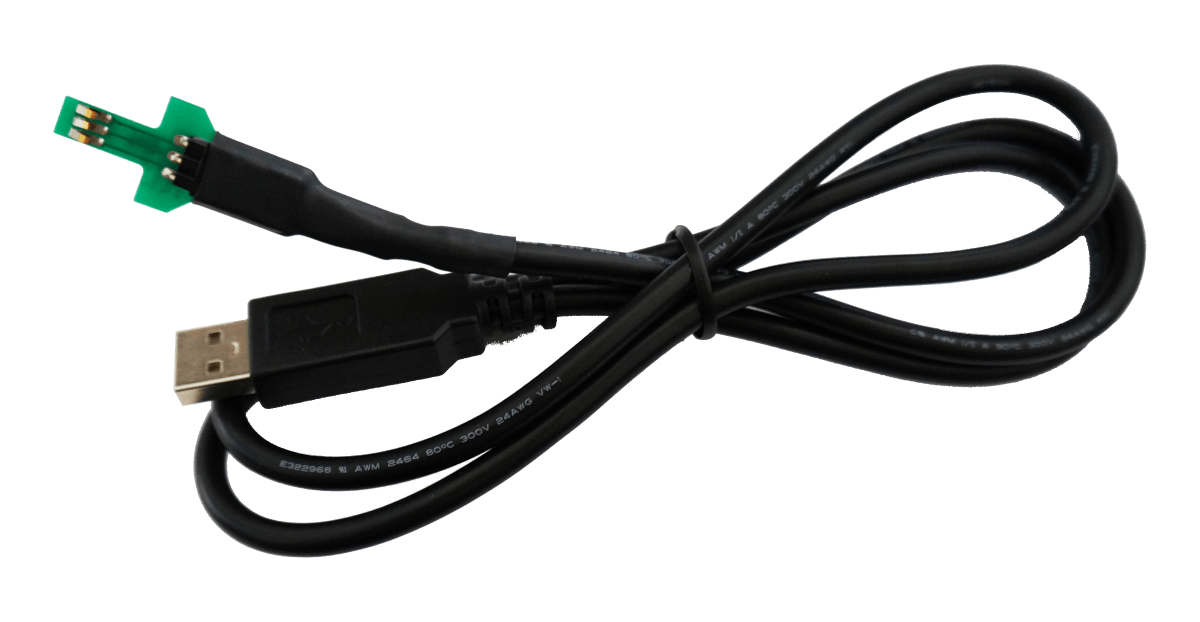

LNC-KABEL LNC TTL level serial UART converter cable to USB	N/A	N/A	0 0	N/A	N/A	N/A	1,000	N/A	N/A	N/A	N/A	N/A

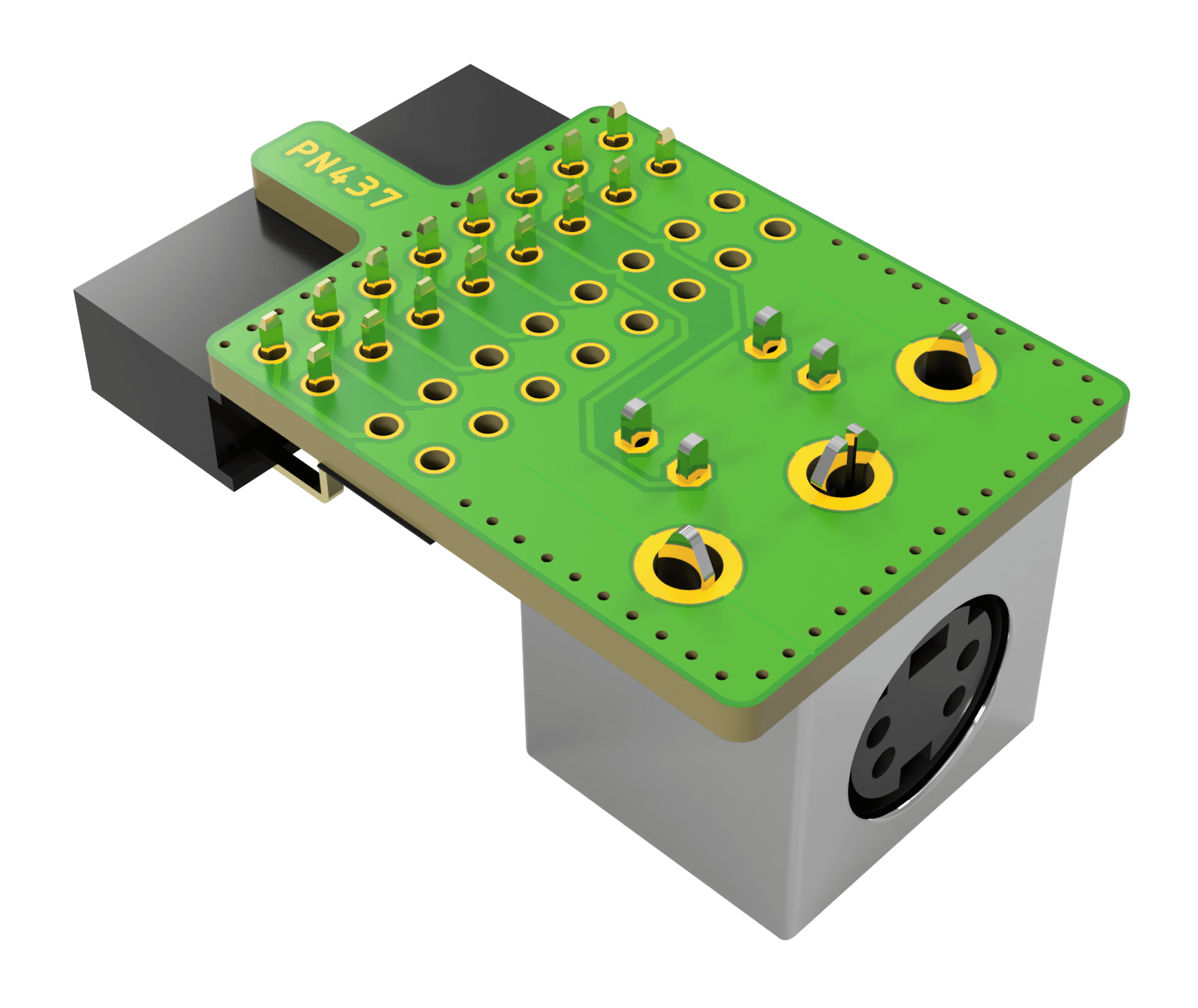

KU UIB-B KU UIB-B - User Interface Board B	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

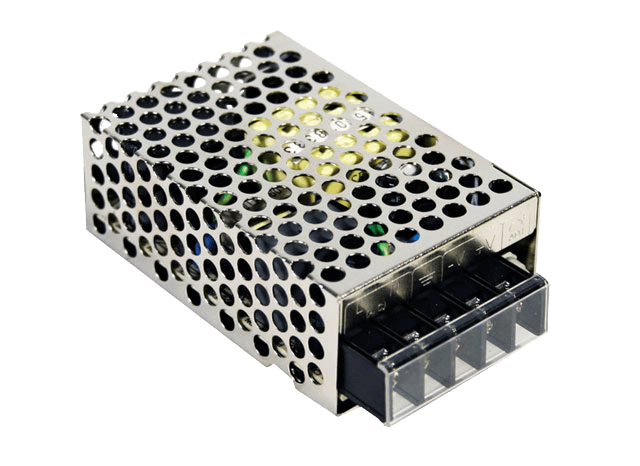

RS 25 W 12 Power Supply 12V DC	N/A	N/A	0 0	N/A	N/A	N/A	78	N/A	N/A	N/A	N/A	N/A

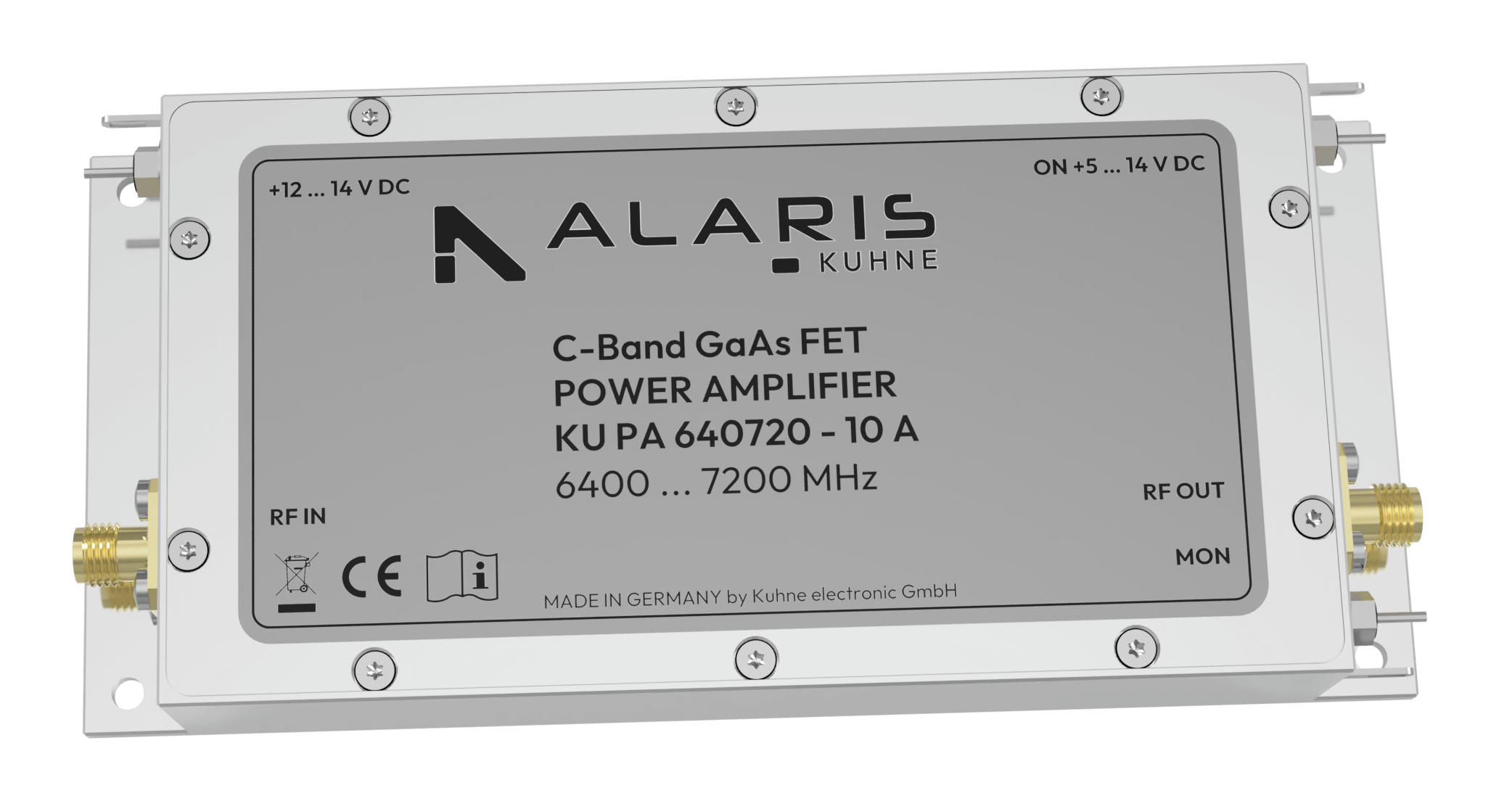

KU PA 640720-10 A GaAs Linear Power Amplifier 6400 .. 7200 MHz, 10W	6,400	7,200	6,400 7,200	C	N/A	N/A	130	55	12	N/A	10.00	4.50

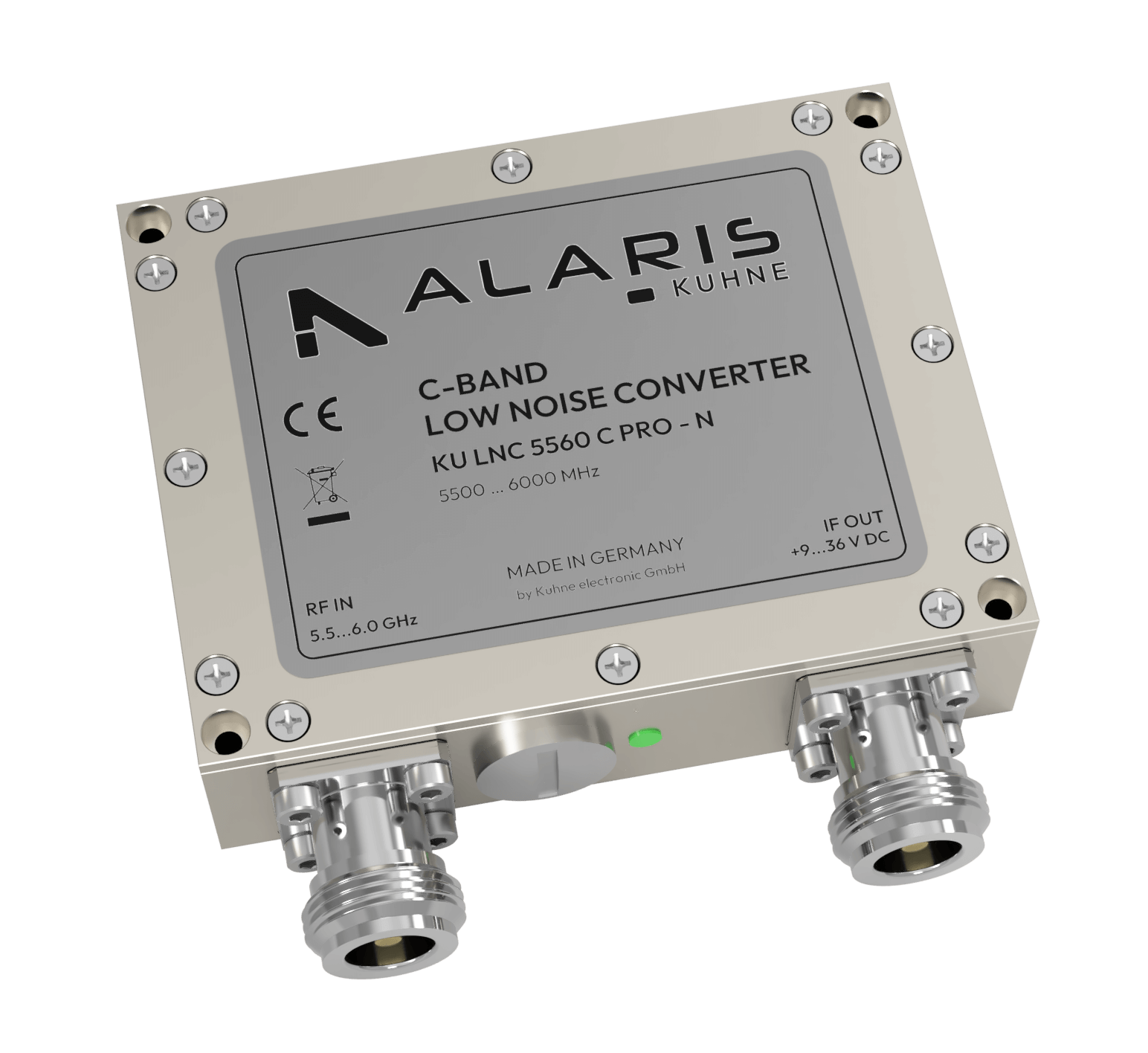

KU LNC 5560 C PRO - N Down Converter, 5500 ... 6000 MHz	5,500	6,000	5,500 6,000	C	35.0	230	82	55	12	N	N/A	0.25

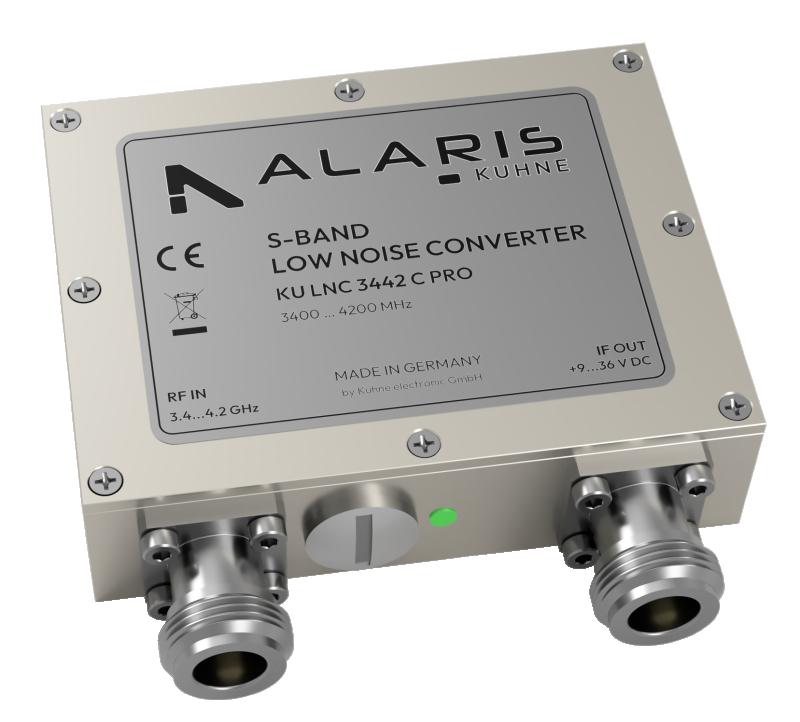

KU LNC 3442 C PRO Down Converter, 3400 … 4200 MHz	3,400	4,200	3,400 4,200	C	37.0	N/A	N/A	55	N/A	N/A	N/A	0.27

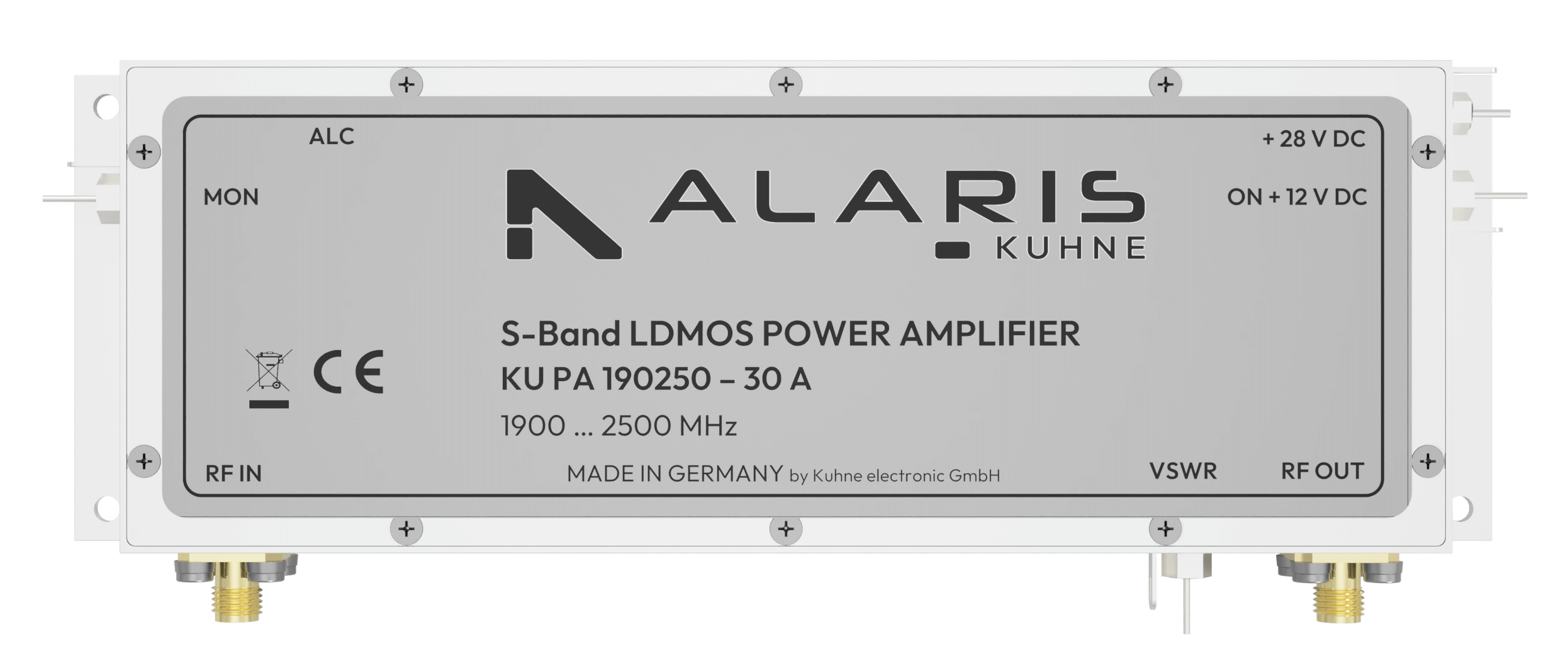

KU PA 190250 - 30 A LDMOS RF Power Amplifier, 1900 ... 2500 MHz	1,900	2,500	1,900 2,500	S	N/A	300	N/A	55	N/A	N/A	N/A	8.00

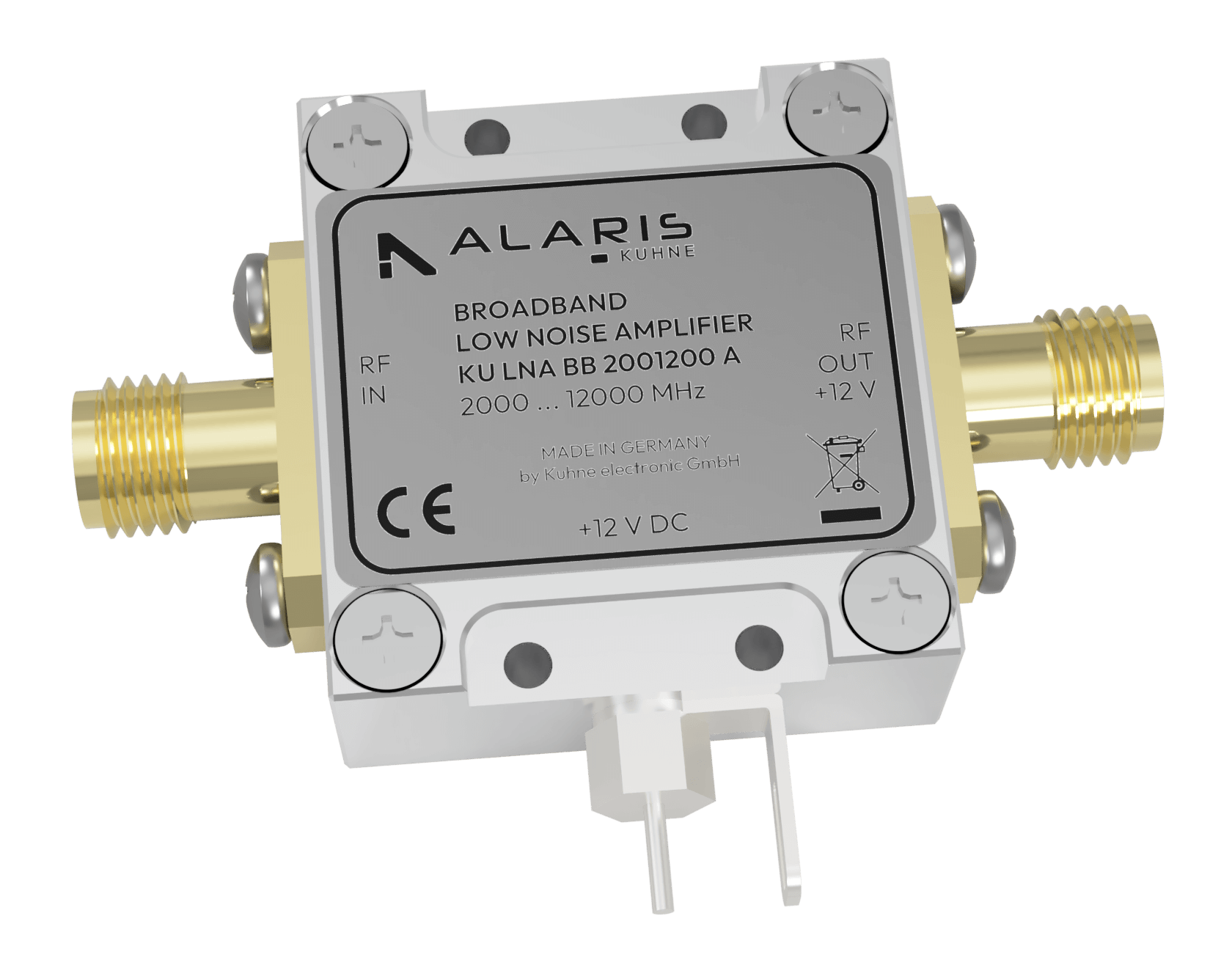

KU LNA BB 2001200 A Broadband preamplifier, 2000 ... 12000 MHz	2,000	12,000	2,000 12,000	L S C X	30.0	15	N/A	55	N/A	N/A	N/A	0.10

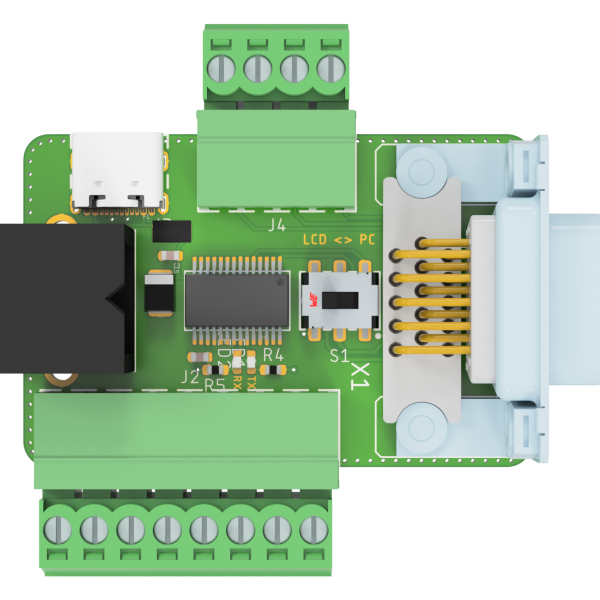

KU UIB-C KU UIB-C - User Interface Board C	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

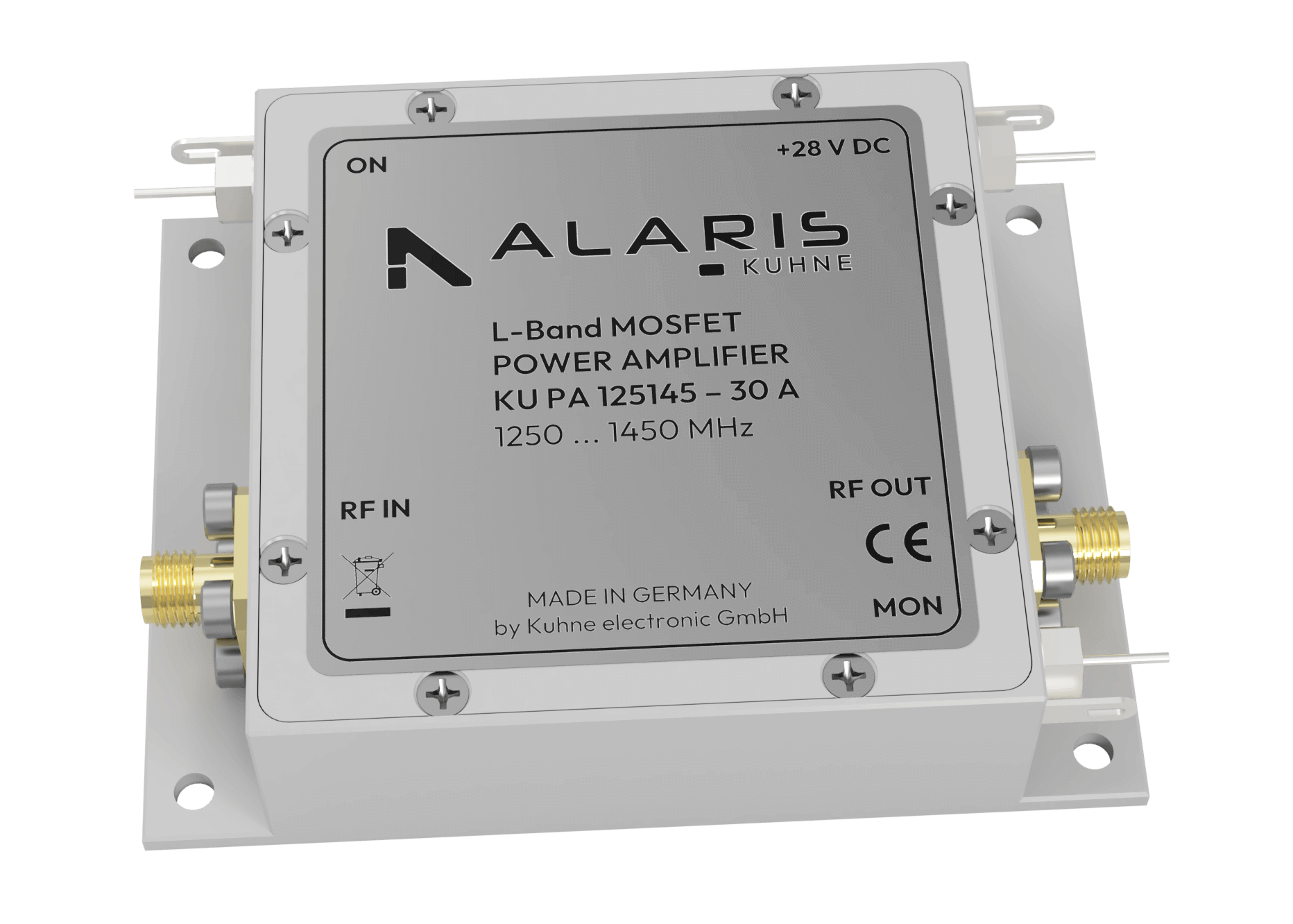

KU PA 125145 - 30 A RF Power Amplifier, 1250 ... 1450 MHz, 30 W	1,250	1,450	1,250 1,450	L	21.0	N/A	80	18	28	SMA	44.35	3.50

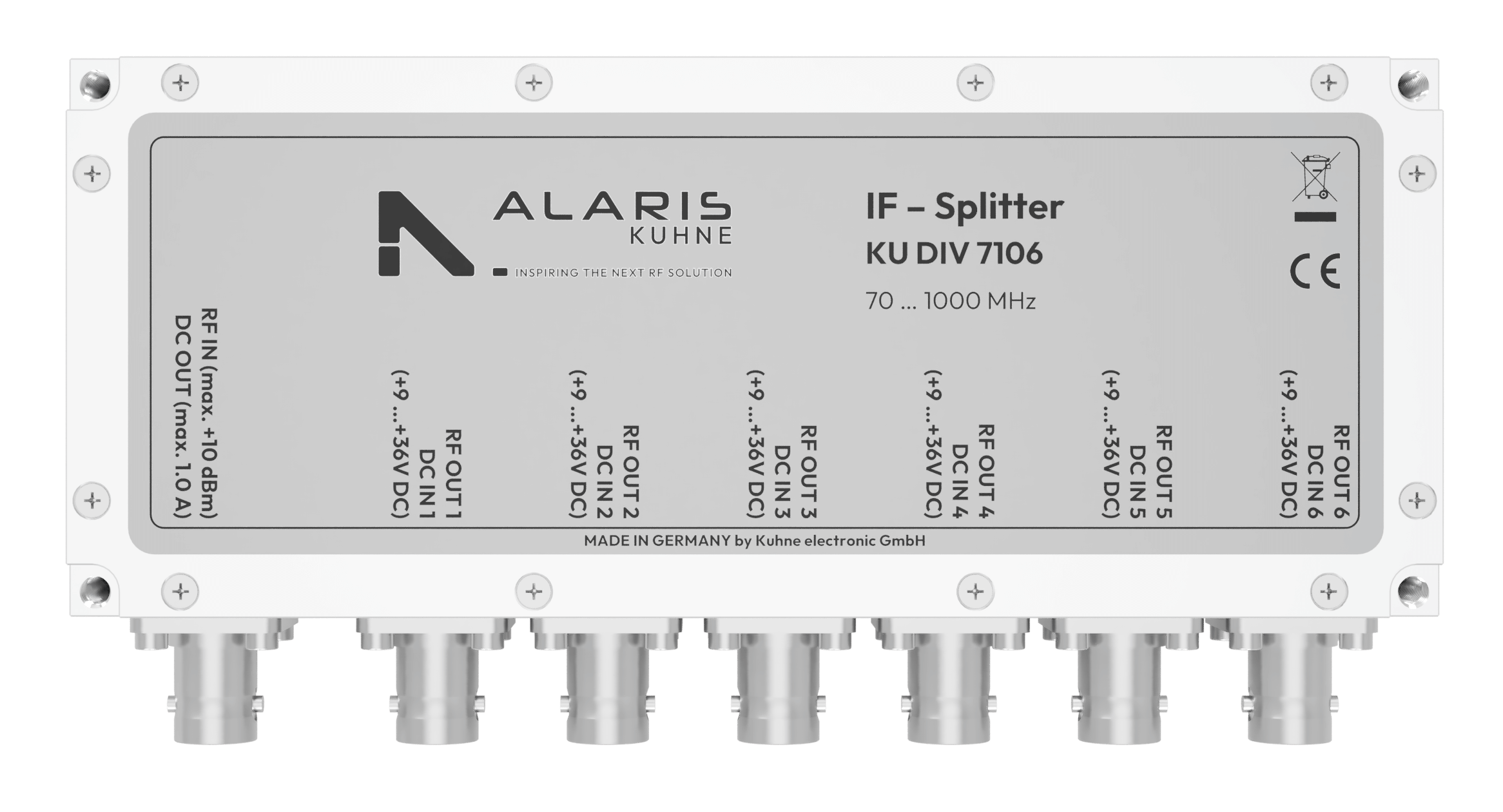

KU 7106 Active Power Splitter	70	1,000	70 1,000	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

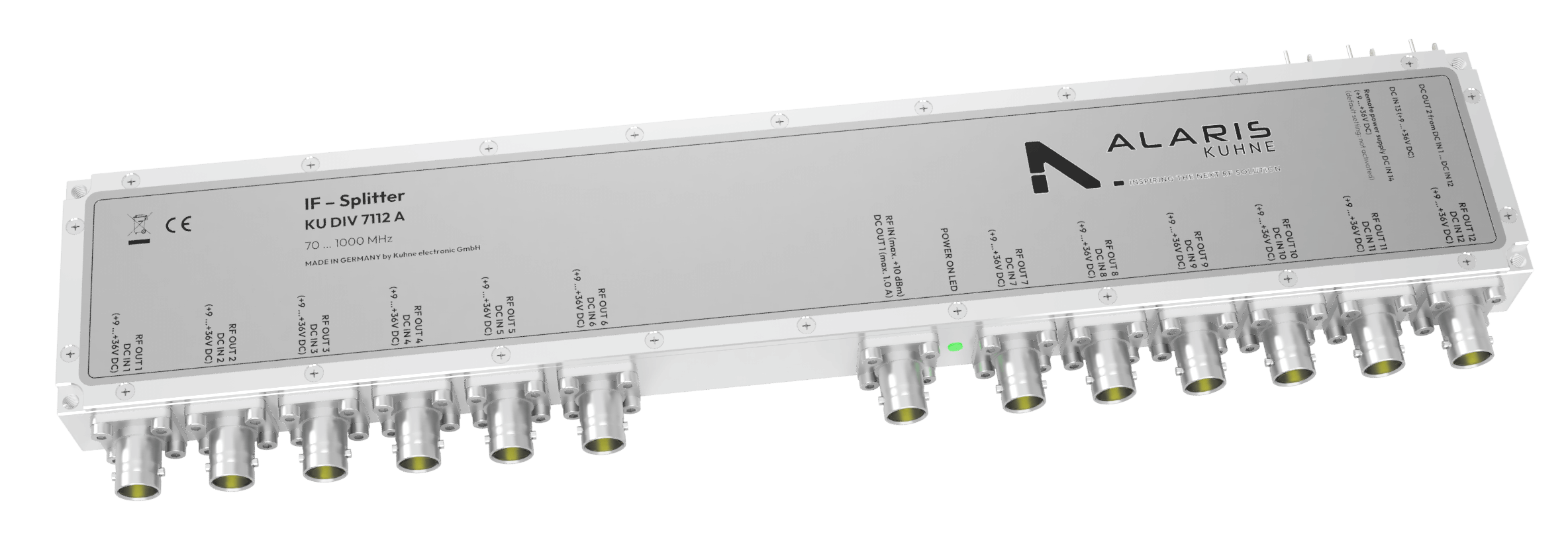

KU DIV 7112 A / B Active Power Splitter	70	1,000	70 1,000	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
KU HS LA10-150-KIT Cooling Kit	N/A	N/A	0 0	N/A	N/A	3,500	N/A	N/A	24	N/A	N/A	0.40

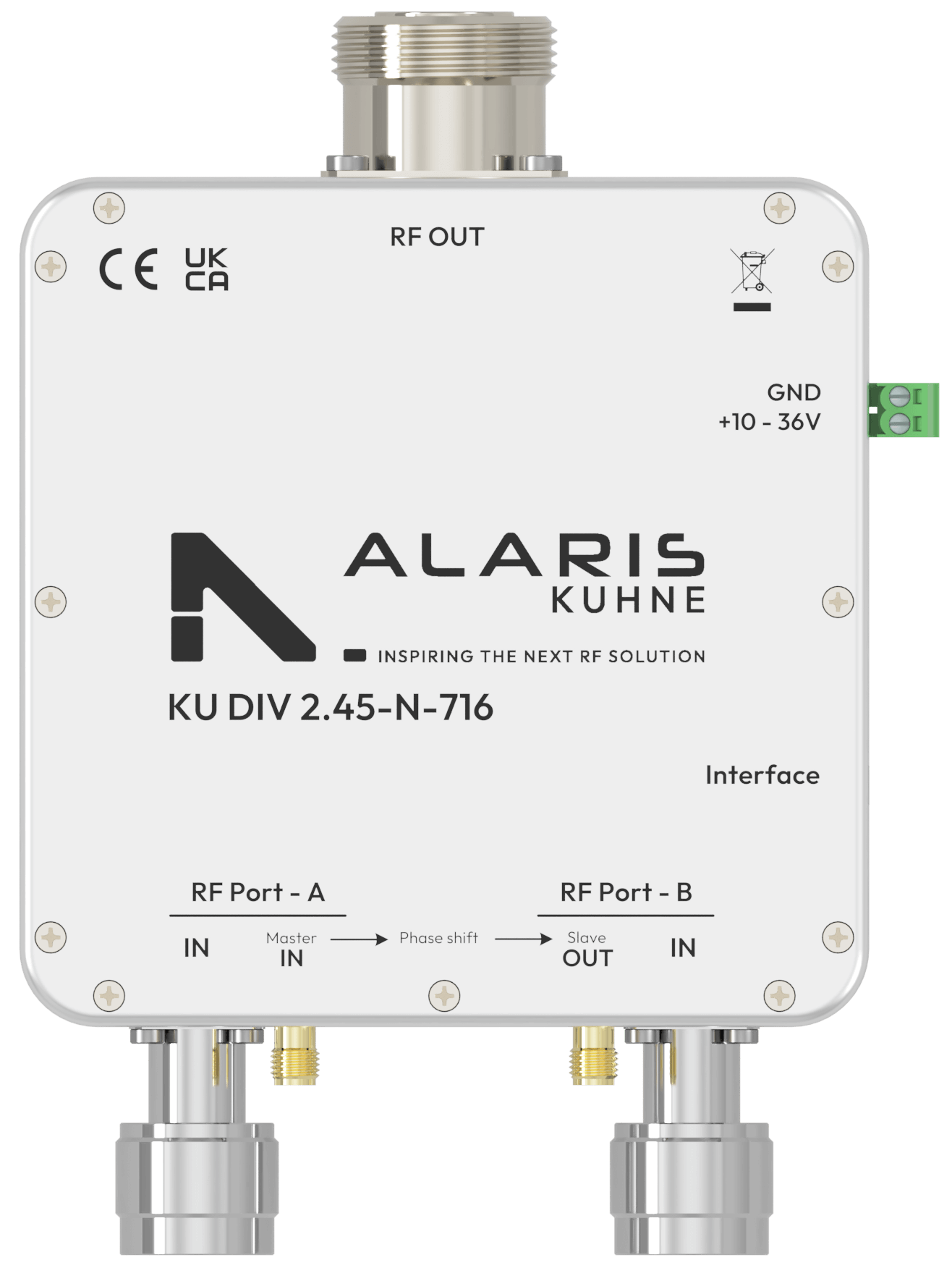

KU DIV 2.45 - N - 716 Power Combiner Kit 850 W	2,400	2,500	2,400 2,500	N/A	N/A	1,150	N/A	N/A	N/A	7/16 DIN	29.03	N/A

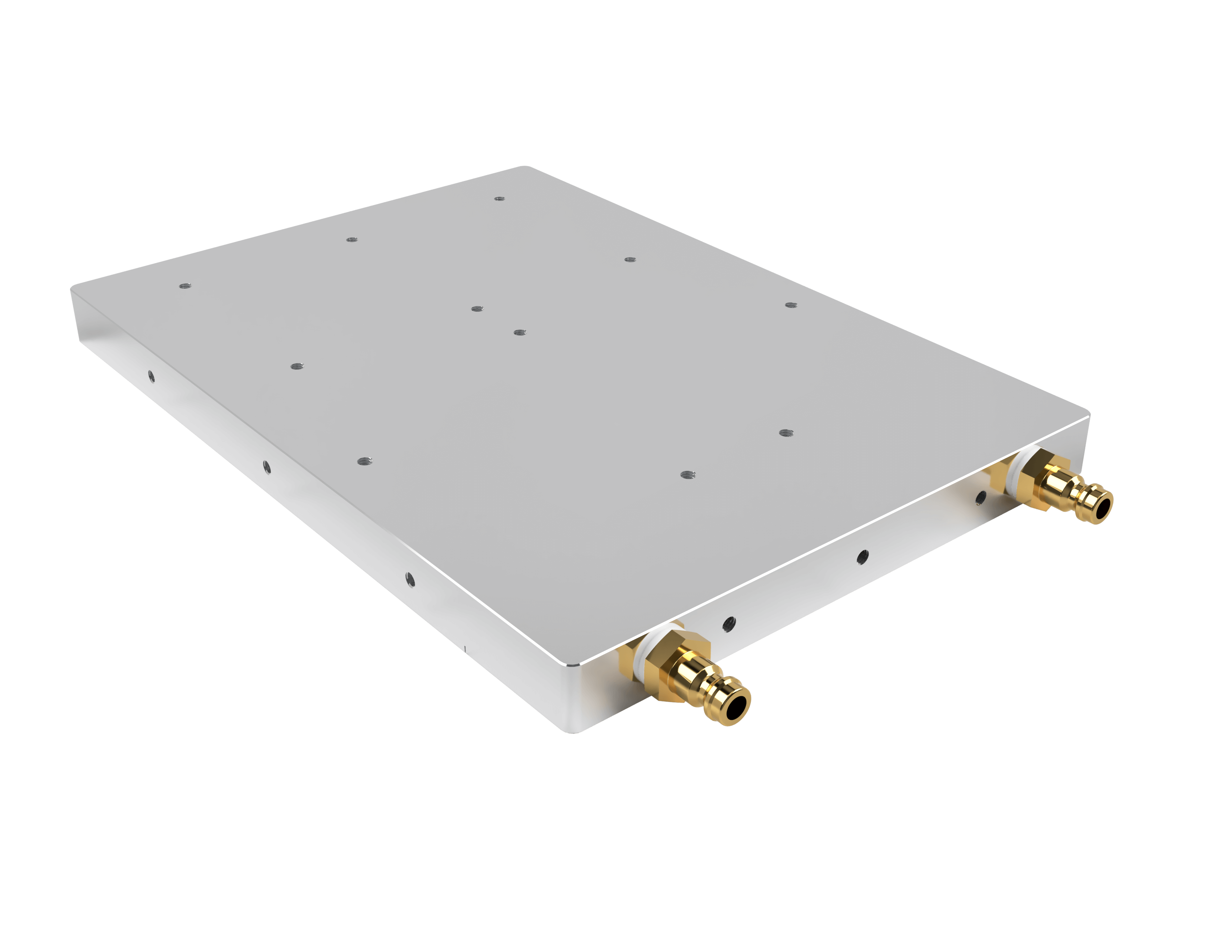

WK 22-16 Liquid Cooling Heatsink	N/A	N/A	0 0	N/A	N/A	1,150	223	N/A	N/A	N/A	N/A	N/A

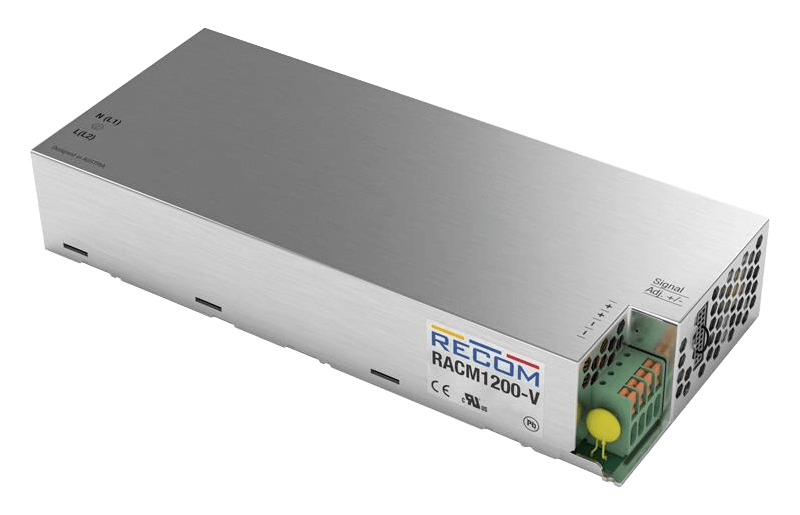

RACM120036SAVENC Power Supply 32V DC 40A	N/A	N/A	0 0	N/A	N/A	N/A	303	N/A	36	N/A	N/A	N/A
RSP 500 W 27 Power Supply 27V DC	N/A	N/A	0 0	N/A	N/A	N/A	230	N/A	27	N/A	N/A	N/A
RSP 150 W 27 Power Supply 27V DC	N/A	N/A	0 0	N/A	N/A	N/A	199	N/A	27	N/A	N/A	N/A
RSP 150 W 12 Power Supply 12V DC	N/A	N/A	0 0	N/A	N/A	N/A	199	N/A	27	N/A	N/A	N/A
RSP 150 W 24 Power Supply 24V DC	N/A	N/A	0 0	N/A	N/A	N/A	199	N/A	24	N/A	N/A	N/A
RSP 1500 W 27 Power Supply 27V DC	N/A	N/A	0 0	N/A	N/A	N/A	278	N/A	27	N/A	N/A	N/A
RSP 320 W 27 Power Supply 27V DC	N/A	N/A	0 0	N/A	N/A	N/A	215	N/A	N/A	N/A	N/A	N/A
RSP 2400 W 48 Power Supply 48V DC	N/A	N/A	0 0	N/A	N/A	N/A	278	N/A	48	N/A	N/A	N/A
HRPG-600-36 Power Supply 36V DC	N/A	N/A	0 0	N/A	N/A	N/A	218	N/A	36	N/A	N/A	N/A
RS 25 W 24 Power Supply 24V DC	N/A	N/A	0 0	N/A	N/A	N/A	78	N/A	N/A	N/A	N/A	N/A
RS 50 W 24 Power Supply 24V DC	N/A	N/A	0 0	N/A	N/A	N/A	99	N/A	N/A	N/A	N/A	N/A
USB to TTL USB to TTL level serial UART converter cable	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
RSP 200 W 12 Power Supply 12V DC	N/A	N/A	0 0	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A

KU PA 200240 - 80 LIN

LDMOS Power Amplifier, 2000 ... 2400 MHz, 8 W COFDM Linear S-Band Power Amplifier

Frequency range: 2000..2400 MHz
Output power COFDM (1): typ. 10 W, min. 8 W
Gain flatness (small signal): typ. +/- 1 dB
Harmonic rejection: typ. 60 dB @ 40 dBm

KU PA BB 070270 - 80 B

Wideband Power Amplifier, 600 to 2700 MHz, 80 W

Frequency range: 600..2700 MHz
Output power: min. 49 dBm
Gain (small signal): min. 52 dB
ON voltage: +5 V DC

KU LNA BB 0011000 - AA

Low Noise Broadband Amplifier, 10 ... 10000 MHz

Frequency range: 10..10000 MHz
Noise figure @ 18 °C: typ. 2.3 dB, max. 4.5 dB (200 MHz ... 10 GHz)
Gain: typ. 24 dB (10 MHz ... 8 GHz)
Gain flatness: typ. +/- 1 dB (10 MHz ... 8 GHz)

KU LNC 2227 B PRO

Down Converter, 2200 ... 2700 MHz

Frequency range: 2200..2700 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF), 367..867 MHz: 367..867 MHz
Noise figure @ 18 ¬∞C, typ. 1.0 dB, max. 1.3 dB: typ. 1.0 dB, max. 1.3 dB

KU PA BB 010600 – 15 A

Wideband Power Amplifier, 100 ... 6000 MHz, 15 W

Frequency range: 100 … 6000 MHz
Input power for 3 P3dB: typ. 3 dBm, max. 5 dBm
Output power Psat 0.1-1.0 GHz: 15 W typ. @ 0-5 dBm input power
Output power Psat 1.0-3.0 GHz: 10 W typ. @ 0-5 dBm input power

KU LNA BB 0012650 A

Low Noise Amplifier, 10 ... 26500 MHz

Frequency range: 10..26500 MHz
Noise figure @ 18°C: min. 2 dB, max. 7 dB
Gain @ 25°C: min. 25 dB, typ. 30 dB
Output power (P1dB): min. 10 dBm

KU LNA 500590 A

Low Noise Amplifier, 5000 ... 5900 MHz

Frequency range: 5000..5900 MHz
Noise figure @ 18°C: typ. 1.5 dB, max. 1.8 dB
Gain @ 25°C: typ. 27 dB, min. 26 dB
Output power (P1dB): typ. 19 dBm

KU SG 2.45 - 250 D

Microwave Power Generator 250 W

Frequency range: 2400 ... 2500 MHz
Output power: 0 ... 250 W
Frequency accuracy: +/- 3 ppm
Power steps: 1 Watt

KU SG 2.45 - 450 A

High Power Microwave Generator 450 W

Frequency range: 2400 ... 2500 MHz
Output power: 0 ... 450 W
Frequency accuracy: +/- 3 ppm
Power steps: 1 Watt

MKU LO 8-13 PLL-2

Oscillator, 54 ... 13600 MHz

Output power: typ. 13 dBm
LO accuracy @ 18°C: +/- 1 ppm
LO frequency stability (0..40°C): +/- 1 ppm
Supply voltage: +12 ... +14 V DC

KU LNA 200250 A - SMA

Super Low Noise Pre-Amplifier

Frequency range: 2000..2500 MHz
Noise figure @ 18 °C: typ. 0.35 dB
Gain: typ. 53 dB in high-gain mode
Gain flatness: typ. +/- 3 dB in high-gain mode

KU LNA BB 0011000 - AB

Low Noise Broadband Amplifier, 10 ... 10000 MHz

Frequency range: 10..10000 MHz
Noise figure @ 18 °C: typ. 2.3 dB, max. 4.5 dB (200 MHz ... 10 GHz)
Gain: typ. 24 dB (10 MHz ... 8 GHz)
Gain flatness: typ. +/- 1 dB (10 MHz ... 8 GHz)

KU LNA BB 0011000 - BA

Broadband preamplifier, 10 ... 10000 MHz

Frequency range: 10..10000 MHz
Noise figure @ 18 °C: typ. 2.3 dB, max. 4.5 dB (200 MHz ... 10 GHz)
Gain: typ. 14 dB (10 MHz ... 8 GHz)
Gain flatness: typ. +/- 1 dB (10 MHz ... 8 GHz)

KU LNA BB 050700 B

Broadband Low Noise Amplifier, 500 ... 7000 MHz

Frequency range: 500..7000 MHz
Noise figure @ 18 °C: typ. 1.6 dB, max. 2 dB @ 7 GHz
Gain: typ. 21 dB, min. 18 dB @ 7 GHz
Gain flatness: max. +/- 2 dB

KU LNA BB 17002650 A

Broadband Amplifier, 17000 ... 26500 MHz

Frequency range: 17000..26500 MHz
Noise figure @ 18 °C: 2,8..3 dB (17000...24000 MHz)
Gain: typ. 23 dB
Maximum input power: 1 mW

KU LNC 6875 C PRO

Down Converter, 6800 ... 7500 MHz

Frequency range: 6800..7500 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 200..900 MHz
Noise figure @ 18 C: typ. 1.5 dB, max. 1.8 dB

KU PA 200270 - 10 A

GaN-HEMT Power Amplifier,

Frequency range: 2000..2700 MHz
Maximum input power: +30 dBm
Output power P3dB: 40 dBm (min.) (CW)
Gain (small signal): 47.5 dB (typ.)

KU PA 200270 - 10 B

GaN-HEMT Power Amplifier,

Frequency range: 2000..2700 MHz
Maximum input power: +30 dBm
Output power P3dB: 40 dBm (min.) (CW)
Gain (small signal): 47.5 dB (typ.)

KU PA 440500 - 25 B

Linear Power Amplifier, 4400 ... 5000 MHz, 25 W

Frequency range: 4400..5000 MHz
Output power P1dB: min. 44 dBm (CW)
Output power COFDM (1): typ. 40 dBm
Gain (small signal): typ. 46 dB, min. 42 dB

KU LNC 172212 C PRO

Down Converter, 17200 ... 21200 MHz

Frequency range (RF): 17200..21200 MHz
Noise figure @ 18°C: typ. 2.5 dB, max. 3.0 dB
Gain @ 25°C: typ. 55 dB
Output IP3: 20 dBm

KU PA 190250 - 80 LIN

LDMOS Power Amplifier, 1900 ... 2500 MHz, 10 W COFDM Linear S-Band Power Amplifier

Frequency range: 1900 … 2500 MHz
Input power normal operation: +5 … 10 dBm
Input power maximum: +10 dBm
Output power COFDM: typ. 40 dBm / typ. 10 W

KU LNC 8595 C PRO2

Down Converter, 8500 ... 9500 MHz

Frequency range (RF): 8500 ... 9500 MHz
Noise figure @ 18 °C: typ. 1.0 dB, max. 1.2 dB
Gain (switchable high gain mode): min. 47 dB, typ. 50 dB
Gain (switchable low gain mode): min. 35 dB, typ. 37 dB

KU PA 8001400-2A

RF Power Amplifier, 8000 ... 14000 MHz, 2 W

Frequency range: 8000 … 14000 MHz
Input power Max.: +20 dBm
Output power P1dB (CW): min. 31.7 dBm; typ. 33 dBm
Output power COFDM: typ. 27 dBm / typ. 0.5 W

KU PA 440500 - 40 LIN

GaN Power Amplifier, 4400 ... 5000 MHz, 4 ... 5 W COFDM Linear C-Band Power Amplifier

Frequency range: 4400 … 5000 MHz
Output power COFDM (1): typ. 5 W, min. 4 W
Automatic level control (ALC): yes (adjustable ALC)
Gain flatness (small signal): typ. +/- 1 dB

KU BT 6000 N

Bias Tee, 10 ... 6000 MHz

Frequency range: 10..6000 MHz
Insertion loss: max. 1 dB
Isolation (RF-DC): typ. 30 dB
Voltage range: 0..30 V DC

KU LNA 750850 A WG

Low Noise Amplifier, 7500 ... 8500 MHz

Frequency range: 7500..8500 MHz
Gain @ 25°C: typ. 65 dB
Output power (P1dB): typ. 13 dBm, min. 10 dBm
Output IP3: typ. 20 dBm, min. 17 dBm

KU LNA 700900 A WG

Low Noise Amplifier, 7000 ... 9000 MHz

Frequency range: 7000..9000 MHz
Gain @ 25°C: typ. 63 dB
Output power (P1dB): typ. 13 dBm, min. 10 dBm
Output IP3: typ. 20 dBm, min. 17 dBm

KU LNA BB 2227 A

Low Noise Broadband Amplifier, 2200 ... 2700 MHz

Frequency range: 2200..2700 MHz
Noise figure @ 18°C: typ. 0.9 dB, max. 1.2 dB
Gain @ 25°C: min. 25 dB
Output IP3: typ. 33 dBm

KU LNA BB 3000 A

Low Noise Broadband Amplifier, 10 ... 3000 MHz

Frequency range: 10..3000 MHz
Noise figure @ 18°C: typ. 1.5 dB, max. 2.5 dB
Gain @ 25°C: typ. 30 dB, min. 25 dB
Output IP3: typ. 30 dBm, min. 26 dBm

KU LNC 127132 C PRO

Down Converter, 12700 ... 13200 MHz

Frequency range: 12750..13250 MHz
Noise figure @ 18°C: typ. 1.9 dB, max. 2.4 dB
Gain @ 25°C: typ. 42 dB
Output IP3: 22 dBm

KU LNC 2027 C PRO2

Down Converter, 2000 ... 2700 MHz

Frequency range: 2000..2700 MHz
Noise figure @ 18°C: typ. 0.8 dB, max. 1.0 dB
Gain @ 25°C: typ. 35 dB / 24 dB
Output IP3: 25 dBm

KU LNC 4450 C PRO

Down Converter, 4400 … 5000 MHz

Frequency range: 4400..5000 MHz
Noise figure @ 18°C: typ. 1.9 dB, max. 2.2 dB
Gain @ 25°C: typ. 28 dB
Output IP3: 23 dBm

KU LNC 5560 C PRO

Down Converter, 5500 ... 6000 MHz

Frequency range: 5500..6000 MHz
Noise figure @ 18°C: typ. 1.5 dB, max. 2.0 dB
Gain @ 25°C: typ. 35 dB
Output IP3: 25 dBm

KU LNC 8085 C PRO2

Down Converter, 8000 ... 8500 MHz

Frequency range: 8000..8500 MHz
Noise figure @ 18°C: typ. 0.8 dB, max. 1.0 dB
Gain @ 25°C: typ. 50 dB / 37 dB
Output IP3: 20 dBm

KU PA 125160 - 45 A

LDMOS Power Amplifier, 1250 ... 1600 MHz, 45 W

Frequency range: 1250..1600 MHz
Gain flatness (small signal): typ. +/- 2 dB
Harmonic rejection: typ. 40 dB @ 46.5 dBm
IM3: typ. 45 dBc @ 44 dBm PEP

KU PA BB 003350 - 15 B

Wideband Power Amplifier, 30 ... 3500 MHz, 15 W

Frequency range: 30..3500 MHz
Gain (small signal): min. 45 dB
Harmonic rejection: min. 12 dB
IM3: min. 12 dBc @ 41.7 dBm PEP

KU PA BB 003055 - 100 B

Wideband Power Amplifier, 30 ... 550 MHz, 100 W

Frequency range: 30..550 MHz
Output power: min. 50 dBm (sat)
Gain (small signal): min. 49 dB
ON voltage: +9 … 14 V DC

KU BDA 230250 - 25 A

Bi-Directional Amplifier, 2300 ... 2500 MHz, 37 dBm COFDM

Frequency range: 2300..2500 MHz
Switching time RX/TX: typ. 600 ns max. 1 us
Output power P1dB: typ. 44 dBm min. 43 dBm
Input power for P1dB: typ. 20 dBm

KU BDA 240250 - 25A

Bi-Directional Amplifier, 2400 ... 2500 MHz, 37 dBm COFDM

Frequency range: 2400..2500 MHz
Switching time RX/TX: typ. 600 ns, max. 1 us
Output power P1dB: typ. 44 dBm, min. 43 dBm
Input power for P1dB: typ. 20 dBm

KU BT 6000 SMA

Bias Tee, 10 ... 6000 MHz

Frequency range: 10..6000 MHz
Insertion loss: max. 1 dB
Isolation (RF-DC): 30 dB (typ.)
Voltage range: 0..30 V DC

KU LNA 10001100 A

Super Low Noise Preamplifier, 10000 ... 11000 MHz

Frequency range: 10000..11000 MHz
Noise figure @ 18 °C: typ. 0.7 dB, max. 0.8 dB
Gain: min. 22 dB
Maximum input power: 1 mW

KU LNA 1090 - 2 A TM

Selective Low Noise Amplifier, 1070 ... 1110 MHz

Frequency range: 1070..1110 MHz
Noise figure @ 18 °C: typ. 0.5 dB, max. 0.6 dB NF
Gain: min. 30 dB
Maximum input power: 1 mW

KU LNA 133 BH

Super Low Noise Amplifier, 1200 ... 1400 MHz

Frequency range: 1200..1400 MHz
Noise figure @ 18 °C: typ. 0.7 dB, max. 0.8 dB
Gain: min. 30 dB
Maximum input power: 1 mW

KU LNA 142 AH

Super Low Noise Preamplifier, 1350 ... 1450 MHz

Frequency range: 1350..1450 MHz
Noise figure @ 18 °C: 0.4 dB +/- 0,05
Gain, typ. 33 dB: typ. 33 dB
Maximum input power, 1 mW: 1 mW

KU LNA 152 AH

Super Low Noise Amplifier, 1520 ... 1560 MHz

Frequency range: 1520..1560 MHz
Noise figure @ 18 °C: max. 0.4 dB
Gain, typ. 33 dB: typ. 33 dB
Maximum input power, 1 mW: 1 mW

KU LNA 163 BH

Super low noise preamplifier, 1500 ... 1700 MHz

Frequency range: 1500..1700 MHz
Noise figure @ 18 °C: typ. 0.7 dB, max. 0.8 dB
Gain, min. 31 dB: min. 31 dB
Maximum input power, 1 mW: 1 mW

KU LNA 163 BH - TM

Super low noise preamplifier, 1500 ... 1700 MHz

Frequency range: 1500..1700 MHz
Noise figure @ 18 °C: typ. 0.7 dB, max. 0.8 dB
Gain: min. 31 dB
Maximum input power: 1 mW

KU LNA 183 BH

Super Low Noise Amplifier, 1600 ... 1900 MHz

Frequency range: 1600..1900 MHz
Noise figure @ 18 °C: typ. 0.6 dB, max. 0.7 dB
Gain, min. 29 dB: min. 29 dB
Maximum input power, 1 mW: 1 mW

KU LNA 220240 A

Super Low Noise Amplifier, 2200 ... 2400 MHz

Frequency range: 2200..2400 MHz
Noise figure @ 18 °C: typ. 0.4 dB, max. 0.5 dB
Gain: typ. 58 dB (+/-2 dB)
Maximum input power: 1 mW

KU LNA 222 AH

Super Low Noise Amplifier, 2200 ... 2400 MHz

Frequency range: 2200..2400 MHz
Noise figure @ 18 °C: typ. 0.5 dB, max. 0.6 dB NF
Gain, typ. 30 dB: typ. 30 dB
Maximum input power, 1 mW: 1 mW

KU LNA 24002600 A

Super Low Noise Amplifier, 24000 ... 26000 MHz

Frequency range: 24000..26000 MHz
Noise figure @ 18 °C: typ. 2.5 dB NF, max. 2.8 dB NF
Gain, typ. 23 dB, min. 22 dB: typ. 23 dB, min. 22 dB
Maximum input power, 1 mW: 1 mW

KU LNA 3436 C

Super Low Noise Amplifier, 3400 ... 3600 MHz

Frequency range: 3400..3600 MHz
Noise figure @ 18 °C: typ. 0.7 dB, max. 0.8 dB
Gain, typ. 24 dB: typ. 24 dB
Maximum input power, 1 mW: 1 mW

KU LNA 4450 A

Super Low Noise Amplifier, 4400 ... 5000 MHz

Frequency range: 4400..5000 MHz
Noise figure @ 18 °C: typ. 0.8 dB, max. 0.9 dB NF
Gain, min. 24 dB: min. 24 dB
Maximum input power, 1 mW: 1 mW

KU LNA 4450 A - TM

Super Low Noise Amplifier, 4400 ... 5000 MHz

Frequency range: 4400..5000 MHz
Noise figure @ 18 °C: typ. 0.8 dB, max. 0.9 dB NF
Gain, min. 24 dB: min. 24 dB
Maximum input power, 1 mW: 1 mW

KU LNA 4450 B

Super Low Noise Amplifier, 4400 ... 5000 MHz

Frequency range: 4400..5000 MHz
Noise figure @ 18 °C: typ. 1,0 dB
Gain, typ. 28 dB: typ. 28 dB
Maximum input power, 1 mW: 1 mW

KU LNA 640700 A

Low Noise Broadband Amplifier, 6400 ... 7000 MHz

Frequency range: 6400..7000 MHz
Noise figure @ 18 °C: typ. 0.8 dB
Gain, min. 30 dB: min. 30 dB
Maximum input power, 1 mW: 1 mW

KU LNA 8000 B

Super Low Noise Amplifier, 8000 ... 8450 MHz

Frequency range: 8000..8450 MHz
Noise figure @ 18 °C: typ. 0.8 dB
Gain, min. 28 dB: min. 28 dB
Maximum input power, 1 mW: 1 mW

KU LNA 8000 B WG

Super Low Noise Amplifier, 8000 ... 8450 MHz

Frequency range: 8000..8450 MHz
Noise figure @ 18 C: typ. 0.8 dB
Gain, typ. 32 dB: typ. 32 dB
Maximum input power, 1 mW: 1 mW

KU LNA BB 0112 A

Low Noise Broadband Amp., 100 ... 12000 MHz

Frequency range: 100..12000 MHz
Noise figure @ 18 °C: typ. 6 dB
Gain: typ. 20 dB
Maximum input power: 1 mW

KU LNA BB 050700 A

Broadband Low Noise Amplifier, 500 ... 7000 MHz

Frequency range: 500..7000 MHz
Noise figure @ 18 °C: typ. 1.5 dB, max. 1.9 dB
Gain: typ. 40 dB, min. 37 dB
Gain flatness: max. +/- 2 dB

KU LNA BB 0515 - 4 A SMA

Broadband Amplifier, 5 ... 1500 MHz

Frequency range: 5..1500 MHz
Noise figure @ 18 °C: typ. 1.2 dB, max. 2.0 dB
Gain: min. 20 dB, typ. 22 dB
Maximum input power: 12 dBm

KU LNA BB 0515 - 4 B N

Broadband Amplifier, 5 ... 1500 MHz

Frequency range: 5..1500 MHz
Noise figure @ 18 °C: typ. 1.2 dB, max. 2.0 dB
Gain: min. 20 dB, typ. 22 dB
Maximum input power: 12 dBm

KU LNA BB 0515 - 4 B N - TM

Broadband Amplifier, 5 ... 1500 MHz

Frequency range: 5..1500 MHz
Noise figure @ 18 °C: typ. 1.2 dB, max 2.0 dB NF (30 ... 1500 MHz)
Gain: typ. 20 dB, min. 18 dB
Maximum input power: 10 mW

KU LNA BB 1018 A

Low Noise Broadband Amplifier, 100 ... 180 MHz

Frequency range: 100..180 MHz
Noise figure @ 18 °C: typ. 1.0 dB, max. 1.3 dB NF
Gain: min. 20 dB
Gain flatness: max. +/- 2 dB

KU LNA BB 1020 A

Low Noise Broadband Amplifier, 1000 ... 2000 MHz

Frequency range: 1000..2000 MHz
Noise figure @ 18 °C: typ. 0.8 dB, max. 1.0 dB NF
Gain: min. 28 dB
Maximum input power: 10 mW

KU LNA BB 1522 A

Low Noise Broadband Amplifier, 1500 ... 2200 MHz

Frequency range: 1500..2200 MHz
Noise figure @ 18 °C: typ. 0.8 dB, max. 1.0 dB NF
Gain: min. 27 dB
Maximum input power: 5 mW

KU LNA BB 202 A

Low Noise Broadband Preamplifier, 100 ... 20000 MHz

Frequency range: 100..20000 MHz
Noise figure @ 18 °C: typ. 3.5 dB, max 5.5 dB
Gain: 25 ... 28 dB
Gain flatness: max. +/- 3 dB

KU LNA BB 2240 A

Low Noise Broadband Preamplifier, 225 ... 400 MHz

Frequency range: 225..400 MHz
Noise figure @ 18 °C: typ. 1.1 dB, max. 1.5 dB
Gain: typ. 20 dB
Gain flatness: max. +/- 2.5 dB

KU LNA BB 2533 A

Low Noise Broadband Amplifier,

Frequency range: 2500..3300 MHz
Noise figure @ 18 °C: typ. 1.2 dB, max. 1.3 dB
Gain: typ. 33 dB, min. 31 dB
Maximum input power: 2 mW

KU LNA BB 3000 C - N

Low Noise Broadband Amplifier, 10 ... 3000 MHz

Frequency range: 10..3000 MHz
Noise figure @ 18 °C: typ. 1.5 dB, max 2.5 dB
Gain: 25 ... 30 dB
Maximum input power: 1 mW

KU LNA BB 3000 N - TM

Low Noise Broadband Amplifier, 10 ... 3000 MHz

Frequency range: 10..3000 MHz
Noise figure @ 18 °C: typ. 1.5 dB, max 2.5 dB
Gain: 25 ... 30 dB
Maximum input power: 1 mW

KU LNA BB 3050 B

Low Noise Broadband Amplifier, 350 ... 500 MHz

Frequency range: 350..500 MHz
Noise figure @ 18 °C: typ. 1.2 dB, max. 1.3 dB NF
Gain: typ. 24 dB, min. 20 dB
Gain flatness: max. +/- 1.5 dB

KU LNA BB 8001200A

Broadband Low Noise Amplifier, 8000 ... 12000 MHz

Frequency range: 8000..12000 MHz
Noise figure @ 18 °C: typ. 3 dB, max. 4 dB.
Gain: typ. 30 dB
Gain flatness: typ. +/- 2 dB

KU LNA BB 8001240A

Broadband Low Noise Amplifier, 8000 ... 12400 MHz

Frequency range: 8000..12400 MHz
Noise figure @ 18 °C: typ. 2.5 dB, max. 4 dB
Gain: typ. 34 dB
Gain flatness: 4,5 dB (+/-)

KU LNC 1215 C PRO

Down Converter, 1200 ... 1500 MHz

Frequency range: 1200..1500 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 200..500 MHz
Noise figure @ 18 C: typ. 0.5 dB, max. 1.0 dB

KU LNC 1719 C PRO

Down Converter, 1700 ... 1900 MHz

Frequency range: 1700..1900 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 200..500 MHz
Noise figure @ 18 degrees C: typ. 0,5 dB, max. 1,0 dB

KU LNC 2027 B PRO

Down Converter, 2000 ... 2700 MHz

Frequency range: 2000..2700 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF), 167..867 MHz: 167..867 MHz
Noise figure @ 18 C, typ. 1.0 dB, max. 1.3 dB: typ. 1.0 dB, max. 1.3 dB

KU LNC 2229 C PRO2

Down Converter, 2200 ... 2900 MHz

Frequency range: 2200..2900 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 160..860 MHz
Noise figure @ 18 degrees C: typ. 1.0 dB, max. 1.3 dB

KU LNC 3239 C PRO

Down Converter, 3200 ... 3900 MHz

Frequency range: 3200..3900 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 200..900 MHz
Noise figure @ 18 C: typ. 1.0 dB, max. 1.5 dB

KU LNC 5055 C PRO

Down Converter, 5000 ... 5500 MHz

Frequency range: 5000..5500 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 300..800 MHz
Noise figure @ 18 degrees C: typ. 1.7 dB, max. 2.0 dB

KU LNC 6471 C PRO

Down Converter, 6430 ... 7130 MHz

Frequency range: 6430..7130 MHz
Maximum input power: 1 mW (0dBm)
Frequency range (IF): 200..900 MHz
Noise figure @ 18 °C: typ. 1.5 dB, max. 1.8 dB

KU PA 013017 - 100 HY

RF Power Amplifier, 130 ... 170 MHz, 100 W

Frequency range: 130..170 MHz
Output power P1dB: 47 dBm, min. 44.8 dBm (CW)
Output power P3dB: 50 dBm (CW)
Gain (small signal): 40 dB, min. 35 dB

KU PA 014018 - 50 HY

RF Power Amplifier, 140 ... 180 MHz, 50 W

Frequency range: 140..180 MHz
Output power P3dB: typ. 47 dBm, min. 46.5 dBm
Gain (small signal): typ. 36 dB, min. 34 dB
Gain flatness (small signal): typ. +/- 3 dB

KU PA 040048 - 100 HY

UHF power amplifier,

Frequency range: 400..480 MHz
Output power P1dB: min. 44.7 dBm (CW)
Output power P3dB: typ. 50.4 dBm, min. 49.5 dBm (CW)
Gain (small signal): min. 34 dB

KU PA 040048 - 60 HY

UHF MOSFET-Power Amplifier, 400 ... 480 MHz, 60 W

Frequency range: 400..480 MHz
Output power P1dB: min. 43 dBm (CW)
Output power P3dB: min. 47.7 dBm (CW)
Gain (small signal): min. 34 dB

KU PA 040050 - 7 HY

MOSFET Power Amplifier, 400 ... 500 MHz, 7 W

Frequency range: 400..500 MHz
Output power P3dB: min. 38.4 dBm (CW) ; min. 7 W (CW)
Gain (small signal): min. 23 dB
Gain flatness (small signal): max. 5 dB

KU PA 070080 - 20 A

RF Power Amplifier, 770 ... 880 MHz, 20 W

Frequency range: 770..880 MHz
Output power P1dB: min. 43 dBm (CW)
Saturation power: min. 30 W
Output power COFDM (1): min. 37 dBm

KU PA 080090 - 08 A

GaAs-FET Power Amplifier, 800 ... 900 MHz

Frequency range: 800..900 MHz
Input power for P1dB: min. 14 dBm
Output power P1dB: typ. 29 dBm (CW) ; typ. 800 mW (CW)
Output power COFDM (Measured with QAM 64, single carrier, EVM: 2%): min. 23 dBm ; min. 200 mW

KU PA 12701540 - 2 A

RF Power Amplifier, 12700 ... 15400 MHz, 2 W

Frequency range: 12700..15400 MHz
Output power P1dB: min. 33 dBm ; min. 2 W
Output power COFDM (Measured with QAM 64, single carrier, EVM: 2%): typ. 26 dBm, min. 24.7 dBm ; typ. 400 mW, min. 300 mW
Gain (small signal): min. 22 dB

KU PA 135155 - 25 A

Power Amplifier, 1350 ... 1550 MHz, 25 W

Frequency range: 1350..1550 MHz
Input power for P1dB: typ. 25 dBm
Output power P1dB: min. 44 dBm (CW)
Gain (small signal): min. 21 dB

KU PA 140150 - 150 A

LDMOS RF Power Amplifier, 1400 ... 1500 MHz, 150 W

Frequency range: 1400..1500 MHz
Output power P1dB: typ. 51.7 dBm, min. 51.4 dBm (CW)
Output power P3dB: min. 52 dBm
Output power COFDM (1): typ. 45,4 dBm, min. 44,7 dBm

KU PA 155160 - 25 A

Power Amplifier, 1550 ... 1600 MHz, 25 W

Frequency range: 1550..1600 MHz
Output power P1dB: min. 44 dBm (CW)
Saturation power: min. 45,4 dBm
Output power COFDM (1): min. 37 dBm

KU PA 230250 - 20 A

GaAs-FET Power Amplifier, 2300 ... 2500 MHz, 20 W

Frequency range: 2300..2500 MHz
Output power P1dB: typ. 43.8 dBm, min. 43 dBm (CW) ; typ. 24 W, min. 20 W (CW)
Output power P3dB: min. 44 dBm (CW) ; min. 25 W (CW)
Output power COFDM: min. 38.4 dBm (1) ; min. 7 W (Measured with QAM 64, single carrier, EVM: 2%)

KU PA 270330 - 10 A

Power amplifier, 2700 ... 3300 MHz, 10W

Frequency range: 2700..3300 MHz
Maximum input power: +10 dBm
Output power P3dB: min. 40 dBm (CW)
Gain (small signal): typ. 40 dB, min. 37 dB

KU PA 330360 - 140 A

MOSFET Power Amplifier, 3300 ... 3600 MHz, 140 W

Frequency range: 3300..3600 MHz
Output power P1dB: min. 51.4 dBm, min. 140 W
Gain (small signal): typ. 11 dB
Gain flatness (small signal): typ. +/- 1 dB

KU PA 330360 - 16 A

MOSFET-Power Amplifier, 3300 ... 3600 MHz, 16 W

Frequency range: 3300..3600 MHz
Output power P1dB: min. 42 dBm
Output power P3dB: min. 44.1 dBm (CW)
Output power COFDM (1): typ. 39 dBm, min. 37.7 dBm

KU PA 330360 - 40 LIN

LDMOS Power Amplifier, 3300 ... 3600 MHz, 4 ... 5 W COFDM Linear S-Band Power Amplifier

Frequency range: 3300..3600 MHz
Output power COFDM (1): typ. 5 W, min. 4 W
Automatic level control (ALC): yes (adjustable ALC)
Gain flatness (small signal): typ. +/- 1 dB

KU PA 340360 - 13 A

Power Amplifier, 3400 ... 3600 MHz, 13 W

Frequency range: 3400..3600 MHz
Output power P1dB: typ. 41.1 dBm, min. 40.8 dBm
Output power P3dB: min. 42.3 dBm
Output power COFDM (1): typ. 34.7 dBm, min. 34 dBm

KU PA BB 005300 - 3 A

RF Broadband Power Amplifier, 50 ... 3000 MHz, 3 W

Frequency range: 50..3000 MHz
Output power P1dB: min. 34.7 dBm CW (50 ... 2000 MHz), min. 33 dBm CW (2000 ... 3000 MHz)
Output power COFDM: min. 30 dBm (50 ... 2500 MHz), min. 27 dBm (2500 ... 3000 MHz)
Gain (small signal): min. 30 dB

KU SG 1000 - 50 W

Microwave Power Generator 50 W

Frequency range: 10000 MHz
Output power: min. 50 W
Waveform: CW
Protection functions: VSWR (Isolator), Overtemperature

WK 18-07

Liquid Cooling Heatsink

Flow rate: 250 - 1.200 l/h
Operating Pressure: max. 4 bar
Dimensions: 180 x 71 x 18 mm
Coolant: H2O, Glycol/H2O, de-ionized water, oil, POA

WK 25-17

Liquid Cooling Heatsink

Flow rate: 250 ... 1200 l/h
Dimensions (mm): 250 x 170 x 14
Connection: NW5-G-18-AG quick release
Operation pressure: max. 2 bar

KU EDPU - 5.0

External Display Unit

Screen Resolution: 800 x 400 pixel
Screen Type: IPS-touchscreen (capacitive)
Power Supply: 10 ... 14 V
Current consumption: 150 mA

KU LS2 PWM

Fan Controller

PWM Frequency: typ. 18 kHz
Power Rating: max. 3.0 A
Supply voltage: +12 ... 28 V DC
Current consumption (standby): typ. 20 mA

KU SG 2.45 - 25 B

Microwave Power Generator 25 W

Frequency range: 2400 ... 2500 MHz
Output power: 0 ... 25 W
Frequency accuracy: +/- 3 ppm
Power steps: 0.1 Watt

KU PA BB 005250 - 2 A

RF Broadband Amplifier, 50 ... 2500 MHz, 2 W

Frequency range: 50..2500 MHz
Input power for P1dB: typ. +3 dBm
Maximum input power: +10 dBm
Output power P1dB: typ. 33 dBm, min. 32.5 dBm (CW)

SK 120 - 75

Heat Sink 150 x 75 x 40

K / W: 1.25
Material: Aluminium, black anodized
Dimensions (mm): 150 x 75 x 40
Weight: 470 g (typ.)

SK 150 - 62

Heat Sink 150 x 62 x 75

K / W: 0.21 at 5 m/s
Material: aluminium blank, flat milled base
Dimensions (mm): 150 x 62 x 75
Weight: 800 g (typ.)

SK 200 - 125

Heat Sink 200 x 125 x 75

K / W: 0.09 at 5 m/s
Material: aluminium blank, flat milled base
Dimensions (mm): 200 x 125 x 75
Weight: 2200 g (typ.)

SK 200 - 160

Heat Sink 200 x 160 x 85

K / W: 0.065 at 5 m/s
Material: aluminium blank, flat milled base
Dimensions (mm): 200 x 160 x 85
Weight: 3500 g (typ.)

SK 200 - 80

Heat Sink 200 x 80 x 85

K / W: 0.13 at 5 m/s
Material: aluminium blank, flat milled base
Dimensions (mm): 200 x 80 x 85
Weight: 1700 g (typ.)

SK 300 - 62

Heat Sink 300 x 62 x 75

K / W: 0.15 at 5 m/s
Material: aluminium blank, flat milled base
Dimensions (mm): 300 x 62 x 75
Weight: 1600 g (typ.)

SK 300-240

Heat Sink 300 x 240 x 80

K / W: 0.03 at 5 m/s
Material: aluminium blank, flat milled base
Dimensions (mm): 300 x 240 x 80
Weight: 8000 g (typ.)

FAN-60-60-12V

Fan 60 x 60, 12 V

Supply voltage: +12 V DC
Current consumption: typ. 0.15 A
Airflow: 40 m3/h
Noise: 34.5 dB

FAN-60-60-12V-HP

Fan 60 x 60, 12 V HP

Supply voltage: +12 V DC
Current consumption: typ. 0.47 A
Airflow: 63 m3/h
Noise: 44 dBA

FAN-60-60-24V-HP

Fan 60 x 60, 24 V HP

Supply voltage: +24 V DC
Current consumption: typ. 0.24 A
Airflow: 46,8 m3/h
Noise: 39 dBA

FAN-80-80-12V

Fan 80 x 80, 12 V

Supply voltage: +12 V DC
Current consumption: typ. 0.2 A
Airflow: 70 m3/h
Noise: 35 dBA

FAN-80-80-12V-HP

Fan 80 x 80, 12 V HP

Supply voltage: +12 V DC
Current consumption: typ. 0.35 A
Airflow: 90 m3/h
Noise: 40 dBA

FAN-80-80-24V-HP

Fan 80 x 80, 24V HP

Supply voltage: +24 V DC
Current consumption: typ. 0.2 A
Airflow: 90 m3/h
Noise: 40 dBA

FAN-120-120-12V

Fan 120 x 120, 12V

Supply voltage: +12 V DC
Current consumption: 0.8 A
Airflow: 234.4 m3/h
Noise: 48 dBA

FAN-120-120-12V-HP

Fan 120 x 120, 12 V HP

Supply voltage: +12 V DC
Current consumption: typ. 1.6 A
Airflow: 323 m3/h
Noise: 54 dBA

FAN-120-120-24V

Fan 120 x 120, 24 V

Supply voltage: +24 V DC
Current consumption: typ. 0.4 A
Airflow: 234.4 m3/h
Noise: 48 dBA

KU-SG-SUP-UNIT-B

KU SG Power Supply Unit Buffert 26A

Output Voltage: 32V DC
Output Current: 30A max.
Input Voltage: 80 – 264 VAC
Input Frequency: 47 – 63 Hz

KU PA 170220 - 30 B

RF Power Amplifer, 1700 ... 2200 MHz, 30 W

Frequency range: 1700..2200 MHz
Output power P1dB: min. 44.7 dBm (CW), min. 30 W (CW)
Output power COFDM (1): typ. 39 dBm, typ. 8 W
Gain (small signal): typ. 30 dB, min. 26 dB

RSP 320 W 12

Power Supply 12V DC

Rated power: 320.4 W
Rated current: 26.70 A
DC output voltage: 12 V DC (10 ... 13.2 V DC)
Efficiency: 0.88

KU PA 510590 - 10 A

RF Power Amplifier, 5100 ... 5900 MHz, 10 W

Frequency range: 5100..5900 MHz
Input power for P1dB: typ. +7 dBm
Maximum input power: +10 dBm
Output power P1dB: typ. 40 dBm, min. 39.5 dBm (CW) / typ. 10 W, min. 9 W (CW)

LNC-KABEL

LNC TTL level serial UART converter cable to USB

Length: 1 m
Voltage level: TTL 3V3
Connector Type: USB

KU UIB-B

KU UIB-B - User Interface Board B

Dimension (mm): 34 x 22 x 17 mm
Weight: 6 g

RS 25 W 12

Power Supply 12V DC

AC input voltage range: 85 ... 264 V AC (47 ... 63 Hz)
DC input voltage range: 173 ... 373 V DC
AC input current (at 230 V): 0.40 A
Efficiency: 0.815

KU PA 640720-10 A

GaAs Linear Power Amplifier 6400 .. 7200 MHz, 10W

Frequency range: 6400..7200 MHz
Input power for P1dB: typ. 3 dBm, max, 7 dBm
Maximum input power: +10 dBm
Output power P1dB: typ. 10 W, min. 8 W (CW)

KU LNC 5560 C PRO - N

Down Converter, 5500 ... 6000 MHz

Frequency range: 5500..6000 MHz
Noise figure @ 18°C: typ. 1.5 dB, max. 2.0 dB
Gain @ 25°C: typ. 35 dB
Output IP3: 25 dBm

KU LNC 3442 C PRO

Down Converter, 3400 … 4200 MHz

Frequency range (RF): 3400 … 4200 MHz
Noise figure @ 18°C: typ. 1.0 dB, max. 1.1 dB
Gain (switchable): typ. 37 dB (high gain), typ. 26 dB (low gain)
Output IP3: typ. +23 dBm (high gain), typ. +12 dBm (low gain)

KU PA 190250 - 30 A

LDMOS RF Power Amplifier, 1900 ... 2500 MHz

Frequency range: 1900 … 2500 MHz
Output power P1dB: min. 46 dBm (CW)
Output power P3dB: typ. 47 dBm (CW)
Output power COFDM: typ. 41 dBm

KU LNA BB 2001200 A

Broadband preamplifier, 2000 ... 12000 MHz

Frequency range: 2000..12000 MHz
Noise figure @ 18 °C: 2.0 ... 2.6 dB (2 - 8 GHz) 2.5 ... 3.0 dB (8 - 12 GHz)
Gain: typ. 30 dB, min. 28 dB
Maximum input power: 1 mW
